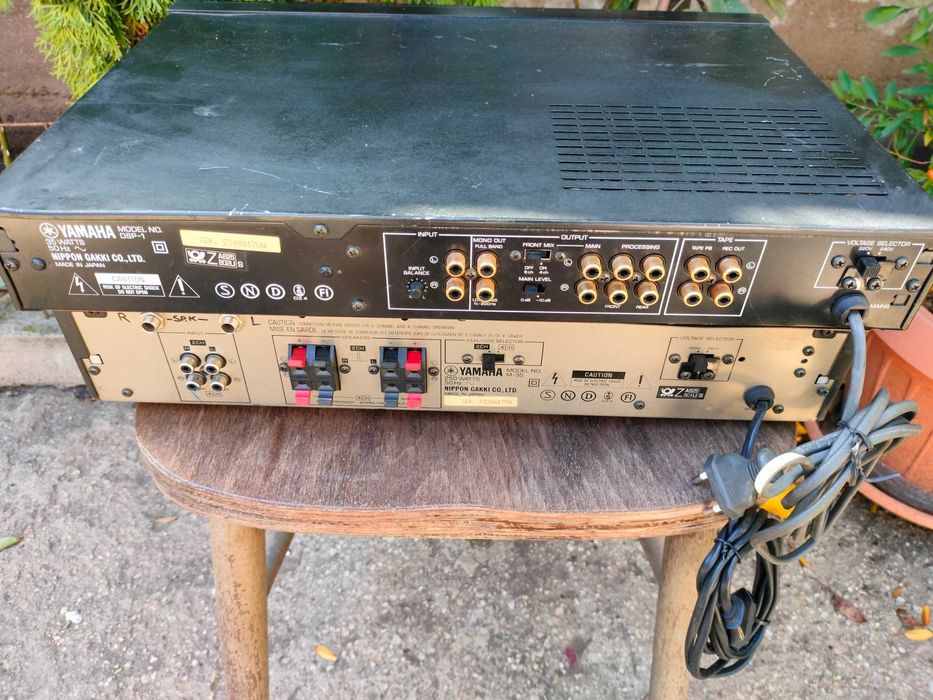

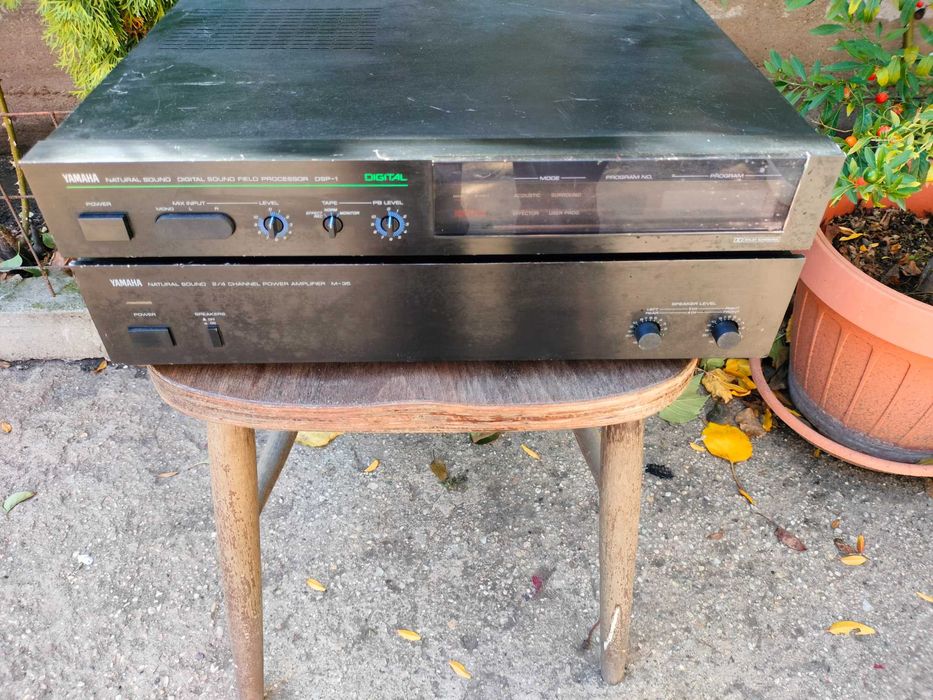

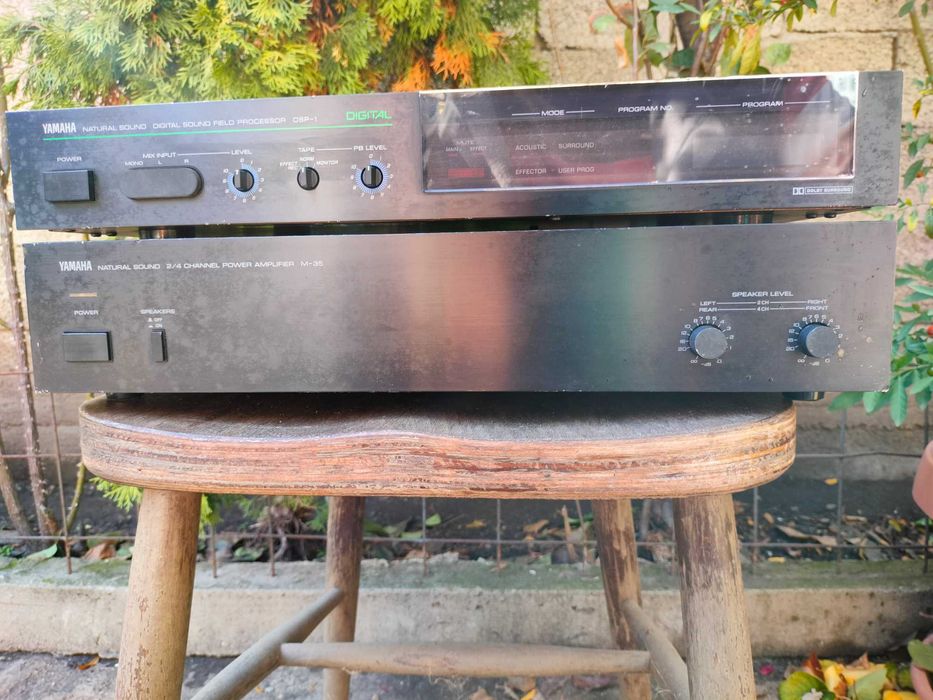

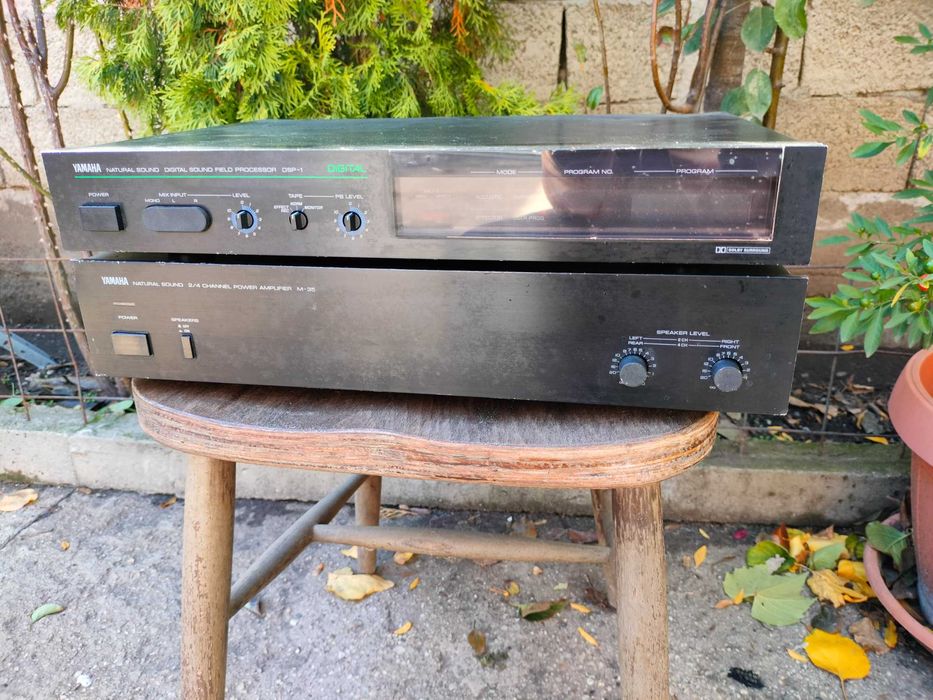

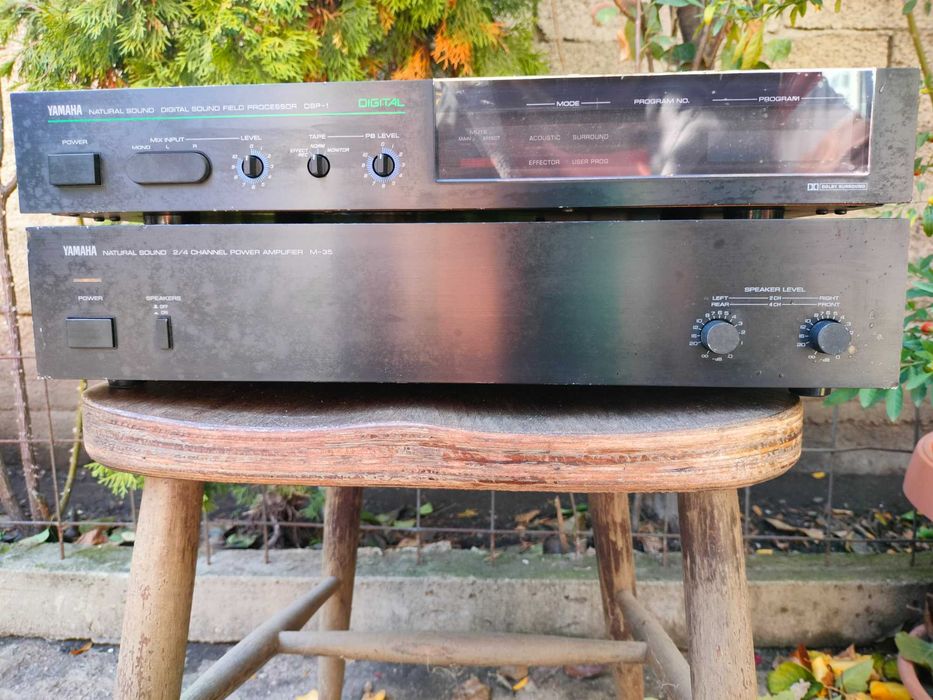

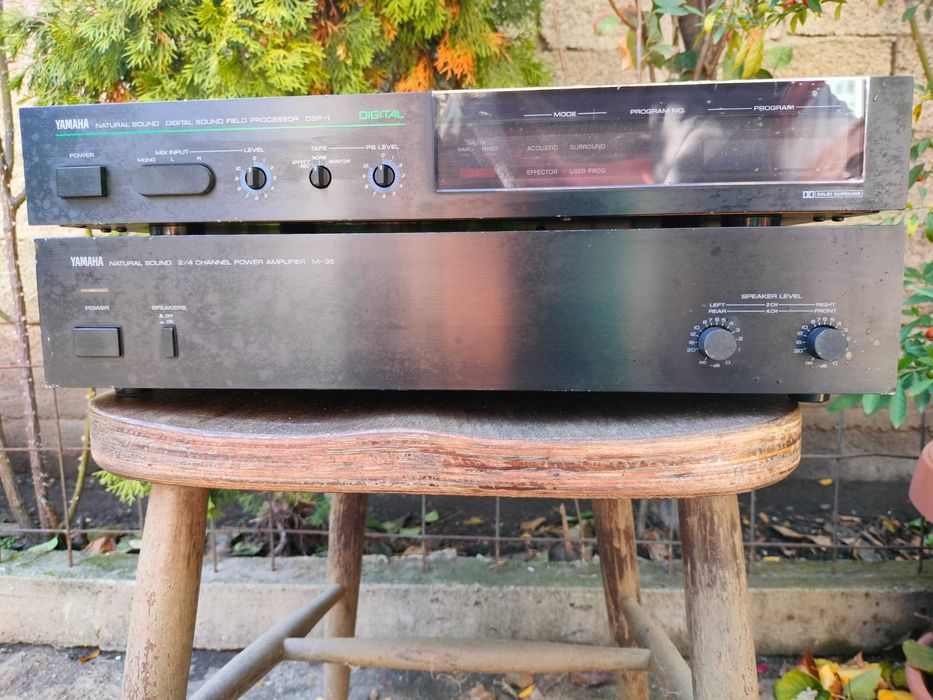

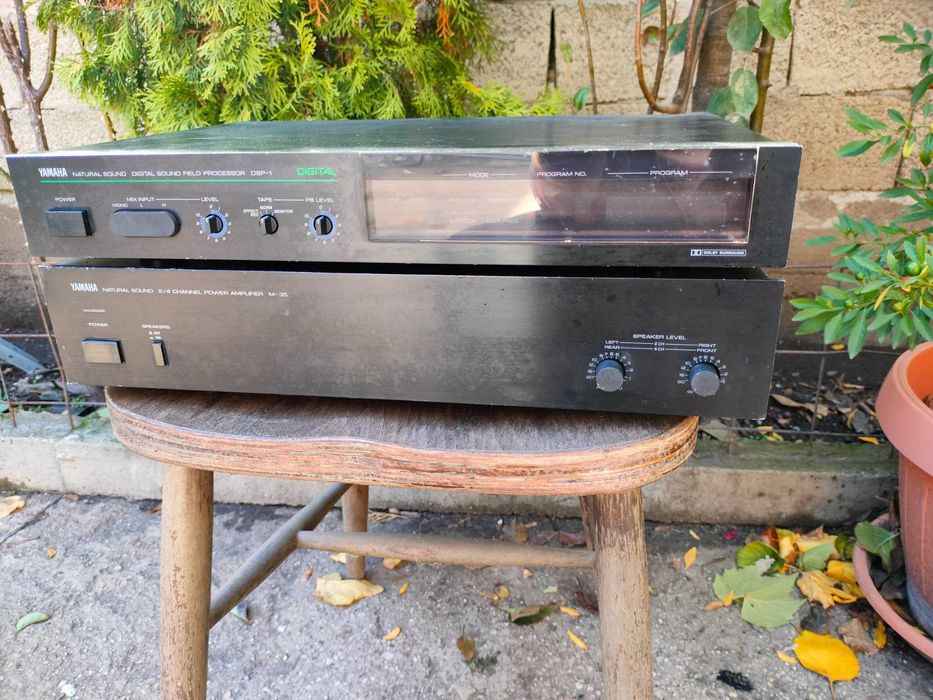

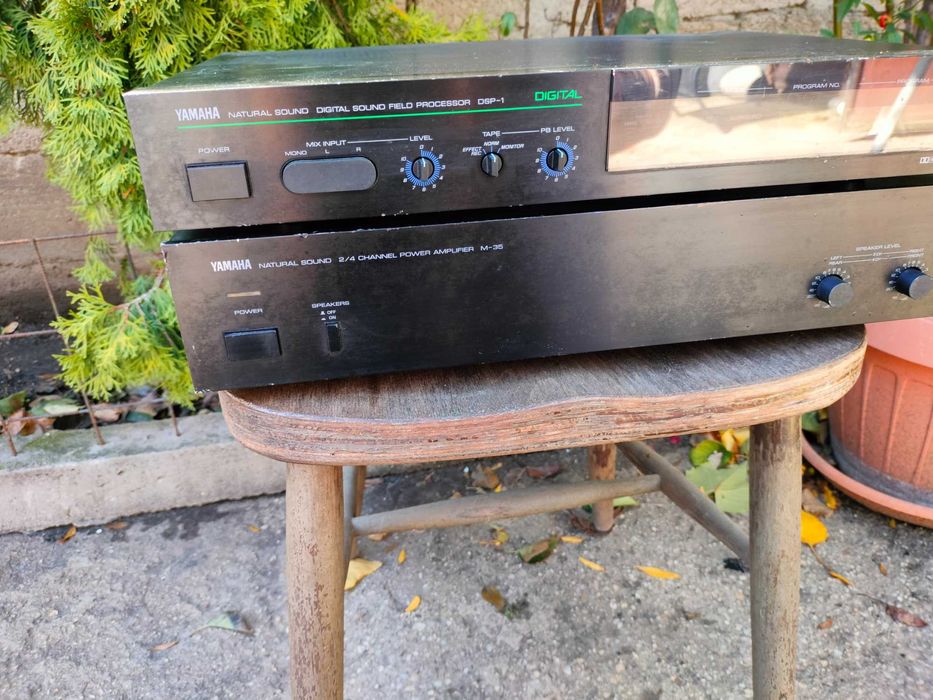

Yamaha M-35 si Yamaha DSP-1 in stare de functionare ambele ,amplficatorul kiar se aude foarte tare are putere si pe 4 boxe si 2 functioneaza bine, iar dsp functioneaza bine cu multiple functii, made in japan
AMBELE LA ACEST PRET

Manufacturer: Yamaha
Model: M-35
Years of manufacture: 1986-1988
Type: Power amplifier
Remote control: No
Power consumption: 250 watts
Dimensions: 435 x 93 x 287 mm (W x H x D)
Weight: 5,0 kg
Color: black

Connections

Number of inputs:
2xLine
Number of outputs:
4x loudspeaker

Technical Data

Continuous power (at distortion factor)
8 Ohm: 4x 20 Watt or 2x 40 Watt
4 Ohm: 4x 28 Watt or 2x 56 Watt
Dynamic power
8 Ohm: 4x 32 Watt or 2x 57 Watt
4 Ohm: 4x 37 Watt or 2x 70 Watt
Total harmonic distortion: 0.015% (4-channel) or 0.008% (2-channel)
Attenuation factor: 70
Input (sensitivity/impedance)
Line 0.7V/20 kOhm (4-channel) resp. 1V/20 kOhm (2-channel)

Frequency response: 10-40000 Hz (4-channel) or 10-50000 HZ (2-channel)
Ripple spacing (short-circuited):
Stereo channel separation: 70 dB (2-channel) or 55 dB (4-channel).
Signal-to-noise ratio: 120 dB (2-channel) or 113 dB (4-channel)

anufacturer: Yamaha
Model: DSP-1
Years of manufacture: 1986 - 1990
Manufactured in:
Color: Black
Remote control: Yes
Power consumption: 30 watts
Dimensions: 435 x 72 x 312 mm (W x H x D)
Weight: 4.5 kg
Original price approx.: 1900, - DM (UVP)

Connections

Number of inputs:
Main
Tape-In

Mix-Input Mono + Stereo
Number of outputs:
Main
Rec-Out
Effect Front
Effect Rear
Mono Full Range
Mono 200 Hz/6 dB

Technical Data

Audio/Video

Channels: 6
TV standard: -
A/D converter: BurrBrown PCM56P D/A converter: BurrBrown PCM56P

Output power (at distortion).
Center: -
Rear: -
Surround Back: -

Dynamic power (at distortion factor)
Center: -
Rear: -
Surround Back: -
Total harmonic distortion: 0.002% (main channels), 0.006% (surround channels)
Damping Factor: -
Frequency Response: 10 - 100,000 Hz (Main Channels), 20 - 20,000 Hz (Surround Channels)
Signal-to-noise ratio: 110 dB (main channels), 94 dB (surround channels)

Stereo channel separation:
Tone control:
Bass: -
Treble: -
Subsonic: -
Mute: Yes, main channels and surround separately
Pure-Direct/Line-Straight: No
Time Correction: No
Bass Management: No
Delay adjustment (Lip Sync): No
DSP Programs: 16 + 16

Sound Formats

Dolby Surround
15 Yamaha DSPs (21 variants):
Hall 1 (A/B)
Hall 2 (C/D) Hall 3 (Live Concert/On Stage)

Chamber
Minster
Church
Jazz Club (Live/Dynamite!/Reverse/Spacious)
Rock Concert (Live/Dynamite!/Reverse/Spacious)
Disco (Live/Dynamite!/Reverse/Spacious)
Pavillion
Warehouse Loft
Stadium (Live/Dynamite!/Reverse/Spacious)

Presence
Surround 1 (Hall Type A/Hall Type B/Live Concert/On Stage)
Surround 2 (Live/Dynamite!/Reverse/Spacious) 16 Yamaha effect programs:

Delay
Stereo Echo Stereo Flange A Stereo Flange B

Chorus A
Chorus B
Stereo Phasing
Tremolo
Symphonic
Echo Room
Pitch Change A
Pitch Change B
Pan L Turn
Pan R Turn
Pan F-R
Pan L-R

Special Features

Input balance control
Mix switch 4/6 channel
Main level switch 0/-10 dB
Adjustable level of tape connection
Level of mix connection adjustable
Parameter of all programs adjustable
16 user memories for modified DSP programs
