Amplifer Section
Channel: 7.2
Rated Output Power (1kHz, 1ch driven): 150W (4ohms, 0.9 THD)
Rated Output Power (20Hz-20kHz, 2ch driven)): 90W (8ohms, 0.06 THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA): 150 W (8 ohms, 10 THD)
Dynamic Power per Channel (8/6/4/2 ohms): 130/170/200/240 W
Surround Sound Processing
CINEMA DSP: Yes (3D)
DSP Programs:17
Dialog Level Adjustment: Yes
Virtual Presence Speaker: Yes
Dialogue Lift: Yes (no presence speakers required)
SILENT CINEMA / Virtual CINEMA DSP: Yes
Dolby TrueHD: Yes
Dolby Digital Plus: Yes
Dolby Pro Logic IIx: Yes
DTS-HD Master Audio: Yes
Audio Features
Pure Direct: Yes (with video on mode)
Compressed Music Enhancer: Yes
YPAO multi-point measurement : Yes with R.S.C.
Adaptive DRC (Dynamic Range Control) : Yes
Initial Volume & Maximum Volume Setting: Yes
Bi-amp capability: Yes
Audio Delay: Yes (0-500 ms)
192kHz/24-bit DACs for all channels: Yes (Burr-Brown)
Video Features
4K Ultra HD Pass-through 6 upscaling: Yes
HDMI 3D passthrough: Yes
HDMI Audio Return Channel: Yes
HDMI upscaling: Yes (Analogue to HDMI / HDMI to HDMI)
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync: Yes

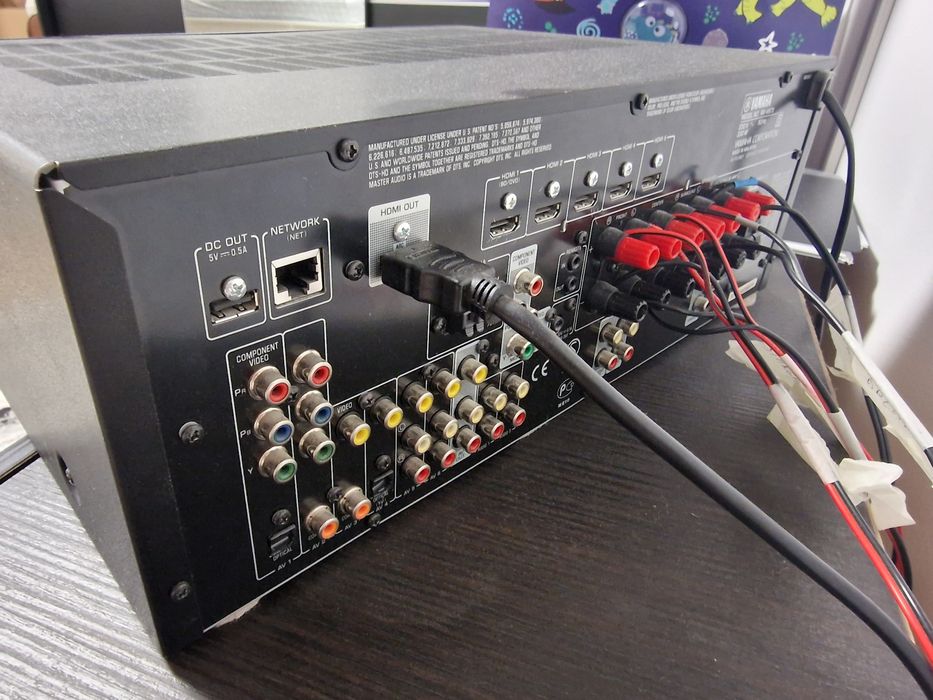

Connectivity
HDMI Input/Output: 6 (front 1) / 1
HDMI CEC: Yes (SCENE, Device Control)
USB Input: iPod/iPhone/iPad, USB Memory, Portable Audio Player
Network Port: Yes
AirPlay: Yes
Front AV Input: HDMI/USB/Composite
Digital Audio Input/Output: Optical 2/0
Digital Audio Input/Output Coaxial: 2 / 0
Analog Audio Input/Output: 4 / 1
Component Video Input/Output: 5 (fRONT 1) /1
Preout: SW (2 x Mono)
Headphone Output: 1
Tuner Section
FM/AM Tuner:Yes
User Interface
On-screen display: Graphical User Interface
SCENE: SCENE (4 sets)
App Control: Yes (iPhone/iPad/Android phone/tablet)
Web Browser Control: Yes

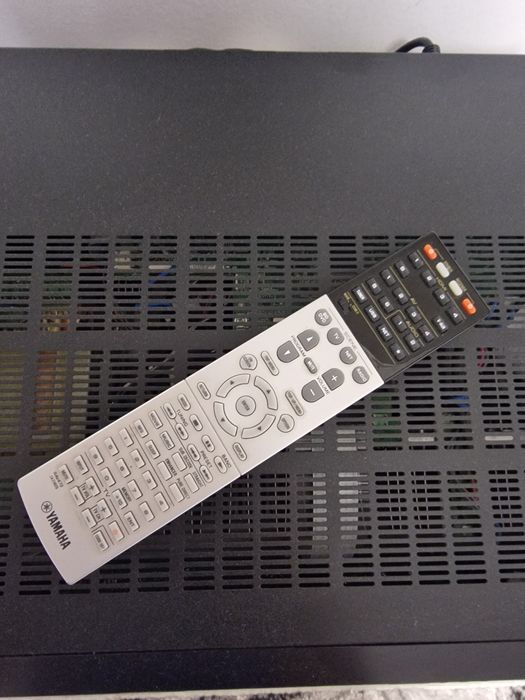

Remote Control Unit: Yes (Preset)
Zone Control
Zone 2 Audio Output: Line Output
Powered Zone: Zone 2
+12V Trigger Output: 1
Remote (IR) Input/Output: 1/1
General
Standby Power Consumption (IR only): 0.1W (typical)
Auto Power Standby: Yes
ECO mode: Yes
Dimensions (W x H x D): 435 x 171 x 364 mm; 17-1/8 x 6-3/4 x 14-3/8
Weight: 10.2 kg; 22.5 lbs.
