Fully balanced differential Digital Analog Converter (DAC)
Two TI 192khz/24-bit Burr- Brown PCM1792 running in mono mode

Ultra-low jitter master clock (10 picoseconds after re-clocking)

TI SRC4194 Asynchronous Sample Rate Converter (Up-sampling to 24-bit/384 kHz)

Ultra-fast op amps ( 20V/us slew-rate)

Analog filter: 2nd-order Bessel reconstruction filter

State-of-the-art technology platform & high-speed processor
Flawless encoding and decoding of lossless audio format

Fast management and access to extensive music libraries

Supports simultaneous streaming of high quality audio to multiple rooms

Hard Drive
Ultra-quiet 2TB AV hard drive

Holds almost 20,000 HD tracks or 6,000 CDs in original quality

Cushioned in 8 layers of noise canceling padding

CDRW
High fidelity TEAC CDRW mechanism

Import: Audio CDs

Burn: Audio CDs, MP3 CDs, Data CDs

High-end Headphone Output Powered by...
Dedicated TI 192khz/24-bit Burr- Brown PCM1792

TI's top-of the line TPA6120A2 High Performance Audio Amplifier (current-feedback architecture)

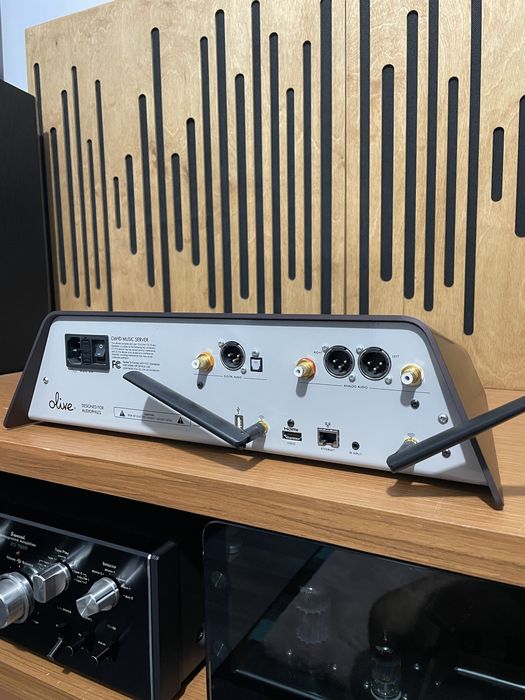

Audio Connectors
Analog Output:
- 1x XLR (balanced), made by Neutrik
- 1x RCA, (24k gold-plated)
- 1x Headphone, stereo, 6.4 mm

Digital Output:
- 1x AES/EBU (balanced), made by Neutrik
- 1x S/P DIF optical Toslink,
- 1x S/P DIF coaxial cinch, 24k gold-plated

Supported Audio Formats
Bit rate: 16-bit, 20-bit, 24-bit

Sampling Frequency: 10kHz up to 200kHz

WAV, FLAC, MP3 (128 and 320 kbit/s), AAC (128 kbit/s)

Networking
Wireless, 802.11n (54 Mbit/s), Encryption: WEP, WPA, WPA2, 64- and 128-bit

1x Wired Gigabit Ethernet

Other Ports
1 x HDMI (480p, 60Hz)

1 x USB 1.1/2.0

Infrared Receiver Input

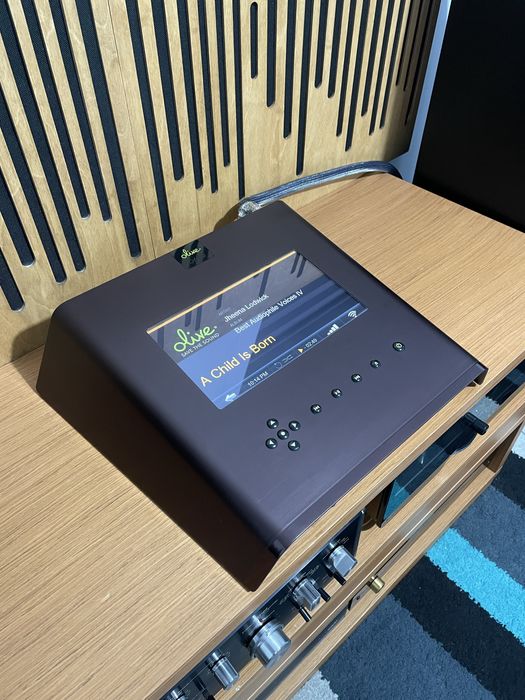

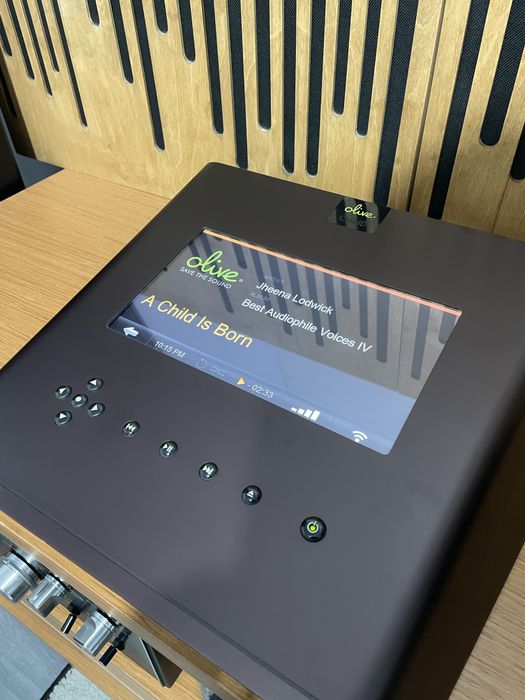

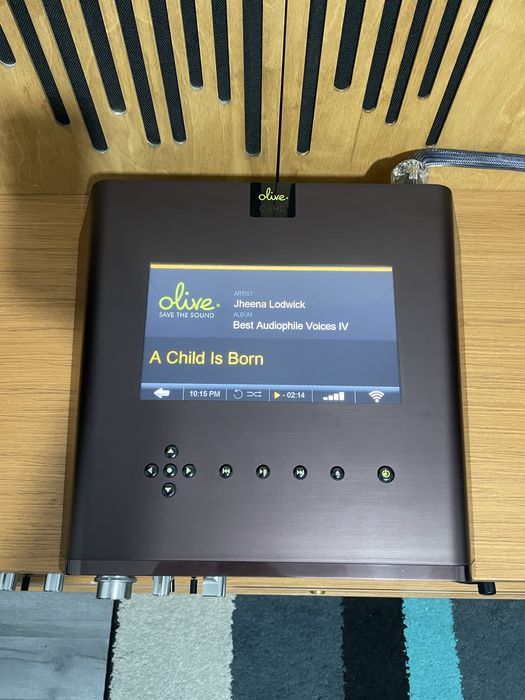

Color touch-screen
10.1'' wide-aspect ratio
High-resolution (800 x 480 pixels)
Glass-on-Glass touch-screen technology
High-precision linear power supply
Separate supplies for analog and digital components
High-performance AC line filter (ultra-high noise attenuation at close to 80db)
Custom-built toroidal transformer
Large reservoir capacitors
Ultra-low noise linear regulators (two stages of regulation, dedicated linear regulator for the clock generator)
Passive cooling concept no fan
Design
Anodized fine-grade aluminum shell
Passive cooling without noisy fan
Ultra-quiet operations
Measurements
Width 17.125"
Height 4.5" (at highest point)
Depth 14"
Weight 16.5 lb
Color
Silver or Black
Box also includes
User manual, Remote control with battery w/ battery, WiFi-antenna, Power cord.
