Vand Osciloscop deosebit DSO203 Mini DSO / DSO Quad

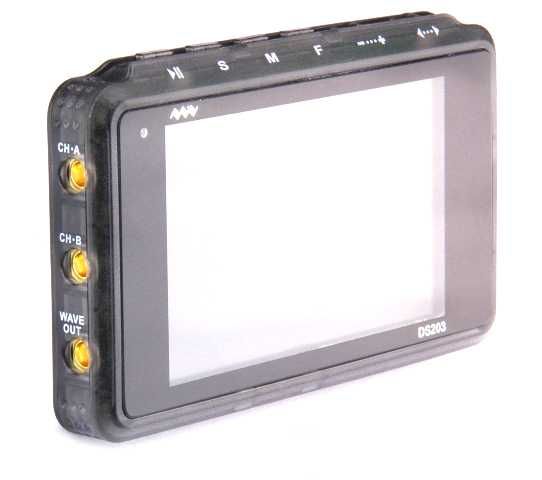

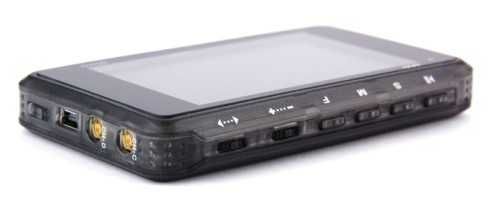

DSO Quad also known as DSO203 is a pocket size 4 channel digital oscilloscope for common electronic engineering tasks. It's based on ARM cortex M3 (STM32F103VCT6), providing 72MS/s sampling rate with integrated FPGA and high speed ADC. An internal 2MB USB disk can be used to store waveform captures, user applications and to upgrade firmware.

Features

Pocket size and light weight
Two 36MS/s analog channels, Upto 72MS/s if configured to single channel.
(Upgrade to Two 72MS/s analog channels, Upto 144MS/s if configured to single channel from .sys version v1.31)
Two digital channels
Signal Generator
Various Triggering Option
Easy waveform storage
Firmware upgrade
User applications
Open source

Components

Please add links to core components data-sheets like
CPU 72 Mhz - ARM 32-bit Cortex™-M3 CPU - STM32F103VC [2]
FPGA ICE65F_VQ100 [3]
TFT
ADC AD9288-40 [4]
OP-Amps OPA2354 [5]
MOSFET-Switches
USB-Storage

DSO Quad - Pocket-Sized Digital Oscilloscope
TOL-10388
Description: Replacement:TOL-12065 & TOL-12066. We are now carrying the new versions of the DSO Quad, go check them out! This page is for reference only.

The DSO Quad is an open-source pocket-sized 4-channel digital oscilloscope. It’s based on the ARM cortex M3 32-bit platform, providing 72MS/s sampling rate with integrated FPGA and high speed ADC. The Internal 2MB memory can even store waveforms in various formats which you can transfer to your computer using a mini-USB cable.

Note: Check the link below for the most up-to-date firmware.

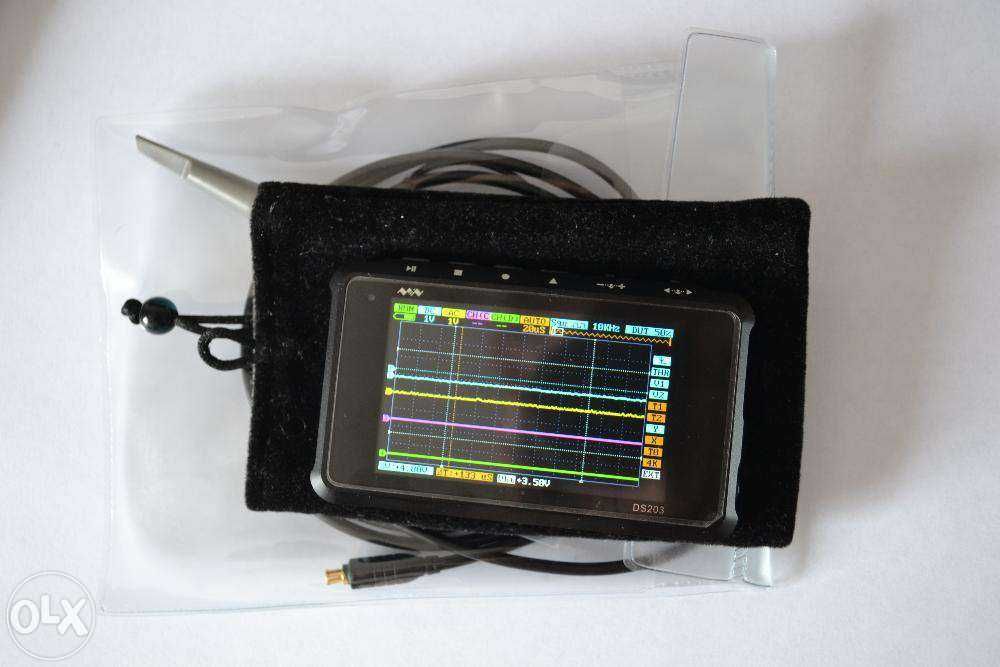

Includes:

2 Mueller MCX Osilloscope Probes
2 Digital Probes
Li-Po Battery
User Manual
Features:

Portable (98x60x14.5mm)
Two 72MS/s analog channels plus two digital channels
2MB Internal Storage
3" TFT LCD (400x240)
8-bit Vertical Resolution
Signal Generator
Auto Measurement
Various Triggering Options
Easy waveform storage
Firmware upgradable
User applications
Open source
