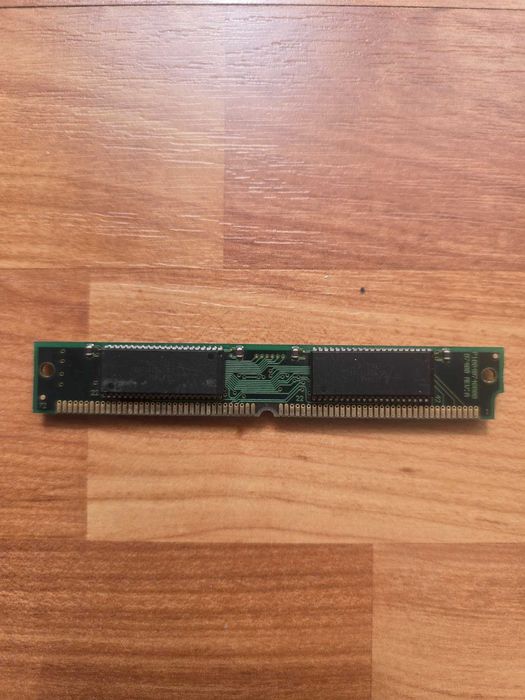

Vand modul memorie 8MB RAM SIMM - EDO DRAM, 1MX16, 60ns, CMOS, PDSO42

8 MB EDO-RAM 60 ns 72-pin PS/2 non-Parity 'Chips: 4x Vanguard VG2618165BJ-6'

P10048746800 B7468 REV:A

SIMM DRAM EDO 72pin 8 MB pe m/s DS80160 AG-70 9620

AP34461 C
VG2618165BJ
632 -6

Mfr Package Description 0.400 INCH, PLASTIC, SOJ-42
Status Discontinued
Access Mode FAST PAGE WITH EDO
Access Time-Max 60.0 ns
JESD-30 Code R-PDSO-J42
Memory Density 1.6777216E7 bit
Memory IC Type EDO DRAM
Memory Width 16
Number of Functions 1
Number of Ports 1
Number of Terminals 42
Number of Words 1048576.0 words
Number of Words Code 1M
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 1MX16
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOJ
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
Refresh Cycles 1024.0
Seated Height-Max 3.76 mm
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 27.31 mm
Width 10.16 mm
Additional Feature RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH

accept orice test in fata mea
poate fi vazut si testat in Cluj-Npoca
