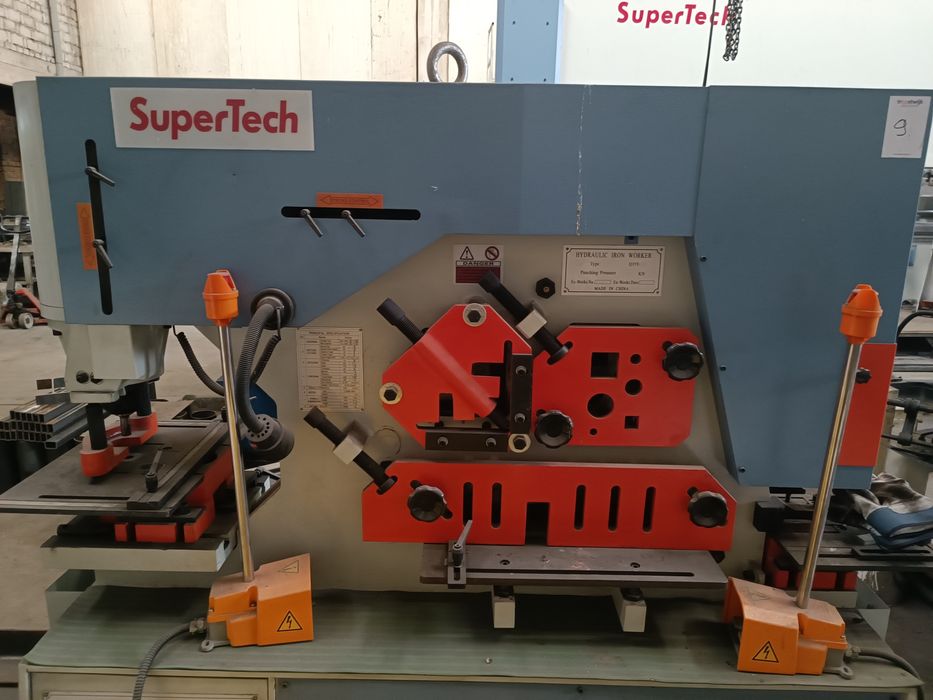

Ironworker - masina combinata pentru metal
Stanta, Ghilotina tabla, Ghilotina profile, Indoire tabla

Se vinde cu poansoane (rotund, slot) de diverse dimensiuni si accesorii debitare, indoire.

Masina noua (an 2023), neutilizata.

Schimb cu alte utilaje (ferastrau banda, masina taiat teava, etc) primesc/ofer diferenta dupa caz.

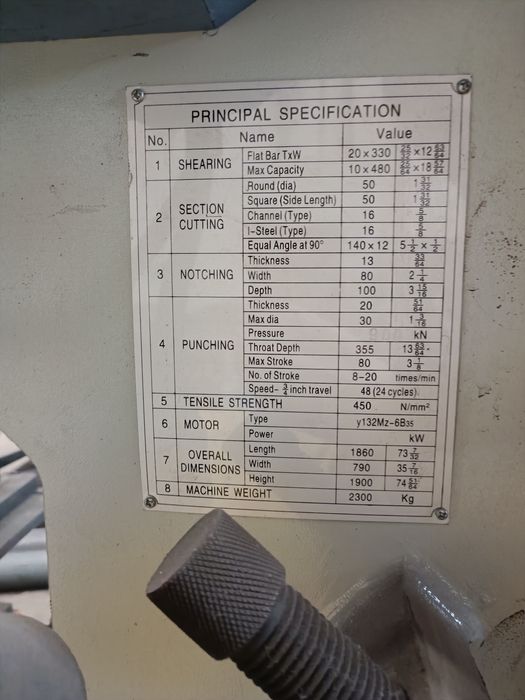

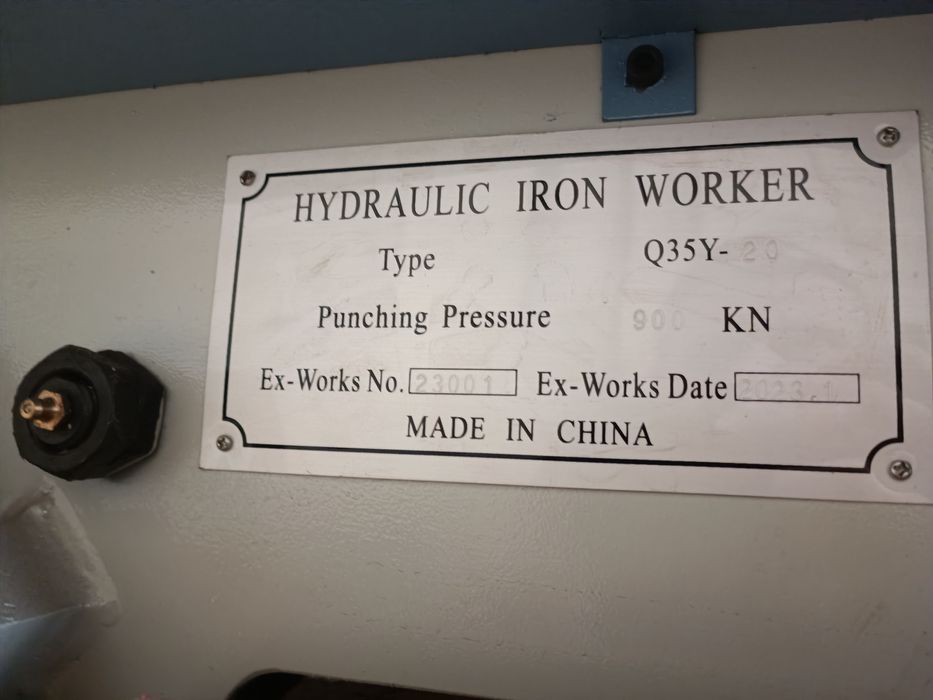

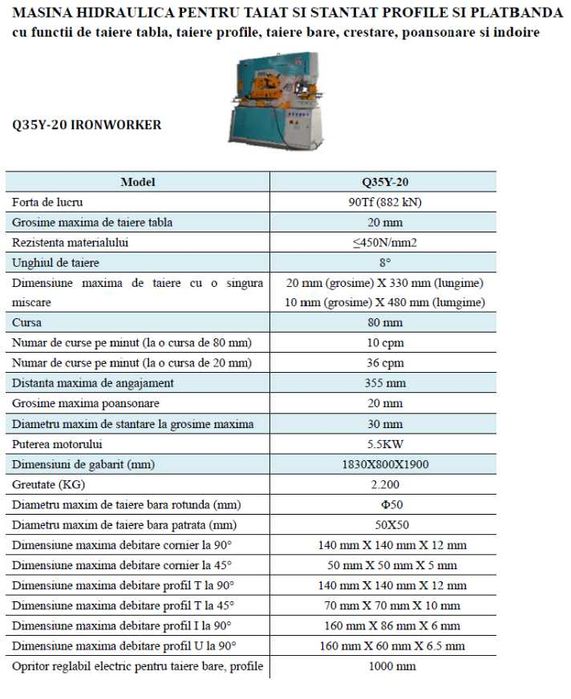

Model Q35Y-20
Force: 90 ton
Max shearing thickness: 20 mm
Material strength to be worked 450 N/mm2
Cutting angle: 8 degree
Shearing size of one stroke: 20 mm (thickness) x 330 mm (length) / 10 mm (thickness) x 480 mm (length)
Ram stroke: 80 mm
Frequency of strokes: 10 / minute
Throat depth: 355 mm
Max thickness of material for punching operations: 20 mm
Max diameter for punching: 30 mm
Power of main motor: 5,5 kW
Overall dimension: 1830 mm x 800 mm x 1920 mm
Weight: 2200 kg

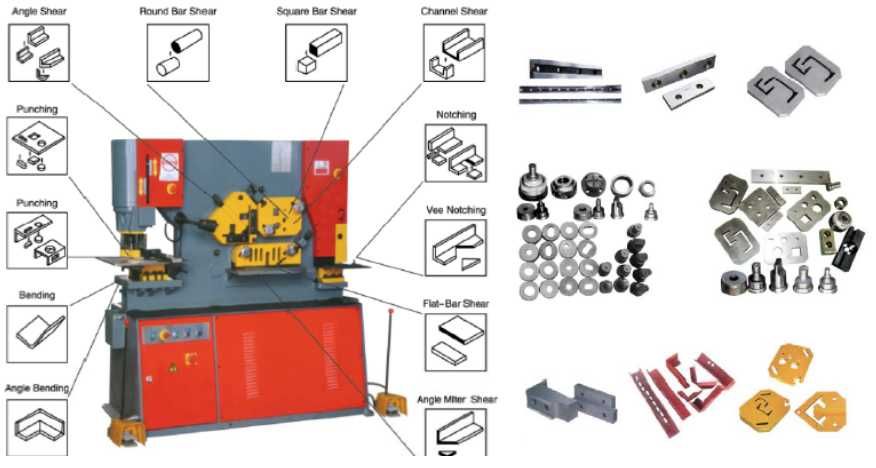

Accesories included:
Punching die (round type): 12 mm, 16 mm, 18 mm, 20 mm, 25 mm, 30 mm
Punching die (waist type): 12x25 mm, 14 x 30 mm
Lock-nut group
Shutter mould: 100x20x1,5 mm
Notching: 90 degree mould

Standard mould for shearing profiles
- round bar 50 mm diameter
- square bar 50 mm x 50 mm
- Angle profile up to 140x140x12 mm
- T-bar profile up to 140x140x12 mm
- I-bar profile up to 160x86x6 mm
- U-bar profile up to 160x60x6,5 mm
