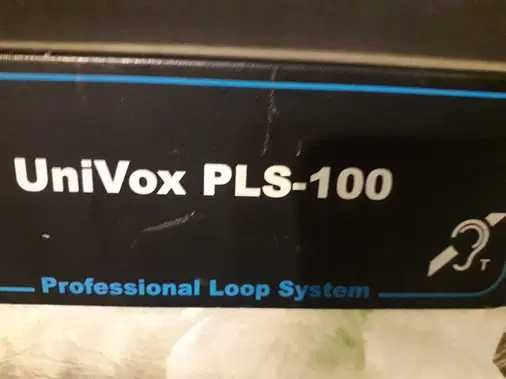

Vand amplificator stare buna 3 intrari.

Power Supply 230-240 V AC
Transformer 75 VA Toroid
Inputs Line/Microphone 2 XLR jacks on rear panel. Programmable for
microphone/line sensitivity, level, phantom voltage
on/off, balanced/unbalanced and priority operation.
1 RCA phono socket, 50 mV-10 V/10 kOhm
Loop output Loop Connection Screw terminals on rear panel.
Loop Drive Current 11 A rms, 125 ms 1 kHz sine wave
Loop Drive Voltage 31 Vpp
Line outputs Line Out 0 dBv phono jacks (without AGC function)
SLS 0 dBv phono jacks (with AGC function)
Audio Frequency Response 100 Hz-5 kHz (±3 dB)
Distortion 1 %
Automatic gain Output AGC Output protection – limits continuous signals e.g.
controls self-oscillation or sine wave to -10 dB after 0.6-1 s.
Short pulses and normal program signals are not
affected. Can be disabled on PCB.
Dual action AGC Dynamic Range: > 50-70 dB
Attack time: 2-5 ms
Release time: 0.5-20 dB/s
Controls Loop Current 0-14 A rms (recessed potentiometer on rear
panel), 125 ms
Treble/Metal loss correction 0- +9 dB (recessed potentiometer on rear panel)
Input level 3 independent controls next to each input
(recessed potentiometers on rear panel)
Programmable inputs Set by adjusting jumpers on PCB
Indicators Mains power LED on front panel
Input level LED on front panel
Loop current LED on front panel
Physical data Dimensions, Weight 295 x 62 x 188 mm (W x H x D), 3.4 Kg
Cooling Convection cooled
Environment IP20, 10° C to 40° C
Order data Part No 214100/214110 (120 V)
Common Accessories
Univox Listener
This easy to use loop listener indicates
field strength levels of 400 mA/m and 200
mA/m in accordance with IEC 60118-4. It
is an essential tool for the facility manager
as well as an alternative assistive listening
device for the Hard of Hearing.
Univox FSM 2.0
Engineered for simplicity, the
Univox FSM 2.0 is a microprocessor
controlled field strength meter
featuring a simple 5 step programme
for commissioning loop systems to the
performance standard IEC 60118-4.
Copper foil
This insulated 25 mm wide copper foil is
only 0.25 mm thick and is easily concealed
under most floor finishes. It is ideal for
multi loop and Super loop installations.
Wireless microphone system
Univox offer a range of wireless
microphones and receivers which can be
