Descriere

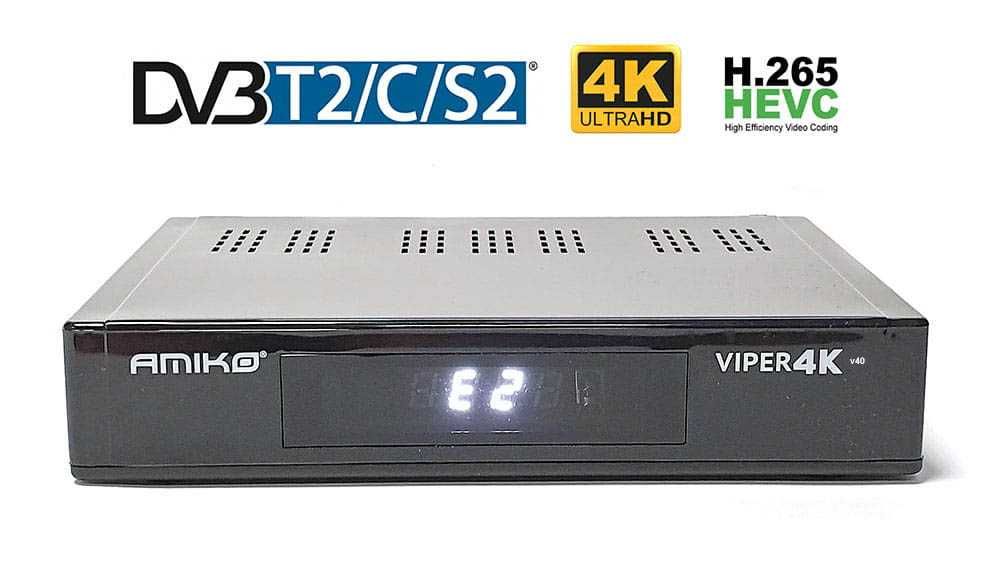

Ultra HD DVB-S2X+ T2/C Digital Satellite
Receiver Linux OS 1.6GHz Quad Core 64 bit CPU Hi3798MV200
High-Performance Multi-Core Mali 450 CPU
4GB EMMC 1 GB DDR3 RAM Memory
1 x USB 2.0 Port and 1 x USB 3.0 Port
100 Mbps Ethernet interface 2.4G built in WiFi
Smart Card Reader
Up to 3840 x2160-60fps, 1 0bit,H DR 1 0 Support
Tuner & Channel Decoder Satellite:
Tuner type:DVB-S2X SiLabs-Multistream decoding
Input Connector: F-type, IEC 169-24, Female Frequency Range: 950MHz ~ 2150MHz
Input Impedance: 75,
Signal Level: -79 to -11dBm
LNB Power: 13/18VDC, max.400mA
22KHz Tone: (22-2)KHz, (0.7±0.2)V
DISEqC Control: V1.0/1.2/USALS Compatible
Demodulation: QPSK / 8PSK
Input Symbol Rate: 1 ~ 45 MSym/s
FEC Decoder: 1/2,3/5,2/3,3/4,4/5,5/6,7/8,8/9,9/10 (QPSK)
Tuner & Channel Decoder (DVB-T2/C hybrid emedded)
MPEG Transport Stream A/V Decoding: 3/5,2/3,3/4,4/5,5/6,8/9,9/10(8PSK)
Transport Stream: AVC/H.264(MPEG-4 part 10), MPEG-4 part2 (ISO/IEC 14496) MPEG-2 (ISO/IEC 13818-2)
Profile Level: AVC/H.264 MP and HP -L3.1(60fps) AVC/H.264 HP -L4.2(30fps) MPEG-2 MP - ML and HL
Input Rate: Max. 80Mbit/s
Video Formats: 4:3 Letter Box, 4:3 PanScan, 16 : 9
Video Resolution: 720 x 576i, 720 x 576p, 720 x 480i, 720 x 480p 1280 x 720p, 1920 x 1080i, 1920 x 1080p
Audio Decoding: AAC LC, AAC LC+SBR Level 2, AAC+ Level 4, WMA pro, Dolby Digital, MPEG-1 Layer 1,2
Audio Mode: Streo/Mono, Dolby digital, MPEG and AAC audio
Sampling Rate: 16KHz, 32KHz, 44.1KHz and 48KHz(According to input)
Main System
Processor:Hisilicon Hi3798MV200 HuaweiQuad Core 64Bit (4x 1.6GHz) 15000 DMIPS
Memory Flash: 8GB eMMC
RAM Memory : 1GB (DDR3)
Video Decoding
Decode: MPEG-2: MP-ML MPEG-4:ASPL5
H.265/AVC:MP-L3.2 VC-1:APL1
Resolution: 4K 2160P/1080p/ 1080i/720p/576p/480p/576i/480i
Video Standard: PAL/NTSC
Data Rate: Up to 15Mbits/s
Display Format: 4:3,16:9

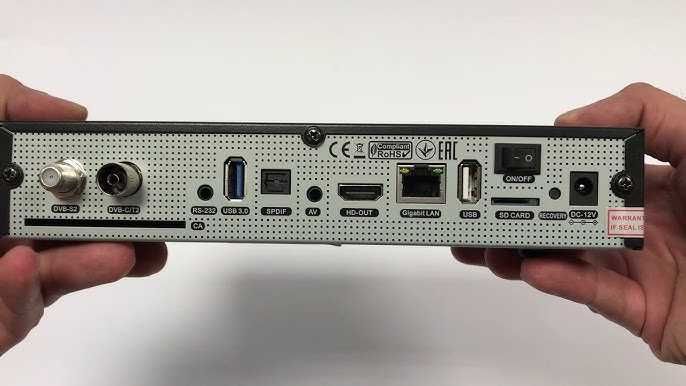

Audio / Video & Data IN/OUT
CVBS & Audio: 3.5 mm Jack
HDMI: Video & Audio Output
RS-232C: 9 pin D-SUB (Male) type, Transfer rate 115Kbps
USB Port:1x USB 3.0, 1x USB 2.0
Ethernet: RJ45 connector, 10/100 Base
2.4G built in WiFi
Front / Rear Panel
Slot: 1 Smart Card slot
Display: 7-Segment - 4 Digits
Indicatiors: 1LED (Standby, Power & Remote : Dual Color)
Power Supply
Input Voltage: AC 100 ~ 250V, 50/60Hz
Type: DC ADAPTOR (12V, 2A)
Power Consumption: Max. 15W
Standby Power: Max. 0.5W
Protection: Separate Internal Fuse & Lighting protection
Physical Specification
Tip receptor Full HD 1080p, Ultra HD 4K 2160p, MPEG2, MPEG4, H.264, H.265 / HEVC, Linux, DVB-S2, DVB-T2, DVB-C, Conax, Ethernet, Wireless, PVR, FTA

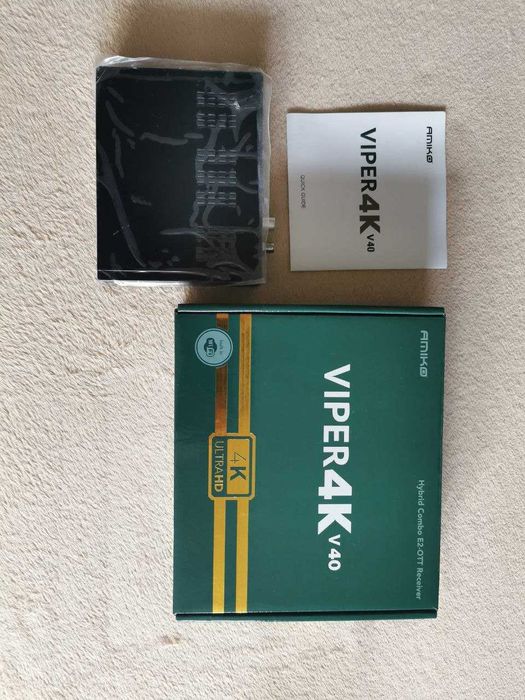

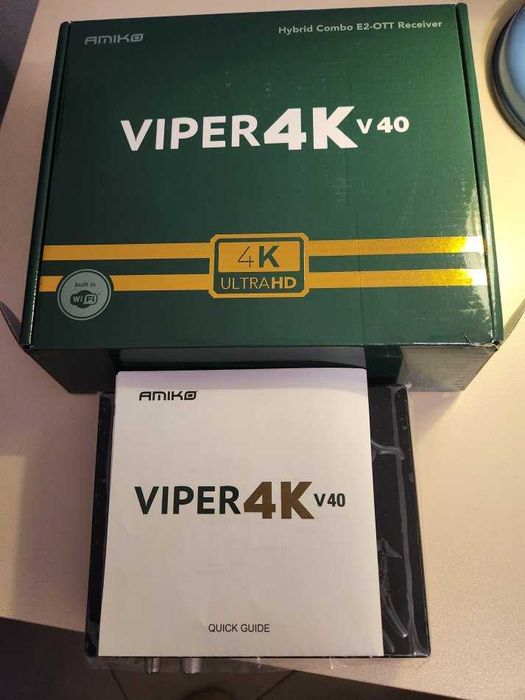

Nou. In cutie, nu prezinta urme de uzura , are o imagine openatv pe el.
