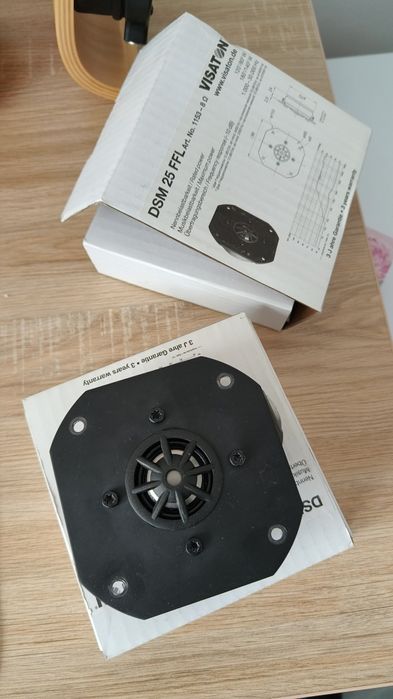

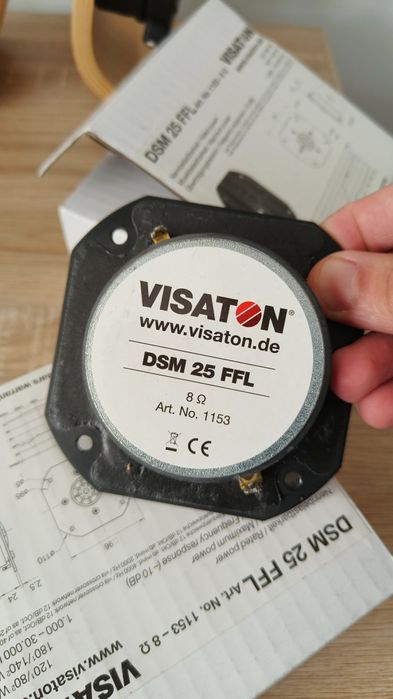

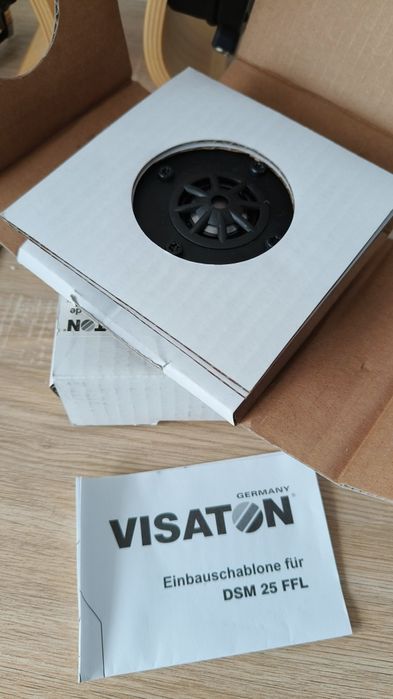

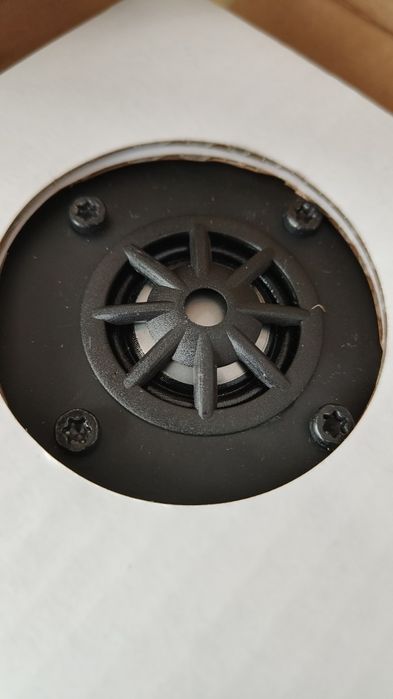

Vand tweetere cu calota din titan Visaton DSM 25 FFL

Nominal impedance Z 8 Ohm
Frequency response 1000–30000 Hz
Mean sound pressure level 90 dB (1 W/1 m)
Opening angle (-6 dB) 138°/8000 Hz
Resonance frequency fs 1600 Hz
Magnetic induction 1.7 T
Magnetic flux 425 µWb
Height of front pole-plate 2.5 mm
Voice coil diameter 25 mm
Cutout diameter 80 mm
D.C. resistance Rdc 5.9 Ohm
Mechanical Q factor Qms 1.83
Electrical Q factor Qes 1.87
Total Q factor Qts 0.92
Effective piston area Sd 4.9 cm²
Peak power handling with high pass 140 W (12 dB/Okt.; 2000 Hz)
Nominal power handling with high pass 80 W (12 dB/Okt.; 2000 Hz
