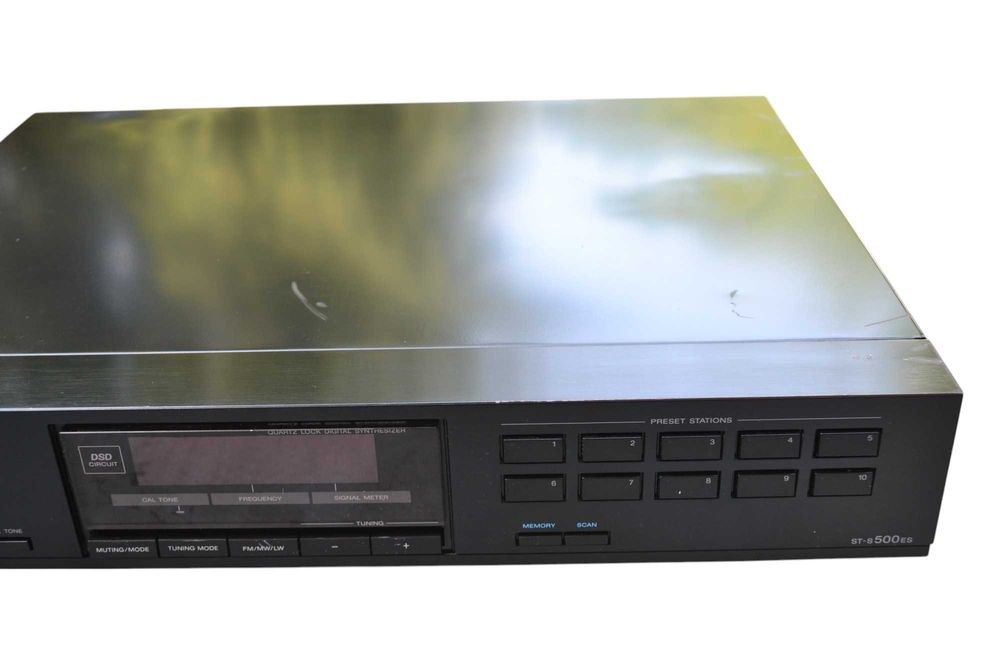

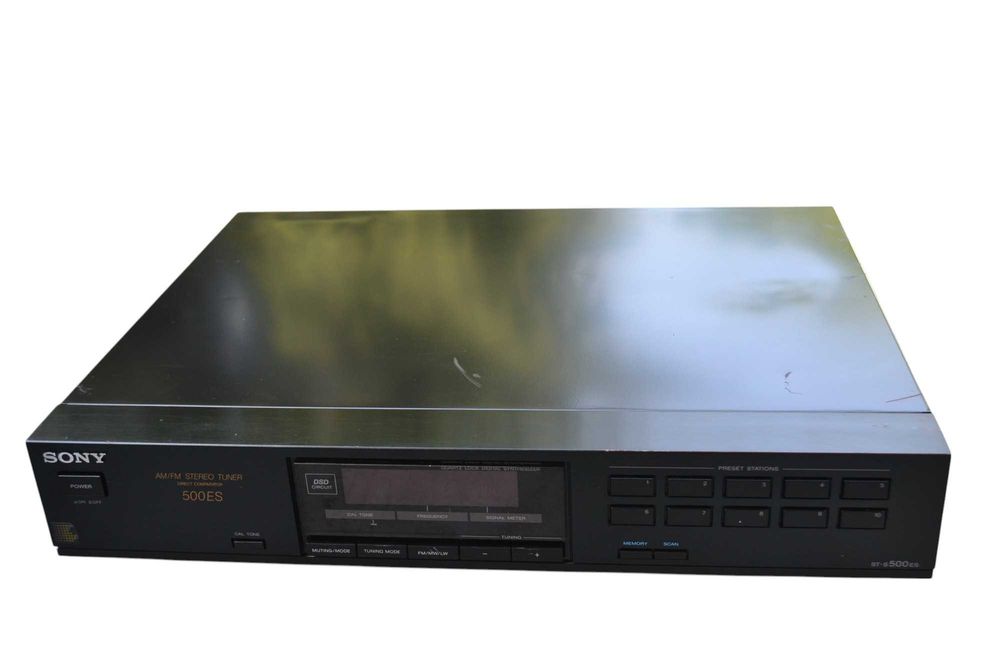

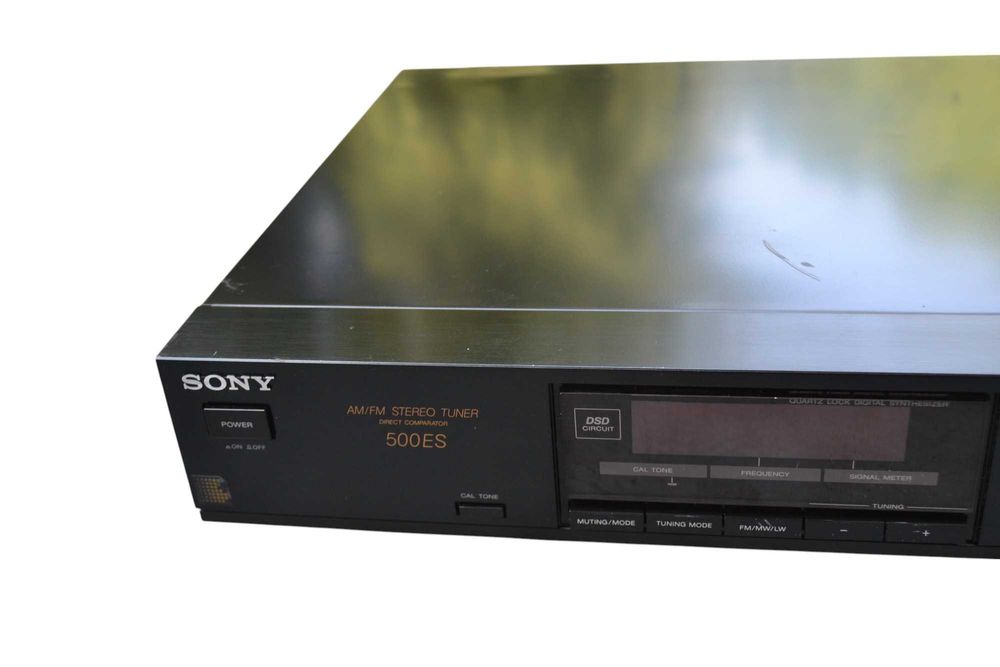

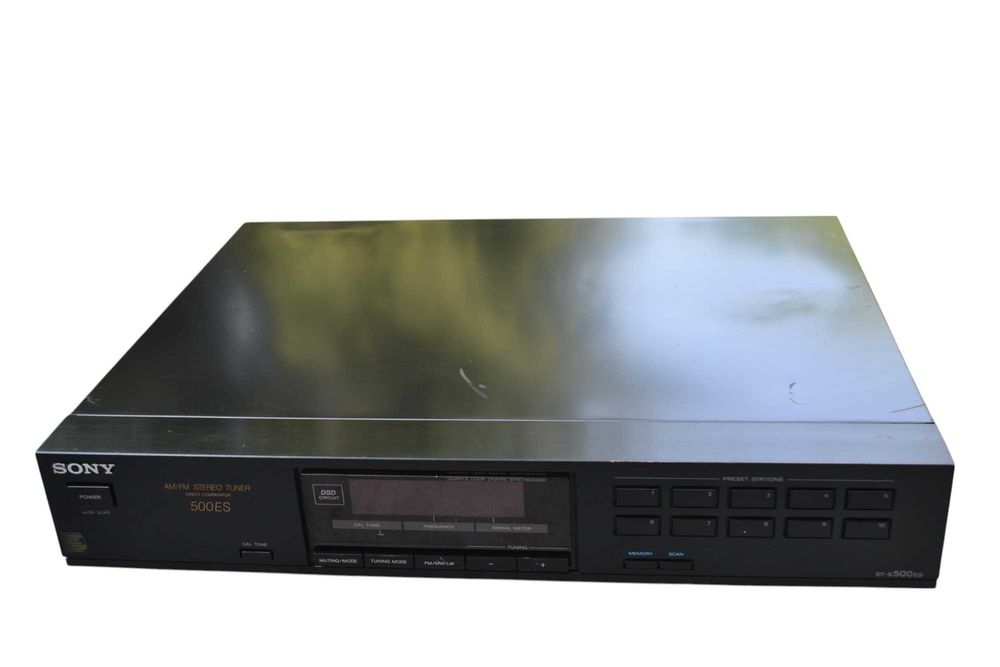

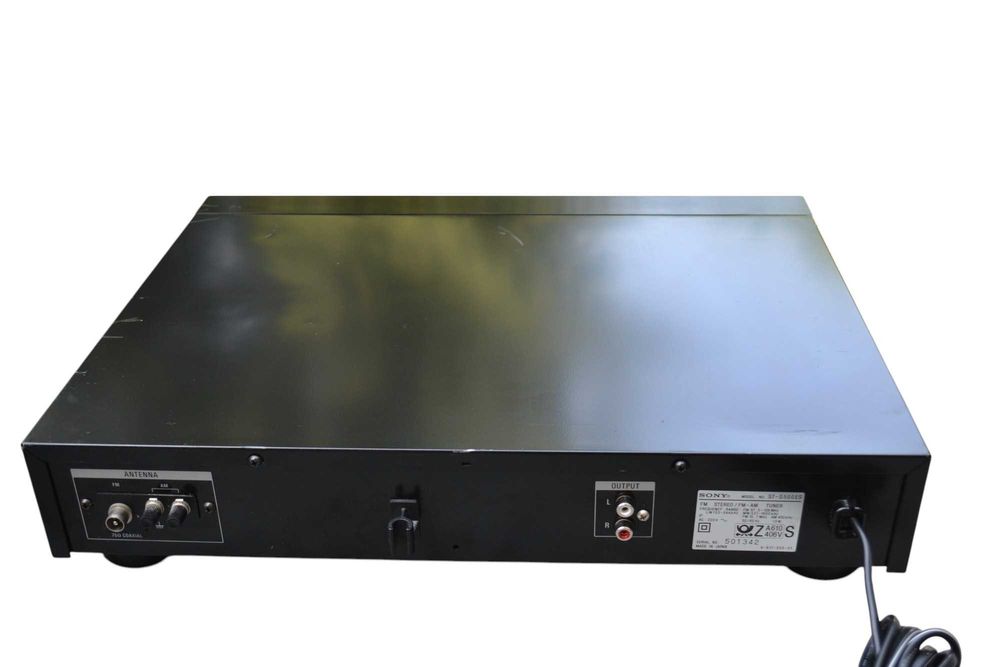

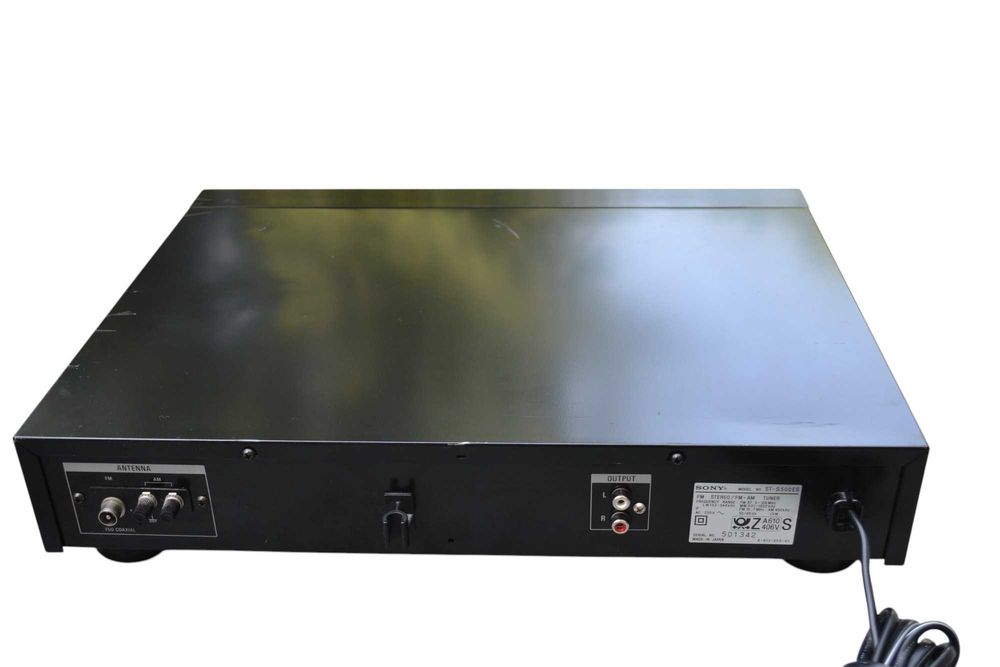

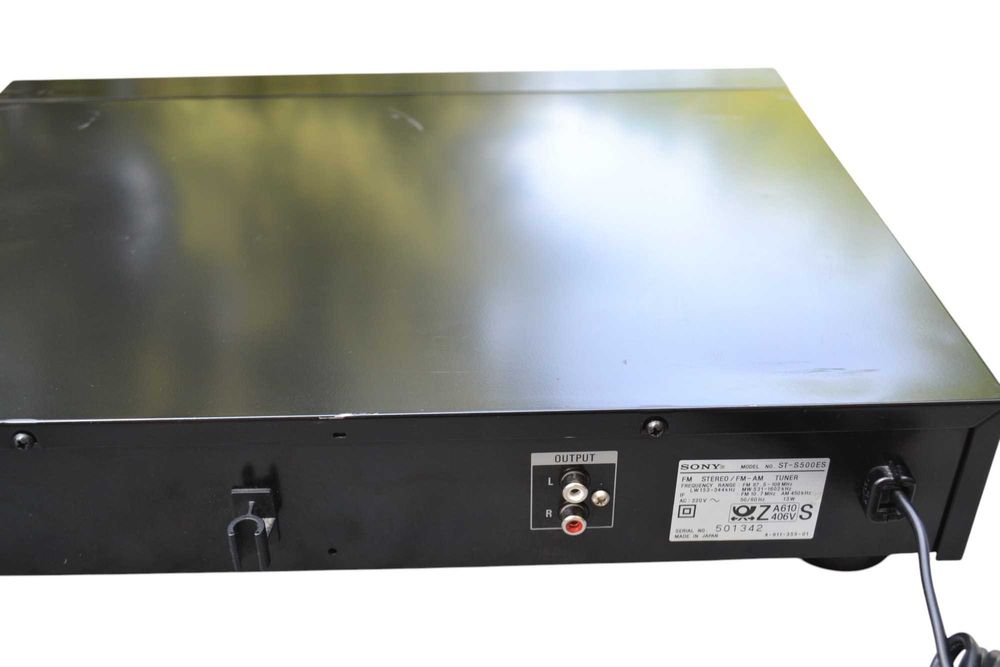

Tuner Sony ST S 500 ES : culoare neagra, afisaj central, memorii, autotunning, poze reale, DSD circuit, quartz lock digital, made in Japan.





Semiconductors present.
Semiconductors
Main principle
Superheterodyne (common)
Wave bands
Broadcast (BC) and FM or UHF.
Power type and voltage
Alternating Current supply (AC) / 60 Hz: 120 Volt
Loudspeaker
- For headphones or amp.
Material
Metal case
from Radiomuseum.org
Model: AM/FM Stereo Tuner ST-S500ES - Sony Corporation; Tokyo
Shape
Book-shelf unit.
Dimensions (WHD)
430 x 85 x 345 mm / 16.9 x 3.3 x 13.6 inch
Notes
Specifications

S/N ratio (mono / stereo): 88 / 84 dB
THD (mono / stereo): 0,06% / 0,08%
Usable sensivity: 10,3 dBf / 0,9 µV (IHF)
Selectivity (400 kHz): 90 dB
Stereo separation (1 kHz): 60 dB
Frequency response: 15 Hz - 15 kHz (+ 0,2 - 0,5 dB)
Capture ratio: 1 dB
IF rejection: 120 dB
Spurious rejection: 120 dB
Image rejection: 80 dB
Net weight (2.2 lb = 1 kg)
4.3 kg / 9 lb 7.5 oz (9.471 lb)
Author
Model page created by Zsolt Andrásy. See "Data change" for further contributors.
