Analizor digital 150W 10A DC baterie instrumente electronice sarcină baterie litiu tester cu 4 fire reglabil modul de testare ștecăr SUA.

Features:

This product supports 0~150V, 0~20A within the maximum 150W load

Over-voltage, over-current, over-power, over-temperature protection and reverse connection protection below 100V

Support timing shutdown and specified voltage shutdown

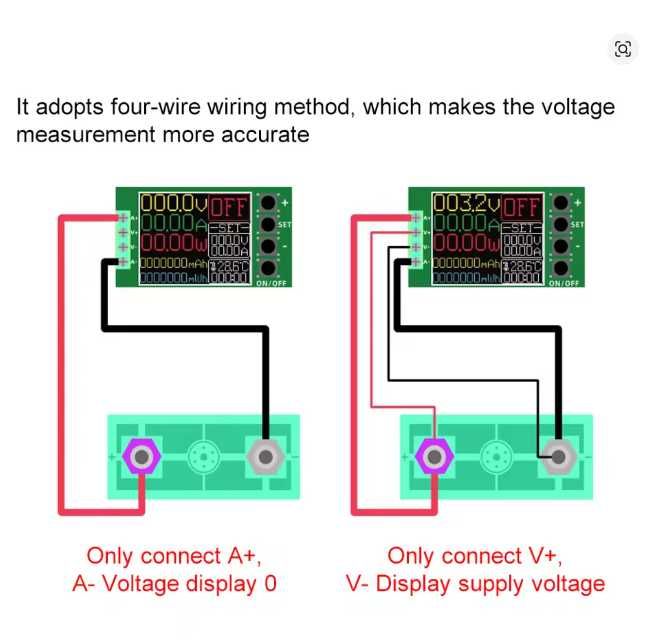

Four-wire wiring system for more accurate capacity measurement

Active heat dissipation with load current above 3A or core temperature ≥40c to start the fan

Specifications:

Load voltage-U: DC0V~150V

Load current-I: 0~20A

Load power-W:U×I≤150W(max)

To avoid pulse damage, the total load power is capped at 60W when the load voltage is ≥120V

Capacity metering range:0~999999mAh

Energy measurement range:0~999999mWh

Applicable power supply: DC12V 1A

Wiring mode: four-wire system A+ V+ V- A-

Display mode: 1.77 inch TFT color screen

Control operation: 4 button control

Heat dissipation mode: active heat dissipation load current 3A or more or core temperature ≥ 40 c to start the fan

Online view: not supported

Over-voltage protection: support

Overcurrent protection: support

Over power protection: Support

Over-temperature protection: the core temperature exceeds 80c to stop the load (non-adjustable)

Time limit discharge: Support

Power failure save: Support

Restore Factory Settings:
Device power off
Press and hold the "SET" key and do not release
Equipment power on, wait for the display normal display and then release the "SET" key, the operation is complete
150W 20A DC Electronic Load 4-wire Lithium Battery Tester Adjustable Testing Module Battery Tools Monitor Discharger US Plug

Package Included:

1 x Instrument main unit

1 x US adapter
