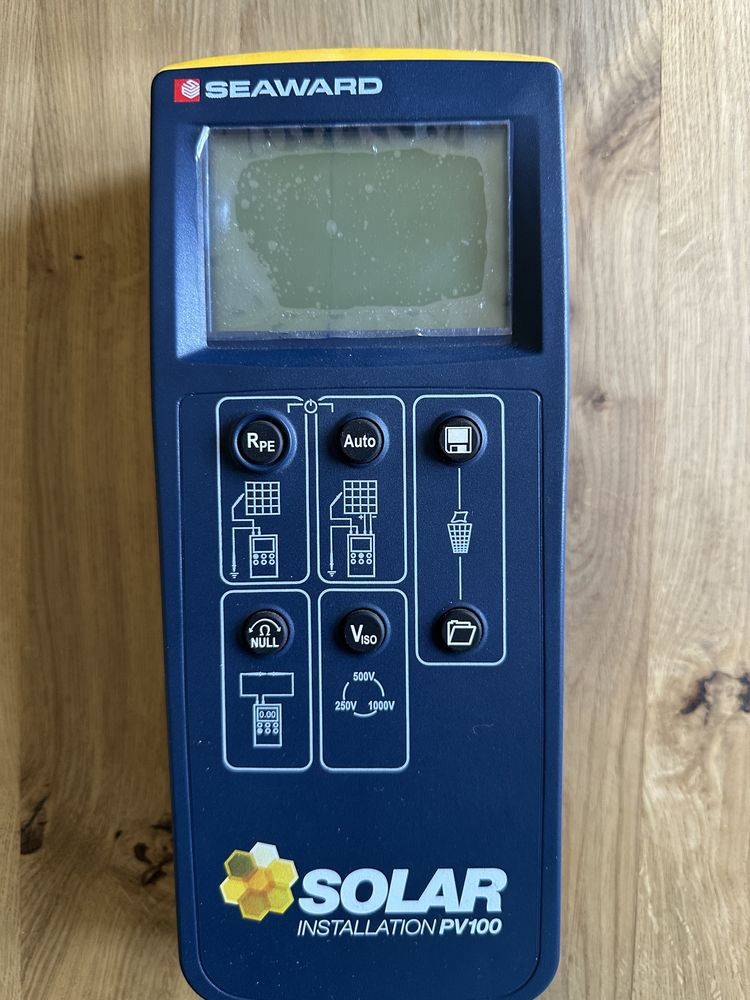

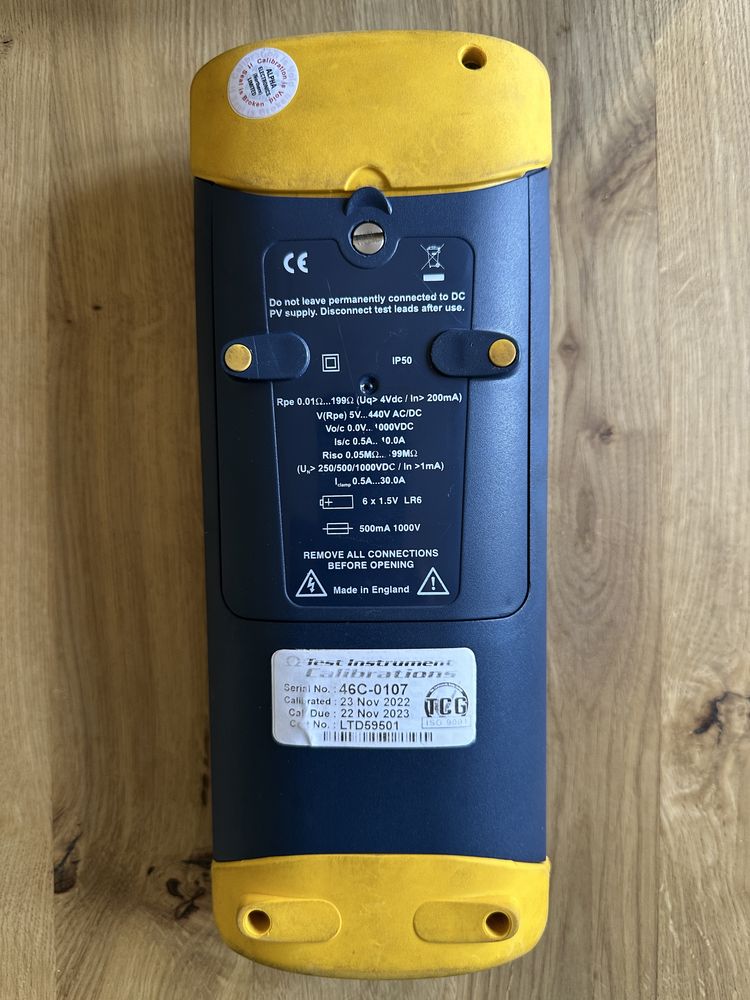

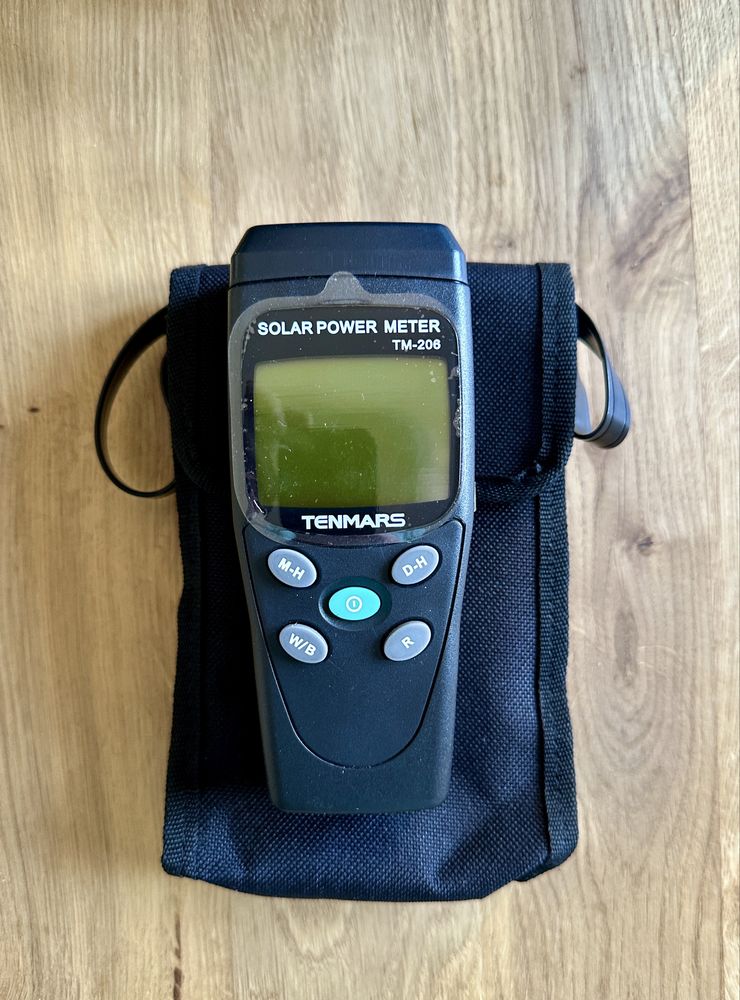

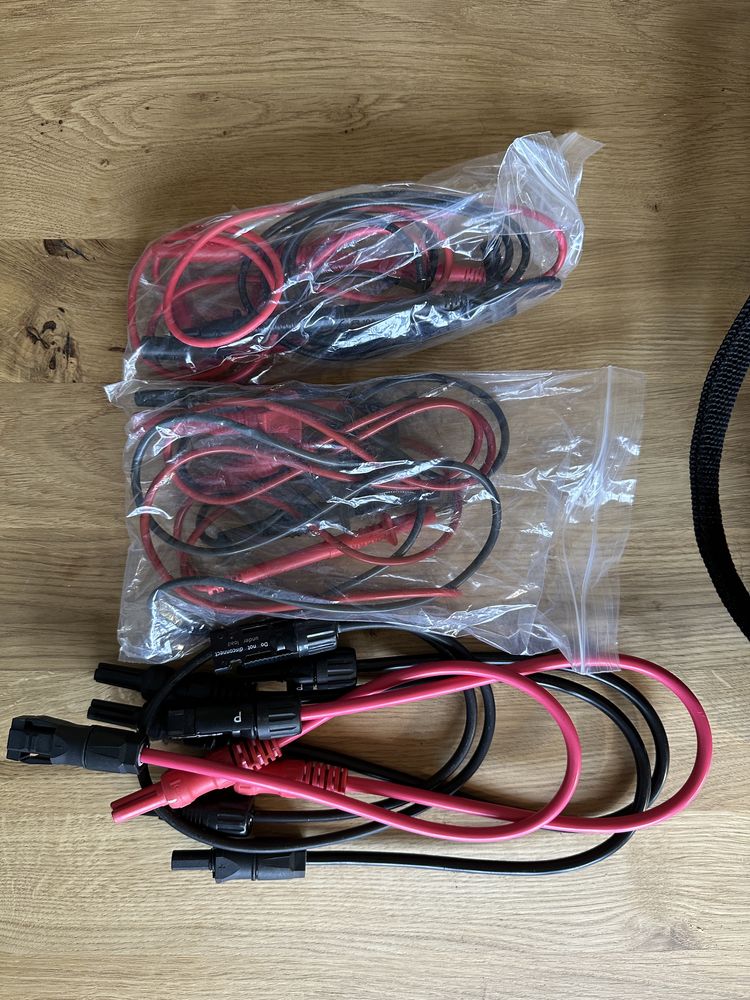

Set pentru testarea panourilor fotovoltaice Seaward PV100 in stare perfecta(vezi poze)

Earth Continuity
Display range: 0.00 to 199
Measuring range: 0.01 to 199
Resolution: 0.01 max
Open Circuit test voltage: 4V DC
Short Circuit test current: >200mA
Test Lead compensation: Null out up to 10 ohms
User protection: Warning and test inhibited if >30V AC/DC detected at inputs
Insulation Resistance
Display range: 0.05M ohms to 199M ohms
Measuring range: 0.05M ohms to 199M ohms
Resolution: 0.01Mohms max
Open Circuit test voltage: 250V, 500V, 1000V
Short Circuit test current: >1mA, 2mA s/c
Audible/Visual warning: >30 V AC or DC at inputs
User protection: Test inhibited if >30V AC/DC detected at inputs
Open Circuit Voltage
Display range: 0.0 to 1000V
Measuring range: 5.0 to 1000V
Resolution: 0.1V max
Annunciators: DC voltage polarity correct or reversed
Short Circuit Current
Display range: 0.0 to 9.99A
Measuring range: 0.5 to 9.99A
Resolution: 0.01A

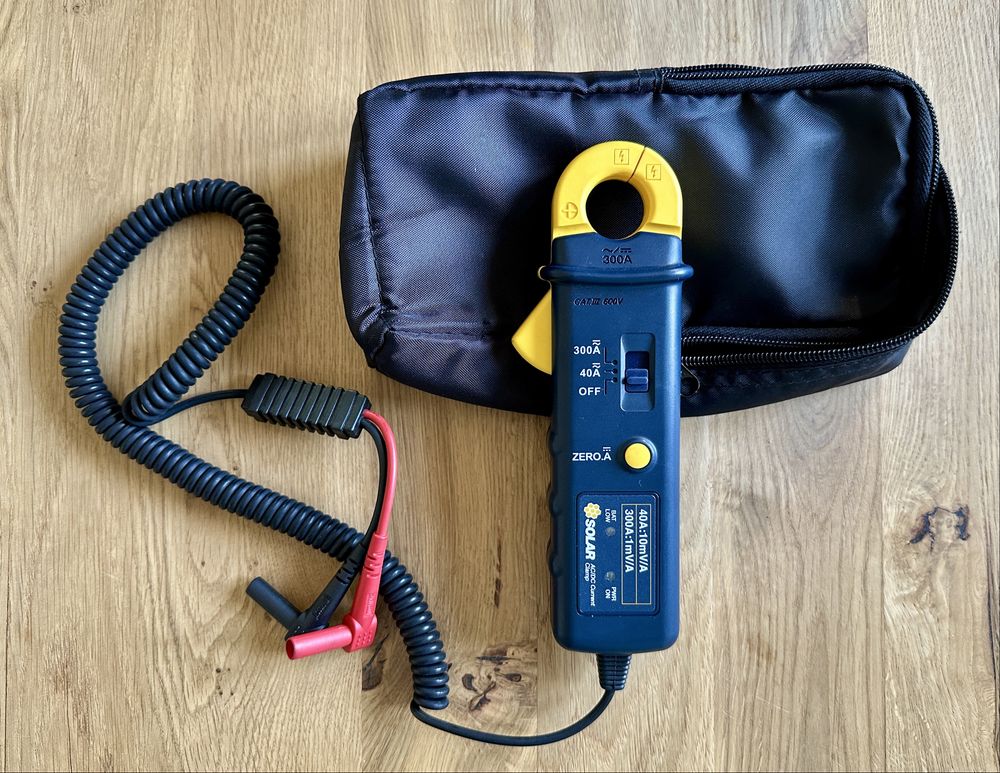

Operating Current (using Solar AC/DC Current Clamp)
Display range: 0.0 to 40A
Measuring range: 0.5 to 40A
Resolution: 0.1A max
Display: Custom LCD with backlight
Power supply: 6 x 1.5V alkaline LR06
Battery life: >1000 test sequences
Auto power down: After 1 minute
