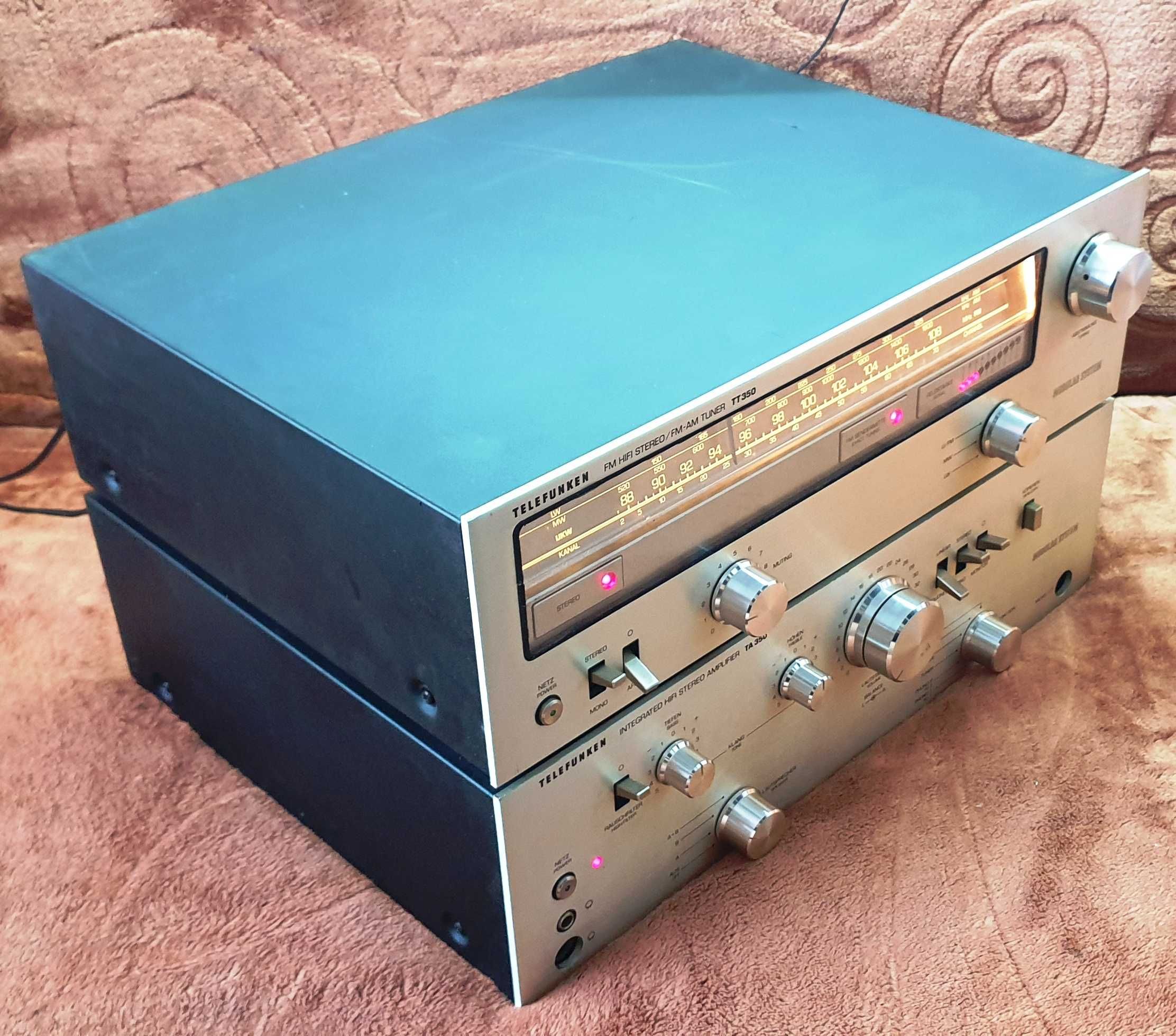

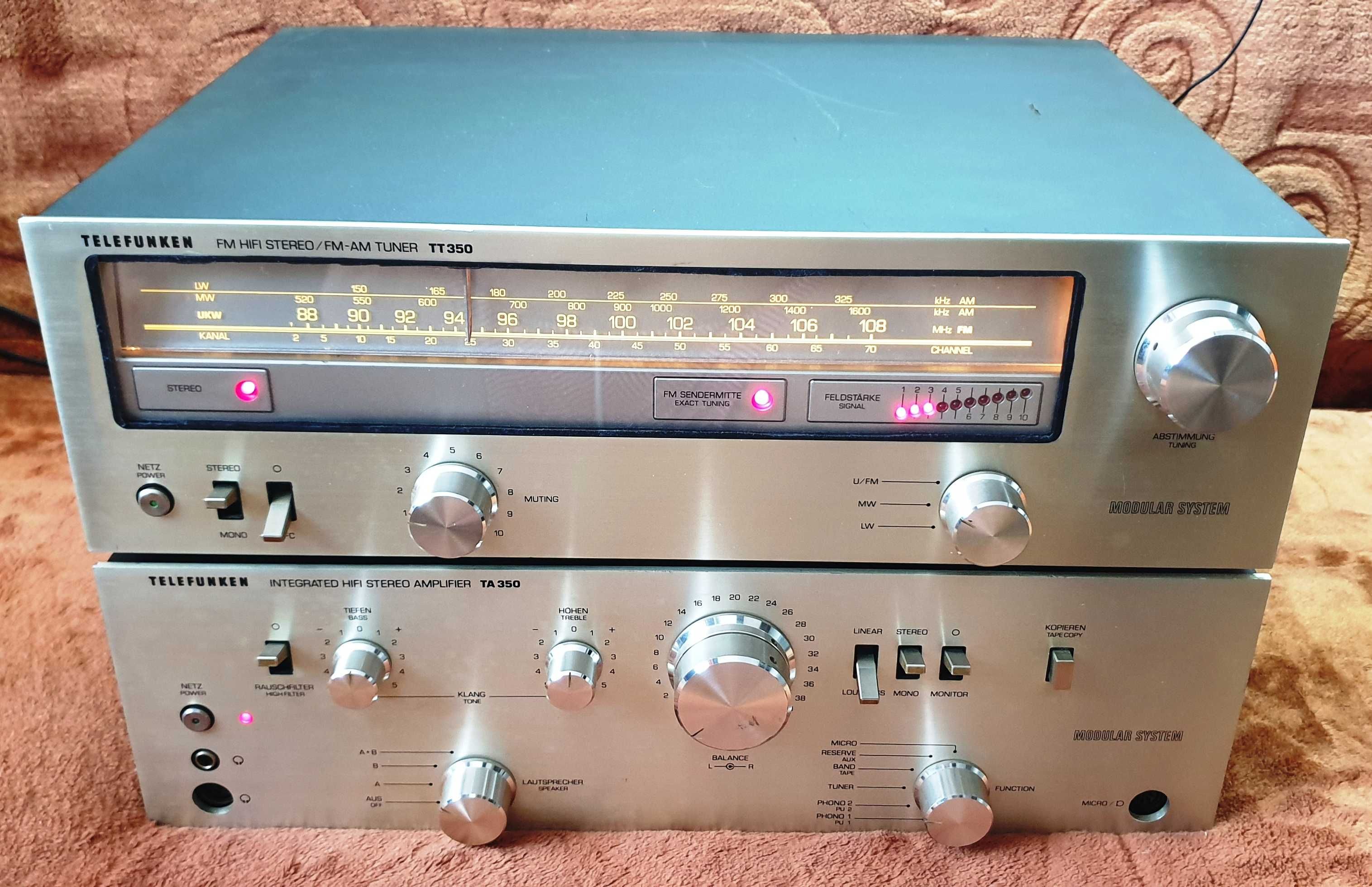

Vand Telefunken TA-350 statie si TT-350 tuner Modular System, perfect functionale atat tehnic cat si estetic. totul original fara interventii, pret 550 lei plus taxe transport fara schimburi. Nu se vand separat.

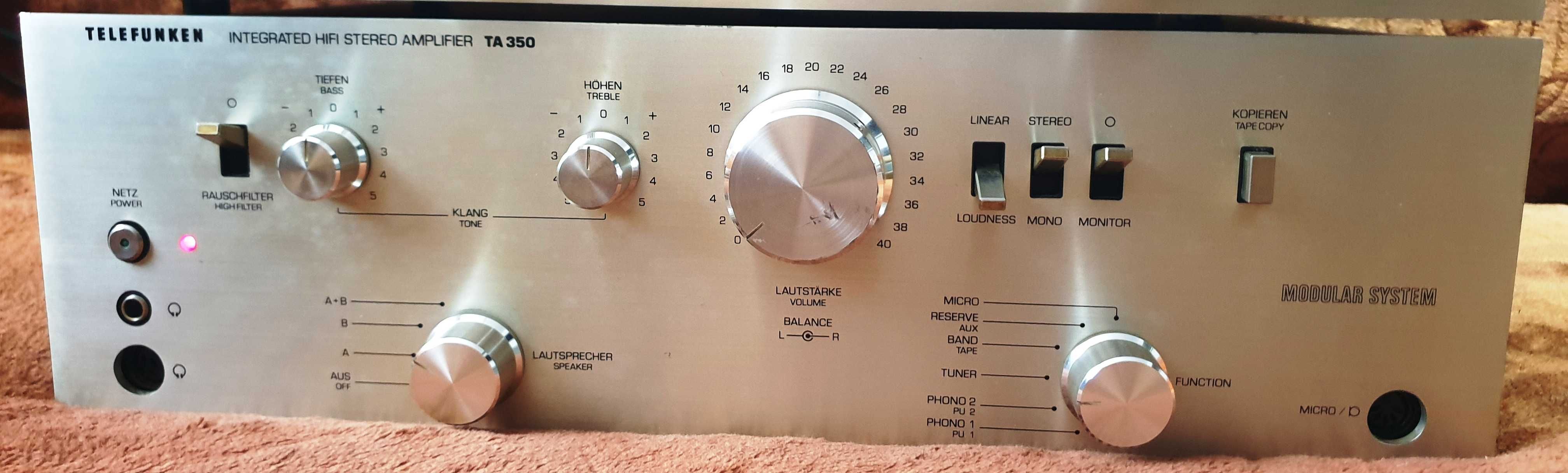

Telefunken TA 350

Manufacturer: Telefunken
Model: TA 350
Type: Integrated amplifier
Years of manufacture: 1979 - 1981
Color: champagne-metallic/metallic-brown/metallic-black
Remote control: no
Power consumption:
Dimensions: 460x145x350 (WxHxD).
Weight: 9 kg
Original price approx.: 600 DM

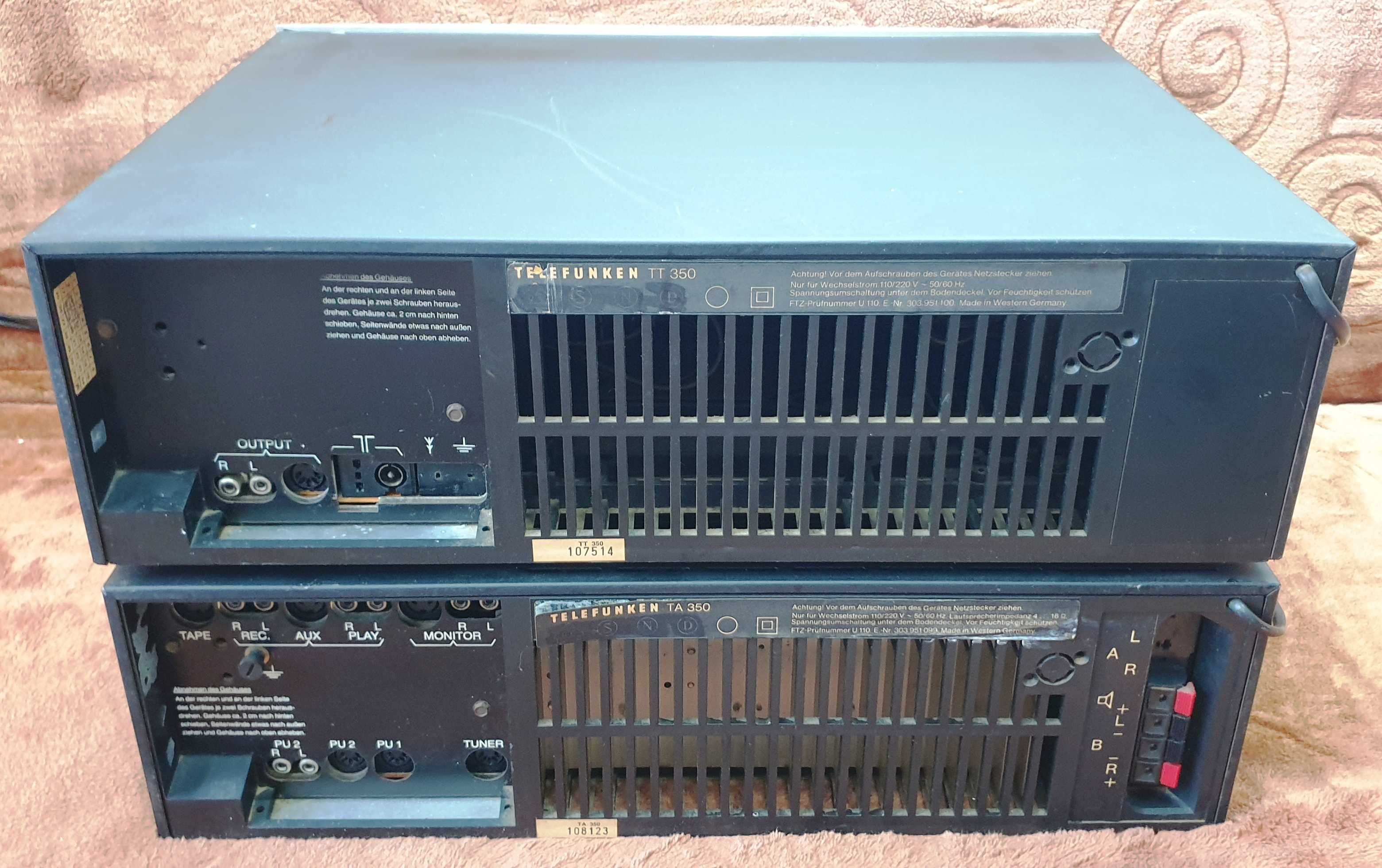

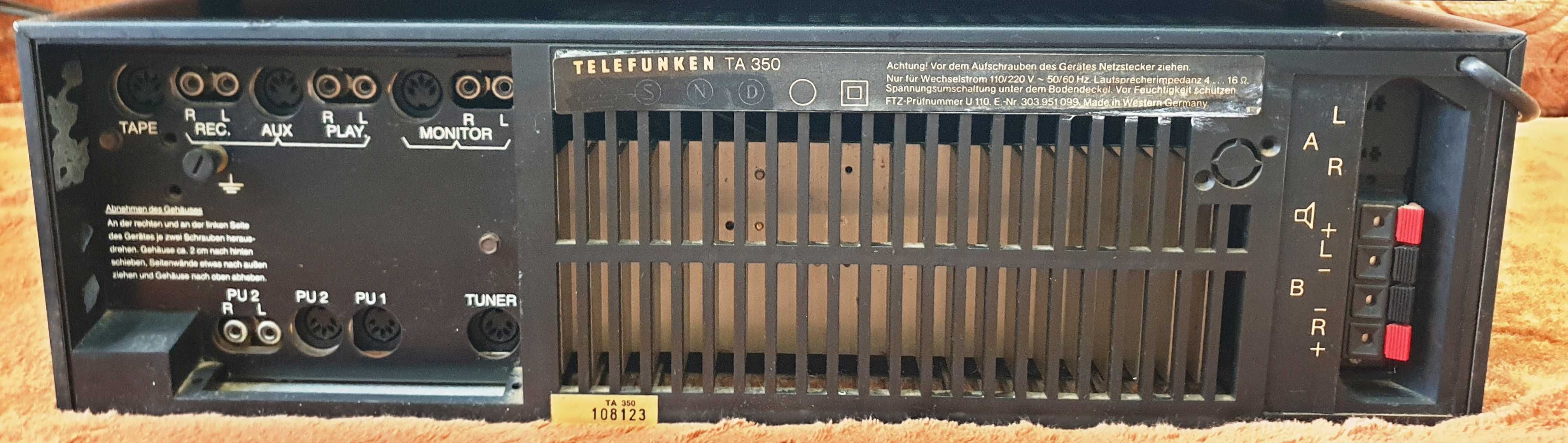

Connections

Number of inputs:
Tuner (DIN)
Phono (2x DIN, 1x Cinch)

Aux (DIN, Cinch)
Tape (DIN)
Monitor (DIN, Cinch)
Microphone (DIN)
Number of outputs:
Headphones (DIN, 6.3mm jack)
2x loudspeaker

Technical data
Continuous power:
4 Ohm: 2x50W
dynamic power:
4 Ohm 2x70W
Total harmonic distortion: 0,25%
Power bandwidth: 15Hz - 43,000Hz
Attenuation factor: 26 at 40Hz - 12,500Hz
Input (Sensitivity/Impedance)
Tuner/Tape: 200mV / 470kOhm / 30dB
Phono/Micro: 2mV / 47kOhm / 30dB
Monitor: 230mV / 80kOhm / 36dB
Output (level/impedance):
Frequency Response: 20Hz - 30,000Hz ±1.5dB
Stereo channel separation: >50dB (at 1kHz), >40dB (at 10 kHz)
Signal-to-noise ratio: 60dB
Tone control:
Bass: ±15dB (at 40Hz).
Treble: ±12.5dB (at 15kHz)
Loudness: yes
Special Features
Noise filter
Rasterized potentiometers

Telefunken TT-350 FM HiFi Stereo/FM-AM Tuner

Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Country Germany
Manufacturer / Brand
Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year 1979/1980

Technical Specifications
Number of Transistors 13 Semiconductors
Main principle
Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details Hi-Fi equipment
Power type and voltage
Alternating Current supply (AC) / 110-220 Volt
Loudspeaker
- For headphones or amp.
Material Metal case
Model: FM HiFi Stereo/FM-AM Tuner TT-350 - Telefunken Deutschland TFK,
Dimensions (WHD)
460 x 140 x 388 mm / 18.1 x 5.5 x 15.3 inch
Notes
Telefunken FM HiFi Stereo/FM-AM Tuner TT-350,
FM Übertragungsbereich: 18-15000 Hz.
Net weight (2.2 lb = 1 kg)
5.8 kg / 12 lb 12.4 oz (12.775 lb)
