Amplificator Audio hi-fi
Caracteristici Generale

Manufacturer: Technics
Model: SU-A800 MK 2
Years of manufacture: 1995-1997
Made in: Japan
Color: Technics black
Type: Analog
Power consumption: 230 W
Dimensions: 430 x 136 x 365mm
Weight: approx. 9 kg
Original price approx.: 850,- DM (UVP)

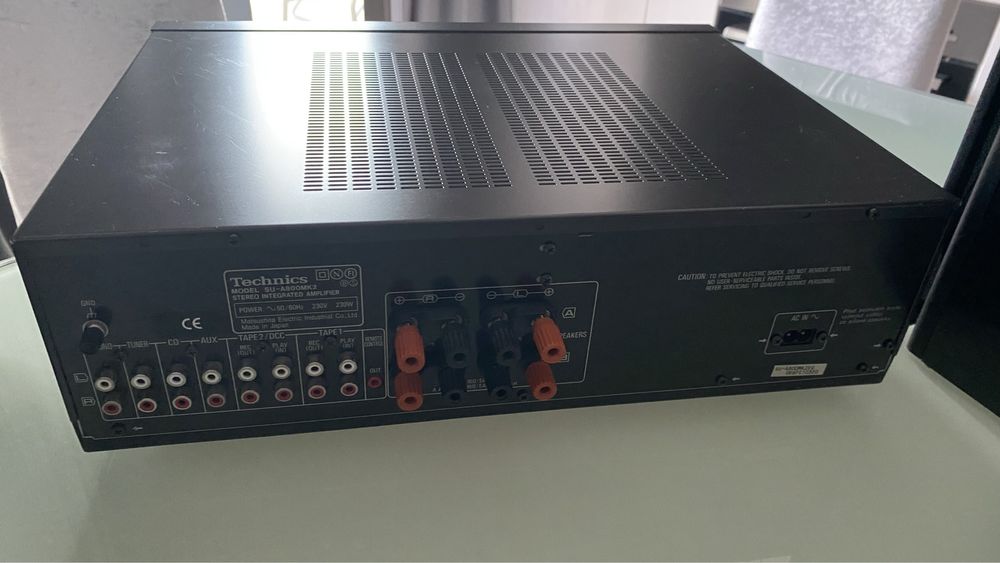

Connections

Number of inputs:
Phono MM/MC (2.5mV, 47 kOhm / 170μV, 220 Ohm).
AUX (150mV, 22 kOhm)
Tuner (150mV, 22 kOhm) CD (150mV, 22 kOhm)

Tape1/Tape2 (150mV, 22 kOhm).
Number of outputs:
Tape1
Tape2

Technical Data

Continuous power (at distortion factor)
8 Ohm: 2x 70 W / 0,003%
4 Ohm: 2x 100 W
2 Ohm: 2x 130 W

Dynamic power
8 Ohm: 2x 100 W
4 Ohm: 2x 135 W
2 Ohm: 2x 170 W
Total harmonic distortion: 0,01% Intermodulation disortion: 0,007%

Attenuation factor: 60 (8Ohm)
Frequency response: 3 Hz to 80000Hz (+0, -3dB)
Signal-to-noise ratio: 91 dB (100dB, IHF `66)
Stereo channel separation (AUX 1 khz): 50dB
Tone control:
Bass: 50Hz, +/- 10 dB
Treble: 20 kHz, +/- 20 dB
Loudness:
High Filter:
Low Filter (Subsonic):
Mute:
Direct/Line-Straight:
