Ambele în stare buna de functionare,fara reparatii,ușoare urme la aspect. Pret valabilnpentru amplificator,deck ul s.a vandut!

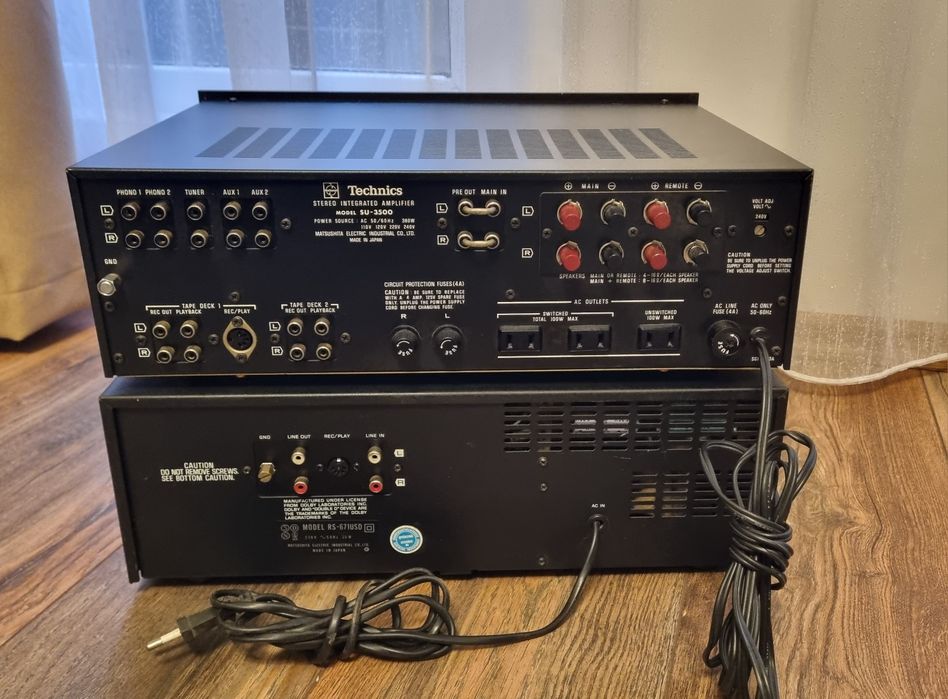

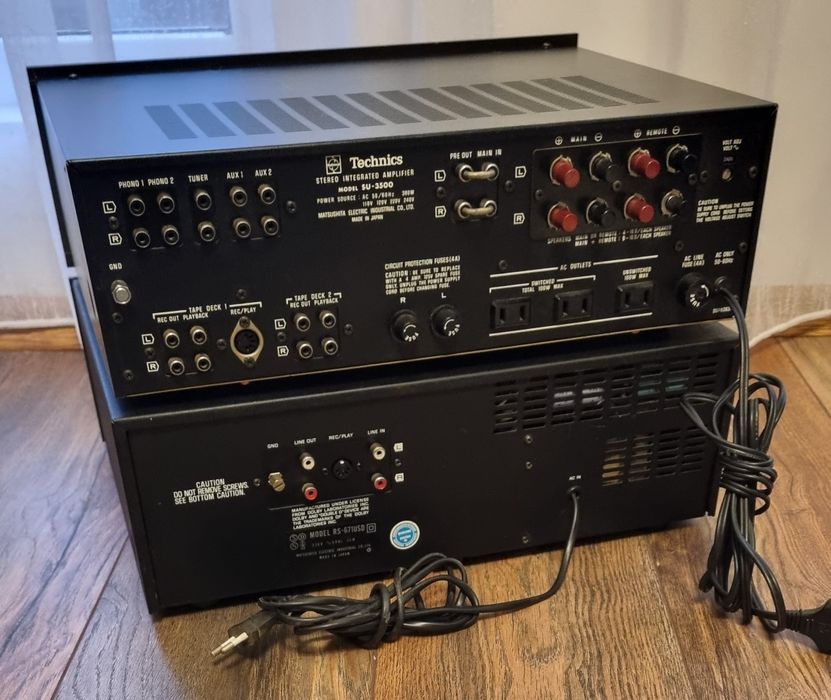

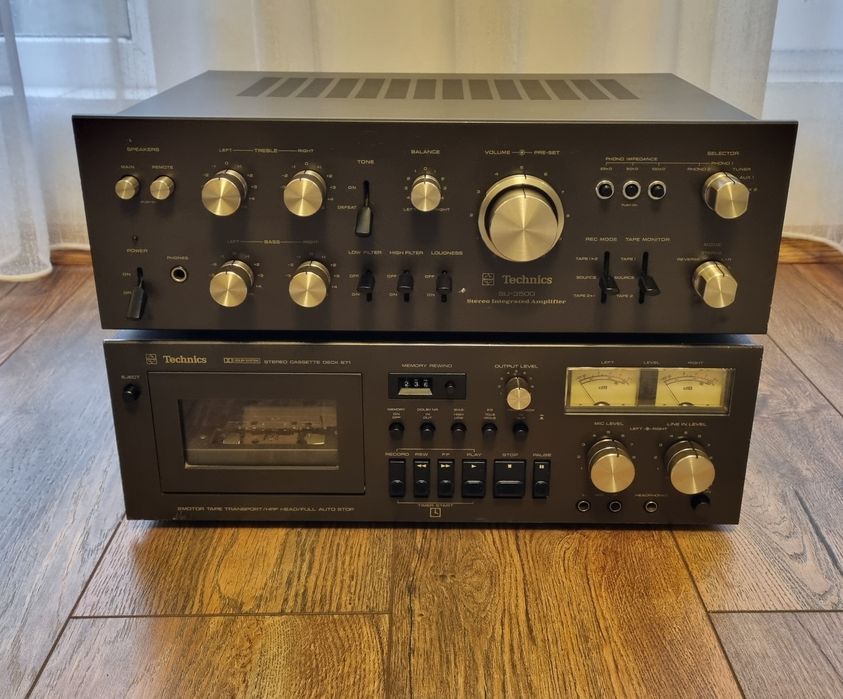

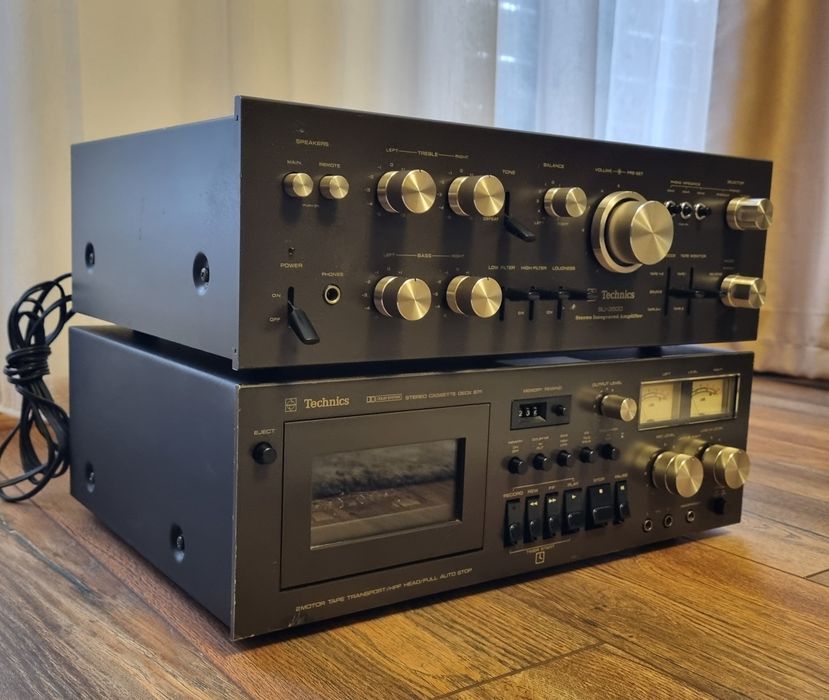

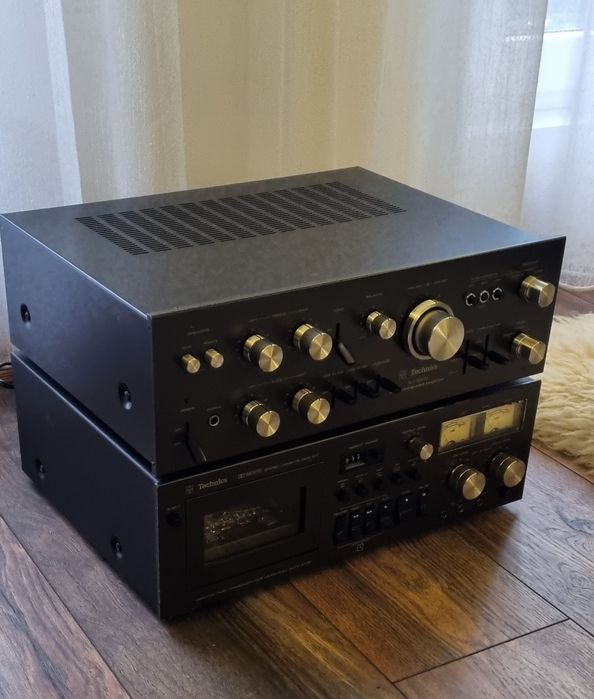

Manufacturer: Technics
Model: SU-3500
Type: Integrated amplifier
Years of manufacture: 1975 - 1977
Manufactured in: Matsushita Osaka Japan
Color: Silver
Remote control: no
Power consumption: 380 W
Dimensions: 410 x 140 x 340 mm (WxHxD)
Weight: 10.2 kg
Original price approx.: 1'145 DM

Connections

Number of inputs:7
Phono 1 : 2mV /25kOhm/50kOhm/100kOhm /max. 510mV
Phono 2 : 2mV /25kOhm/50kOhm/100kOhm /max. 510mV
AUX 1 : 100mV /50kOhm
AUX 2 : 100mV /50kOhm
Tape deck 1 : 100mV /50kOhm
Tape deck 2 : 100mV /50kOhm
Tuner : 100mV /50kOhm

Number of outputs : 4
PREOUT Nominal : 1V /100 Ohm

PREOUT Max. 11V /100 Ohm
Tape deck 1 : 100mV /500 Ohm RECOUT
Tape Deck 2 : 100mV /500 Ohm RECOUT

Tape deck 1 DIN : 30mV /80 kOhm

Technical Data

Continuous power (at distortion) DIN 45500
8 Ohm: 2 x 41W / 0,08%
4 Ohm: 2 x 47W / 0,08%
Dynamic power
8 Ohm: 2 x 62,5W
4 Ohm: 2 x 95W
Total harmonic distortion: 0.08%
Attenuation factor: 50/4Ohm 100/8Ohm
Frequency response: 5Hz - 100kHz +0dB/-3dB
Phono RIAA +-0.5dB
Signal to noise ratio:
Phono 60dB
AUX 80dB
Stereo channel separation: 110dB
Tone control:
Bass: 50Hz +12dB/-12dB
Treble: 20kHz +12dB/-12dB

Loudness:
Volume -30dB : 100Hz +8dB
High Filter : 8kHz -12dB
Low Filter (Subsonic) : 30Hz -12dB
Mute: -

Manufacturer: Technics
Model: RS-671 USD
Type: Single deck
Years of manufacture: c. 1976
Made in: Japan
Color: silver, black
Remote control: no
Power consumption: 20 W
Dimensions: 410 x 140 x 330 mm
Weight: 9.4 kg
Original price approx.: 1'200 DM

Connections

Number of inputs:
Line In (DIN): 60 mV / 68 kOhm.
Microphone: 0,3 mV / 600 - 20.000 Ohm
Number of outputs:
Line Out (DIN): 0.42 V / 50 kOhm
Headphones (6.3mm jack): 65 mV / 8 Ohm

Technical Data
Tape Deck 671 USD

Audio heads:
1x HPF sound head (recording, playback).
1x ferrite head (erase)
motors:
1x electronically controlled (tone shaft/capstan).
1x DC (tape platter)
Synchronous fluctuations: 0.063% (WRMS), ±0.15% (DIN)
Band types: type I (normal band), type II (CrO2).
Frequency response:
Type I:
DIN: 25 - 14,000 Hz
±3 dB: 30 - 13,000 Hz
Type II:

DIN: 25 - 15,000 Hz
±3 dB: 30 - 14,000 Hz
Distortion Ratio:
Signal-to-noise ratio:
Signal-to-noise ratio: 52 dB (Normal), 62 dB (Dolby, above 10 kHz).
Auto reverse: no
Title search: no
Dolby: yes
MPX filter: no
Fader: no
Pitch control: no
CD synchro recording: no

Special Features

Analog level meter
