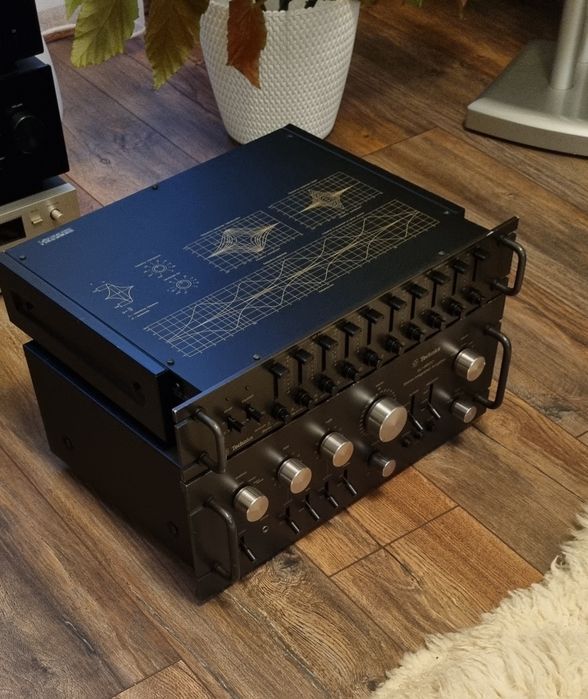

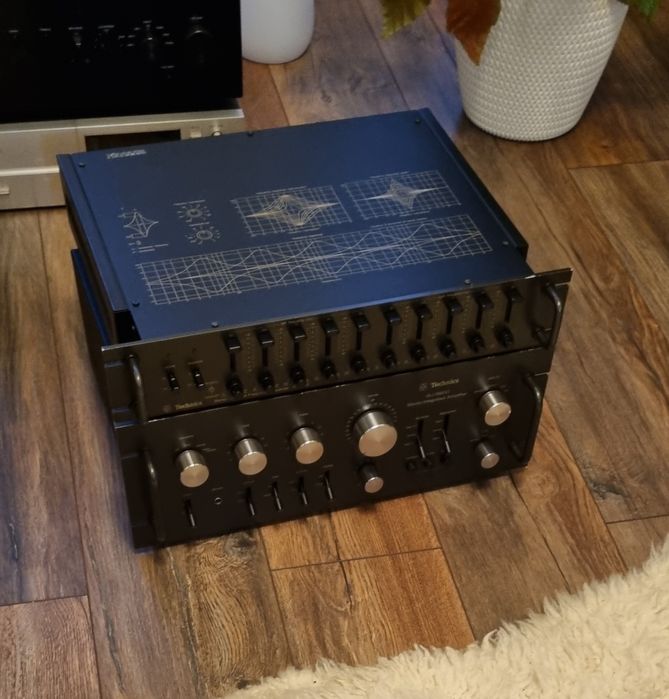

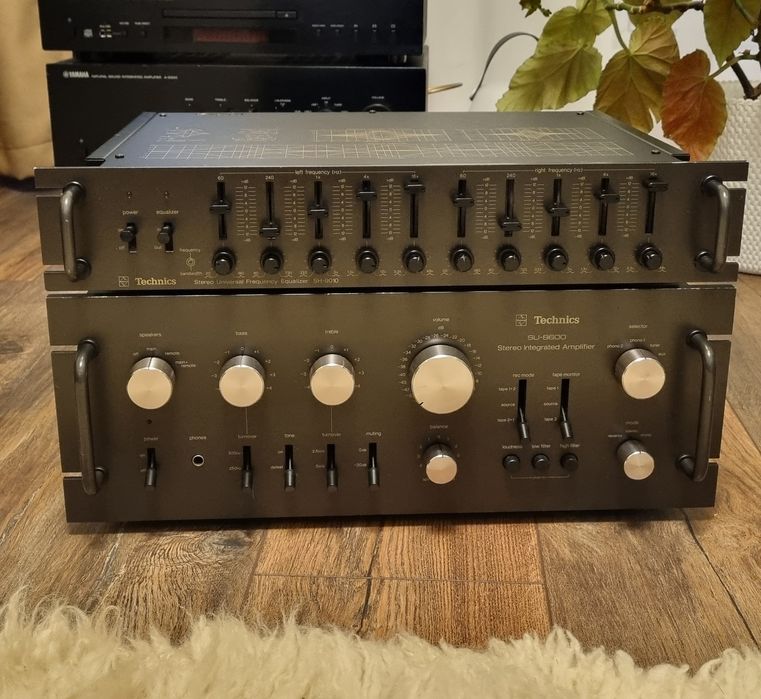

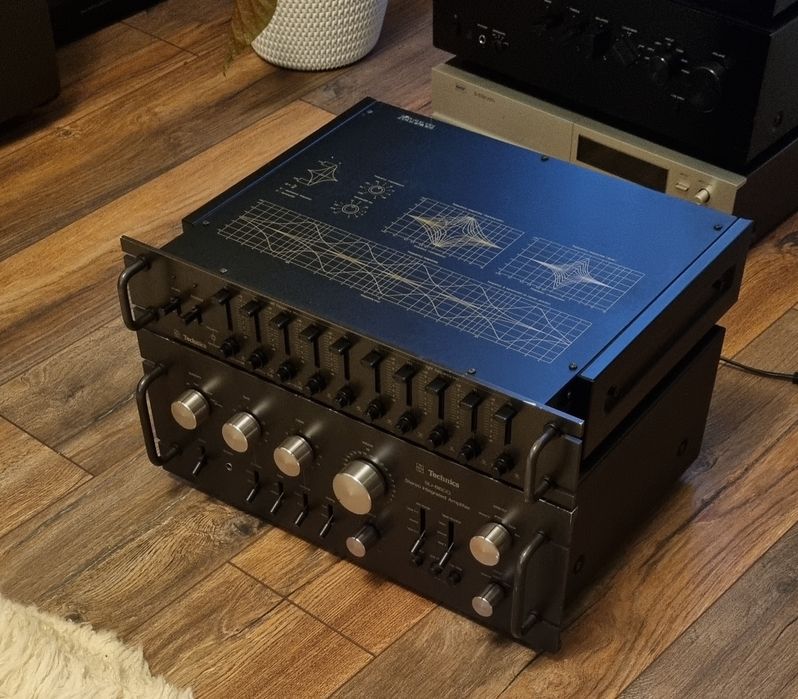

Vand egalizatorul din titlu,aparat in stare buna de functionare si aspect.

Manufacturer: Technics
Model: SH-9010
Type: Equalizer
Years of manufacture: 1976 - 1979
Made in: Japan
Color: black
Remote control: no
Power consumption: 8 W
Dimensions: 450 x 92 x 364 mm (WxHxD)
Weight: 6 kg
Original price approx.: 1'300 DM

Connections

Number of inputs:
Input (mono): 1 V / 47 kOhm
Number of outputs:
Output (mono): 1 V

Technical Data

Adjustable frequency bands: 60, 240, 1,000, 4,000, 16,000 Hz.
60 Hz: 20 Hz - 180 Hz 240 Hz: 80 Hz - 720 Hz 1 kHz: 333 Hz - 3 kHz

4 kHz: 1.3 kHz - 12 kHz
16 kHz: 5.3 kHz - 48 kHz
Control range: ±12 dB (stepless)
Frequency response:
10 - 20,000 Hz (+0/-0.2 dB).
10 - 70,000 Hz (-3 dB)
Signal-to-noise ratio:
Signal-to-noise ratio: 87 dB (DIN)
Distortion factor: 0.02

Special Features

Adjustment of the slope: Q = 0.7 - 7
Technics Professional series consists of 5 stackable components
