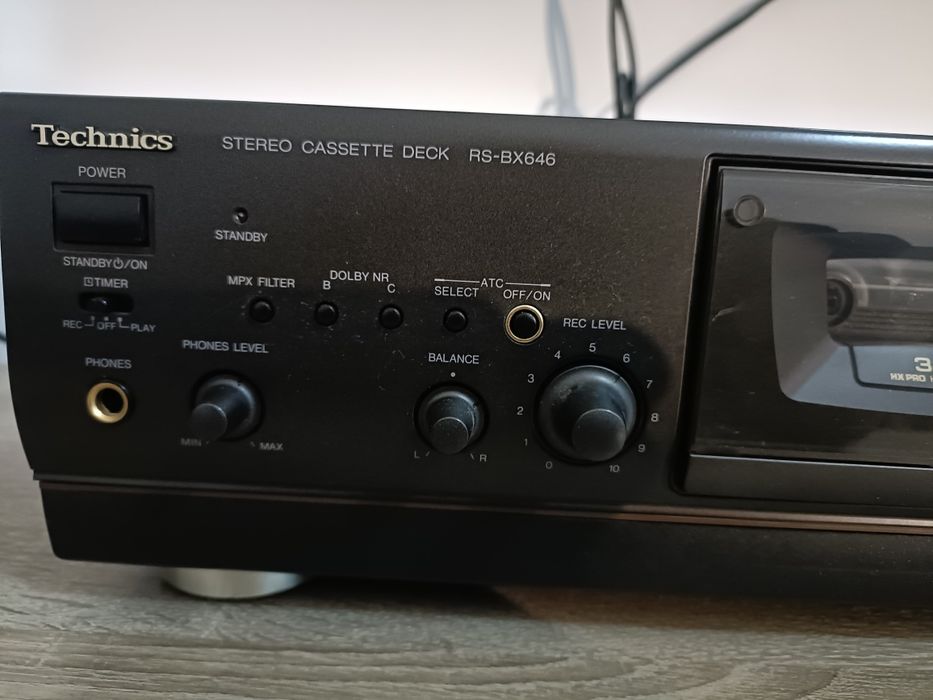

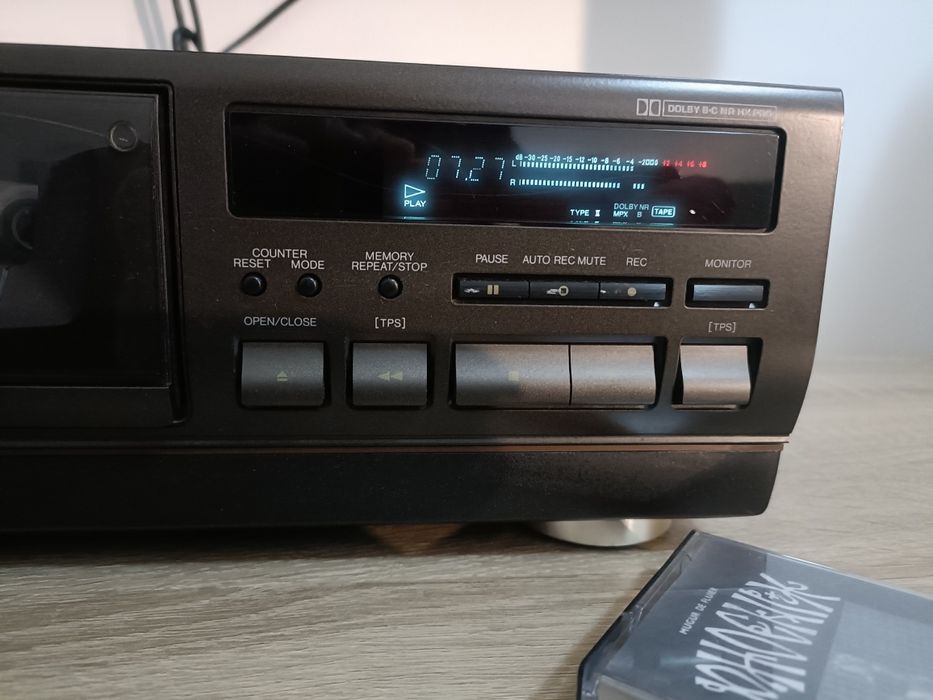

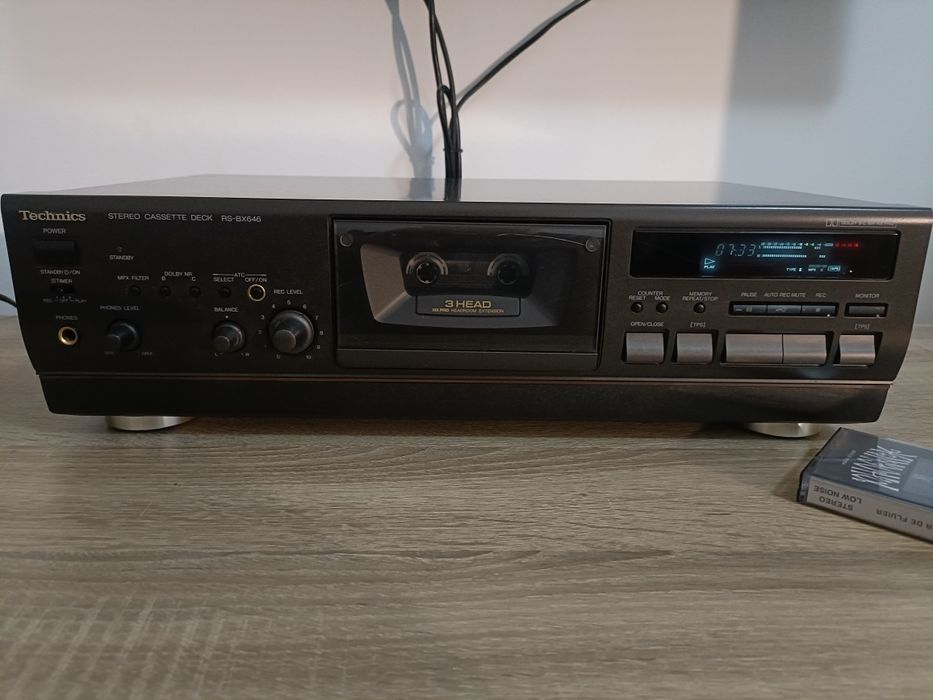

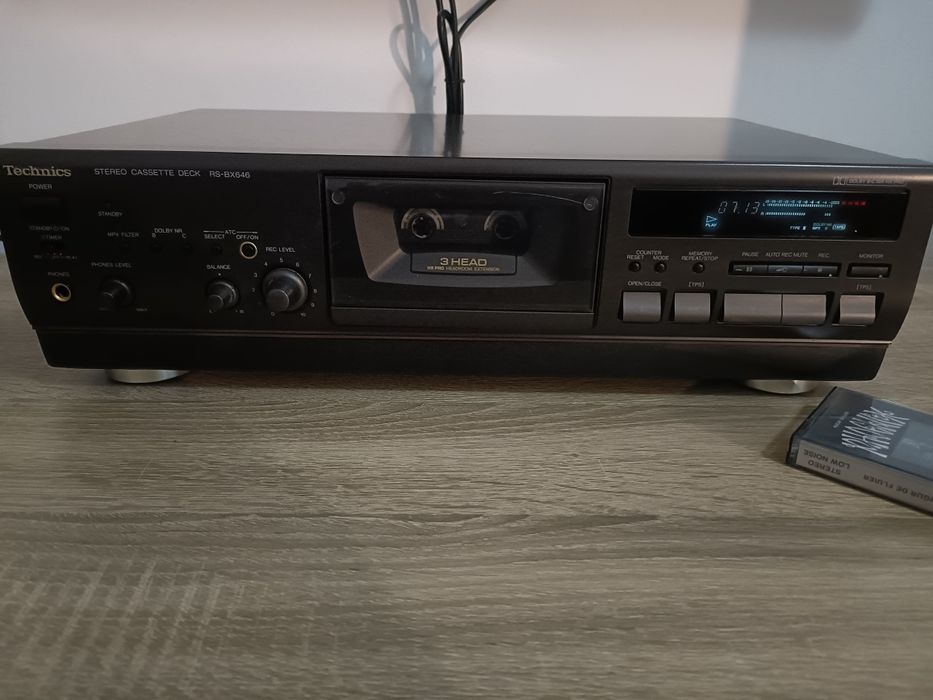

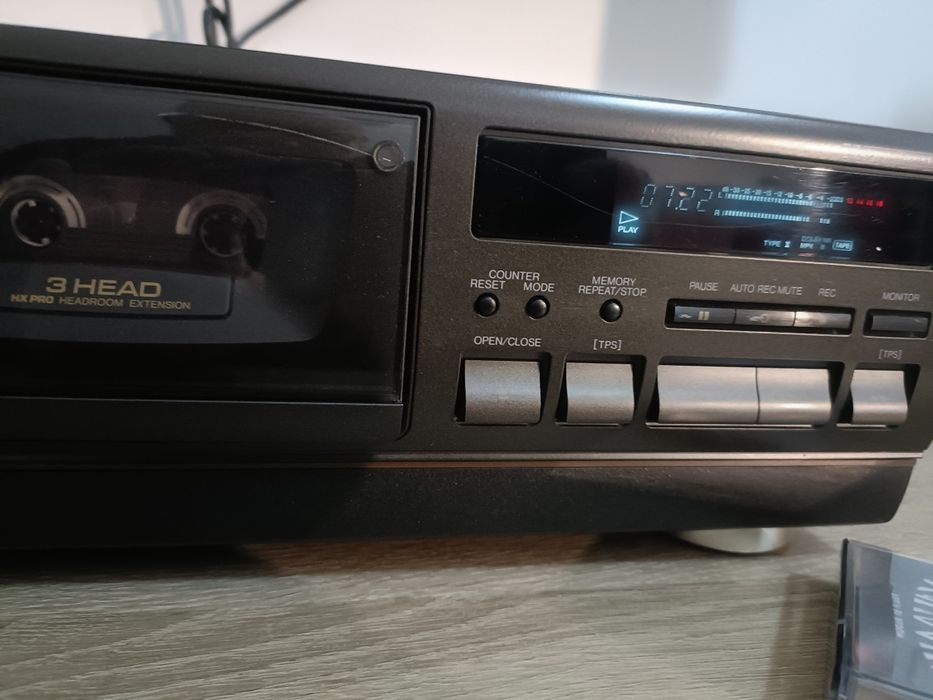

Technics RS BX 646, stereo cassette deck 3 capete, perfect funcțional, aspect bun, sunet extraordinar!
Funcționează fara probleme, la ridicarea personala se asigura proba.
General:
Manufacturer: Technics
Model: RS-BX 646
Type: Single cassette deck
Years of manufacture: 1993-94
Made in: Japan
Color: Technics-anthracite

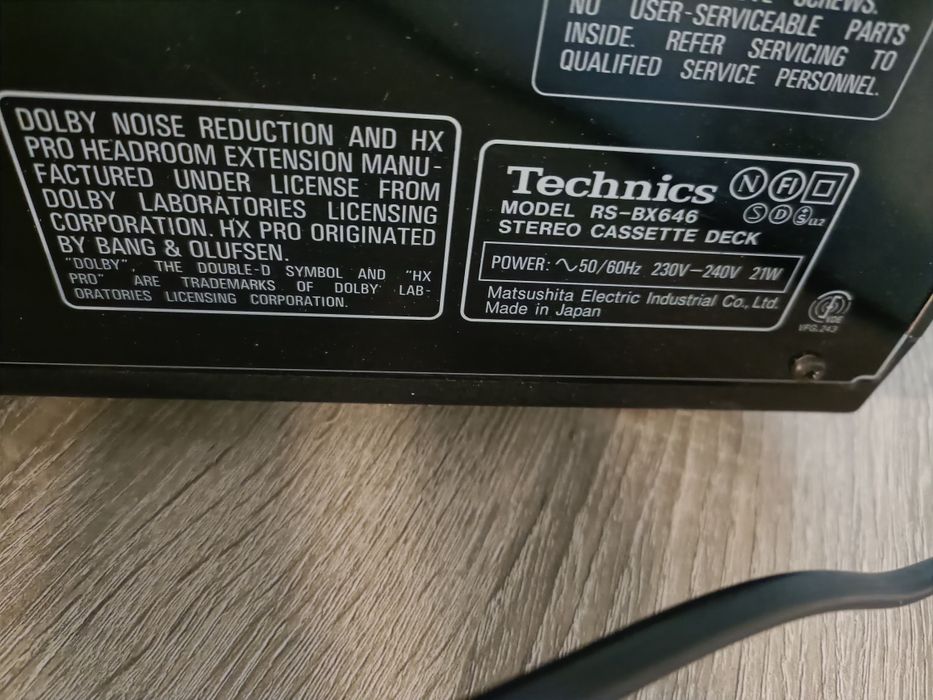

Power consumption: 21 W
Dimensions (W/H/D): 430x125x293 mm
Weight: 5.6 kg

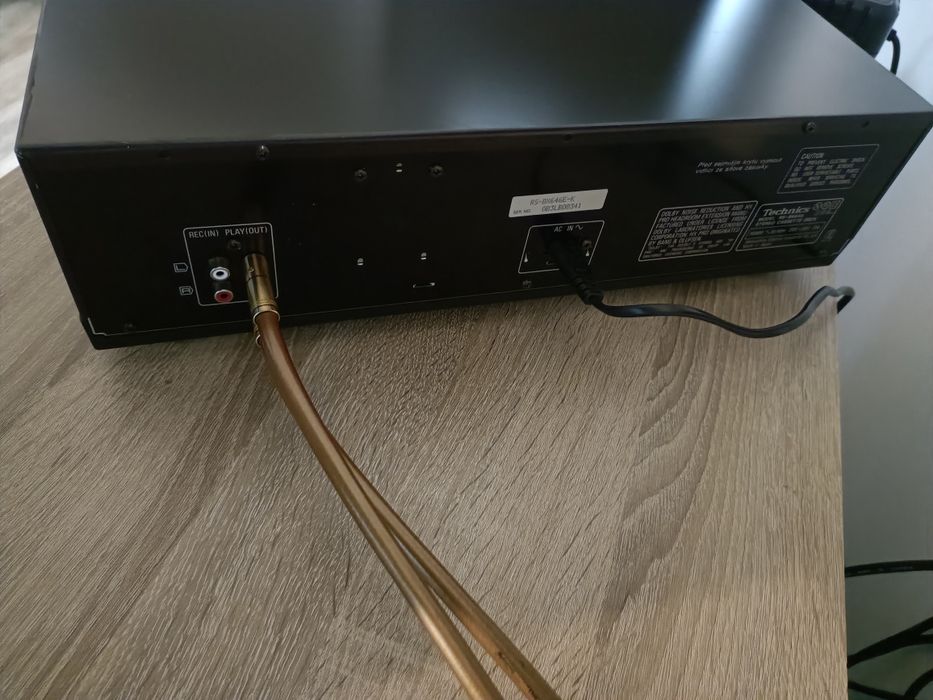

Connections
Inputs:
Line In (REC) 100 mV/47 kOhm
Outputs:
Line Out (PLAY) 500 mV/500 ohms.
Headphones 190 mV/8 Ohm (load impedance 8-600 Ohm)
Technical Data:
Audio head assembly: 3
Motors: 3, one of them for the cassette compartment (servo),
Synchronisation fluctuations: 0.07% (effective), +-0.2% (DIN). Test: 0.16 (DIN)
Frequency response :
Normal: 20-18,000 Hz
Chrome: 20-19.000 Hz
Metal: 20-20,000 Hz
External voltage spacing:
without Dolby 57dB (A-curve).
Dolby B 66dB (A-curve)
Dolby C 74dB (A-curve)
Single- Capstan- Drive
Special Equipment:
Automatic metering (ATC with 3 bias programs)
Rear band control with monitor circuit
Dolby B and C
Dolby HX-PRO
Adjustable headphone output
Resonance-damping cabinet base (THCB = Technics Hybrid Construction Base)
MPX filter (switchable)
Fast forward function: C 60 cassette: approx. 46s., C90 cassette: approx.70s.
TPS title search;
2 counter modes (Linear /Real Time)
Memory Repeat/Stop (repeat playback between two tape sections/rewind the tape to a desired tape position)
Automatic recording mute (approx. 4 sec.)
