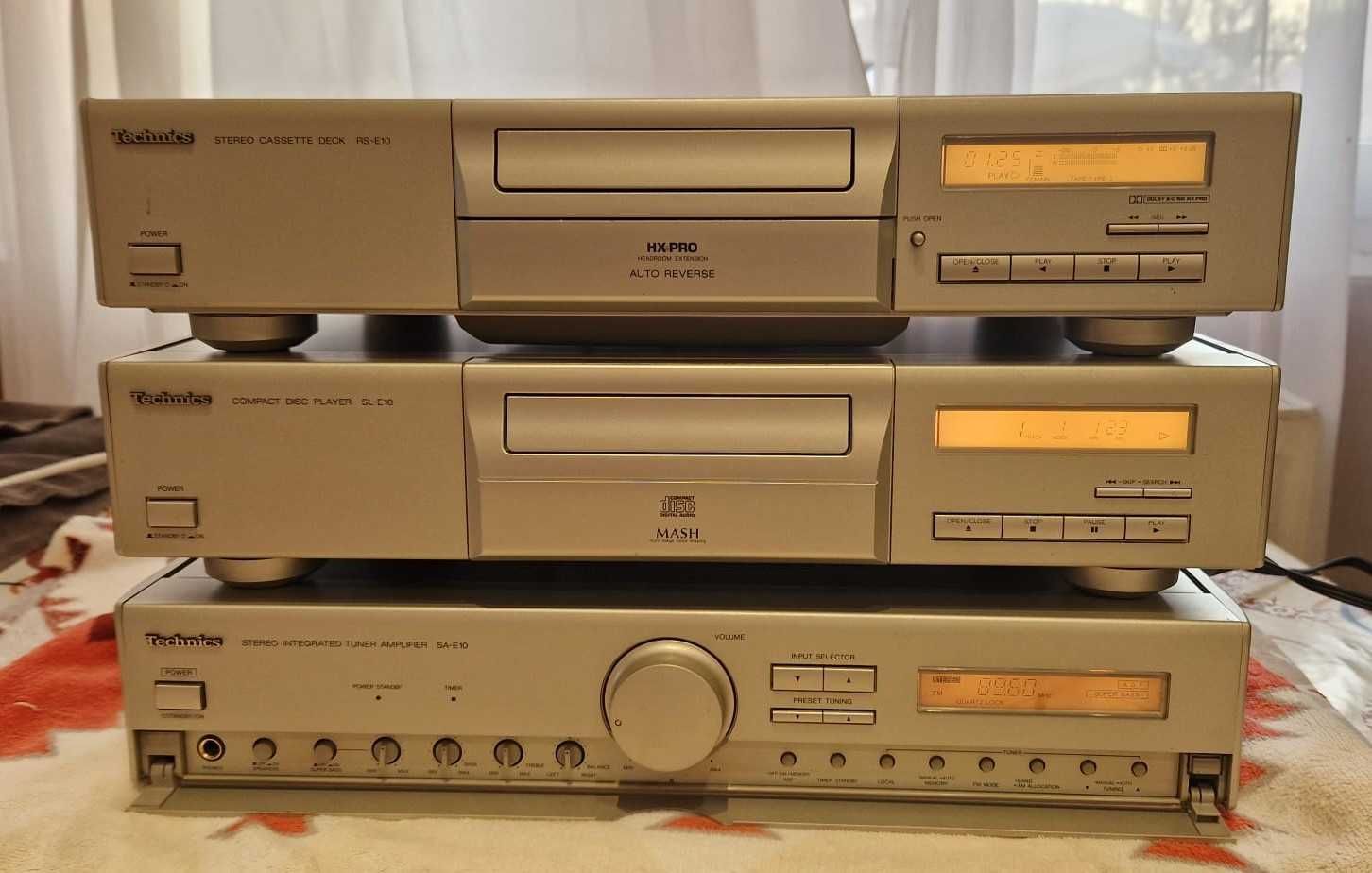

Technics E10
Component Audio System (1992-94)
Type: auto reverse, 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: 1 x reel, 1 x capstan, 1 x loading
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C
Headroom Extension: HX Pro
Frequency Response: 30Hz to 17kHz (Metal tape)
Signal to Noise Ratio: 74dB (dolby C)
Wow and Flutter: 0.07%
Input: 60mV (line)
Output: 0.4V (line)
Dimensions: 445 x 97 x 327mm
Weight: 5kg

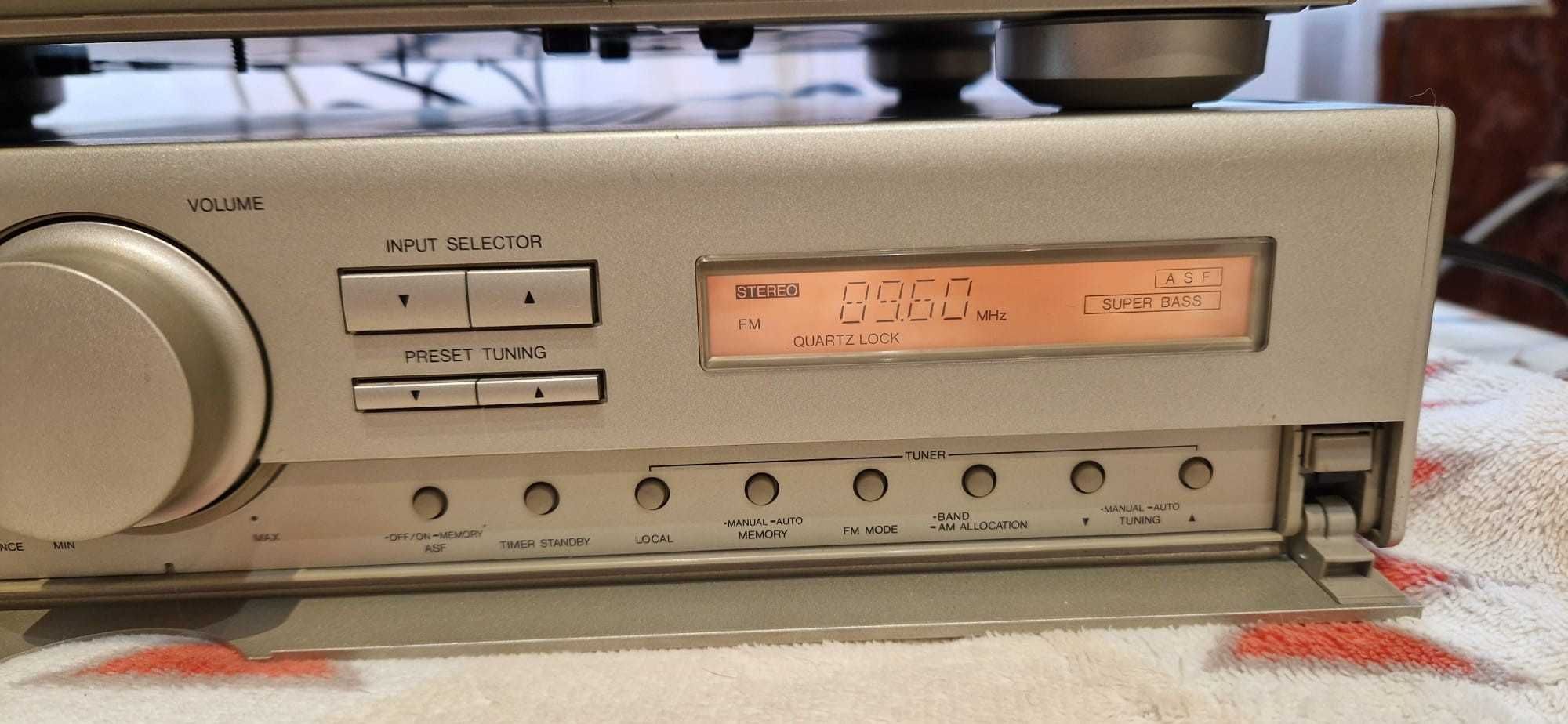

Technics SA-E10
Tuning range: FM, MW
Power output: 40 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 40kHz
Total harmonic distortion: 0.05%
Damping factor: 40
Input sensitivity: 2.5mV (MM), 200mV (line)
Signal to noise ratio: 80dB (MM), 93dB (line)
Channel separation: 54dB (line)
Output: 150mV (line)
Speaker load impedance: 4Ω to 16Ω
Technics SL-E10
Disc format: CD
Digital converter: MASH, 1 bit
Frequency response: 2Hz to 20kHz
Dynamic range: 98dB
Signal to Noise Ratio: 103dB
Total harmonic distortion: 0.003%
Line output: 2V
Digital connections: optical
Dimensions: 445 x 97 x 330mm
Weight: 4.2kg
