RASPUND DOAR PE WHATSAPP

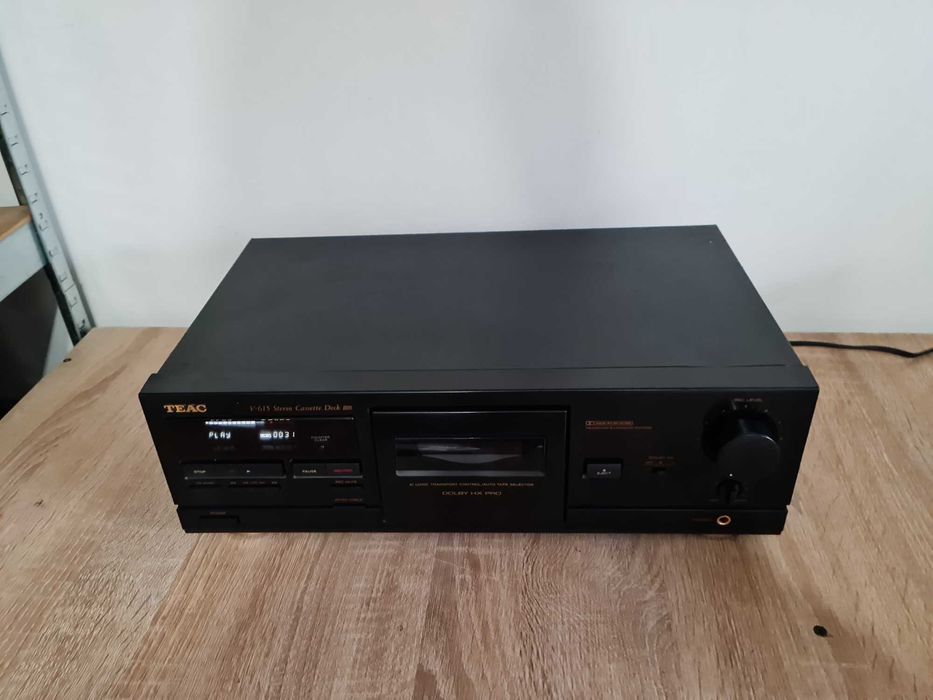

TEAC V-615 Stereo Cassette Deck

redare foarte buna
PROBLEME PE PARTEA E DERULARE... deruleaza foarte incet
nu oscileaza turatia
executa toate comenzile

POZE REALE

Type: 2-head, single compact cassette deck

Track System: 4-track, 2-channel stereo

Tape Speed: 4.8 cm/s

Heads: 1 x record/playback, 1 x erase

Motor: 1 x reel, 1 x capstan

Tape Type: type I, CrO2, Metal

Noise Reduction: B, C

Headroom Extension: HX Pro

Frequency Response: 25Hz to 19kHz (Metal tape)

Signal to Noise Ratio: 79dB (dolby C)

Wow and Flutter: 0.06%

Input: 97mV (line)

Output: 0.52V (line)

Dimensions: 435 x 144 x 286mm

Weight: 4kg
The main features of the TEAC V-615 are: 2 heads, digital tape counter with 4 digits, tape type selection and capable of handling normal, chrome and metal tapes, belt driven single-capstan transport.

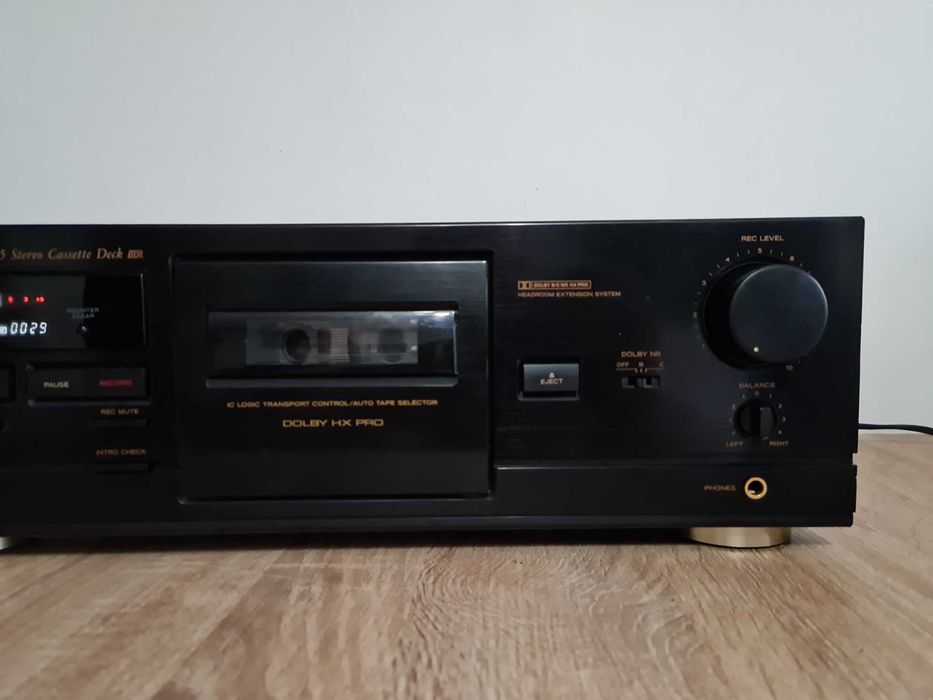

Typical front loading cassette deck with the cassette compartiment located on the center of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

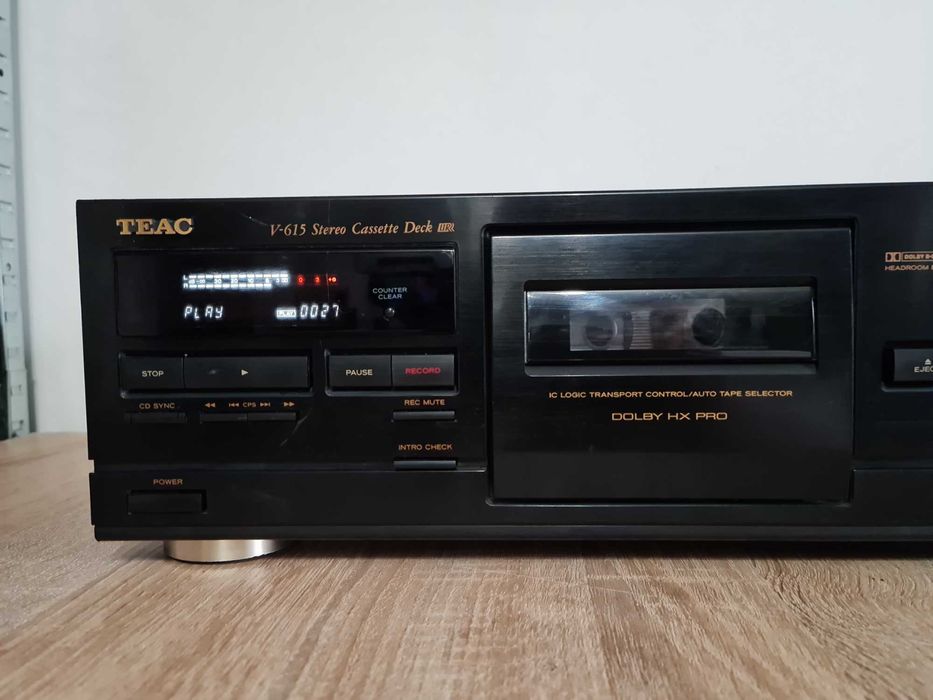

Level meters used on the V-615 are generic digital peak reading meters. Full-logic transport controls used on the V-615 let it respond to the slightest finger contact for fast and effortless transport function selection.

Dolby C-type used in the V-615 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The Dolby HX PRO system provides precise bias control during recording to reduce distortion and improve linearity in the high-frequency range, the result is recorded sound that is highly faithful to the original.

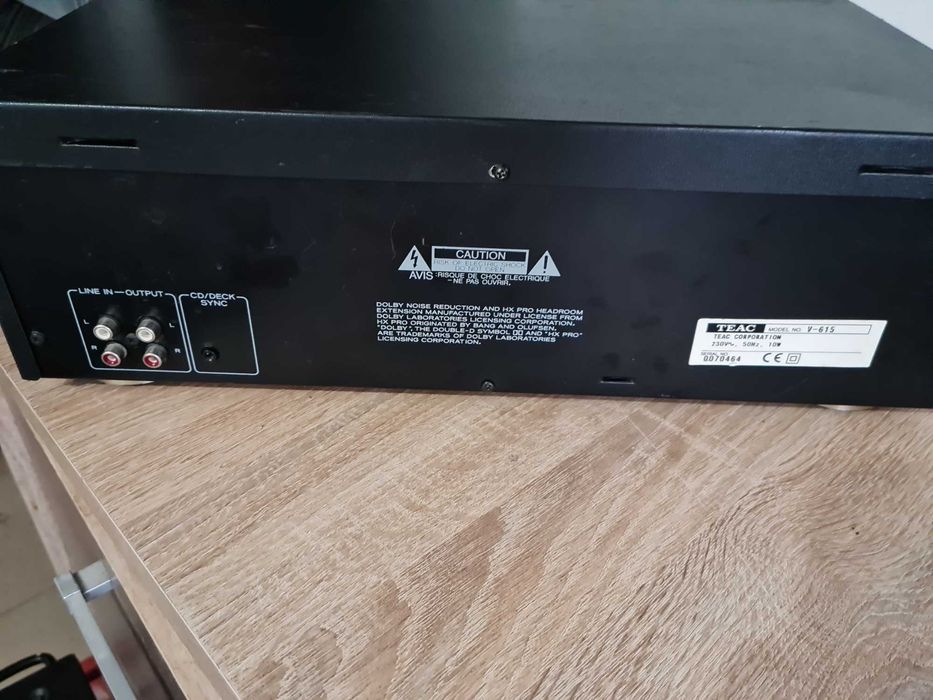

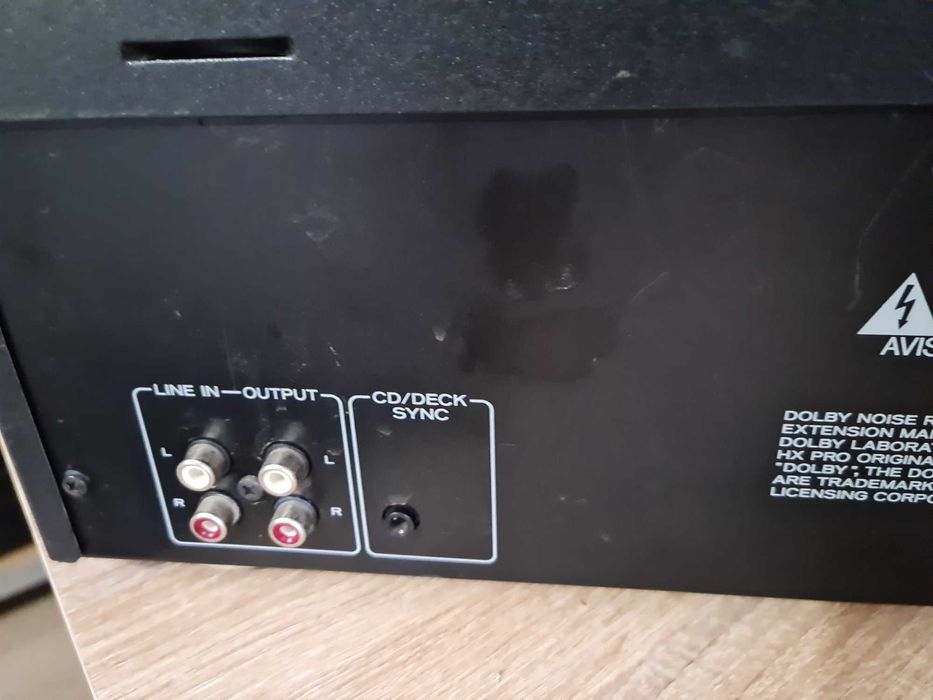

For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.
