CPU
Intel® Core™ i5-7300U 2.6 GHz up to 3.5 GHz with, 3MB Cache
Operating System
Microsoft Windows 10 Pro 64-bit
Storage & Memory
Memorie ram 16GB
SSD: 1TB
Optional OPAL encrypted SSD with heater

Advertisement
Display
12.0" QHD (2160 x 1440 dots), Aspect ratio 3:2 Anti-Reflection
– 10-point capacitive gloved multi touch + digitizer
2-1200 nit
Direct bonding
Anti-reflective (AR) screen treatment
Intel HD Graphics 620
4 monitor support (with Premium Keyboard)
Concealed mode (configurable)
Camera
Front(Tablet): 1920 x 1080 dots, 30fps(video)/1920 x 1080 dots(Still), Dual Microphone, with IR for Windows Hello
Rear(Tablet): 2048 x 1536 dots, 15fps(video)/3264 x 2448 dots(Still), with LED flash
Integrated dual array microphone
Intel® High Definition Audio compliant
Integrated speakers (front-facing)
On-screen and button volume and mute controls
Expansion Slots
Tablet: microSDXC card x1
Keyboard base: SDXC card x1
Advertisement

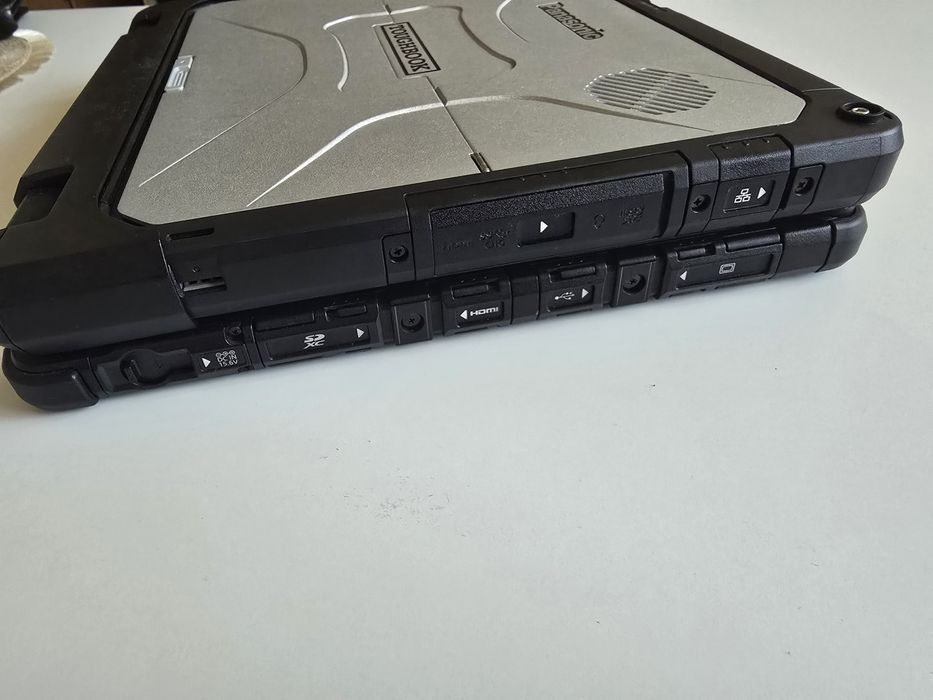

Interface
USB 3.0: x3 (x1 Tablet, x2 Keyboard Base)
USB 2.0: x1 (Keyboard Base)
HDMI: x2 (x1 Tablet, x2 Keyboard Base)
Headset: x1 (Tablet)
Nano SIM: x1 (Tablet)
Dual Pass Through Antenna: x2 (x1 Tablet, x1 Keyboard Base)
Serial: x1 (Keyboard Base)
VGA port: x1 (Keyboard Base)
LAN: IEEE 802.3 10Base-T / IEEE 802.3u 100Base-TX / IEEE 802.3ab 1000Base-T
Tablet option: True serial x1 or BCR or 2nd USB 2.0 x1
Fingerprint reader (200 x 400 pixels, 508 DPI) or Smartcard Reader or Contactless
Smart Card reader ***
Dedicated GPS(u blox NEO-M8N) and WWAN
Connectivity
Intel® Dual band Wireless-AC 8265 (a/b/g/n/ac)
Bluetooth™: Version 4.1 + Classic mode/low energy mode, Class 1
4G Mobile Broadband: Option (Wireless modem EM7305 with GPS)
LAN: IEEE 802.3 10 Base-T/IEEE 802.3u 100 Base-TX/IEEE 802.3ab 1000 Base-TX
Advertisement
Power

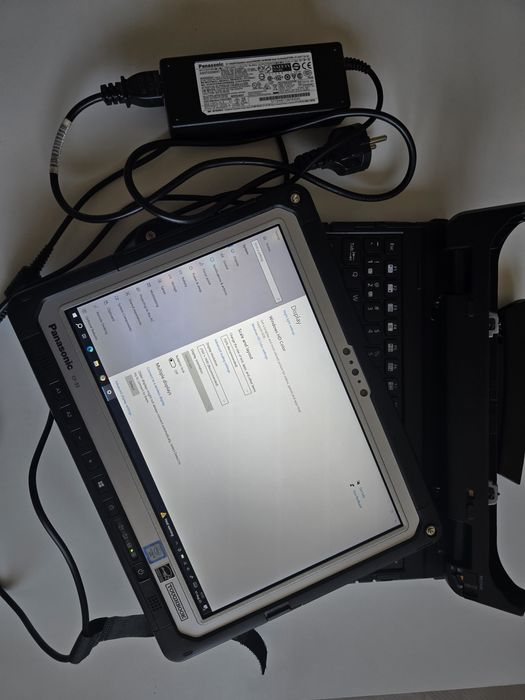

AC Adapter: Input: 100V ~ 240V, 50Hz/60Hz; Output: 15.6V, 4.06A

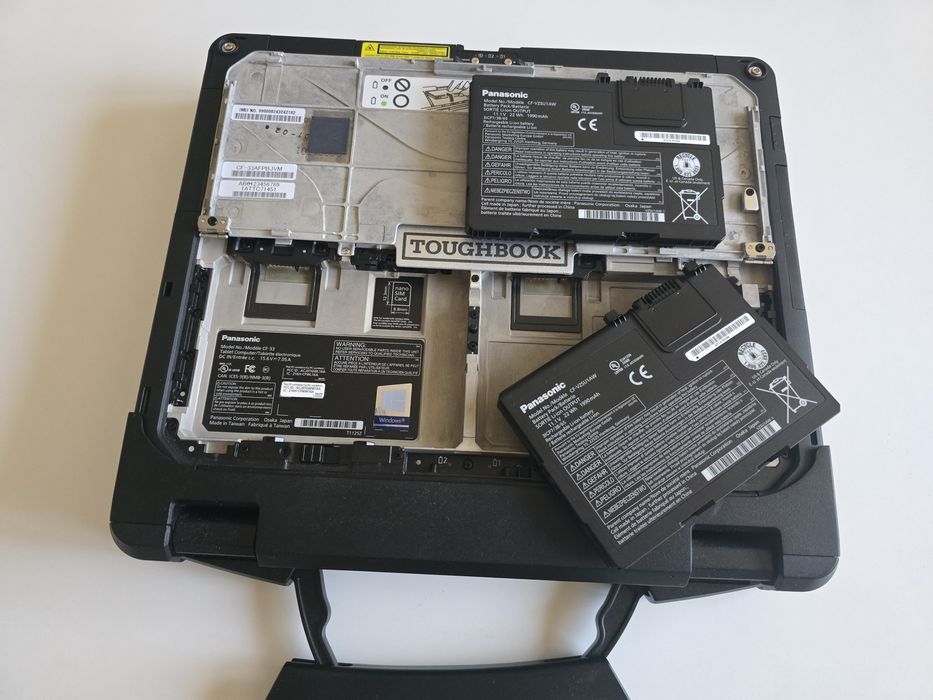

Battery pack: (Standard) Li-ion 11.1V, 1990 mAh x 2, (Large) Li-ion 10.8V, 4120 mAh x2 (option)
Operating time
(Standard) Tablet only: approx 11 hours
with keyboard base: approx 10 hours
(Large) Tablet only: approx 22 hours
with keyboard base: approx 20 hours
Charging time
(Standard) Power ON: approx 3 hours
Power OFF: approx 2.5 hours
(Large) Power ON: approx 3 hours
Power OFF: approx 2.5 hours
Security Features
Trusted platform module (TPM) [TCG V2.0 compliant]
Advertisement
Dimensions (W x H x D)
Tablet only: 308.0 x 243.6 x 21.6mm {12.1" x 9.6" x 0.9"}
With Keyboard base: 313.0 x 288.4 x 46.1mm {12.3" x 11.4" x 1.8"}
With Battery pack(L) x 2: Tablet only: 308.0 x 243.6 x 32.1mm {12.1" x 9.6" x 1.3"}
With Battery pack(L) x 2: with keyboard base: 313.0 x 288.4 x 56.6mm {12.3" x 11.4" x 2.2"}
Weight
Tablet only: Approx. 1.527 kg {3.4 lb.}
With Keyboard base: Approx. 2.761 kg {6.1 lb.}
With Battery pack(L) x 2: Tablet only: Approx. 1.882 kg {4.2 lb.}
With Battery pack(L) x 2: With keyboard base: Approx. 3.116 kg {6.9 lb.}
Select Accessories
AC Adapter 100W (3-prong) CF-AA5713AM
Standard Lightweight Battery Pack CF-VZSU1AW
Long life Battery Pack14 CF-VZSU1BW
4-Bay Battery Charger CF-VCB331M
Rotating Hand Strap with stylus holder & kickstand14 CF-VST332U
Laptop 2-in-1 Vehicle Docks (requires Premium Keyboard)
Water resistance test: IP-X5**
Dust resistance test: IP-6X**
Gravity drop resistance test: MIL STD 810G, 120cm{4 feet} drop for Laptop and Tablet on Plywood. 26 sided/drop on plywood. Test conducted in non operating condition*
Operating temperature: -10°C to +50°C {14°F to 122°F}
Storage temperature: -20°C to +60°C {-4°F to 140°F}
Vibration resistance test: MIL STD 810G
