VIDEO DEMO link: youtu.be/a2Qn6CrhS-o

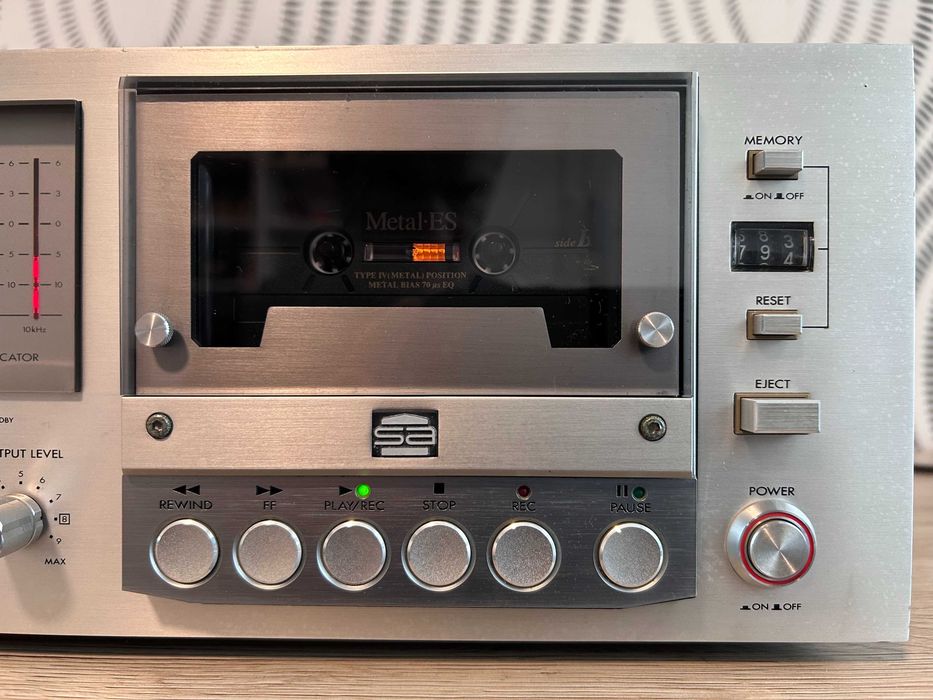

VICTOR/JVC KD-85SA Casetofon Deck (cap de serie 1977) in stare buna, functionala, insa pentru perfectionisti este recomandabila o servisare completa.
Toate comenzile merg bine, fiind testate: PB, derulare REW/FF, Stop, Pause, Rec, sunet in casti, cele 2 pozitii ANRS, Spectro-Peak dispay on/off, contor/reset, Eject, etc
Reglaj REC EQ (inalte) in 5 trepte : -3,-2,-1,0,+1,+2 dB LA 10Khz.

NU SCHIMB!

audio-database.com/VICTOR/player/kd-85sa.html

Type Stereo cassette deck

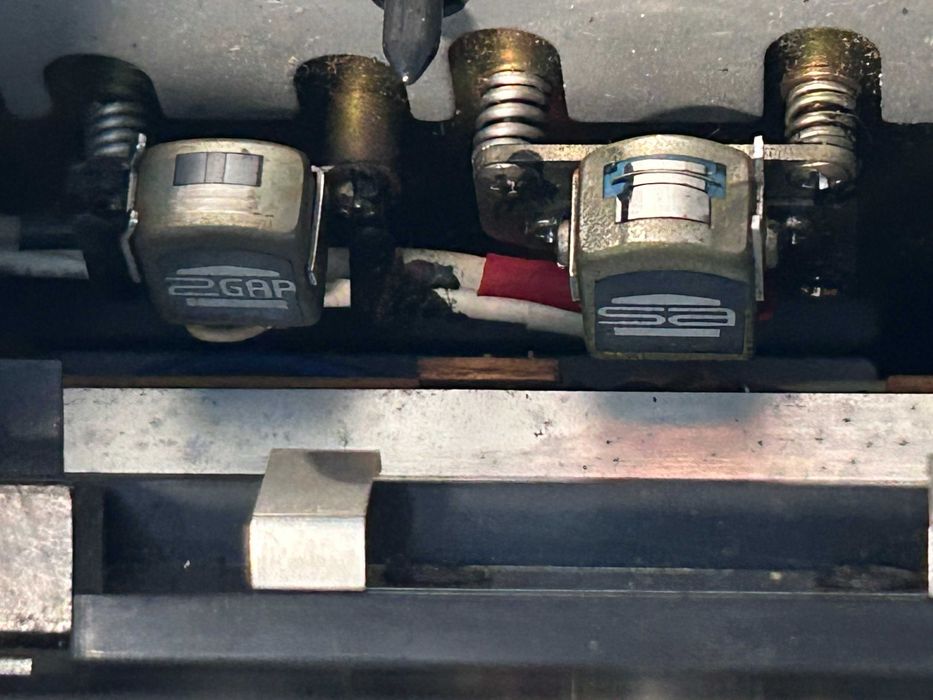

Heads Recording : Sen Alloy Head x1
Erase : 1 x Double Gap Ferrite
Motor For Capstan : FG Servo DC Motor x1
For Reel : 1 DC Motor
Frequency characteristic SF / Normal : 20 Hz to 17 kHz
VX / Chrome : 20 Hz to 18 kHz
Signal-to-noise ratio ANRS off : 60 dB (WTD, 1 kHz, 3% THD, VX tape)
ANRS on : 5 dB improvement at 1 kHz, 10 dB improvement at 5 kHz or higher
* Effect of Super ANRS
Signal-to-noise ratio : Same as the ANRS effect
Frequency characteristic 0 VU recording : 6 dB at 10 kHz
+ 5 VU recording : 12 dB at 10 kHz
Distortion factor 0 VU recording : 3% or less at 10 kHz
+ 5 VU recording : 3% at 10 kHz
Crosstalk 65dB
Distortion factor 1.2% (Normal)
Wow and flutter 0.05%(WRMS)
Fast forward / rewind time 85 seconds (C-60)
Bias frequency 95kHz
Input Sensitivity / Impedance Mic : Maximum sensitivity 0.2 mV (-72dBs) / 600 ~ 10k Ω
Line in : Minimum input level 80 mv (-20dBs) / 100k Ω
Din : minimum input level 9 mV (-39dBs) / 10k Ω
Output Level / Impedance Line out : 0 ~ 500mV/3 ~ 8k Ω
Din : 0 ~ 500mV/3 ~ 8k Ω
Phone : 0 ~ 0.6mW/8 ~ 1k Ω
Semiconductor used Transistor : 65
IC : 18
Diode : 94 pcs (30 LEDs)
Zener diode : 5 pcs
Hall element : 1 unit
Pwer 100 VAC, 50Hz/60Hz
Power consumption 30W
External dimensions Width 450x Height 158x Depth 327 mm
Width 480x Height 158x Depth 337 mm (Handle Mounted)
Weight 9.9kg
