Data
General

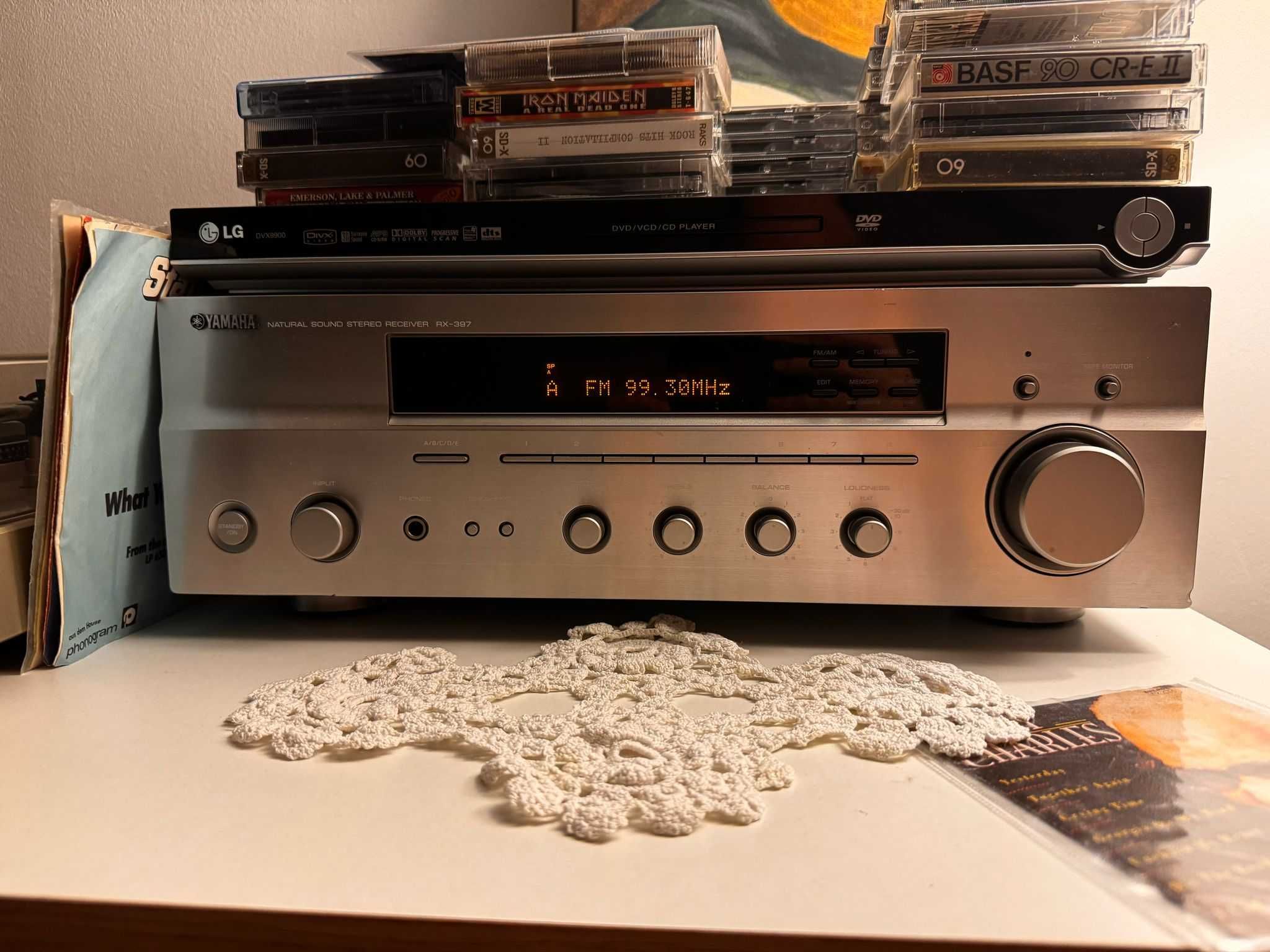

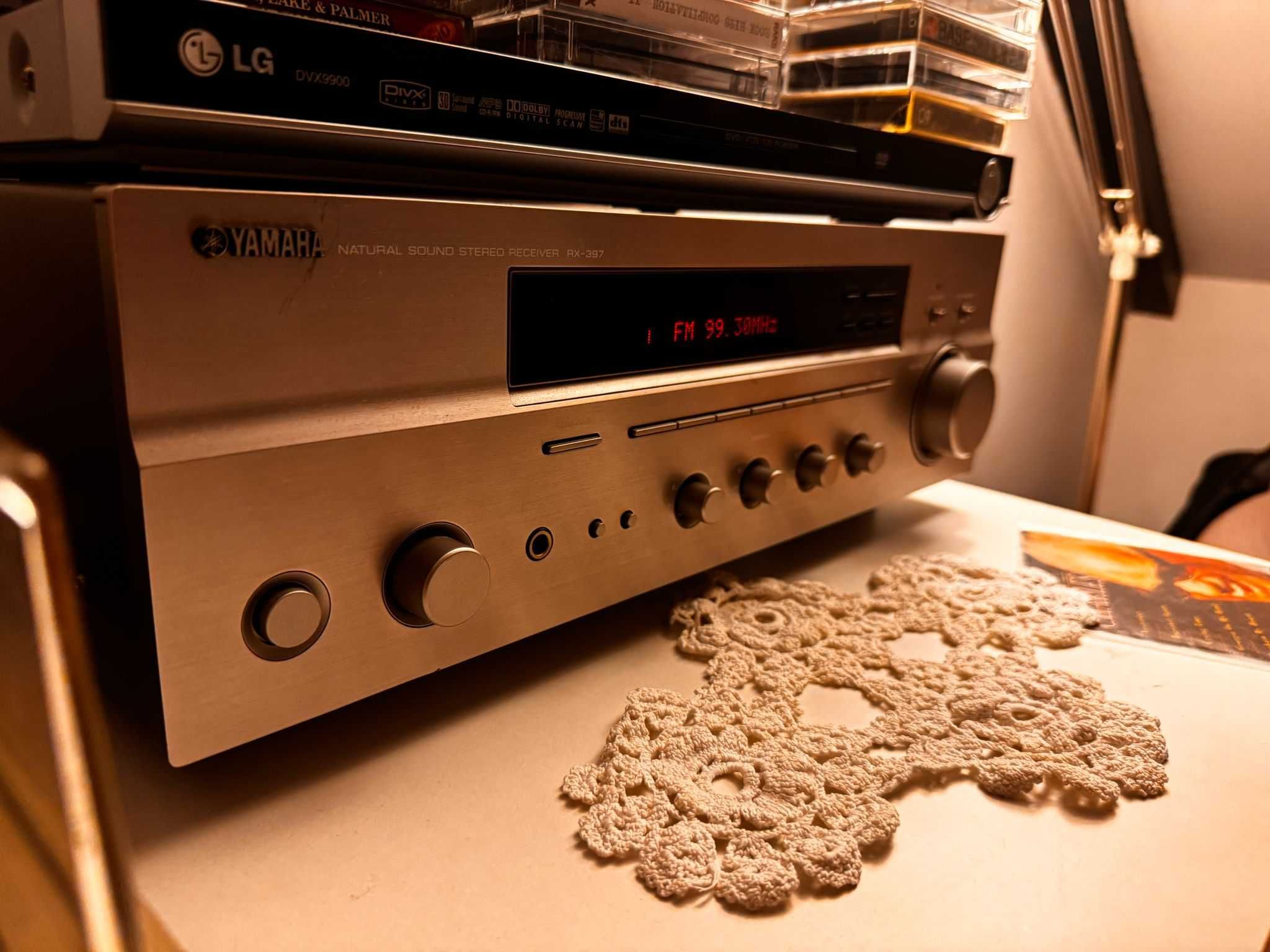

Manufacturer: Yamaha
Model: RX-397
Power consumption: 130 W
Dimensions : 435mm x 151mm x 308mm
Weight: 7.4 kg
Connections

Inputs

Phono MM (2,5mV / 47kOhm)
CD/DVD (150mV / 47kOhm)
Aux (Play) (150mV / 47kOhm)
MD (Play) [150mV / 47kOhm]
Tape [With monitor circuit] {150mV / 47kOhm}
Outputs

MD (Record)
Tape (Record)
Headphone: 0,46V / 390Ohm

Technical Data

Amplifier

Dynamic power
8 Ohm: 70W
6 Ohm: 77W
4 Ohm: 89W
2 Ohm: 100W
Total harmonic distortion: 0,02%
Attenuation factor: 82 at 4 Ohm and 150 at 8 Ohm
Frequency response:
CD, etc. 20 Hz to 20 kHz 0 ± 0.5 dB
CD, etc. PURE DIRECT ON, 10 Hz to 100 kHz 0 ± 1.0 dB
Signal-to-noise ratio: 82dB (PHONO), 105dB (CD/TAPE/AUX)
Stereo channel separation: 60dB
Tone control:
Bass: ± 10dB (50Hz)
Treble: ± 10dB (20kHz)

Loudness: manually adjustable (-30dB, 1kHz)
Mute: Yes

Tuner

Reception: FM, MW
Frequencies:
FM: 87.5 - 108.0MHz
MW: 531 - 1.611kHz
Frequency response:
FM: 0 ± 1.5dB (20Hz - 15kHz).
MW:
Input sensitivity:
FM: 0.9µV / 24µV (Mono(26dB signal-to-noise ratio)/Stereo(46dB signal-to-noise ratio))
MW: 100µV/m
Distortion factor:

FM: 0.1/0.2% (mono/stereo).
MW: 0.3% Signal-to-noise ratio:

FM: 74/69dB (mono/stereo)
MW: 50dB
Channel separation: 50dB
Selectivity:
FM: 70dB
MW: 32dB
Co-wave selection:
Spurious wave selection:
Mirror Frequency Attenuation:
FM: 80dB
MW: 40dB
IF attenuation: 80dB
AM suppression:
Output Level:
RDS: Yes
Station memory: 40

Special Features

2 pairs of speakers can be connected Direct switch (Pure Direct): Signal is no longer influenced by bass, treble, balance and loudness settings at the touch of a button.

Prefer predare personala in Cluj-Napoca.
Produsul se poate testa si verifica inainte.
