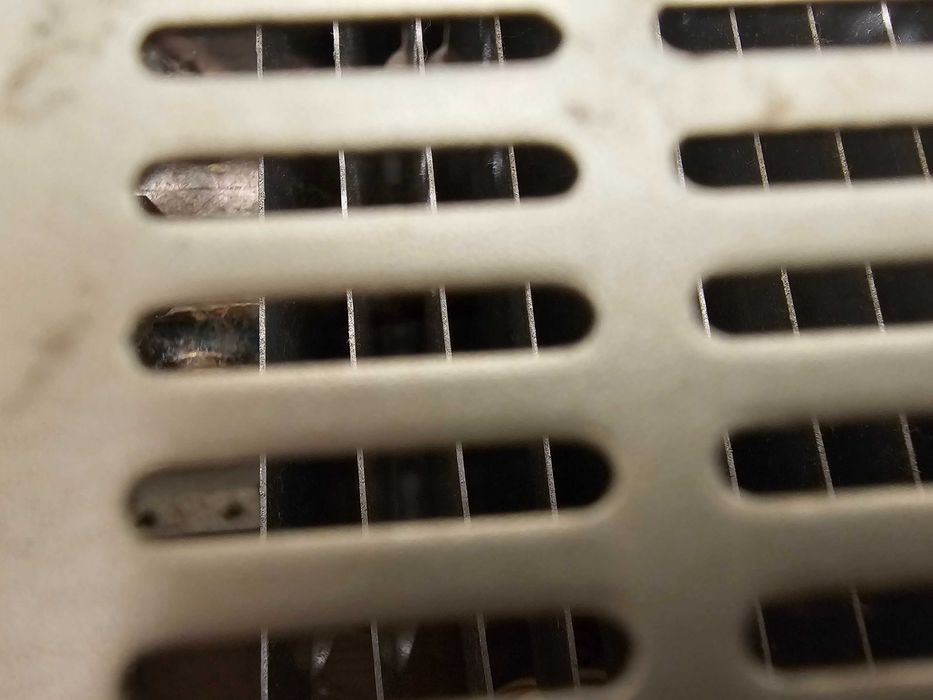

Racire pe freon, are o mufa plastic in spate rupta, poza 5.

Manufacturer: Kenwood
Model: KA-5 X
Model range: XL-Series
Type: Integrated amplifier
Years of manufacture: 1982 - 1984
Made in: Japan
Color: Silver
Remote control: no
Power consumption: 310 watts
Dimensions: 440 x 109 x 305 mm (WxHxD)
Weight approx.: 7.2 kg
Original price approx.: 800 DM

Connections
Number of inputs:
Phono MM: 2.5 mV / 47 kOhm, max. 200 mV
Phono MC: 0.2 mV / 100 Ohm, max. 15 mV
Tuner: 150 mV / 47 kOhm AUX: 150 mV / 47 kOhm

Tape Play 1,2 : 150 mV / 47 kOhm
Tape Play DIN: 150 mV / 47 kOhm
Number of outputs:
Tape Rec 1, 2: 150 mV / 330 Ohm
Tape Rec DIN: 30 mV / 80 kOhm
Headphones:
2 pairs of speakers

Technical Data.
Continuous power
8 Ohm: 2x 45 W (RMS, 20 - 20'000 Hz, 0,003 %)
4 Ohm: 2x 55 W

Dynamic power
8 Ohm:
4 Ohm:
Total harmonic distortion: 0.003 % at 8 Ohm
Attenuation factor: 400
Frequency response:
Phono RIAA: 30 - 20,000 Hz, + 0 dB, - 0.3 dB
High level: 8 Hz - 100 KHz, -3 dB
Signal-to-noise ratio:
Phono MM: 86 dB
Phono MC: 69 dB
High level: 105 dB
Tone control:
Bass: ± 10 dB (100 Hz)
Treble: ± 10 dB (10 kHz)
Loudness: + 10 dB at 100 Hz
High Filter: -
Low Filter (Subsonic): - 6 dB / octave at 18 Hz
Transient response:
Rise time: 1.8 us
slew rate: ± 100 V/us
