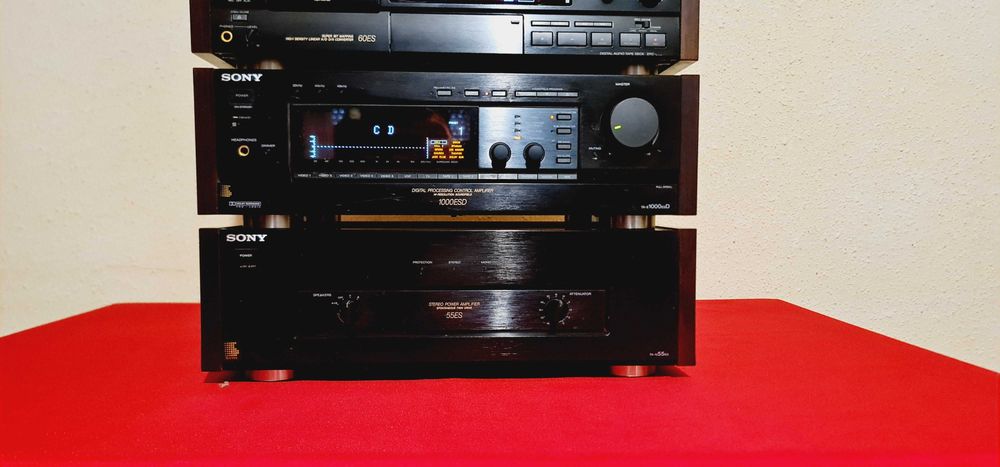

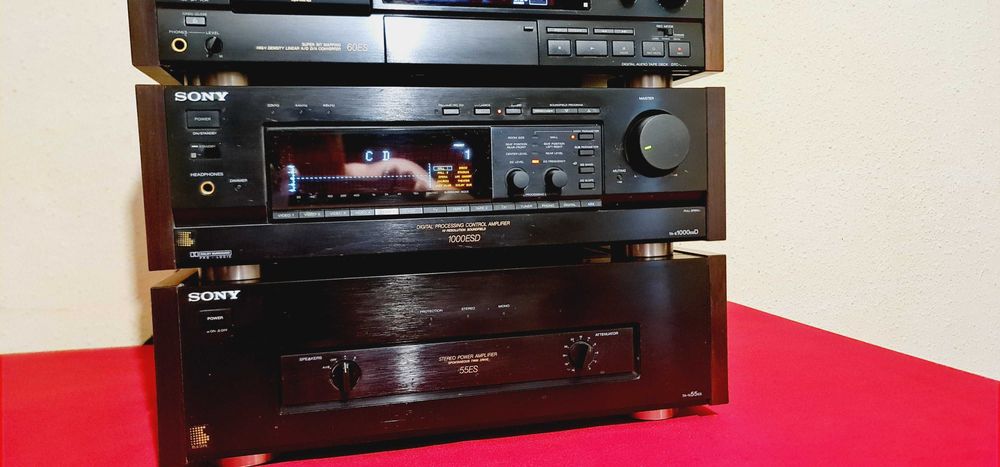

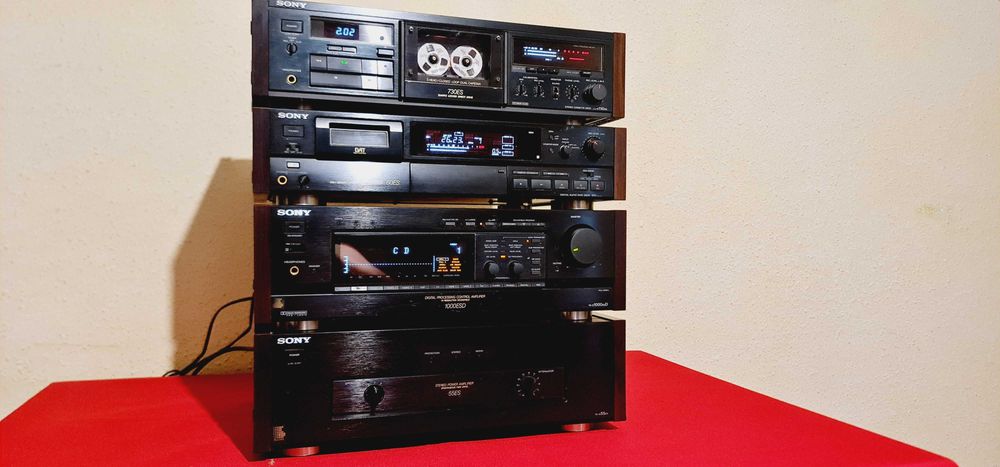

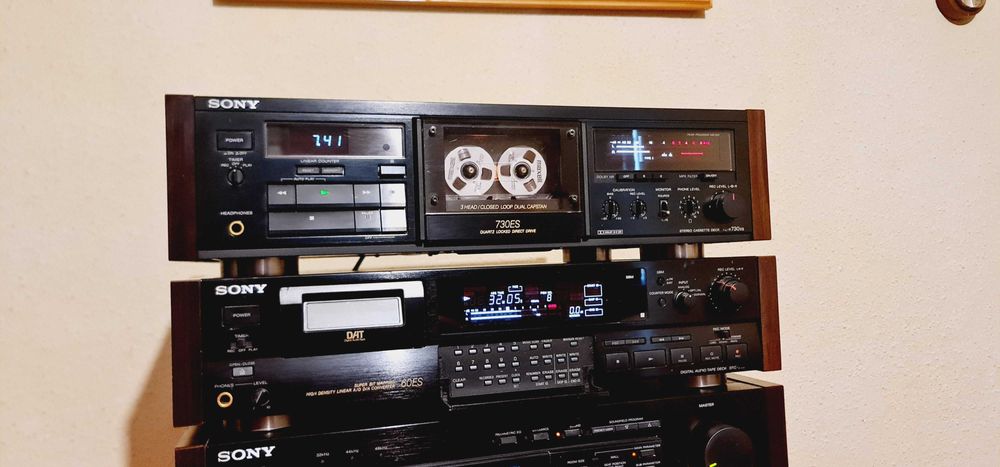

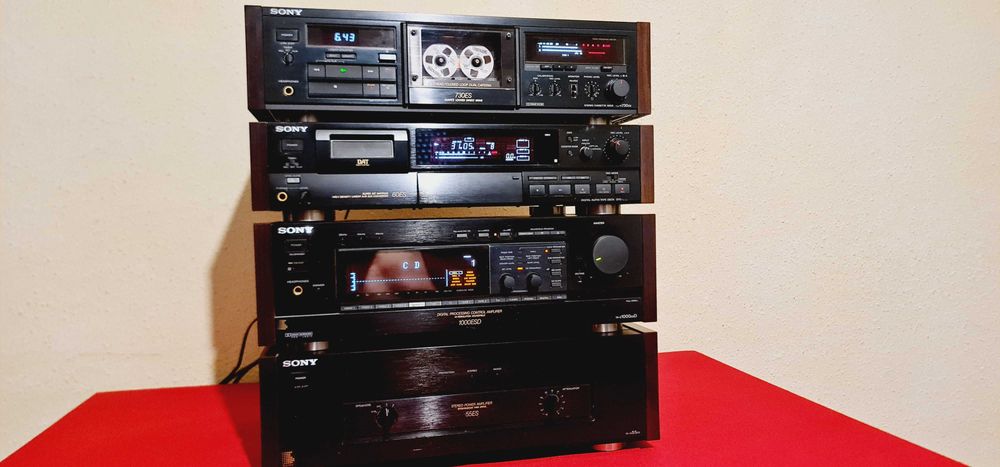

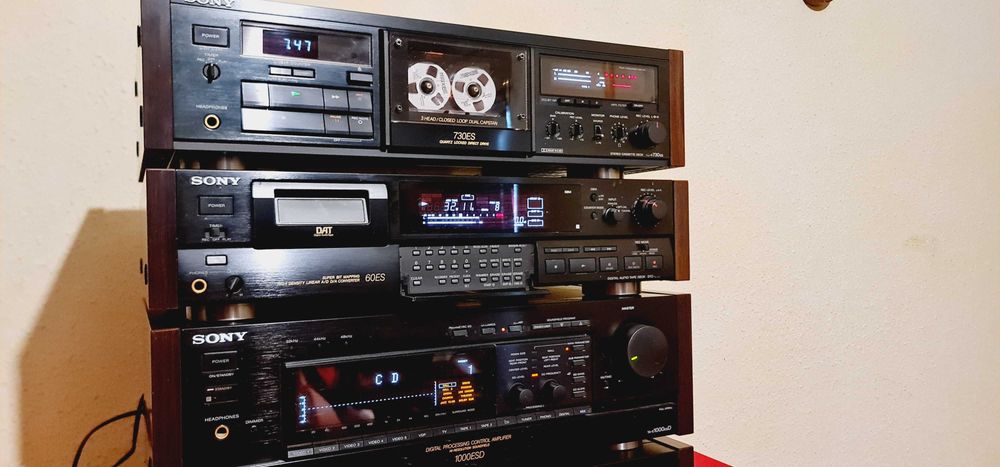

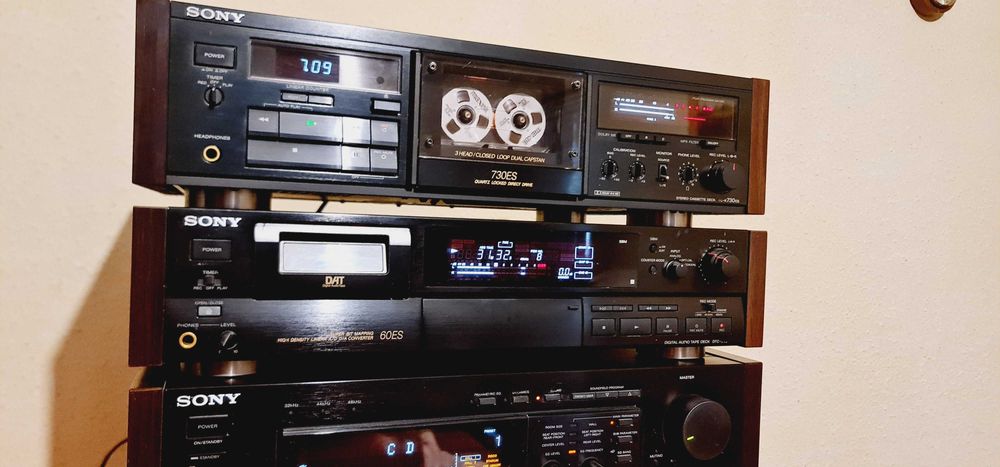

Sony TA-N 55 ES,Sony TA-E 1000 ESD,Sony DTC-60 ES,Sony TC-K 730 ES
Categorie: Amplificatoare
Brand: Sony TA-N 55 ES
Stare: Produs utilizat
Tip amplificator: Stereo
Constructie: Amplificator integrat
Tehnologie: Solid state
Vand o linie Sony TA-N 55 ES,Sony TA-E 1000 ESD,Sony DTC-60 ES,Sony TC-K 730 ES toate aparatele se afla in stare buna de functionare ,estetic arata bine ,nu se expediaza ,se vinde doar pe plan local,mai multe detali gasiti pe net ,despre fiecare aparat in parte

Data
General

Manufacturer: Sony
Model: TA-N 55 ES
Years of manufacture: November 1989 to 1997
Made in: Japan
Color: Black
Type: Stereo Analog
Remote control: No
Power consumption: 310 watts, 760 watts max.
Dimensions: 470 x 150 x 365 mm (W x H x D) with wooden brackets, 435 mm (W) without wooden brackets
Weight: 12,2 Kg
Original price approx.: 900,- DM, from 1995 1000,- DM (UVP)

Connections

Number of inputs:
Cinch 180 mV/20 KOhm
Number of outputs:
2 pairs loudspeaker

Technical Data

Continuous power (at distortion factor)
8 Ohm: 2x 110 Watt at 0,01%, 2x 120 Watt according to DIN or 1 x 300 Watt at 0,05%, 1x 350 Watt according to DIN
4 Ohm: 2x 150 Watt at 0.05%, 2x 160 Watt according to DIN
Dynamic power
8 Ohm: 2x 150 Watt or 1x 500 Watt
4 Ohm: 2x 290 Watt or 1x 680 Watt
2 Ohm: 2x 400 Watt or 1x 750 Watt
1 Ohm: 2x 450 Watt
Total harmonic distortion: 0,004%
Attenuation factor: 100 at 8 Ohm
Frequency response: 5 - 200,000 Hz -3 dB
Signal-to-noise ratio: 105 dB(A)
Stereo channel separation:

Special Features

bridgeable to mono
input level control
2 pairs of speakers switchable

General

Manufacturer: Sony
Model: TA-E 1000 ESD
Type: Preamplifier
Years of manufacture: 1990 - 1992
Made in: Japan
Color: Black
Original price approx.: 1'998 DM
Special Features

Dolby ProLogic (no DTS or Dolby Digital).
Connection possibilities: 14 Hifi and video devices
Preamplifier with integrated DSP (Digital Signal Processing) for 3 important digital effect functions:
1st Digital parametric 3-band equalizer,
2. digital dynamic compressor and expander,
3. digital room simulations (surround)
10 pre-programmed room simulations
10 individually programmable memory locations
Integrated A/D and D/A converter
Analog/Digital Conversion with 1 Bit High Density Linear A/D Converter System
Digital-to-analog conversion with 18-bit 8x oversampling
Record-Out selector for analog inputs
Subwoofer output: Cut off frequency 80 Hz- 18 dB/oct.
Digital section: 32/44, 1/48 kHz sampling frequency via digital inputs
Digital Parametric Equalizer : 3-band, 4 bandwidths selectable
Dynamic Compressor: 9-stage
Dynamic Expander: 9-step

Data
General

Manufacturer: Sony
Model: DTC-60 ES
Type: DAT recorder
Years of manufacture: 1994 - 1998
Made in: Japan
Color: Champagne, Black
Remote control: yes
Power consumption: 33 W
Dimensions: 470 x 110 x 350 mm (WxHxD)
Weight: 6.6 kg
Original price approx.: 1'800 DM

Connections

Number of inputs: 3
Line In Cinch: 47 kOhm
Digital In Cinch: 75 Ohm

Digital In Opto
Number of outputs: 3
Line Out Cinch: 470 Ohm Digital Out Cinch: 75 Ohm

Digital Opto Out
Headphones: 220 Ohm

Technical Data

Sampling frequency:
48 kHz
44.1 kHz

32 kHz
Tape speed:
Standard: 8.15 mm/s
Longplay: 4.075 mm/s
D/A converter: 1-bit D/A converter
Frequency response:
Standard: 2 - 22000 Hz
Longplay: 2 - 14500 Hz
Dynamic range: over 92 dB
Signal-to-noise ratio: over 92 dB
Distortion factor:
Standard: Less than 0.0045%.
Longplay: Below 0,08%

Special Features

SBM - Super Bit Mapping
Digital-to-digital dubbing capability over one generation
Automatic recording of recording date and time
Three sampling frequencies selectable:
48 kHz: For standard analog and digital input signals.
44.1 kHz: For CDs and recorded DAT tapes
32 kHz: For analog longplay input signals
Longplay operation: Four hours recording time
Visible tape run
Various subcodes recordable:
Start codes
Program number codes Jump codes Absolute time codes

Digital fade in/out
Subsequent change of sub-codes
High sound quality
1-bit A/D converter: For converting analog input signals
D/A pulse converter: For excellent playback quality

Data
Sony Stereo Cassette Deck TC-K730ES

General:

Manufacturer: Sony
Model: TC-K730ES
Type: Single Tape Deck
Years of manufacture: 1989 - 1990
Made in: Japan
Color:
Remote control:
Power consumption: 30 watts
Dimensions (WxHxD): 470 x 125 x 350 mm
Weight: 9,5 kg
New price approx:

Connections:

Number of inputs:
Line 77.5 mV, 50 kohm.
Number of outputs:
Line 0.44 V, 47 kohm
Headphone 0 - 3 mV, 32 Ohm

Technical data:

Audio heads: 3
1x play, 1x rec, 1x erase head
Motors: 2
1x Reel (DC motor)
1x Capstan (direct drive linear torque BSL motor)
Synchronisation fluctuations:
± 0.04 % w.peak (IEC)
0.025 % WRMS
Belt types: I, II, IV
Frequency response Dolby off:
Type IV: 20 - 21,000 Hz ± 3 dB (DIN).
Type II: 20 - 19,000 Hz ± 3 dB (DIN) Type I: 20 - 17,000 Hz ± 3 dB (DIN) Distortion factor: 0.8 % (IV)

Signal-to-noise ratio: 73 dB (Dolby C, IV)
Dolby off: Type I 56 dB, II 59 dB, IV 60 dB

Bias Frequency: 210 kHz
Auto Reverse:
Title search:
Dolby: B, C, ?HX Pro
MPX filter: yes
Fader:
Pitch control:
CD Synchro Recording:
Special features:

Rear band control
bias control
adjustable headphone output
