Main principle
PLL, Phase-locked loop; ZF/IF 450/10700 kHz
Wave bands
Broadcast, Long Wave and FM or UHF.
Details
Remote Control (with wire or wireless)
Power type and voltage
Alternating Current supply (AC) / 220; 240 Volt
Loudspeaker
- For headphones or amp.
Material
Metal case
from Radiomuseum.org
Model: FM Stereo / FM-AM Tuner ST-S300L - Sony Corporation; Tokyo
Shape
Book-shelf unit.
Dimensions (WHD)
430 x 80 x 355 mm / 16.9 x 3.1 x 14 inch
Notes

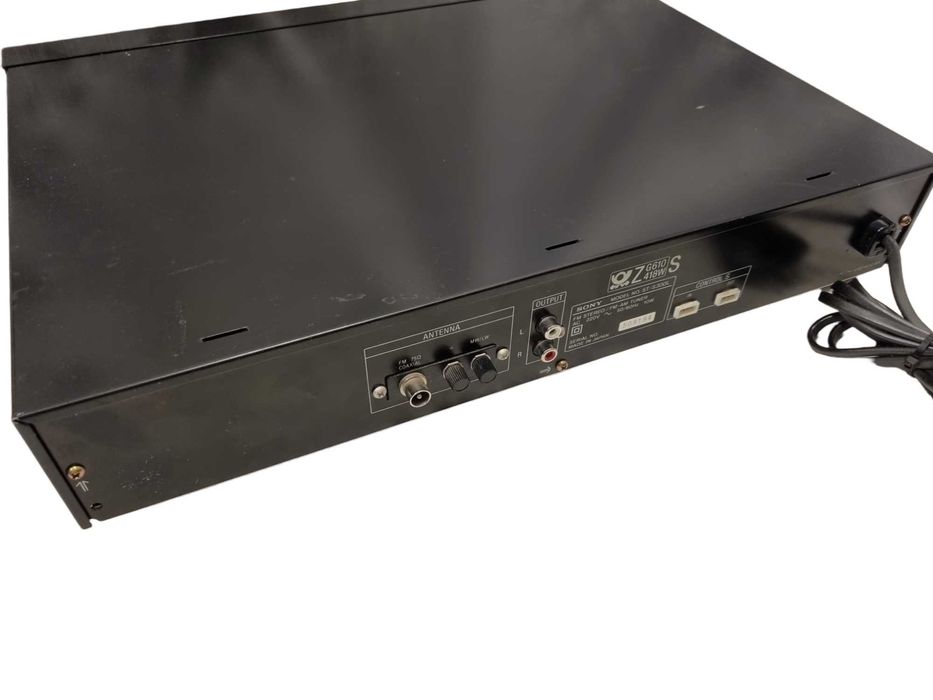

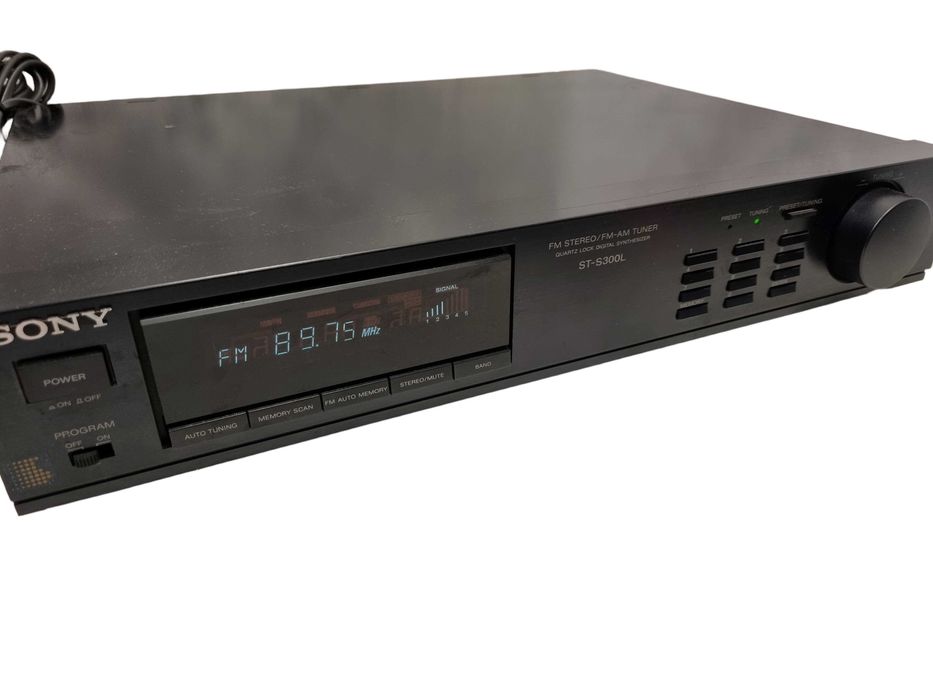

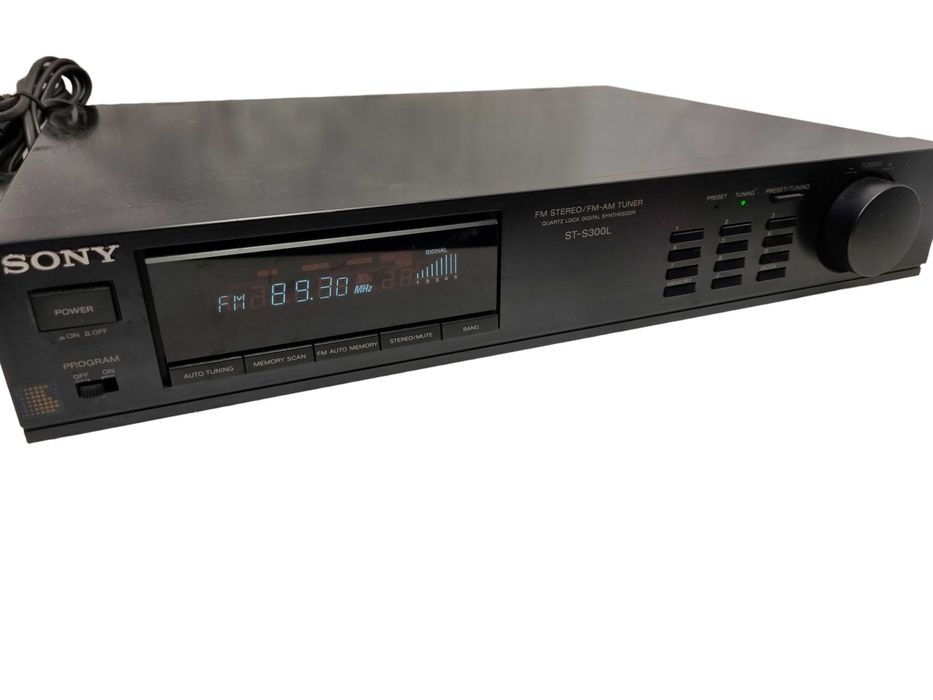

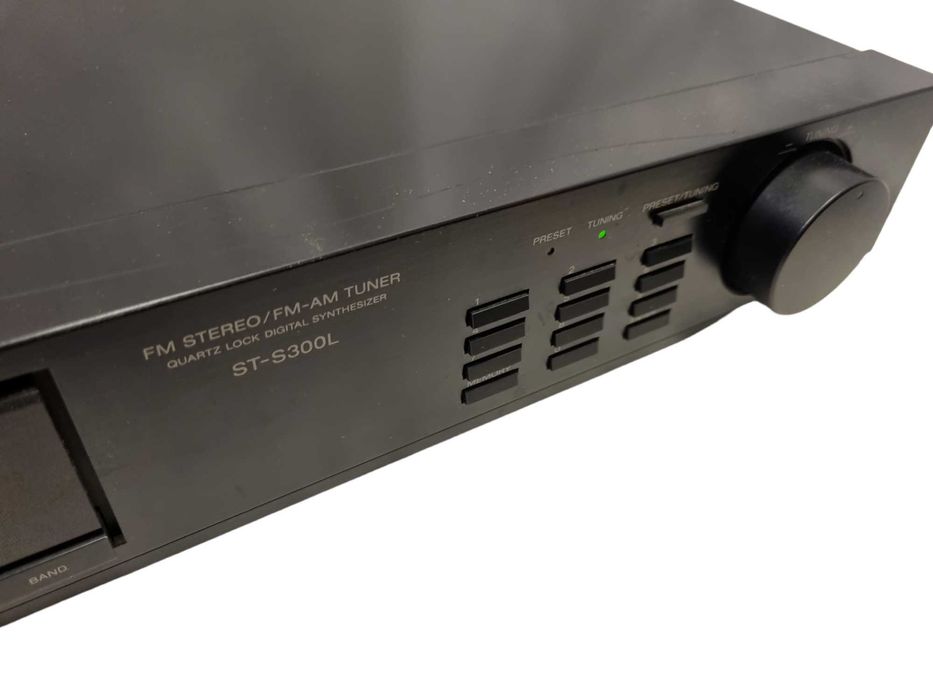

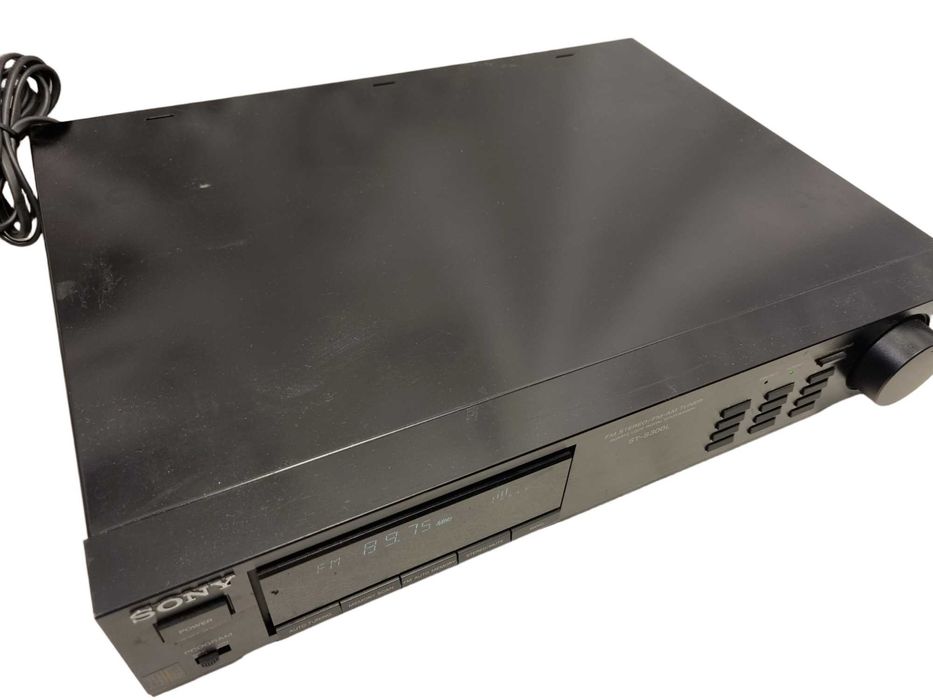

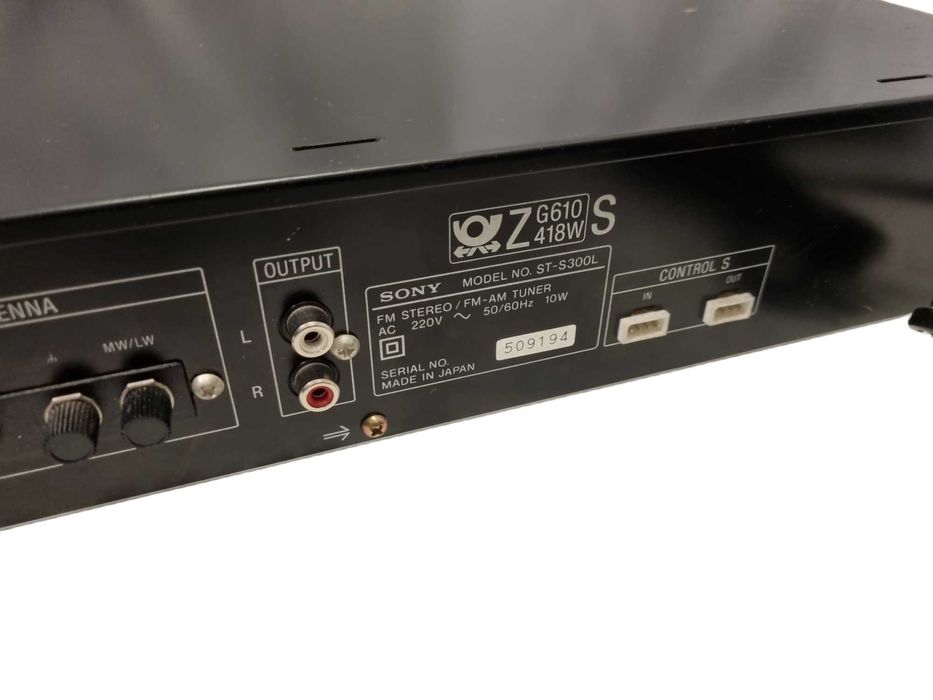

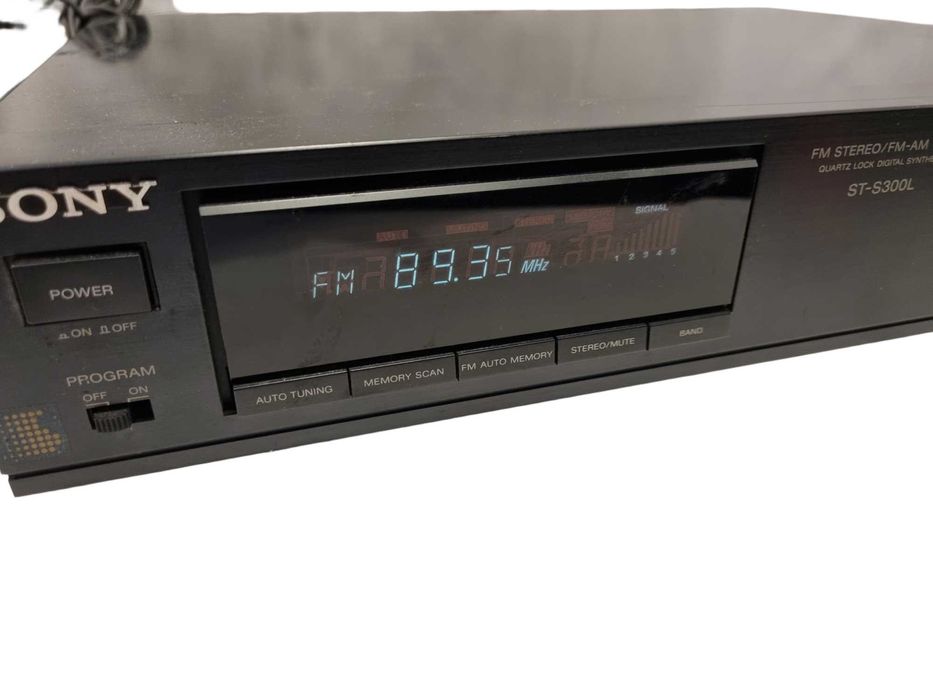

A hi-fi AM/FM stereo Quartz Lock Digital Synthesizer tuner with a digital frequency display, housed in a black metal case. With a rotary Tuning control, 5 LED signal strength indicators, Program Off/On switch, 10 press buttons for preset radio stations, press buttons for Memory and Enter, Preset/Tuning, Auto Tuning, Memory Scan, FM Auto Memory, Stereo/Mute and Band. On the back, terminals for AM and FM antennae, RCA phono sockets for Line Output and In and Out connections for system remote control. Supplied with connecting cord, remote control cord, layout-free AM antenna, and FM ribbon antenna (not West Germany and Italian models).

Specification
Tuner Circuit system FM stereo, FM/AM superheterodyne tuner
Quartz-locked PLL digital synthesizer system
FM tuner
Frequency range 87.5 - 108MHz
Antenna terminals 300Ω balanced, 75Ω unbalanced
(W Germany, Italian model 75Ω unbalanced only)
Sensitivity (at 46dB quieting)
AEP, UK model
W Germany, Italian model 16.8dBf 3.6µV (mono), 37.9dBf 43µV (stereo)
16.8dBf 1.8µV (mono), 37.9dBf 21.5µV (stereo)
S/N ratio (at 40kHz deviation) 74dB (mono), 69dB (stereo)
Harmonic distortion 0.08% (mono), 0.15% (stereo) at 1kHz
IM distortion 0.08% (mono), 0.15% (stereo)
Separation 50dB (at 1kHz)
Frequency response 40Hz - 12.5kHz ±0.5dB
Selectivity 70dB (at 300kHz)
Capture ratio 1.0dB
AM suppression ratio 65dB
Image response ratio 70dB
IF response ratio 70dB
Spurious response ratio 80dB
Muting threshold 30dBf
Automatic tuning threshold 30dBf
Output 410mV, 4.7kΩ (at 40kHz deviation)
AM tuner
Frequency range
AEP, W Germany, UK model
Italian model MW: 531 - 1,602kHz, LW: 153 - 281kHz
MW: 522 - 1,611kHz, LW: 144 - 288kHz
Antenna Layout-free AM antenna
External antenna terminal
Usable sensitivity using
layout-free AM antenna 500µV/m (999kHz)
700µV/m (230kHz)
S/N ratio 54dB (50mV/m) (999kHz)
50dB (50mV/m) (230kHz)
Harmonic distorton 0.3% (50mV/m, 400Hz)
Selectivity 32dB
Versions/Power Requirements
AEP, W Germany, Italy model / 220V AC 50-60Hz
UK model / 240V AC 50-60Hz

Power consumption: 10W
