Specificatie tehnica

Formats supported by this system
Digital input formats supported by this system
are as follows.
* It is possible to input these formats only with HDMI
connection.
Receiver (STR-CT550WT)
Amplifier section
POWER OUTPUT (rated)
Front L + Front R: 70 W + 70 W (at 4 ohms,
1 kHz, 1 % THD)
POWER OUTPUT (reference)
Front L/Front R: 134 W (per channel at
4 ohms, 1 kHz)

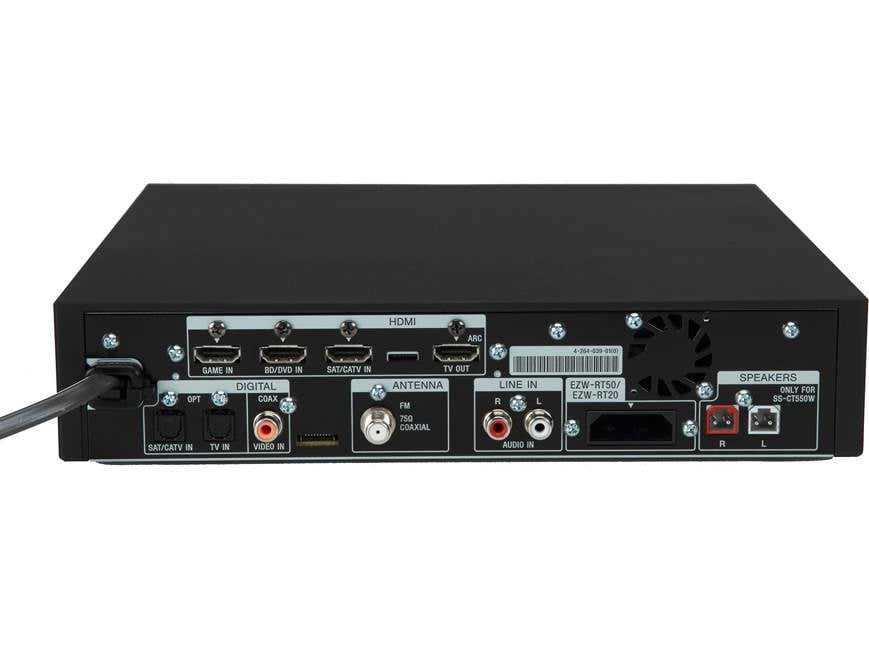

Inputs
LINE IN Analog
TV IN, SAT/CATV IN Digital (Optical)
VIDEO IN Digital (Coaxial)
HDMI section
Connector HDMITM connector
Video inputs/outputs BD/DVD, GAME, SAT/
CATV;
640 × 480p, 59.94/60 Hz
720 × 480p, 59.94/60 Hz
1280 × 720p, 59.94/60 Hz
1920 × 1080i, 59.94/60 Hz
1920 × 1080p, 59.94/60 Hz
720 × 576p, 50 Hz
1280 × 720p, 50 Hz
1920 × 1080i, 50 Hz
1920 × 1080p, 50 Hz
1280 × 720p, 29.97/30 Hz
1920 × 1080p, 29.97/30 Hz
1280 × 720p, 23.98/24 Hz
1920 × 1080p, 23.98/24 Hz
Deep Colour: 30bit/36bit
Video inputs/outputs (3D) BD/DVD, GAME, SAT/
CATV;
1280 × 720p 59.94/60 Hz
Frame packing
Side-by-Side (Half)
Over-Under
(Top-and-Bottom)
1920 × 1080i 59.94/60 Hz
Frame packing
Side-by-Side (Half)
Over-Under
(Top-and-Bottom)
1920 × 1080p 59.94/60 Hz
Side-by-Side (Half)
Over-Under
(Top-and-Bottom)
1280 × 720p 50 Hz
Frame packing
Side-by-Side (Half)
Over-Under
(Top-and-Bottom)
1920 × 1080i 50 Hz
Frame packing
Side-by-Side (Half)
Over-Under
(Top-and-Bottom)
1920 × 1080p 50 Hz
Side-by-Side (Half)
Over-Under
(Top-and-Bottom)
1920 × 1080p 23.98/24 Hz
Frame packing
Side-by-Side (Half)
Over-Under
(Top-and-Bottom)
1920 × 1080p 29.97/30 Hz
Frame packing
Side-by-Side (Half)
Over-Under
(Top-and-Bottom)
1280 × 720p 23.98/24 Hz
Frame packing
Side-by-Side (Half)
Over-Under
(Top-and-Bottom)
Specifications
Format Supported/Not supported
Dolby Digital a
Dolby Digital Plus a*
Dolby TrueHD a*
DTS a
DTS 96/24 a
DTS-HD Master
Audio
a*
DTS-HD High
Resolution Audio
a*
DTS-HD Low Bit Rate a*
Linear PCM 2ch
48 kHz or less
a
Linear PCM Maximum
7.1ch 192 kHz or less
a*
continued
46GB
1280 × 720p 29.97/30 Hz
Frame packing
Side-by-Side (Half)
Over-Under
(Top-and-Bottom)
Deep Colour: 30bit/36bit
Audio inputs BD/DVD, GAME, SAT/
CATV: See “Formats
supported by this system”
(page 45).
Tuner section
System PLL quartz-locked digital
synthesizer
FM tuner section
Tuning range 87.5 - 108.0 MHz
(50 kHz step)
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
General
Power requirements 220 V -240 V AC,
50/60 Hz
Power consumption
On: 50 W
Standby mode: 0.3W or less (Control for HDMI
is off.)
Dimensions (approx.) 270 mm × 60 mm ×
286 mm (w/h/d)
Mass (approx.) 1.9 kg
Speaker (SS-CT550W)
Front speaker unit
Speaker system Bass Reflex
Speaker unit 50 mm, cone type × 2
Rated impedance 4 ohms
Dimensions (approx.) 948.2 mm × 75 mm ×
40 mm (w/h/d)
Mass (approx.) 2.3 kg
Speaker cords 3 m

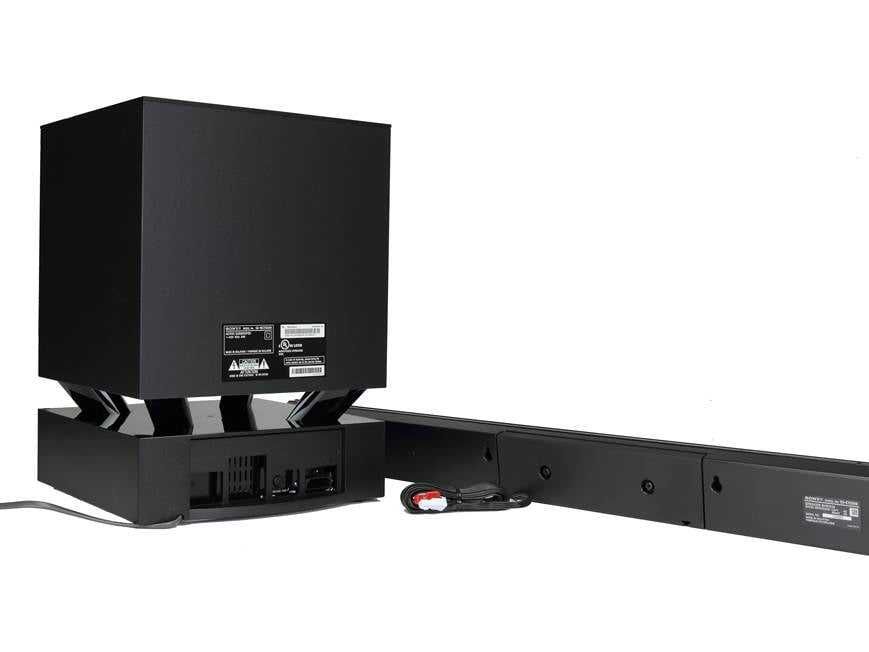

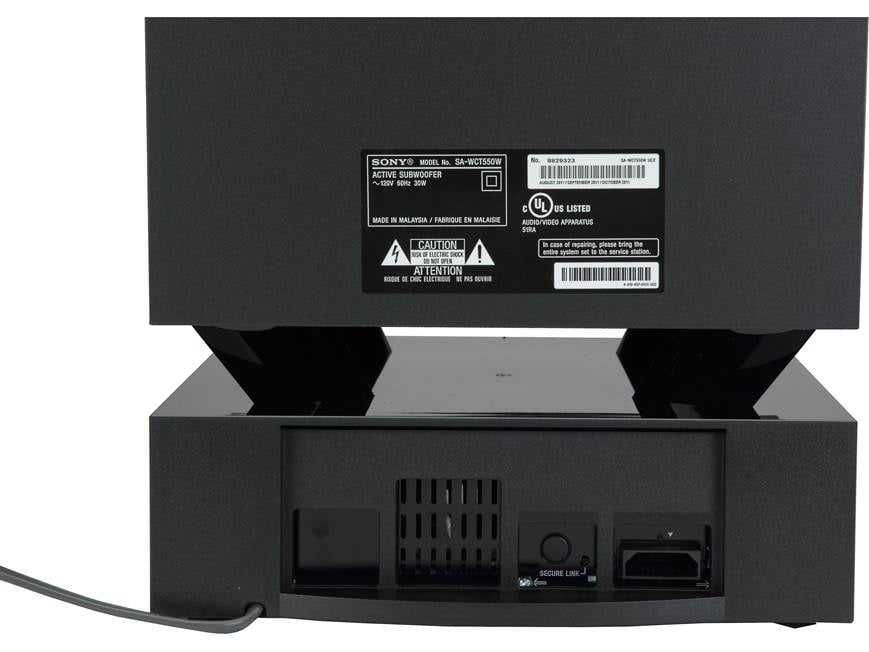

Subwoofer (SA-WCT550W)
Amplifier section
POWER OUTPUT (reference)
134 W (per channel at
4 ohms, 100 Hz)
Speaker system Subwoofer, Bass reflex
Speaker unit 160 mm cone type
Rated impedance 4 ohms
Power requirements 220 V - 240 V AC,
50/60 Hz
Power consumption
On: 30 W
Standby mode: 0.5 W or less
