DAC aproape nou folosit putin din lipsa de timp!

16-channel flagship Delta Sigma DAC
Utilizing two ES9038PRO DAC chips, the SU-10 boasts 16 channels and 21 op amps for an exceedingly detailed sonic experience. SMSL has designed a third generation DAC circuit for the occasion, offering an incredibly low THD+N of 0.00005%.

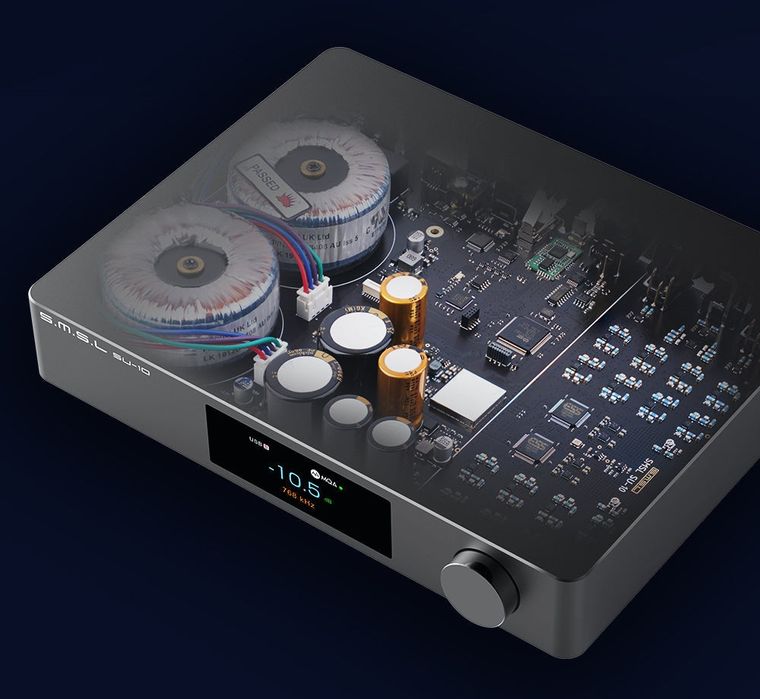

Dual linear power supplies
The digital and analog components are supplied by separate linear power supplies. This, accompanied with shielded, low-noise power supply processing, results in noise as low as 1uVrms.

24-bit Bluetooth
Equipped with Qualcomm’s latest Bluetooth chip, the SU-10 supports 24-bit/96kHz Bluetooth formats.

3rd Gen USB controller
A third-generation XU-316 USB controller supports 32-bit/768kHz PCM, native DSD512, and DoP.

Tempered glass display
A tempered glass display panel provides high light transmission and extremely long service life.

MQA & MQA-CD
Both USB and SPDIF inputs support MQA and MQA-CD formats, giving you more options to enjoy your library at the highest quality.

Six inputs
With inputs for USB, optical, coaxial, Bluetooth, I2S, and AES, the SU-10 supports an incredible number of sources: laptops, smart phones, TVs, gaming consoles, PCs, CD players, and more.

Product highlights
JAS Hi-Res certified
MQA
MQA-CD
Bluetooth
Dual ESS ES9038PRO DAC chips
16 channel
21 OPA1612 dual op amps
Two linear power supplies
Tempered glass display
0.00005% THD+N
3rd ES9038PRO circuit design
XMOS XU316 3rd gen USB controller
DSD512
PCM 32-bit/768kHz
7 digital filters
Full-featured remote control
CNC milled aluminum alloy shell
Gold-plated input and output jacks

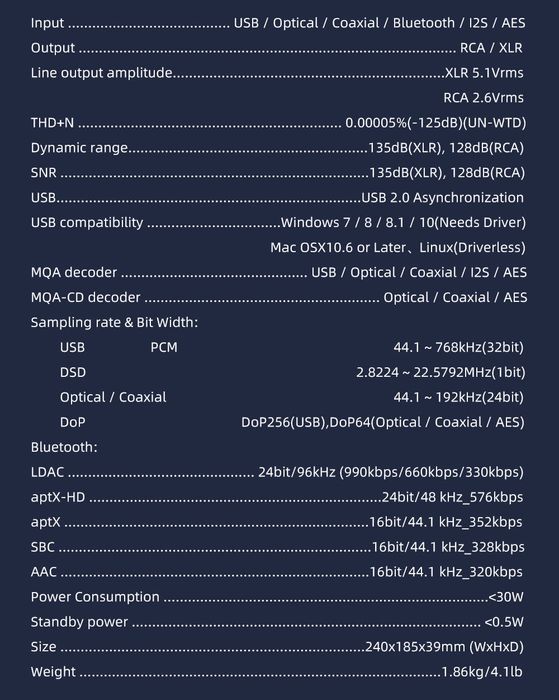

Specs
Inputs: USB, optical, coaxial, Bluetooth, I2S, AES
Outputs: RCA, XLR
Line output amplitude
XLR: 5.1Vrms
RCA: 2.6Vrms
THD+N: 0.00005%
Dynamic range
XLR: 135dB
RCA: 128dB
SNR
XLR: 135dB
RCA: 128dB
USB: 2.0 asynchronization
USB compatibility: Windows 7/8/8.1/10 (needs driver), Mac OSX 10.6 or later, Linux
MQA decoder: USB, optical, coaxial, I2S, AES
MQA-CD decoder: Optical, coaxial, AES
PCM filters: fast linear, slow linear, fast minimum, slow minimum, apodizing, fast hybrid, brickwall
Sound color settings: Rich1, Rich2, Rich3, Tube1, Tube2, Tube3, Crystal1, Crystal2, Crystal3
Sampling rate and bit width
USB
PCB: 44.1 - 768kHz (32bit)
DSD: 2.8224 - 22.5792MHz (1bit)
Optical/coaxial: 44.1 - 192kHz (24bit)
DoP: DoP256 (USB), DoP64 (Optical/coaxial/AES)
Bluetooth
LDAC: 24bit/96kHz (990kbps/660kbps/330kbps)
aptX-HD: 24bit/ 48kHz_576kbps
aptX: 16bit/44.1kHz_352kbps
SBC: 16bit/44.1kHz_328kbps
AAC: 16bit/44.1kHz_320kbps
Power consumption: 30W
Standby power: 0.5W
Size: 9.4” x 7.2” x 1.5” (240mm x 185mm x 39mm)
Weight: 4.1lbs (1.86kg)
