Vand un Shanling M7 DAP Music Player Ca Nou, Cu husa, Titanium. Este in stare perfecta si se aude foarte frumos, cald, nu are mai mult de 20 de cicluri de baterie.

De pe pagina producator

Introducing Shanling M7
When we released our flagship M9 portable player at the end of last year, it represented a big step forward for our Android DAPs. Coming with a significantly more powerful CPU, allowing us to upgrade to the Android 10, offering more memory and all packed into an aluminium body featuring new “Wave” design.

Now we are going to squeeze these new features into a smaller body with the Shanling M7!

M7 Poster sq.jpg

It features the same 5-inch Full-HD screen as our older M8, but in a sleeker “Wave” design body, measuring 129 x 78 x 20 mm at 312g. On the inside, it adopts advancements from the M9, including the single-piece aluminium inner body and the single-board integrated acoustic design.

Audio circuit of the M7 is based around ESS Sabre ES9038PRO DAC. The flagship model of the ESS line, power hungry 8-channel beast and DAC that we started to really like last year, when we implemented it into our top-of-the-line CD Player CD3.2 (21). All the experience of adapting it into a classic Hi-Fi machine helped us in optimizing its performance for the M7.

The ES9038 PRO is run in its current-mode operation, combined with a matching ESS ES9311 voltage regulator, a power circuit adapted from the M9 and our in-house developed I/V conversion stage. When paired with our OP + BUF amplifier architecture, which was further optimized for the M7, we are actually getting our best measuring portable player so far.

MSRP 1249 USD/Euro

Available at international markets in May.

Specification:

Dimensions – 129 x 78 x 20 mm

Weight – 312g

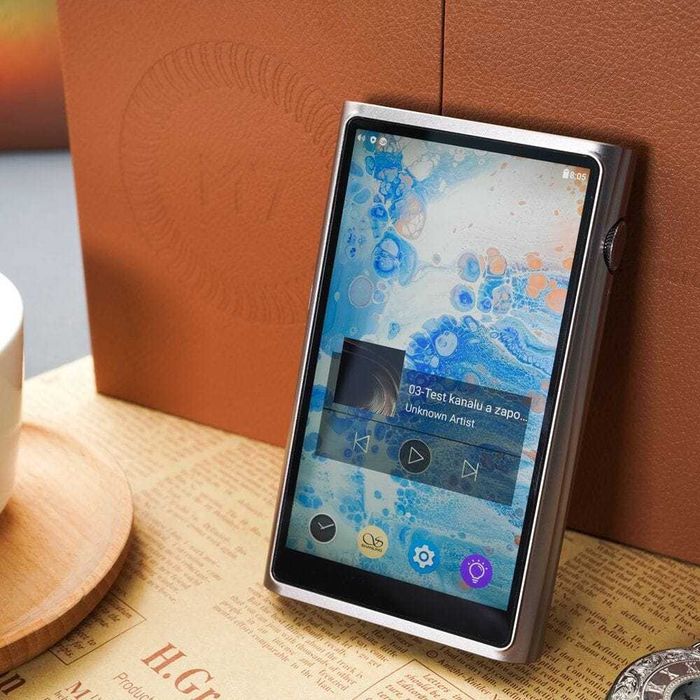

Display – 5-Inch 1920 * 1080

Operating System – Open Android 10

CPU – Qualcomm Snapdragon 665

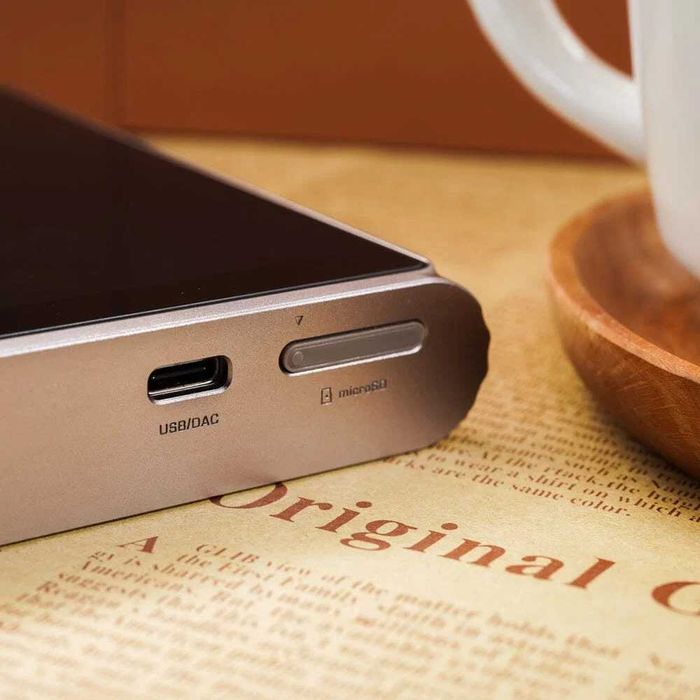

Memory – Ram 6GB, ROM 128GB + single Micro SD card slot

Hi-Res support – 32/768 & DSD512 & MQA 16X

Bluetooth – Bluetooth 5.0, two-way, LDAC, LHDC, aptX HD, aptX, SBC Support

Wi-Fi – 2.4G/5G, supporting DLNA, Airplay

DAC – ESS ES9038PRO

Amplifier – ADA4896-2 + MUSES8920 + OPA2211 + BUF634

Output Power – Single-ended 400 mW 32Ohm // 900mW 32Ohm Balanced

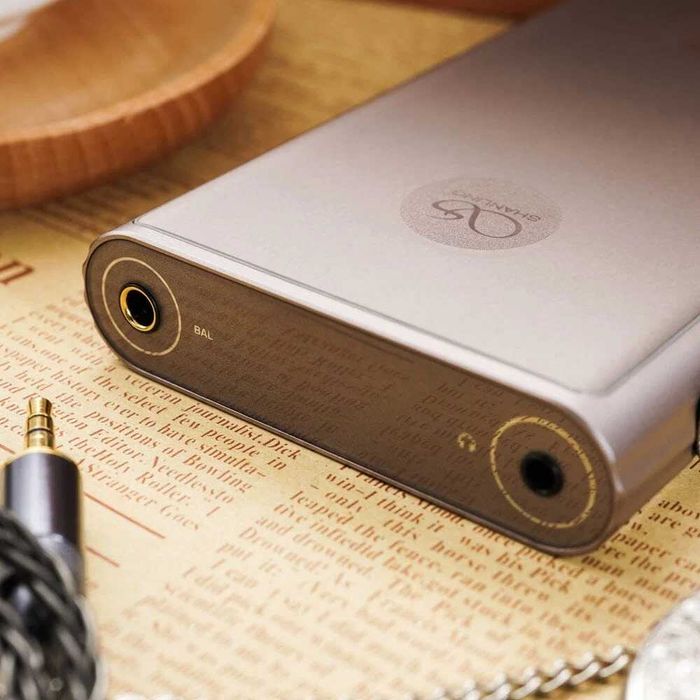

Output – 3.5mm single ended and 4.4mm balanced

Output impedance - Less than 1 Ohm

Battery – 7000 mAh, supporting 18W quick charging

Battery life – Up to 10 hours in single ended and 8.5 hours in balanced

resize_M7 (2).jpg

Single-Ended Output：

1. Output Power

Low Gain： 0.73 V32 Ohm (17 mW)

Medium Gain： 1.88 V32 Ohm (110 mW)

High gain： 3.61 V32 Ohm (406 mW)

2. Frequency Response：20 Hz - 40 KHz (0.2 dB)

3. THD+N：0.0007%

4. Channel separation：75 dB 32 Ohm

5. Dynamic Range：126 dB

6. Signal-To-Noise：126 dB

7. Noise：>116 dB(1.6 uV)（Low Gain）

8. Output Impedance：1 Ohm

Balanced Output：

1. Output Power

Low Gain： 1.46 V32 Ohm (66 mW)

Medium Gain： 3.35 V32 Ohm (350 mW)

High gain： 5.43 V32 Ohm (920 mW)

2. Frequency Response：20 Hz - 40 KHz (0.2 dB)

3. THD+N：0.0007%

4. Channel separation：115 dB 32 Ohm

5. Dynamic Range：128 dB

6. Signal-To-Noise：128 dB

7. Noise：>113 dB(2.2 uV)（Low Gain）

8. Output Impedance：1 Ohm
