Postat 15 octombrie 2025
set HiFi NAD Monitor Series amplificator final 2600A + cd-player 5440
2 300 lei
Persoana fizica
Stare: Utilizat
Tip: Amplicatoare
Descriere

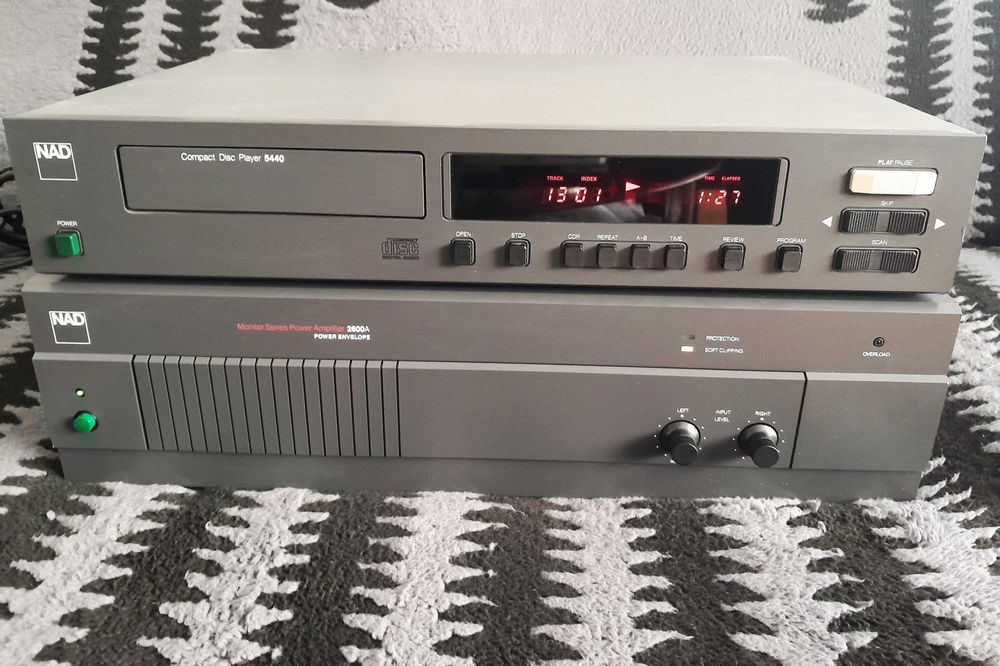

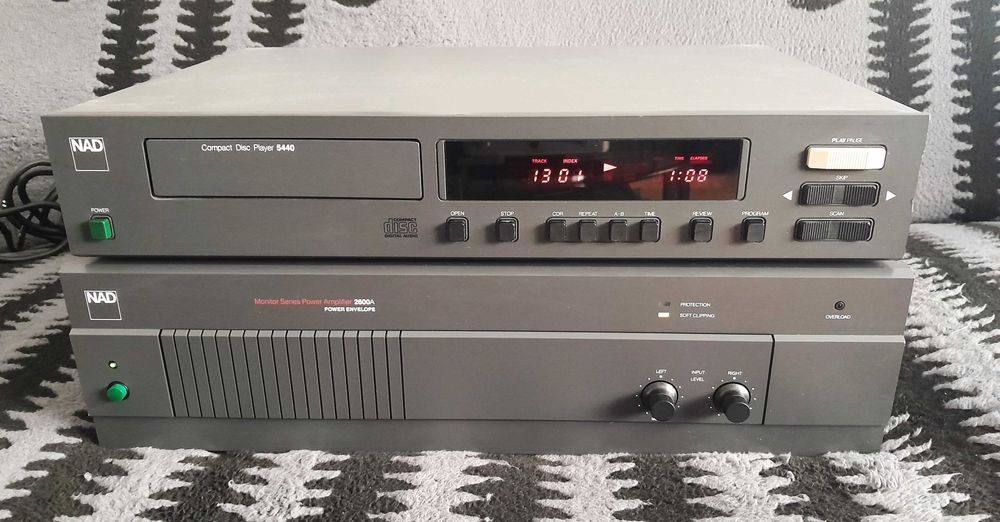

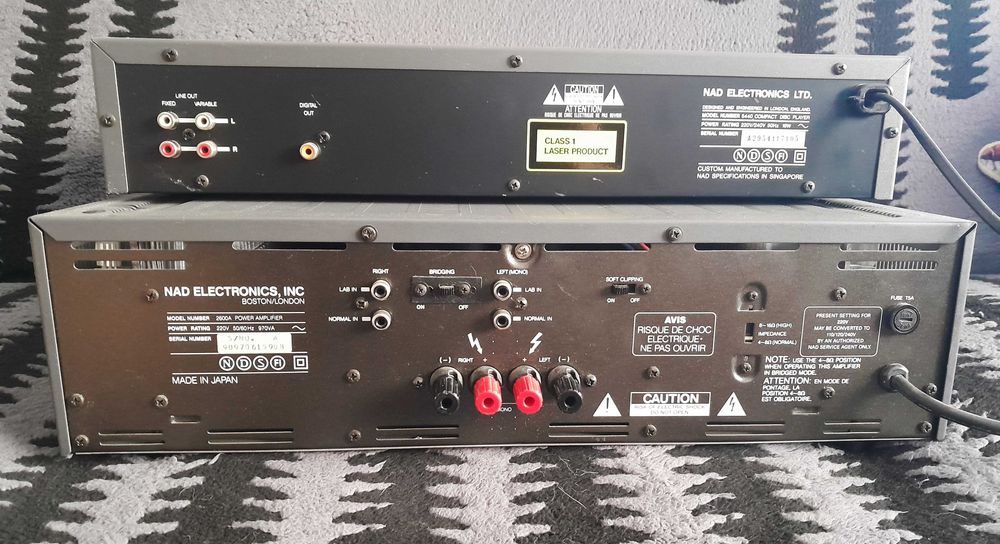

set audio vintage HiFi NAD format din amplificatorul final Monitor Series 2600A si cd-player-ul 5440
Specificatii :
-> NAD Monitor Series 2600A:
Amplificator de putere seria Monitor de 150 W (1987-1991) este același cu secțiunea de amplificare a receiverului NAD 7600, considerat unul dintre cele mai bune receivere fabricate vreodată.
• Continous average power output : 2x 150W (21,7dBW ; min. RMS, 8 Ohm, 20Hz...20Khz)
• THD : 0,002% (20Hz...20Khz)
• SMPTE IMD : 0,003% (from 250mW to rated output)
• IHF IMD : 0,03% (CCIF IMD, 19 + 20Khz at rated output)
• Clipping power : 2x 200W
• IHF dynamic headroom : + 4dB (8 Ohm)
• IHF dynamic power : 2x 400W (8 Ohm, max. short-term power output)
• 2x 600W (4 Ohm, max. short-term power output)
• 2x 800W (2 Ohm, max. short-term power output)
• Slew factor : > 50
• Slew rate : 35V /µs
• Damping factor : 120 (8 Ohm / 50Hz)
• Input for rated power : 20kOhm / 820pF
• Input for 1W output : 90mV
• Input for 150W output : 1,1V
• Frequency response : 3Hz...80Khz (LAB input, +0 / -3dB)
• Voltage gain : x 32 (30dB)
• Infrasonic filter : -3dB at 15Hz (12dB /octave)
• Ultrasonic filter : -3dB at 40Khz (12dB /octave)
• S/N ratio : 100dB (A-weighted, for 1W output)
• 122dB (A-weighted, for 150W output)
-> cd-player NAD 5440
from Radiomuseum.org
• CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
• Power type and voltage -Alternating Current supply (AC) / 120 or 220 or 240 Volt
• Loudspeaker- For headphones or amp.
• Material -Metal case
• Model: Compact Disc Player 5440 - NAD, New Acoustic
Notes
• A stereo hi-fi compact disc player with Memory for 20 tracks. RCA sockets for fixed and variable line output, coaxial digital output.
Specification
Digital to Analogue conversion - MASH 18 bit resolution 32 times oversampled
linear phase with 18 bit coefficients
Analogue Filter - 5 pole active
Frequency response - 5Hz to 20kHz ±0.2dB
Signal to Noise Ratio A Weighted - > 106db
THD (at 0dB, 1 kHz) - 0.002%
Dynamic Range - 98dB
Channel separation 1 kHz - > 100dB
Output Level - 2 V rms (fixed), 5 V rms (variable)
Output Impedance - 120Ω
Designed and Engineered in London
• Net weight (2.2 lb = 1 kg)
• Dimensions (WHD) -420 x 84 x 300 mm
• 4.1 kg / 9 lb 0.5 oz (9.031 lb)
-> Am mai multe scule audio din aceasta categorie, pt.detalii consultati lista mea de anunturi accesand contul meu.
NU FAC SCHIMBURI .
-> Specificatii livrare :
Livrarea in tara se face prin curierat rapid pe raspunderea cumparatorului, cu FAN COURIER si optiunea "Verificare colet" , costul fiind achitat de catre cumparator . Ambalare corespunzatoare, folie cu bule, carton gros .
* Deoarece este o vanzare a unui produs second-hand si mai ales din cauza varstei aparatelor aceasta achiziție se face prin excluderea oricarei garanții .Produsul vandut nu se schimba/returneaza/rascumpara .Cumparatorul este de acord cu acest lucru. Continuarea cumpararii/achiziției/ofertei implica acceptarea conditiilor enumerate mai sus.
Specificatii :
-> NAD Monitor Series 2600A:
Amplificator de putere seria Monitor de 150 W (1987-1991) este același cu secțiunea de amplificare a receiverului NAD 7600, considerat unul dintre cele mai bune receivere fabricate vreodată.
• Continous average power output : 2x 150W (21,7dBW ; min. RMS, 8 Ohm, 20Hz...20Khz)
• THD : 0,002% (20Hz...20Khz)
• SMPTE IMD : 0,003% (from 250mW to rated output)
• IHF IMD : 0,03% (CCIF IMD, 19 + 20Khz at rated output)
• Clipping power : 2x 200W
• IHF dynamic headroom : + 4dB (8 Ohm)
• IHF dynamic power : 2x 400W (8 Ohm, max. short-term power output)
• 2x 600W (4 Ohm, max. short-term power output)
• 2x 800W (2 Ohm, max. short-term power output)
• Slew factor : > 50
• Slew rate : 35V /µs
• Damping factor : 120 (8 Ohm / 50Hz)
• Input for rated power : 20kOhm / 820pF
• Input for 1W output : 90mV
• Input for 150W output : 1,1V
• Frequency response : 3Hz...80Khz (LAB input, +0 / -3dB)
• Voltage gain : x 32 (30dB)
• Infrasonic filter : -3dB at 15Hz (12dB /octave)
• Ultrasonic filter : -3dB at 40Khz (12dB /octave)
• S/N ratio : 100dB (A-weighted, for 1W output)
• 122dB (A-weighted, for 150W output)
-> cd-player NAD 5440
from Radiomuseum.org
• CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
• Power type and voltage -Alternating Current supply (AC) / 120 or 220 or 240 Volt
• Loudspeaker- For headphones or amp.
• Material -Metal case
• Model: Compact Disc Player 5440 - NAD, New Acoustic
Notes
• A stereo hi-fi compact disc player with Memory for 20 tracks. RCA sockets for fixed and variable line output, coaxial digital output.
Specification
Digital to Analogue conversion - MASH 18 bit resolution 32 times oversampled
linear phase with 18 bit coefficients
Analogue Filter - 5 pole active
Frequency response - 5Hz to 20kHz ±0.2dB
Signal to Noise Ratio A Weighted - > 106db
THD (at 0dB, 1 kHz) - 0.002%
Dynamic Range - 98dB
Channel separation 1 kHz - > 100dB
Output Level - 2 V rms (fixed), 5 V rms (variable)
Output Impedance - 120Ω
Designed and Engineered in London
• Net weight (2.2 lb = 1 kg)
• Dimensions (WHD) -420 x 84 x 300 mm
• 4.1 kg / 9 lb 0.5 oz (9.031 lb)
-> Am mai multe scule audio din aceasta categorie, pt.detalii consultati lista mea de anunturi accesand contul meu.
NU FAC SCHIMBURI .
-> Specificatii livrare :
Livrarea in tara se face prin curierat rapid pe raspunderea cumparatorului, cu FAN COURIER si optiunea "Verificare colet" , costul fiind achitat de catre cumparator . Ambalare corespunzatoare, folie cu bule, carton gros .
* Deoarece este o vanzare a unui produs second-hand si mai ales din cauza varstei aparatelor aceasta achiziție se face prin excluderea oricarei garanții .Produsul vandut nu se schimba/returneaza/rascumpara .Cumparatorul este de acord cu acest lucru. Continuarea cumpararii/achiziției/ofertei implica acceptarea conditiilor enumerate mai sus.
ID: 292810424
Contactează vânzătorul
