405-AAEF : PERC H330 RAID Controller, Min icard
Part Number Description Quantity
14JK1 SRV,DRVR,H330,MCRD,SAS-RAID 1
R75VT PWA,CTL,SAS,H330,IEC,MCRD 1
400-AJRU : 300GB 15K RPM SAS ISE 2.5in Ho t-plug Hard Drive
Part Number Description Quantity
8FKXC ASSY,CARR,HD,SAS,2.5 4
0N0T4 HD,300G,SAS12,15K,2.5,H-KCF 4
FM833 LBL,POD,HD,RECTANGULAR 4
R9445 Screw,M3X.05X4.5MM,Flat Head Machine Screw,Zinc Plated Steel 16
385-BBIK : iDRAC8, Express
Part Number Description Quantity
9RRM6 INFO,OOBE,IDRAC8,DF,13G 1
N3WPH INFO,GMNI,LICENSING,TRIGGER 1
81J34 SRV,LICENSE ENTITLEMENT 1
2MP74 DPK,HWFI,KT,IDRAC8,13G,EXP 1
96PCR DPK,HWFI,KG,IDRAC8,13G 1
384-BBMW : PowerEdge R430/R530 Motherboar d MLK
Part Number Description Quantity
94682 SCR,M3X.5X5MM,HEX,PHH,TF,ZPS 9
CN7X8 ASSY,PWA,PLN,SV,R530/R430,V3 1
384-BBBL : Performance BIOS Settings
Part Number Description Quantity
N756K INFO,ENABLE PERFORMANCE MODE 1
374-BBIJ : 135W Heatsink
Part Number Description Quantity
2FKY9 Assembly,Heatsink,84X106X24.2MM,R430 2
370-ACPH : 2400MT/s RDIMMs
Part Number Description Quantity
V4Y10 INFO,ORD-ENTRY,2400MHZ,RDIMMS 1
370-ACNX : 16GB RDIMM, 2400MT/s, Dual Ran k, x8 Data Width
Part Number Description Quantity
HNDJ7 DIMM,16GB,2400,2RX8,8G,DDR4,R 2
370-ABXV : Cooling Fan
Part Number Description Quantity
DNHNR ASSY,FAN,40X40X56,DELTA,R430 1
370-ABXP : DIMM Blanks for System with 2 Processors
Part Number Description Quantity
5M8WD FILLER,BLNK,DIMM,PLSTC,13G 10
370-AAIP : Performance Optimized
Part Number Description Quantity
74FPM INFO,MEM,OPTIMIZED 1
340-ANIV : PowerEdge R430 Shipping EMEA1 (English/French/German/Spanish /Russian/Hebrew)
Part Number Description Quantity
6GC4D GDE,OPENMANAGE,DIB,PLACEMAT 1
NPH92 KIT,SHP MTL,R430 1
V21WY SHP MTL,OPT,TRAY,1/2U,3.63H 1
M447K GDE,PROD,INFO,SERI,EMEA1 1
6XH71 GDE,GETS,R430,EMEA1 1
61275 INFO,SERVER IDENTIFIER,WMS 1
8DX78 LBL,BRCD,3IN1,BLNK,ODM/FCTRY 1
VKYR7 AW,LBL,REG,BIS,PKG,SV,EMEA 1
FMPDK INFO,LBL,REG,BIS,PKG,SV 1
J899K GDE,EULA,EMEA1 1
G6FN3 ASSY,LBL,REG,FCC2,R430,EMF 1
338-BJEJ : Intel Xeon E5-2620 v4 2.1GHz,2 0M Cache,8.0GT/s QPI,Turbo,HT, 8C/16T (85W) Max Mem 2133MHz
Part Number Description Quantity
9XVVW PRC,E52620V4,2.1,20M,BDW,R0 1
PVGWV INFO,2ND CPU 1
338-BJCZ : Intel Xeon E5-2620 v4 2.1GHz,2 0M Cache,8.0GT/s QPI,Turbo,HT, 8C/16T (85W) Max Mem 2133MHz
Part Number Description Quantity
9XVVW PRC,E52620V4,2.1,20M,BDW,R0 1
330-BBED : No PCIe Riser, PowerEdge R430
Part Number Description Quantity
KNF1W ASSY,FILLER,MET,RSR,BTFLY,R430 1
325-BBII : Bezel up to 8 Drive Chassis
Part Number Description Quantity
3FJR9 ASSY,BZL,FRT,MET,8HDD,1U,13G 1
321-BBNK : 2.5" Chassis with up to 8 Hot Plug Hard Drives
Part Number Description Quantity
TW13J ASSY,CARR,MTG,BLNK,HD,2.5,V3 4
RX20N ASSY,CHAS,8X2.5 HPLGHD,R430 1
7NKWC ASSY,CBL,SAS,PERC,X8BP,R430 1

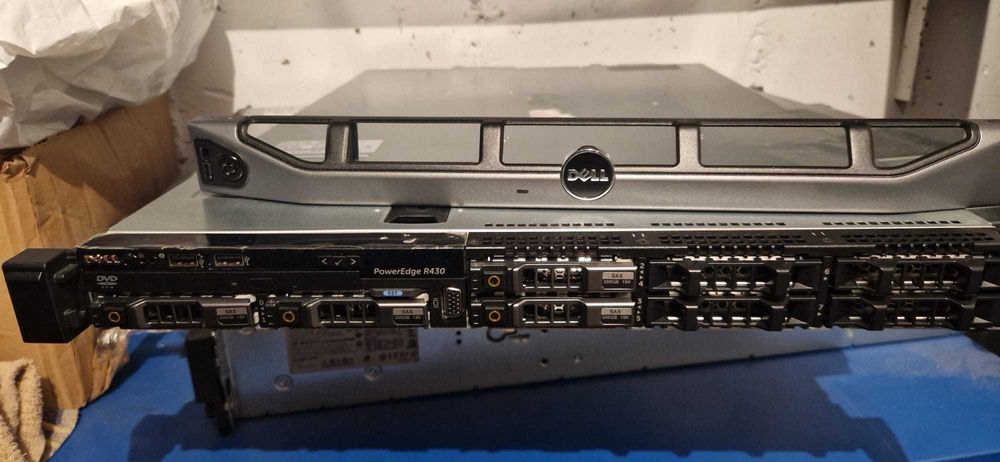

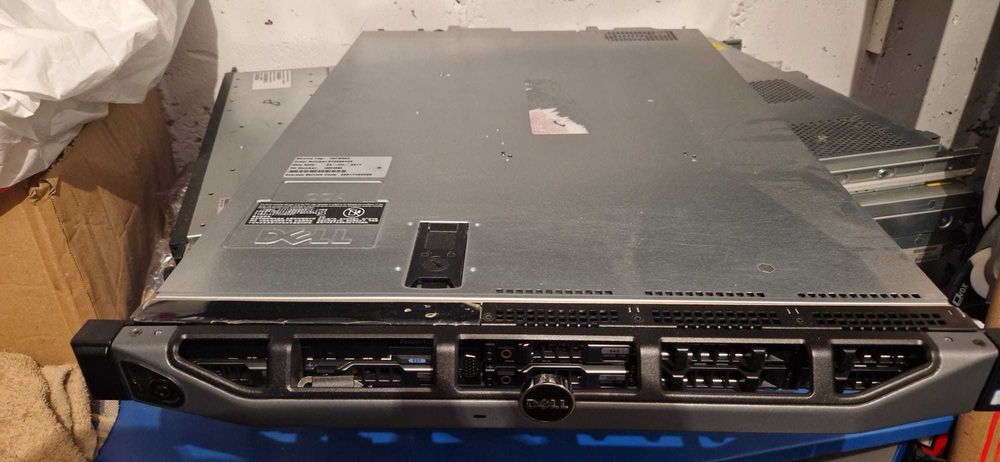

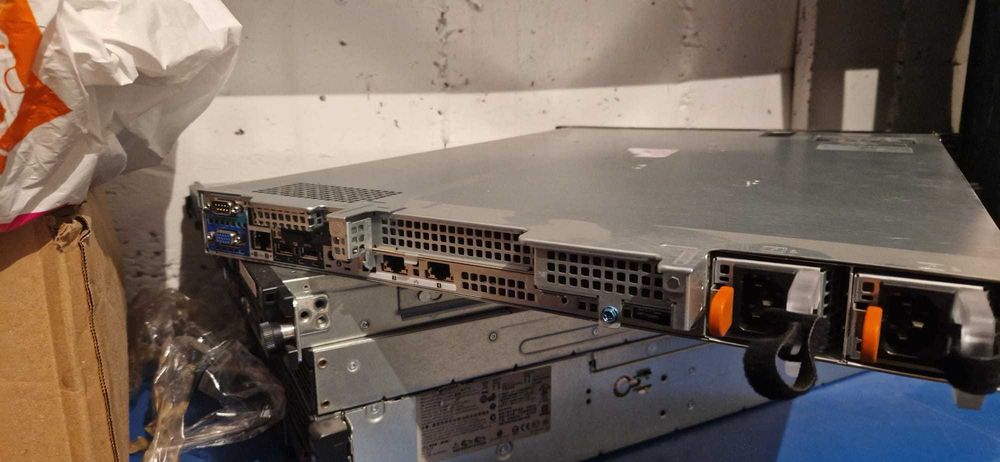

210-ADLO : PowerEdge R430 Server
Part Number Description Quantity
T845M INSTR,TRIG,SVC TAG 1
JD509 LBL,REG,SIDE,UNIV,BLNK,V2 1
72RXT INFO,LBL,QRL 1
3PF0C INFO,RYLTY,S1X0,OPROM,12G/13G 1
PXW8M SRV,MZR,DRVS,SV,13G,SDP1 1
864KE Information,PLACEHOLDER PIECE-PART 1
PWT0J SRV,SW,ESG,PWREDG,CS,13G 1
Y634J INFO,MZR,SV 1
M26PK SRV,SW,ESG,PWREDG,VID,13G 1
8NY9F SRV,SW,NTWK,BCOM,V20.8,Q2FY18 1
KR2FX SRV,DRVR,SAS,PERC S130,R430 1
K4NYH SRV,OSC,13G,DRVS,SV 1
X40DX DIAG,DIAGS,WBDD,FCTRY 1
23503 LBL,BRCD,TRACK,SYS,GNRC 1
WH190 SRV,DRVR,DELL BKPLN 1
GD720 Information,Label,MINI-XPRS- Service-Tag 1
X298G SRV,SW,ESG,PWREDG,DRV,USB3,13G 1
DF3MX INFO,64-BIT,UEFI-MFG,PROCESS 1
2751P INFO,SW,UPTN,UPG,SV 1
C108D INFO,LBL,BLACK EST 1
8WJ34 INFO,RYLTY,EXP,13G,AVOCENT 1
66GJD SRV,MZR,DIAGS,SV,13G 1
