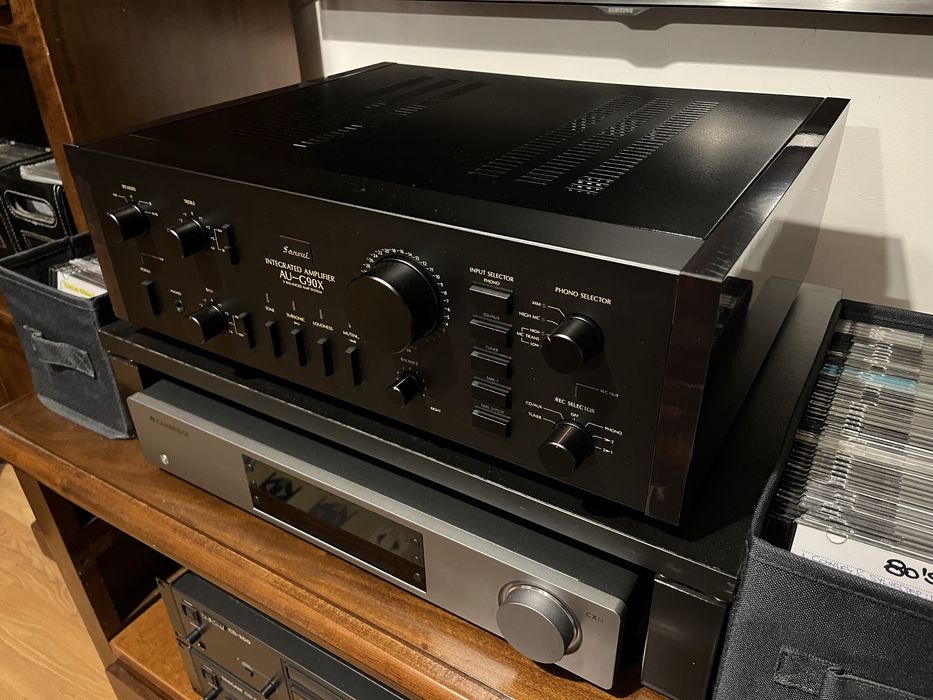

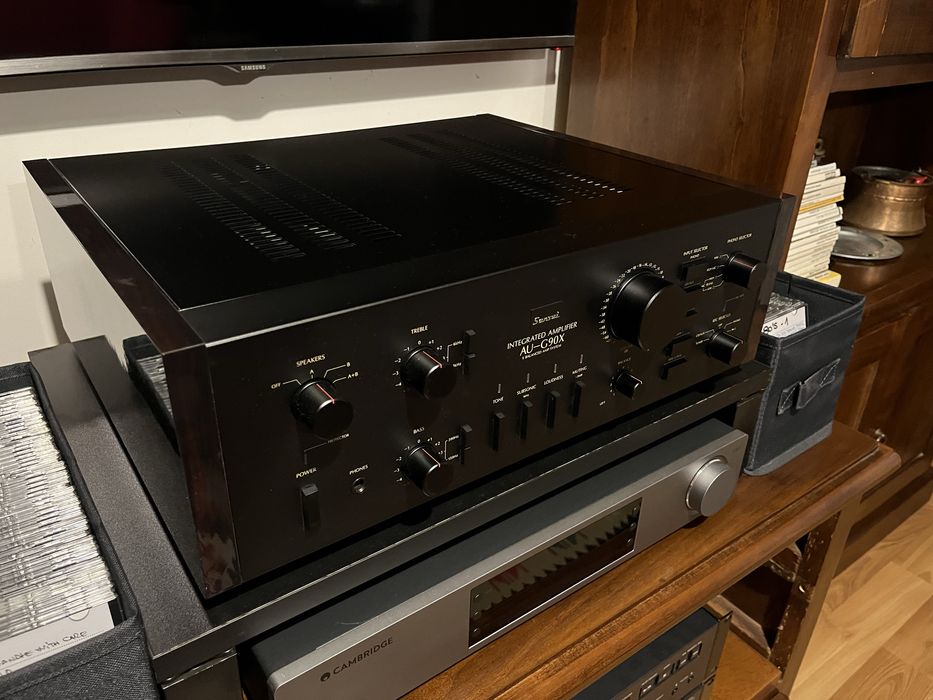

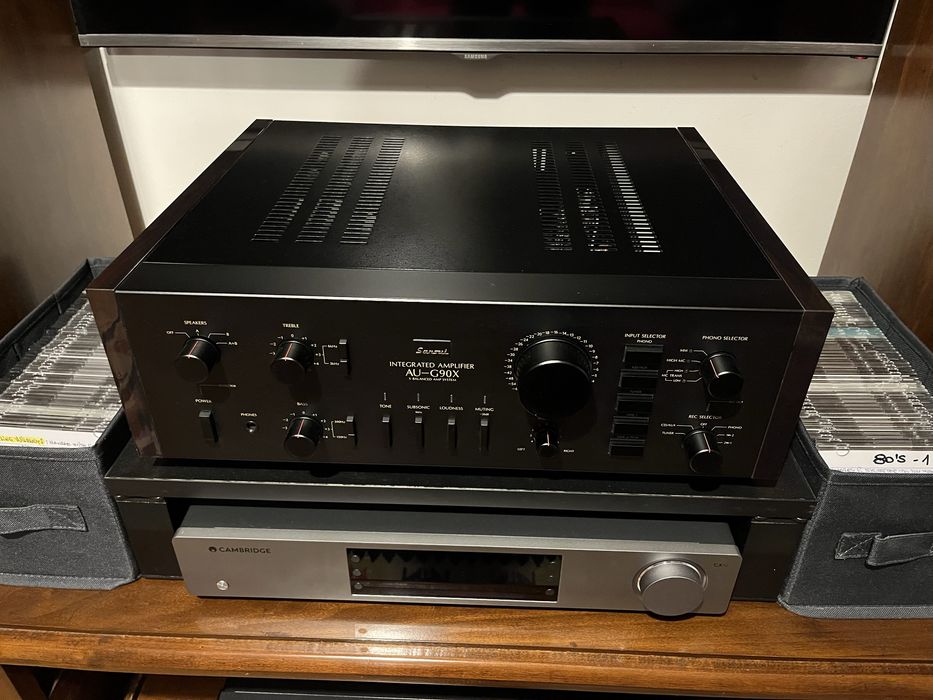

Amplificator în stare excepțională, ca nou.

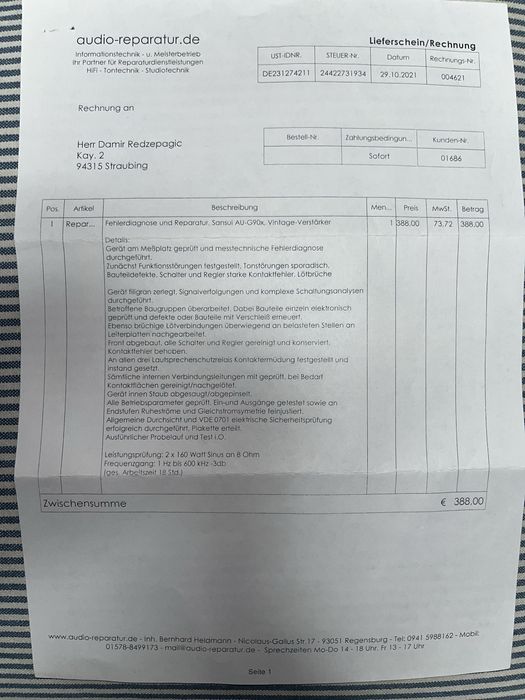

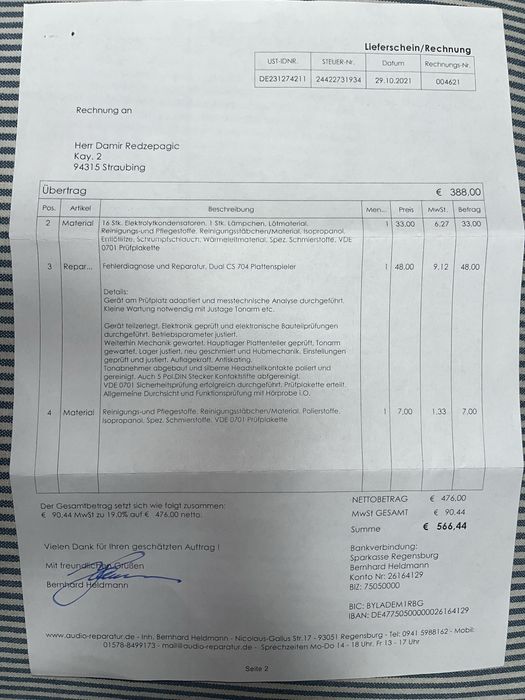

Servisat, factură de restaurare în valoare de 570 euro.
Nativ 220 - 240v, fără traf suplimentar.
Un amplificator care nu se încălzește, oricâte ore ar funcționa, mulțumită trafului toroidal imens din dotare…
Nu doresc schimburi, ridicare personală cu probă, nu trimit pe curier, fiind un aparat special.

Data
General

Manufacturer: Sansui
Model: AU-G 90 X
Type: Integrated amplifier
Years of manufacture: 1984 - 1986
Made in: Japan
Color: Black
Remote control:
Power consumption: 700 W max.
Dimensions: 466 x 161 x 431 mm (WxHxD)
Weight: 17 kg
Original price approx.: 1'700 DM

Connections

Inputs:
Phono 1, 2 MM: 2.5 mV, 47 kOhm, 300 mV max.
Phono MC Low: 0.07 mV, 3.2 Ohm, 20 mV max.
Phono MC High: 0.25 mV, 40 Ohm, 20 mv max.
Tuner: 150 mV, 47 kOhm
CD: 150 mV, 47 kOhm
Aux: 150 mV, 47 kOhm
Tape Play 1, 2: 150 mV, 47 kOhm
Outputs:
Tape Rec:
Pre Out:
Headphones
2 pairs of speakers

Technical Data

Continuous power (at distortion)
8 Ohm: 130 W (per channel, 10 - 20,000 Hz, both channels operated)
4 Ohm: 150 W
Dynamic power
8 Ohm: 200 W
4 Ohm: 310 W
Total harmonic distortion: 0.003 % at the above continuous output power
Attenuation factor:
Frequency response: 0 - 300,000 Hz (+0, - 3.0 dB).
Signal-to-noise ratio:
Phono: 79 dB
High level: 110 dB

Tone control
Bass: yes, ± 10 dB, 50 Hz treble: yes, ± 10 dB, 10 kHz

Loudness: yes
High Filter:
Low Filter (Subsonic): -3 dB at 16 Hz (6 dB/octave).
Mute: - 20 dB
Special Features

Phono MM/MC
Recording source selector switch
Cold-device socket
