The Zenith60 is a calibration-free tilt GNSS smart antenna that incorporates state-of-the-art technology. In combination with the X-PAD field software, field controllers and widely appreciated support and services, GeoMax provides a GNSS solution that ensures a convenient, flexible and pleasant working experience.
As a part of the Hexagon group, GeoMax can guarantee its solutions work when you do.
Brand: GEOMAX INTERNATIONAL GMBH

Categorie: Receptoare GNSS cu modem GSM intern

Memorie: Card microSD detașabil și memorie internă de 8 GB

Porturi: USBSerial and power

Acumulator: Li-Ion 3,4 Ah, detașabil

Dimensiune: 131 mm, x 161 mm

Autonomie acumulator: 8 h

Greutate: 1117g

Factor de protecție: IP68

Număr canale: 800

Software : X-Pad Ultimate Survey Android

RECEIVER SPECIFICATIONS
Reliability
99.99%

Measurement Engine
NovAtel OEM7, 555 channels, multi-frequency, multi-constellation

GPS tracking
L1 C/A, L1C, L2C, L2P, L5

GLONASS tracking
L1 C/A, L2 C/A, L2P, L3

BeiDou tracking
B1l, B1C, B2l, B2a, B2b, B3l

Galileo tracking
E1, E5a, E5b, AltBOC, E6

QZSS tracking
L1 C/A, L1C, L2C, L5, L6

NavIC
L5

SBAS (EGNOS, WAAS, MSAS, GAGAN)
L1, L5

Precise Point Positioning (PPP)
TerraStar C Pro, L-Band (opt)

Positioning rate
5Hz, 20Hz (opt)

Time for Initialization
Typically 4s

QUALITY MODE
RTK modes
Selectable; ExtraSafe, Standard

Tilt Compensation
Calibration-free, Resistant to magnetic interferences

COMMUNICATION
4G LTE module
RTCM 2.1, 2.3, 3.0, 3.1, 3.2, 3.3, 3.4,

CMR, CMR+, RTCA, NOVATELX

RTK data protocols
QUECTEL EG25-G LTE FDD,

LTE TDD, UMTS, GSM

NMEA Output
NMEA v3.1, NMEA v4.1

UHF radio module
SATEL TR4+, 500mW, 1000mW transceiver, 403–473 MHz; (opt)

Bluetooth®
2.1 +EDR, V5.0 QR-iConnect functionality

WLAN
802.11 a/ac/b/g/n Hotspot / client mode

TNC connector
UHF antenna

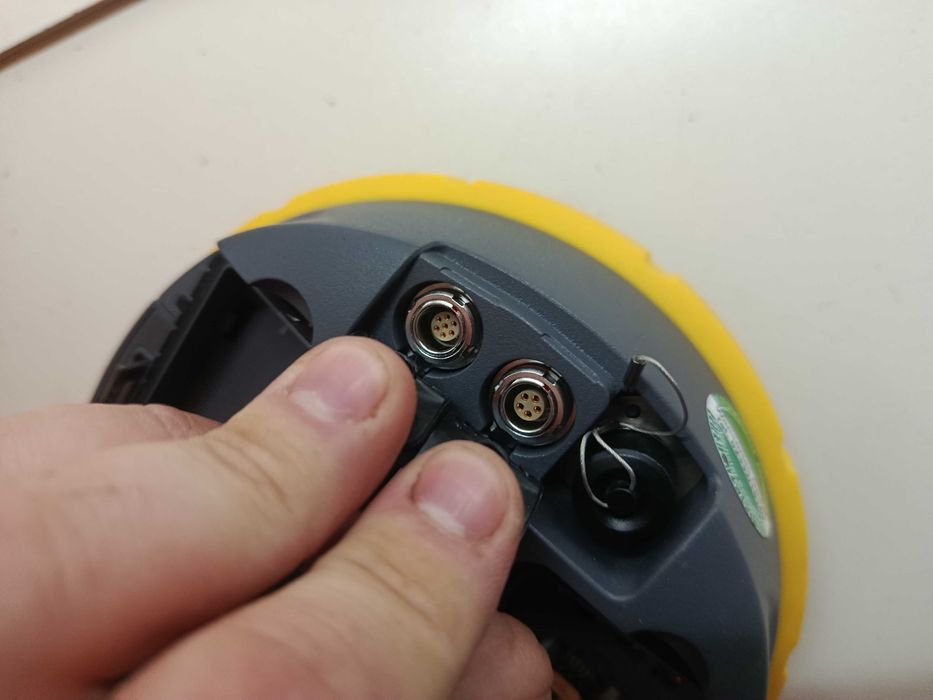

Communication port
USB, serial & power

RECEIVER ACCURACY & PERFORMANCE
RTK
Hz: 8 mm + 1 ppm (rms)

V: 15 mm + 1 ppm (rms)

Network RTK
Hz: 8 mm + 0.5 ppm (rms)

V: 15 mm + 0.5 ppm (rms)

Static
Hz: 3 mm + 0.5 ppm (rms)

V: 5 mm + 0.5 ppm (rms)

Static long
Hz: 3 mm + 0.1 ppm (rms)

V: 3.5 mm + 0.4 ppm (rms)

Code differential
Hz: 0.25 m (rms)

V: 0.50 m (rms)

Tilt compensated real-time kinematic
Additional Hz uncertainty 2 cm up to 30° tilt

INTERFACES
Keyboard
On/off button

LED status indicators
Position, RTK, Power, Bluetooth®

Data recording

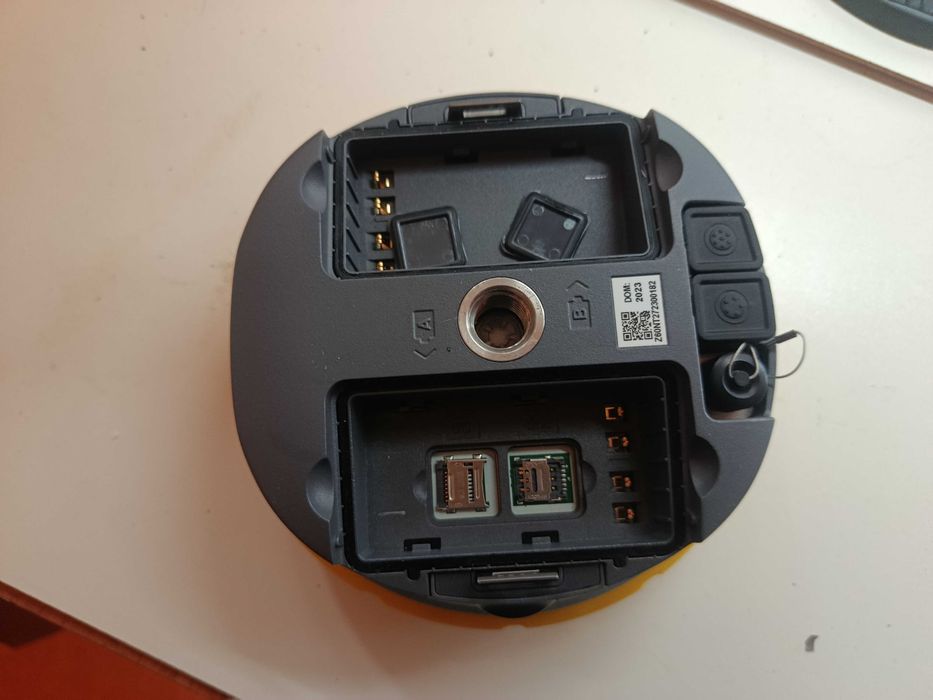

Dual; microSD card and 8 GB internal memory

GSM/TCP/IP
Removable SIM card

POWER SUPPLY
Two internal batteries
Hot-swappable, Li-Ion 3.4 Ah / 7.2 V

Operating time
12.5 h in static / 11 h in rover mode

External power
9 V to 28 V, LEMO® plug

PHYSICAL SPECIFICATIONS
Dimensions
Height 75 mm, ø 166.8 mm

Weight
1.14 kg without batteries

Operating temp.
– 40°C to 65°C

Environmental protection
IP68 (IEC 60529)

Withstands powerful jets and temp. immersion under water

MIL-STD-810G 1 506.6 & 1 512.6

Fully dust tight

MIL-STD-810G 1 510.6

Humidity
MIL-STD-810H 1 507.6

Vibration
Mechanical stress resistant according to ISO 9022-36-05

Shock
Withstands 2 m drop onto hard surface
