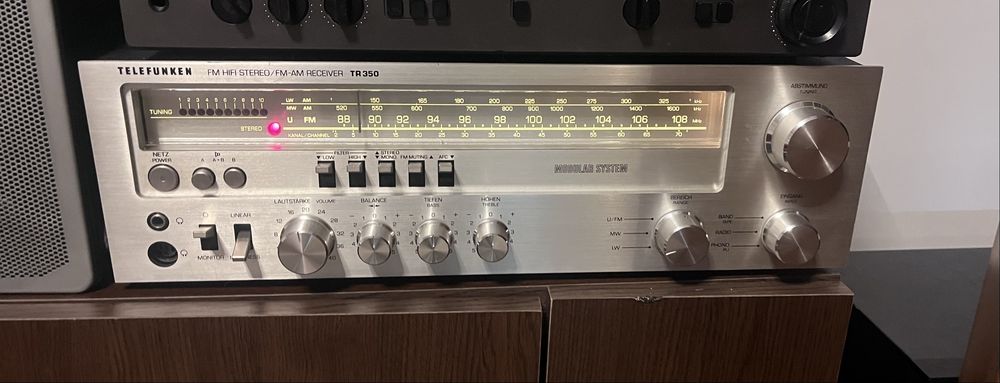

Amplituner Telefunken TR350 in stare perfectă de funcționare. Estetic cu câteva urme minore de utilizare.

Specificații:

General

Manufacturer: Telefunken
Model: TR 350
Type: Receiver
Years of manufacture: 1979 - 1981
Made in: Germany
Color: Silver, Black
Remote control:
Power Consumption:
Dimensions: 460 x 145 x 350 mm (WxHxD).
Weight: 9.2 kg
Original price approx.: 698 DM

Connections

Number of inputs:
Phono (MM): 2.5 mV/47 kOhm.
Tape Play: 150 mV/35 kOhm

Aux 1: 150 mV/35 kOhm
Phono / Aux-2: switchable
Number of Outputs:
Tape Rec:
2 headphones
2 pairs of speakers

Technical Specifications

Amplifier

Continuous power (at distortion)
8 Ohm: 2x 40 W DIN 4 Ohm: 2x 50 W DIN

Dynamic power
8 Ohm: 2x 55 W
4 Ohm: 2x 70 W
Total harmonic distortion: 0.25
Attenuation factor: 55 (8 Ohm)
Frequency response:
Phono (RIAA): 20 Hz - 20 KHz
Tape, Aux: 15 Hz - 43 KHz Signal-to-noise ratio:

Phono: 80 dB
Tape, Aux: 95 dB

Stereo channel separation:
Tone control:
Bass: ± 10 dB
Treble: ± 10 dB

Loudness: yes
High Filter: yes
Low Filter (Subsonic): yes
Mute:

Tuner

Reception: FM, MW, LW
Frequencies:
FM: 87.5 - 108 MHz
MW: 535 - 1605 kHz LW: 150 - 350 kHz

All other data for VHF
Frequency response: 18 - 15'000 Hz
Input sensitivity: 11.8 dBf
Distortion factor: 0.6
Signal-to-noise ratio: 63 dB
Channel separation: 38 dB
Selectivity: 65 dB
Co-wave selection: 1.5 dB
Spurious wave selection:
Image frequency attenuation: 90 dB
