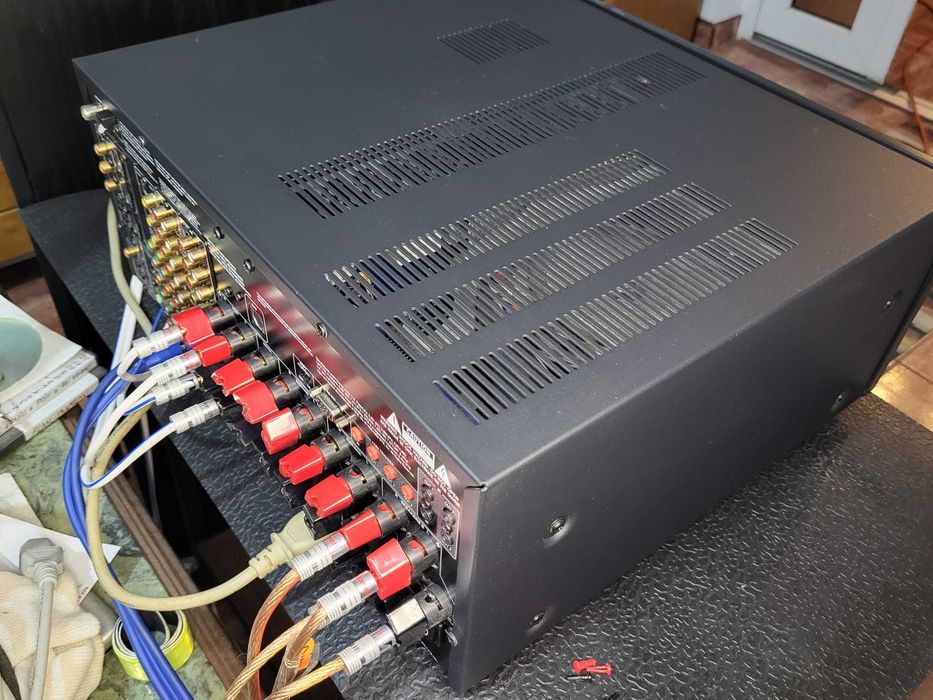

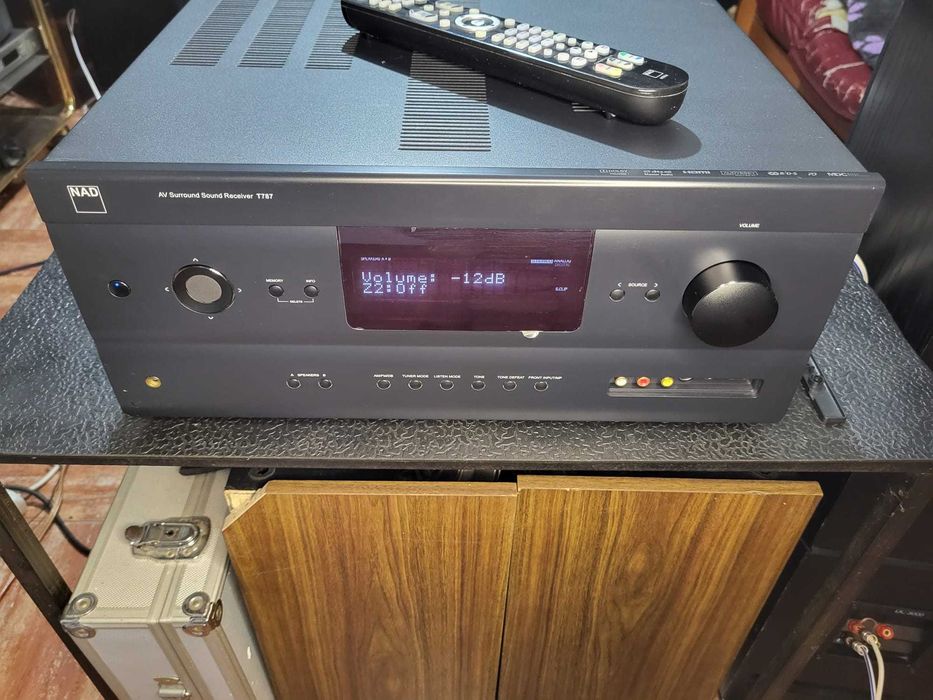

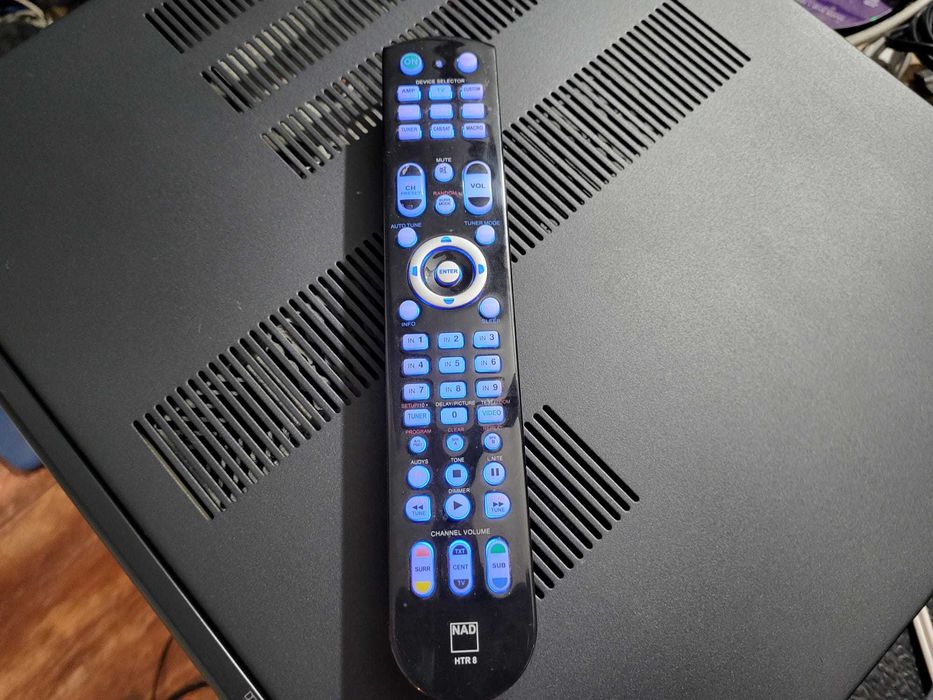

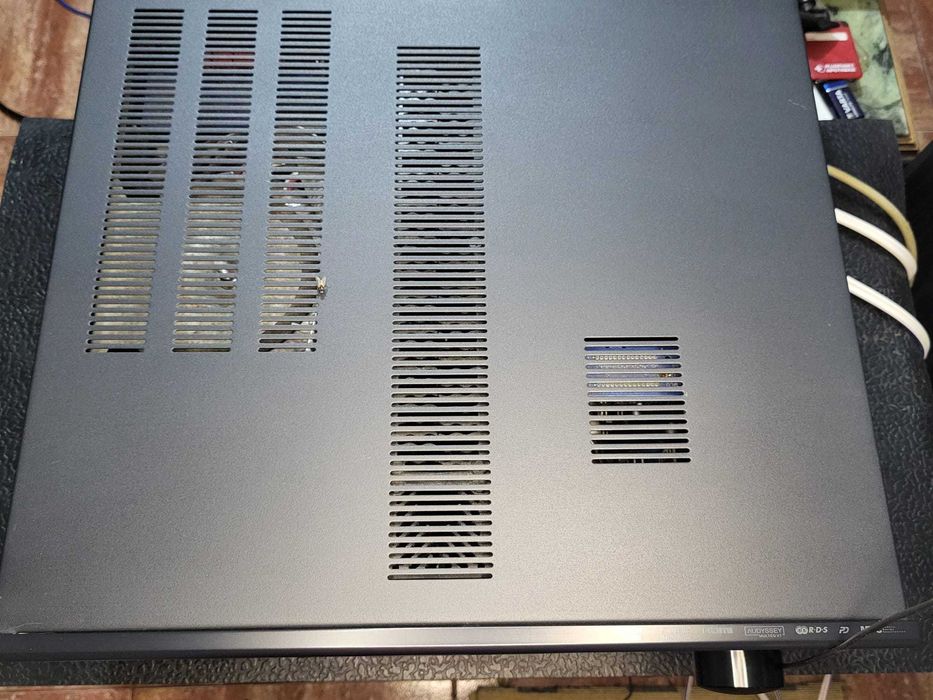

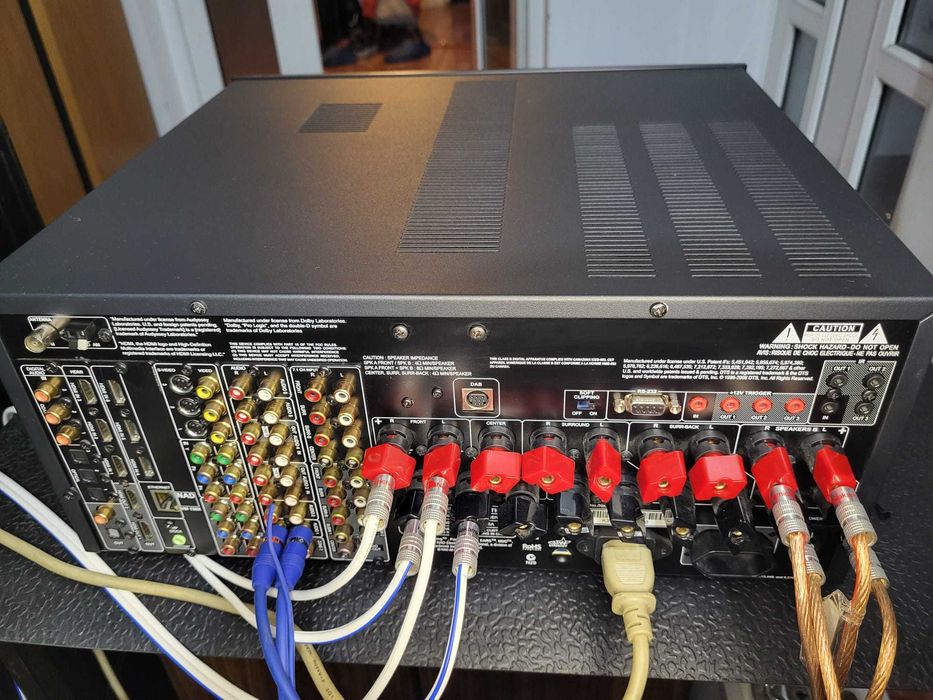

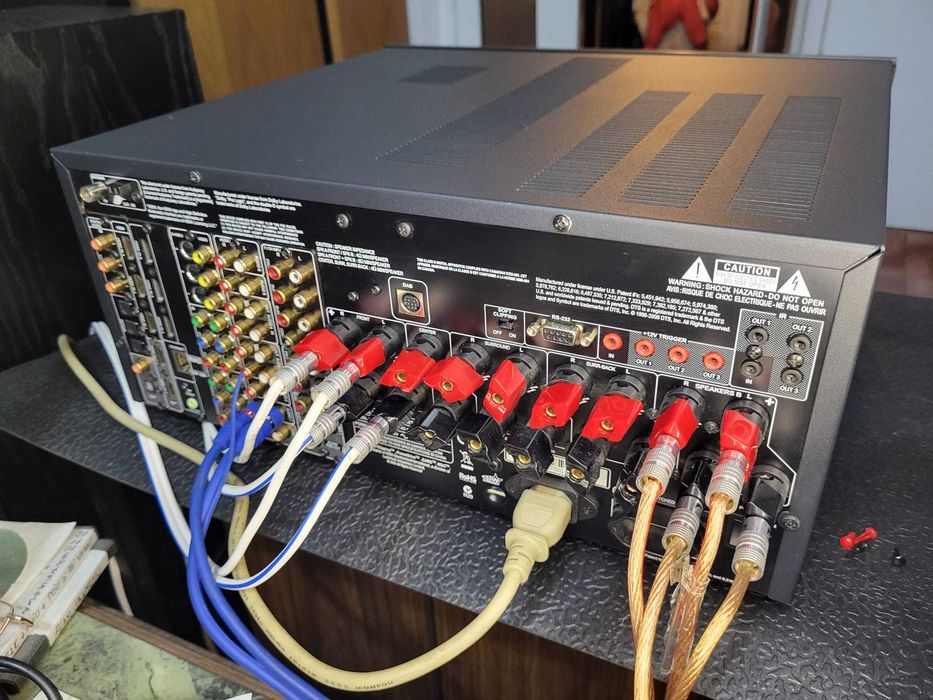

Pentru cunoscatori : se vinde un receiver NAD T 787 impecabil ca si aspect (are folia pe ecran) si ca tehnic/functional. Detaliile tehnice se gasesc pe net, amplificarea este pe tranzistori Mos Fet si are doua transformatoare toroidale. Vand aceasta bijuterie tehnica pt ca am trecut pe monoblocuri si oricum nu l-am folosit pt surround. Are telecomanda originala, prefer predare personala cu ascultare si verificare minutioasa din toate punctele de vedere. Accept schimburi doar cu boxe de calitate sau Dac R2R. Ofer si pretind seriozitate maxima.Va multumesc Specificatii :
AMPLIFIER SECTION
Power output, Stereo Mode 150W (21.8dBW)
(8Ω within rated distortion)
IHF dynamic power; 8 Ω 230W (23.6dBW)
IHF dynamic power; 4 Ω 320W (25.1dBW)
Power output, Surround Mode 7 x 120W (20.8dBW)
Total harmonic distortion at rated power 0.08%
IM distortion at rated power 0.08%
Damping factor, 8 Ω >60
Input sensitivity and impedance 1.3V (ref. 8Ω, VOL at 0 dB)
Frequency response ±0.8dB (ref. 1 kHz, 20 Hz-20 kHz)
Signal/noise ratio >93dB (ref. rated power at 8Ω, A-WTD)
Signal/noise ratio >83dB (ref. 1W at 8Ω, A-WTD)
PREAMPLIFIER SECTION
Frequency response ±0.5 dB (ref. 20 Hz – 20 kHz)
Signal-to-noise ratio >88 dB (ref. 2V, A-WTD)
Total harmonic distortion 0.08 %
Input sensitivity 330 mV (ref. 2V)
Maximum output level >4V
TUNER SECTION
AM Section
Tuning range 530 kHz -1710 kHz
(120V version only, 10 kHz steps)
531 kHz -1602 kHz
(230V version only, 9 kHz steps)
Usable sensitivity 55 dBu
Signal-to-noise ratio 38 dB
Loop sensitivity 20dB S/N 66 dBu
FM Section
Tuning range 87.50 MHz – 108.50 MHz
Signal-to-noise ratio, MONO 60 dB
Signal-to-noise ratio, STEREO 55 dB
Total Harmonic Distortion 0.7 %
Channel Separation 30 dBu
RDS decode sensitivity 28 dBu
DIMENSION AND WEIGHT
Unit Dimensions (W x H x D) 435 x 197 x 438 mm
17 ¹/₈ x 7 ¹³/₁₆ x 17 ¹/₄ inches
Net Weight 25.2 kg (55.6 lbs)
Shipping Weight 29.2 kg (64.4 lbs)
