PWM 30A Variator turatie, tensiune motor DC 6-12-24-48V

Specifications:
Input voltage: DC6-60V
Output voltage: linear under load
Output current: 0-30A
Continuous current: within 20A
Speed control mode: jog + -
Speed regulation range: 0-100%
Control frequency: 21KHZ

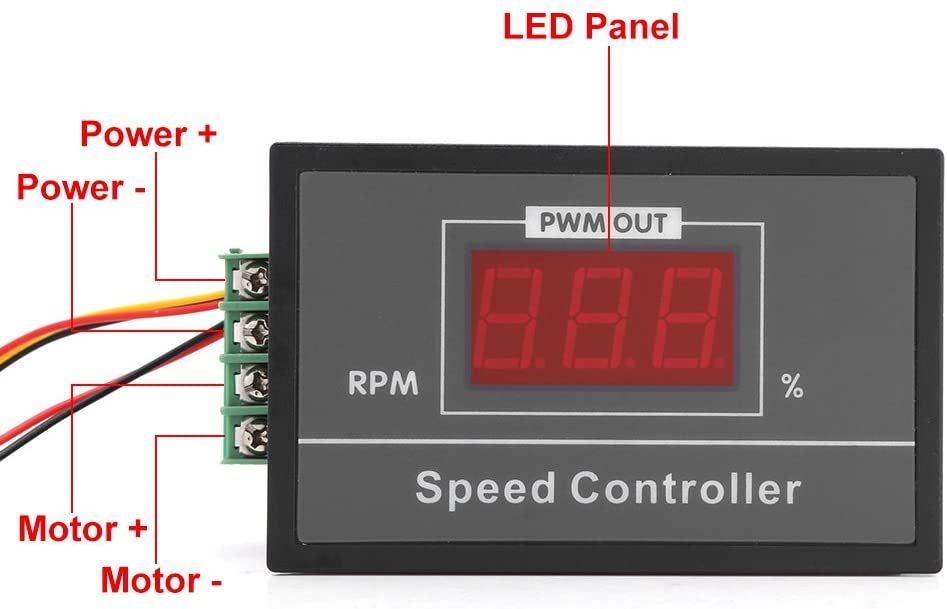

Type of connection: Barrier terminal
Support motor: brush motor
Significant speed: 0-100%

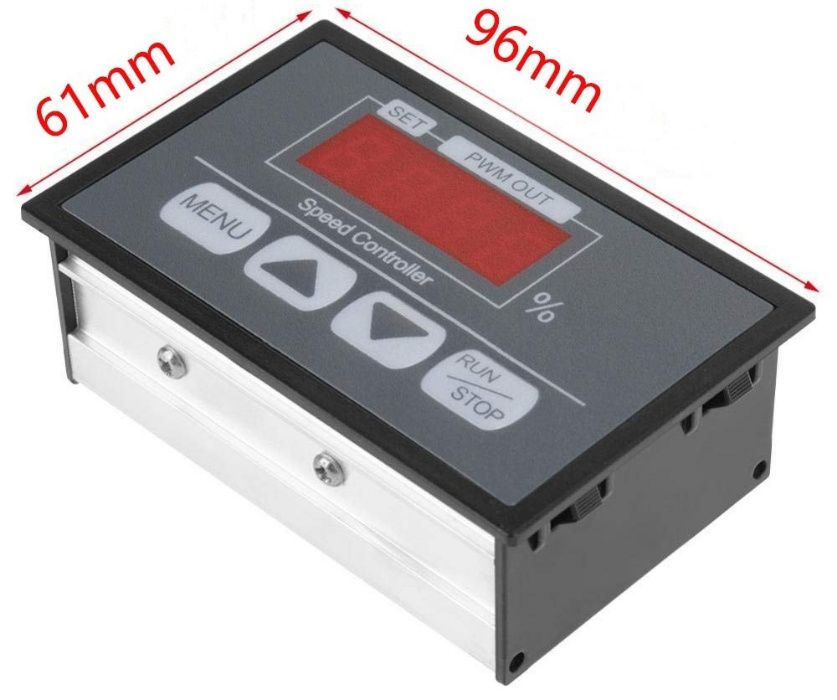

Panel Dimensions:96mm*61mm*34mm(L*w*h)

Detail:
1.PWM DC Motor Speed Controller 0-100 Digital Display Stepless Speed Regulation Drop Ship
2.Slow start time setting: 000 - 100 Slow start to 100% speed time is adjustable between 0-10 seconds The default is 1 second.
3.Slow stop time setting: 000 - 100 The slow stop time is adjustable between 0-10 seconds. The default is 1 second.
4. Lower speed limit setting: 000 - 080 The minimum speed is adjustable between 0-80% and less than the maximum speed setting. The default is 0.
5. Maximum speed setting: 000 - 100 The maximum speed is adjustable between 0-100% and greater than the minimum speed setting. The default is 100%.
6. Acceleration and deceleration value setting: 001 002 005 010 015 020 020 025 Each time you press and decrease the speed, the speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%.

Note:
1.The input voltage must differentiate "+" ,"-", can't input 220V voltage
2.The input voltage should be equal to the rated voltage of the motor within 6-60V

Produs nou!
Trimit si in tara!
Lasati un mesaj cu nr de tel daca va intereseaza!
