Postat 28 aprilie 2024
PWM 30A DC7-70V 300-500W variator turatie regulator turatie motor Nou!
170 lei
Persoana fizica
Stare: Nou
Livrare cu verificare
Descriere
PWM 30A DC7-70V 500W variator turatie regulator turatie motor.
Produs nou ambalat!
Daca va intereseaza lasati un nr de tel
Features
Wide voltage from DC 7V to 70V , large current 30 Maximum

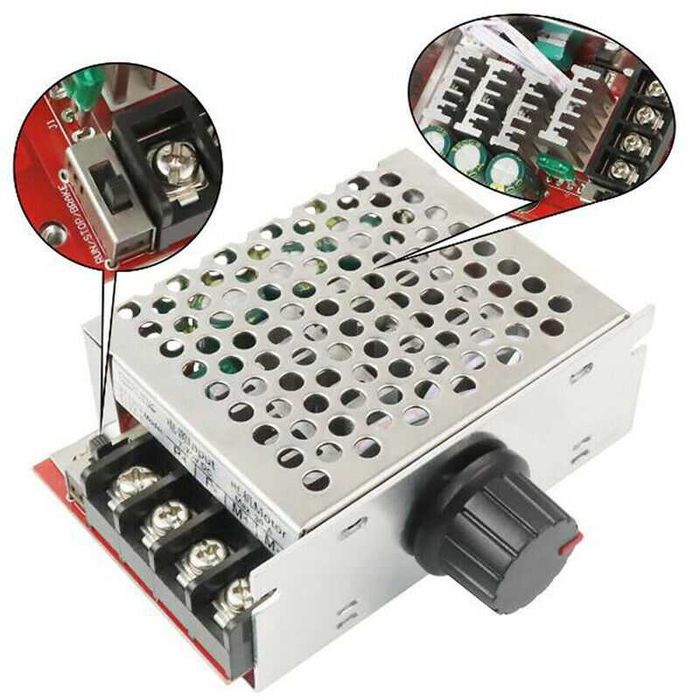

A switch with Run , Stop , Brake functions on the board
Adjust speed by PWM , motor has no noise and shock

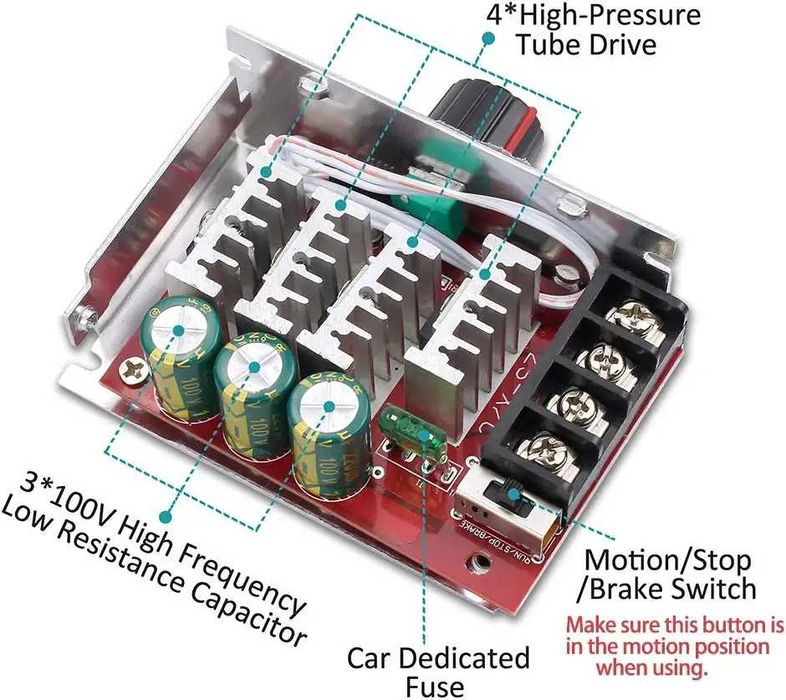

Using high pressure MOS , There are three high voltage low resistance capacitors with 100V
A high quality car fuse onboard
This controller can be used for brush motor and fan such as: power wheels , trolling motor , spray motor ,LED strip...etc...
Note: This controller is just for DC Brush motor , it can't be used for DC brushless motor and AC motor
Parameter
Input voltage: DC 7-70V (70v is the maximum voltage, please live a margin)
Drive current: Maximum 30A (Please use within 30A)
Controlling power: recommended within
12V 300W /
24V 400W /
48V 450W /
70V 500W /
Duty cycle range: 1%-100%
PWM frequency: 12KHz

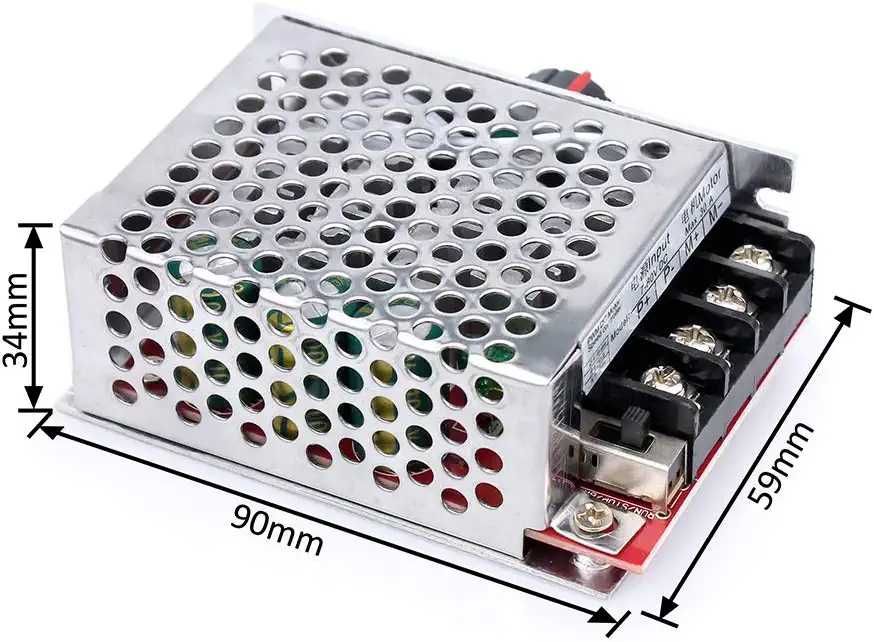

Size: 85 * 59 * 34 mm
Produs nou ambalat!
Daca va intereseaza lasati un nr de tel
Features
Wide voltage from DC 7V to 70V , large current 30 Maximum
A switch with Run , Stop , Brake functions on the board
Adjust speed by PWM , motor has no noise and shock
Using high pressure MOS , There are three high voltage low resistance capacitors with 100V
A high quality car fuse onboard
This controller can be used for brush motor and fan such as: power wheels , trolling motor , spray motor ,LED strip...etc...
Note: This controller is just for DC Brush motor , it can't be used for DC brushless motor and AC motor
Parameter
Input voltage: DC 7-70V (70v is the maximum voltage, please live a margin)
Drive current: Maximum 30A (Please use within 30A)
Controlling power: recommended within
12V 300W /
24V 400W /
48V 450W /
70V 500W /
Duty cycle range: 1%-100%
PWM frequency: 12KHz
Size: 85 * 59 * 34 mm
ID: 192701712
