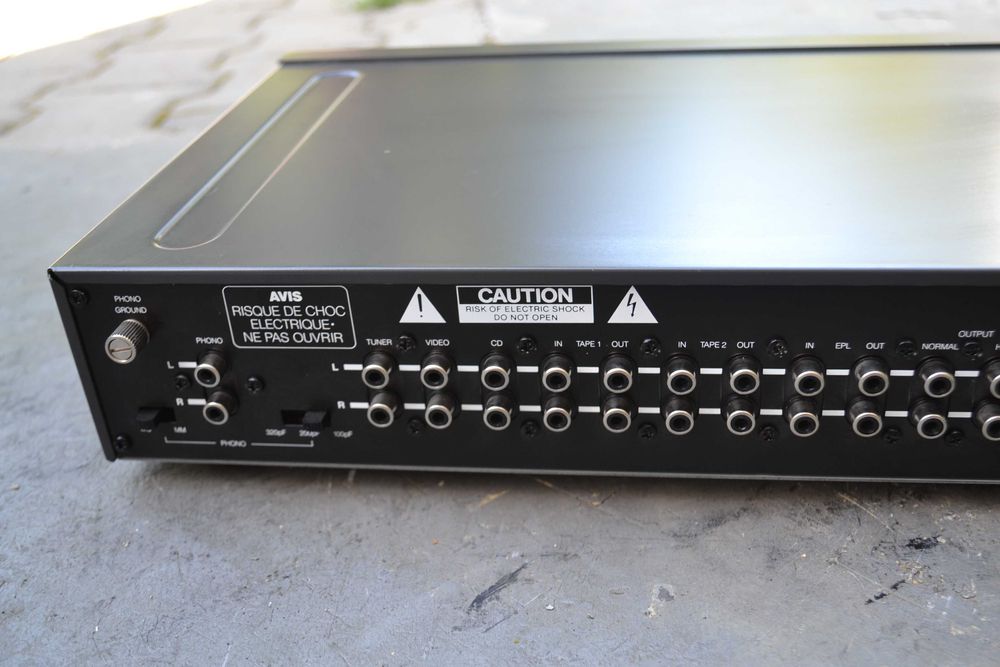

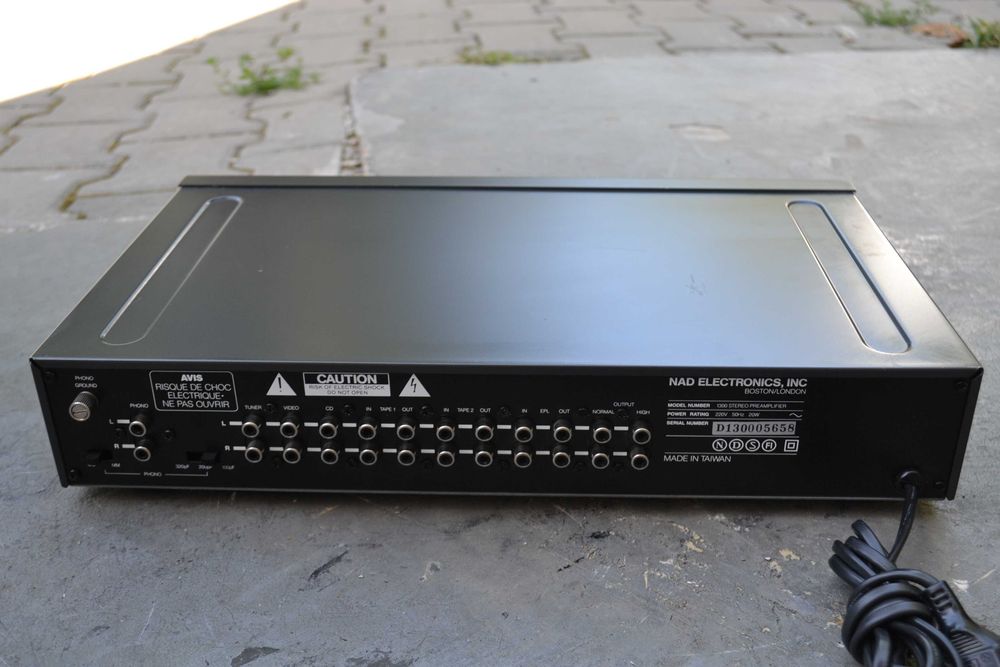

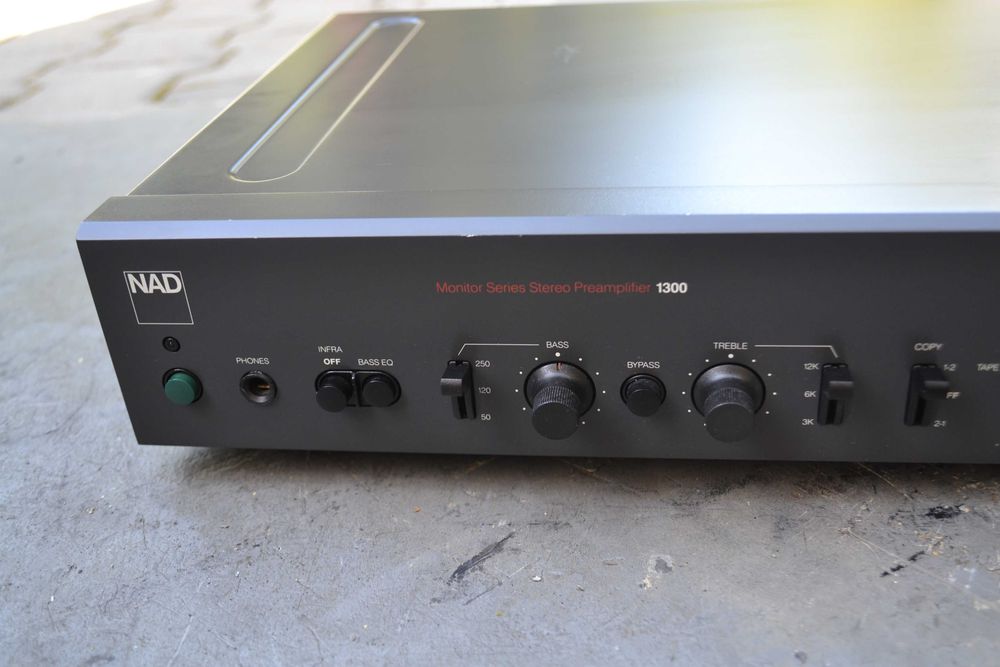

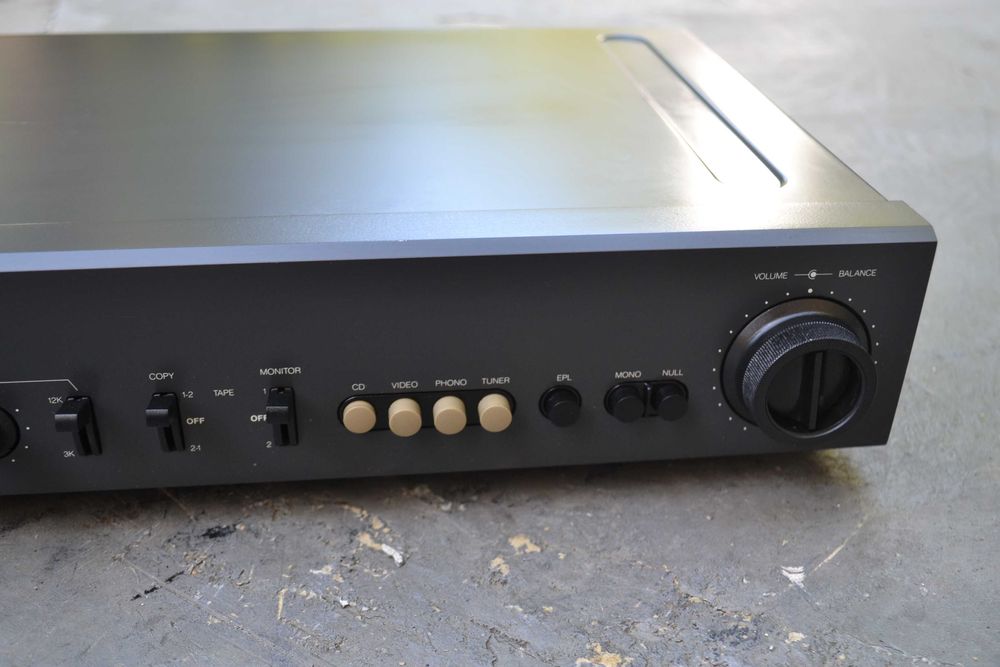

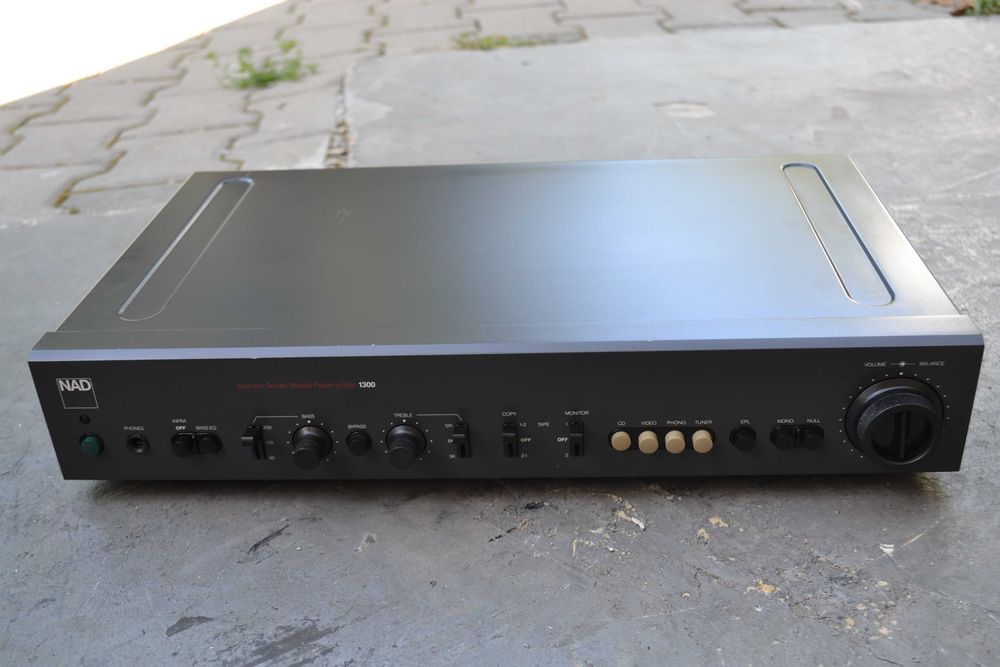

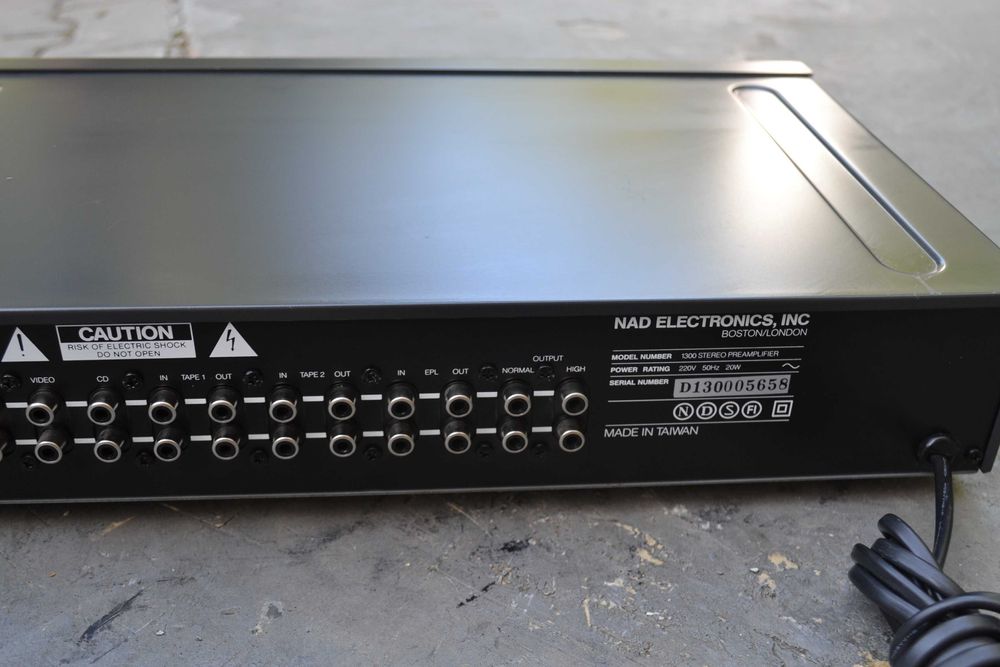

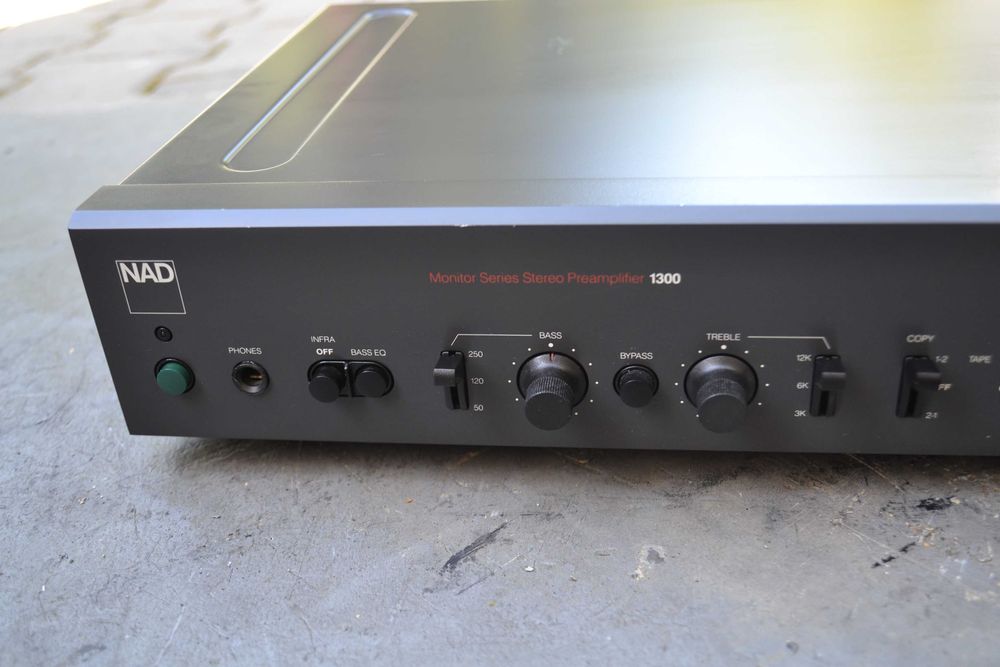

PreAmplificator Nad 1300 Monitor Series : 7 intrari, 2 iesiri, reglaje bass/treble pe frecventa, bass EQ, balance, poze reale,made in Japan, infra off.

PRE-AMP SECTION Phono input Input impedance (R and C) MM 47kΩ / 200pF MC 100Ω / 1000pF Input sensitivity, 1kHz MM 1.3mV ref. 0.5V MC 60µV ref. 0.5V Input overload at 20Hz / 1kHz / 20kHz MM 20 / 200 / 2000mV MC 1.0 / 10 / 100 mV Signal/Noise ratio (A-weighted with cartridge connected) MM 80dB ref. 5mV MC 78dB ref. 0.5mV THD (20Hz - 20kHz) 0.02% RIAA response accuracy ±0.3dB (20Hz - 20kHz) Line level inputs Input impedance (R and C) 100kΩ / 220pF Input sensitivity ref. 0.5V 80mV Maximum input signal 12V Signal/Noise ratio (A-weighted ref 0.5V) >100dB Frequency response ±0.3dB Line level outputs Output impedance Normal 50Ω Tape or EPL 1kΩ High Level 100Ω Phones 70Ω Maximum output level Tape, Normal & EPL 12V High & headphones 15V Tone controls Treble ±12dB at 3, 6, or 12kHz Bass ±12dB at 50, 120 or 250Hz Bass EQ +3dB at 55Hz +6dB at 36Hz Infasonic filter (switchable) -3dB at 14Hz, 18dB/octave Remote No NAD Link No PHYSICAL SPECIFICATIONS Dimensions (W x H x D) 435 x 84 x 273mm Net weight 4.3kg Shipping weight 5kg Power consumption (120 ~ 240V, 50/60Hz) 20W
