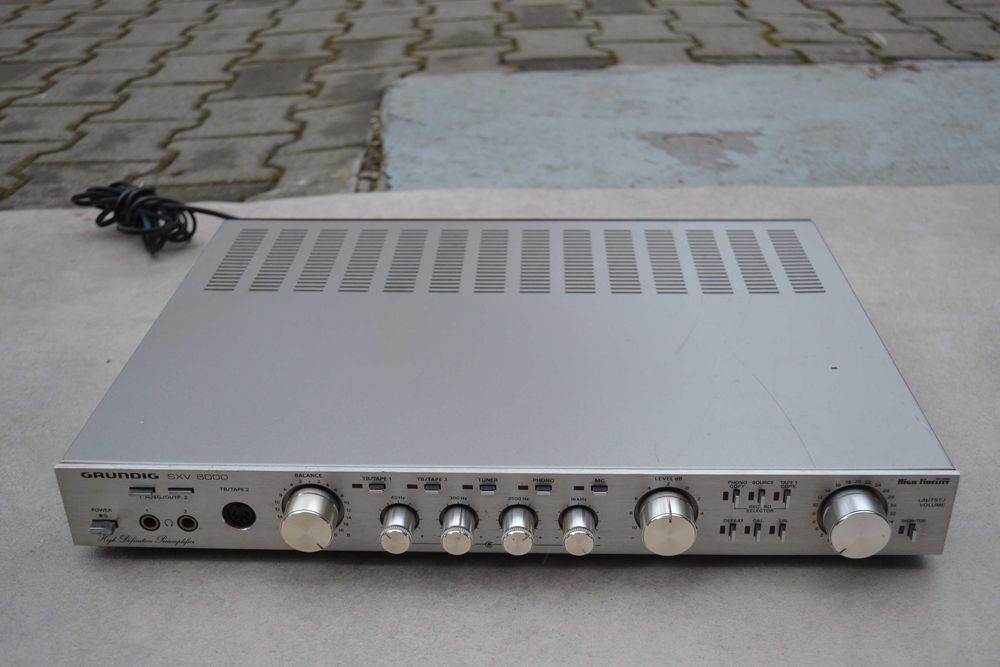

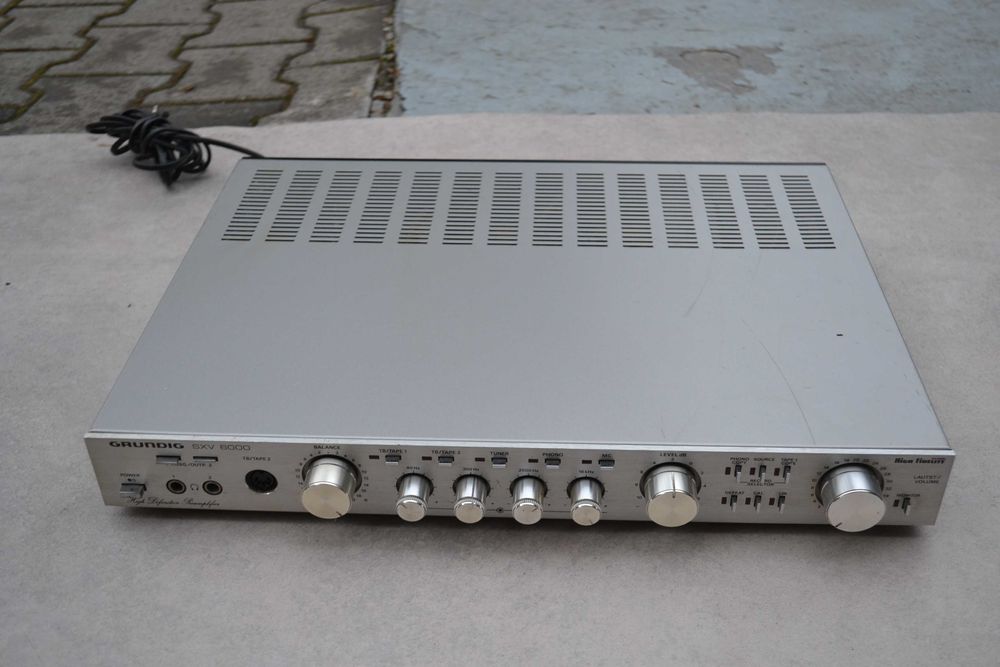

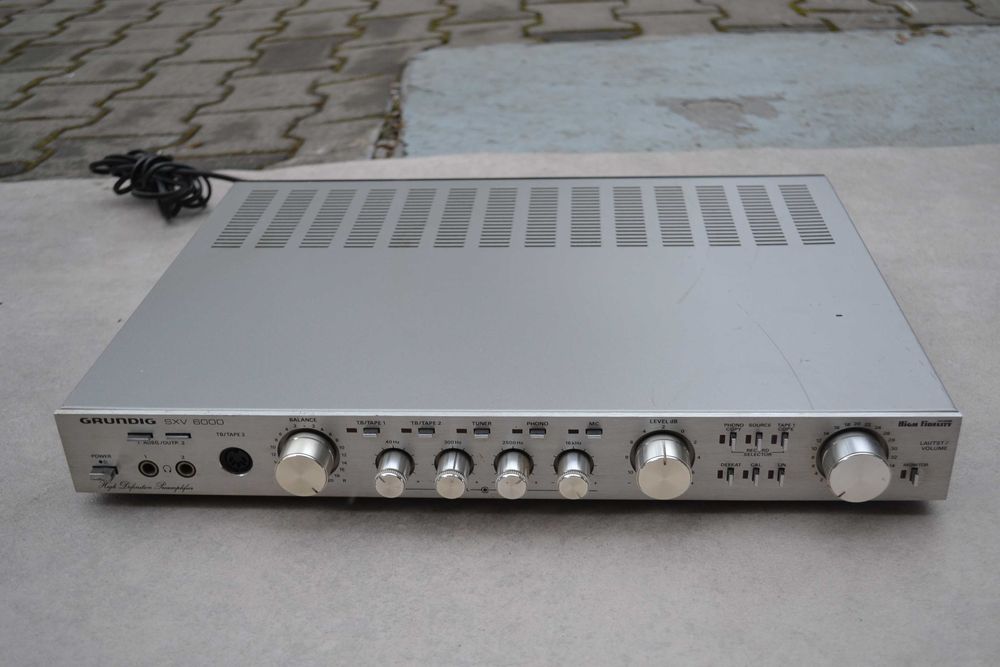

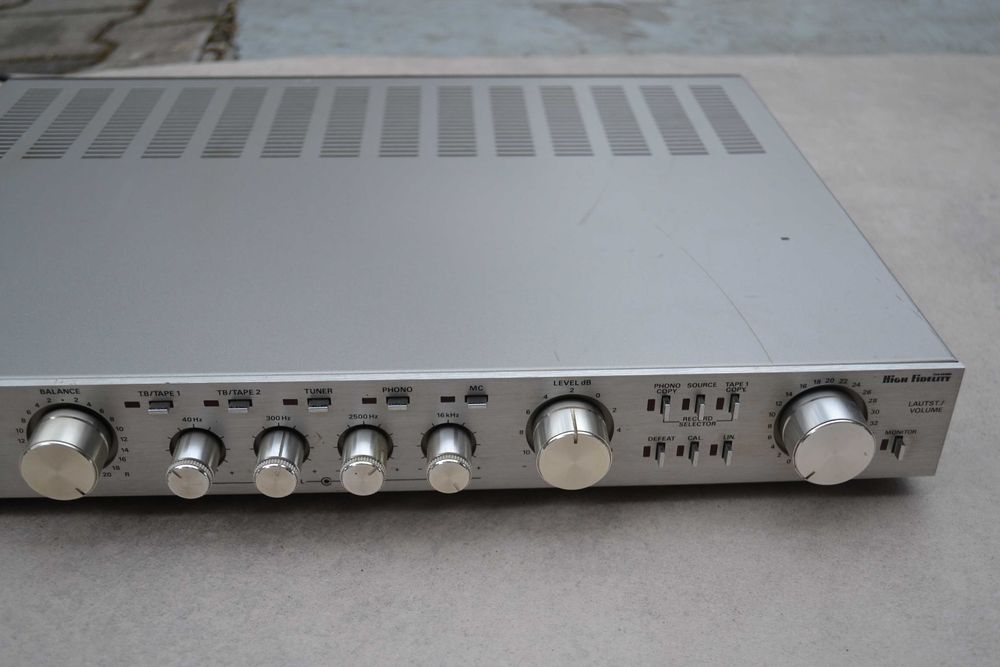

Preamplificator Grundig SXV 6000: 6 intrari, 2 iesiri, argintiu, made in Germany, balance, volume, reglaje corectii pe frecventa, phono selector, iesire casti, high fidelity, poze reale.

General

Manufacturer: Grundig
Model: SXV 6000
Type: Preamplifier
Years of manufacture: November 1980 - 1983
Made in: Germany
Color: Silver or Brown metallic
Remote control: No
Power consumption: 30 W
Dimensions: 450 x 60 x 350 mm (WxHxD)
Weight: 6.0 kg
Original price approx.: 750 DM

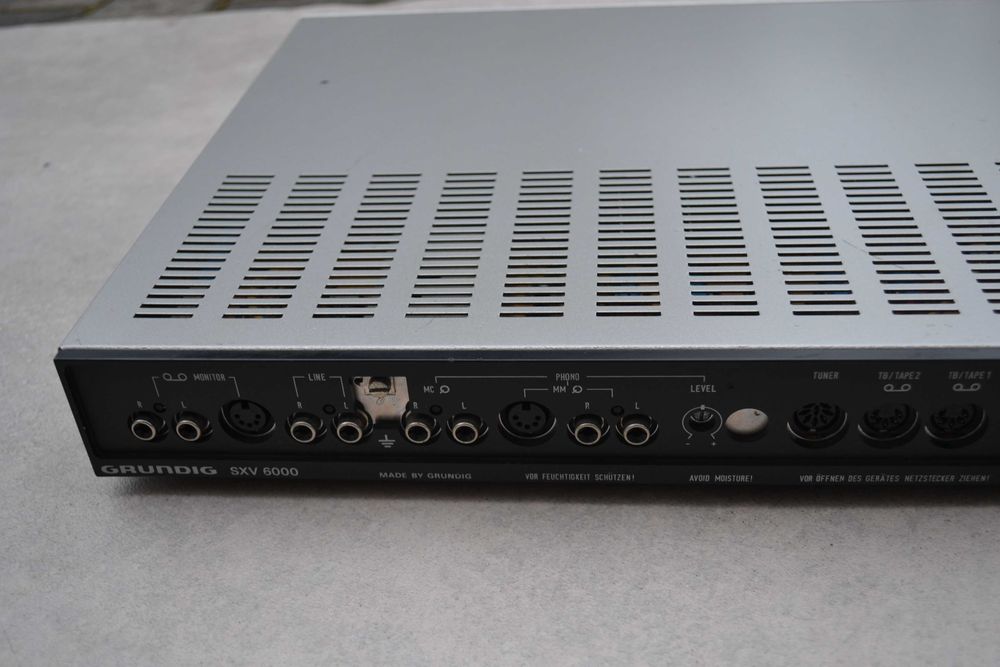

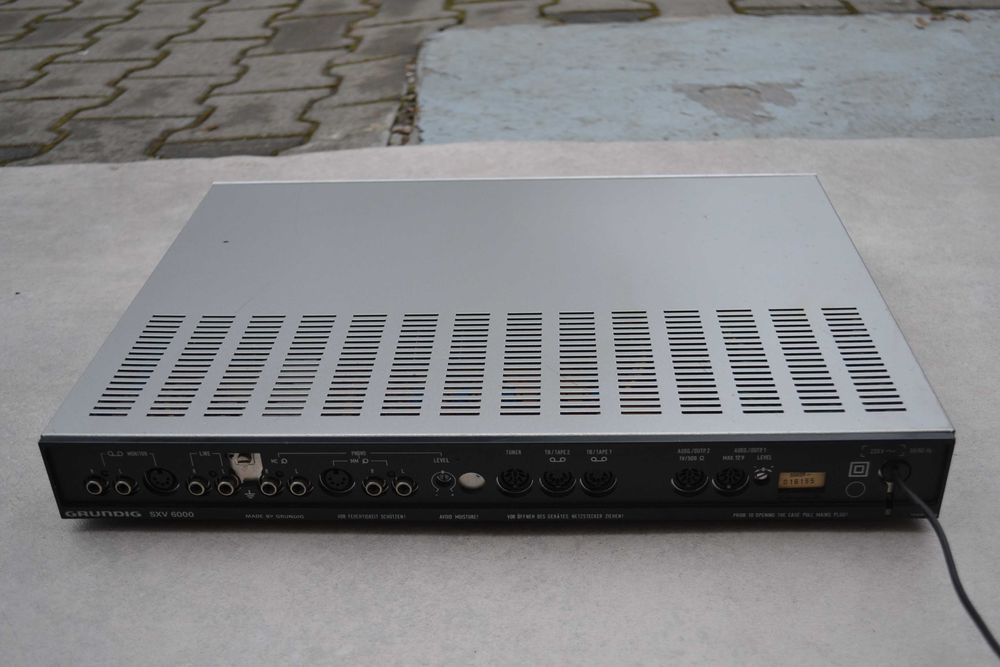

Connections

Number of inputs:
Phono MM Cinch/DIN 2 mV/50 kOhm.
Phono MC Cinch 0,12 mV/120 Ohm
3x Tape, Tuner DIN 200 mV/220 KOhm
Monitor DIN 200 mV/300 KOhm
Number of outputs:
3x Tape DIN 20 mV/47 KOhm
Line Cinch 400 mV/8 KOhm
2x Pre-Out DIN 1 V/500 Ohm

2x headphones 200 mW/120 Ohm

Technical Data

Frequency response: 10 - 20,000 Hz -1 dB
Distortion factor: 0,01%

Signalrauschabstand: >100 dB (high level), >80 dB (Phono MM), >75 dB (Phono MC)
Stereo channel separation: > 60 dB
Tone control
Bass: ±15 dB at 40 Hz Bass: ±11 dB at 300 Hz

Mids: ±11 dB at 2,500 Hz
Treble: ±14 dB at 16,000 Hz
Loudness: Adjustable
High Filter: No
Low Filter (Subsonic): No
Mute: No
Direct/Line-Straight: Tone control can be switched off

Special Features

Tone control channel-separated
level tone generator
separately switchable pre-outs
3rd tape connector on the front, connected in parallel to Tape 2
record selector for phono and tape
Level control for phono inputs
Level control for Pre-Out 1
Remote switchable via various Grundig tuners
Remote switching control for Grundig power amplifiers
