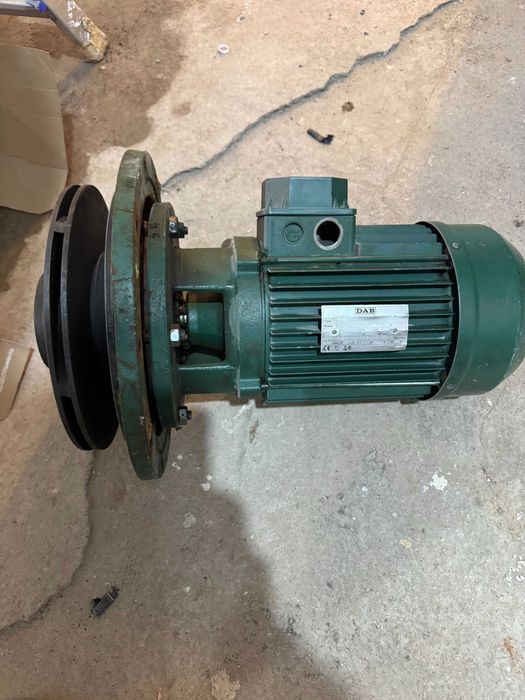

Pompa de circulatie-DAB CM-G 65-2380/A/BAQE/4 corp de fonta - trifazic

CM-G 65 4 POLES- IN-LINE ELECTRIC PUMPS FOR HEATING, AIR CONDITIONING, REFRIGERATION, SOLAR, AND SANITARY
SYSTEMS - SINGLE, FLANGED
Pumped liquid temperature range: from -10 °C to +140 °C - Maximum ambient temperature: +40 °C

APPLICATIONS
In-line port circulation pumps, suitable for heating, air conditioning, refrigeration and sanitary water systems.
Available in the single and twin versions.

CONSTRUCTION FEATURES
PN 10 - PN 16 flanged suction and delivery ports with threaded holes for control manometers. Cast iron pump body and motor support, cast iron or technopolymer impeller depending on mode. Stainless steel motor shaft. External ventilation three-phase asynchronous motor. For its protection we recommend the use of remote overload cut-outs, in compliance with current local regulations.

More Information
SKU 1D4411G8X
Manufacturer DAB
Manufacturers Warranty 2 Years
Weight 111.0 Kg
Dimensions 729mm (h) x 475mm (w) x 344mm (d)
Connection Type 65mm Flanged
Motor Size (kW/W) 4kW
Full Load Current (FLC) 7.9A
Voltage 415V 3Ph 50Hz
RPM 1449rpm
Max Flow 53m3/hr
Max Head 24m
Max Pressure 2.4 Bar
Max Temperature 140°C
Material Cast Iron

Stare excelenta.
Sub 1/2 pret fata de nou. Gasiti specificatii si pret la anchorpumps com
