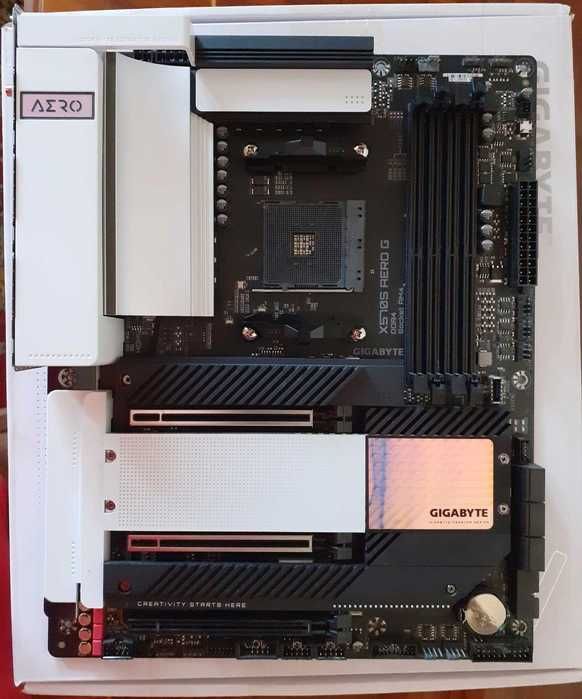

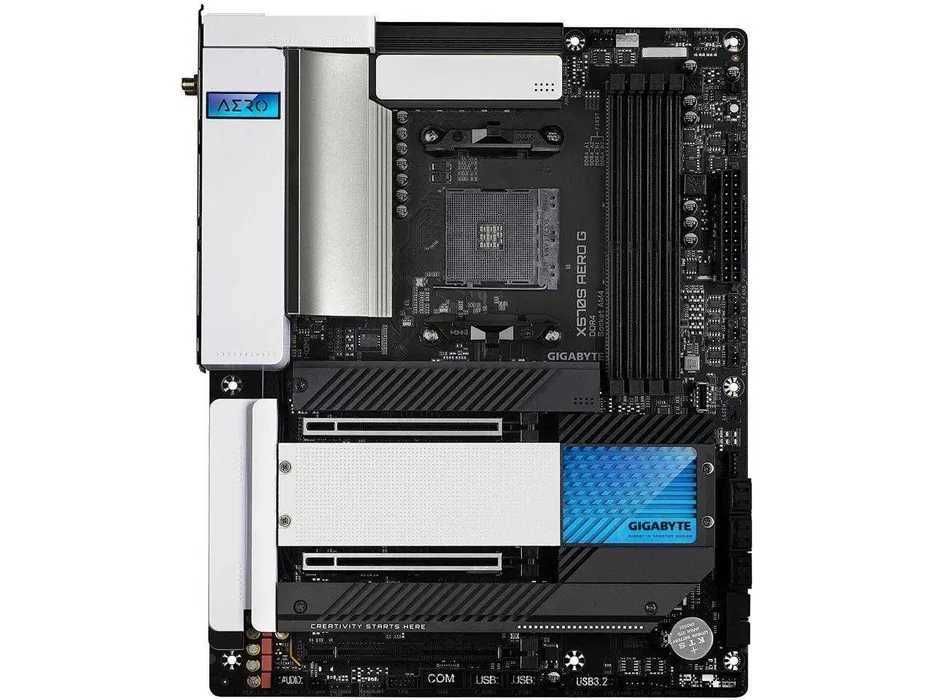

Gigabyte X570S AERO G

Se pot instala si windows 10, Windows 11, Windows 7 (cu o placa adaptor pcie-ps 2) si Linux cu X570S AERO G.
Versiunea de Bios este F5g. Am folosit un Ryzen 7 5700X cu ea.

Video cu placa video in calculator ruland Prime95 ptr. 30 de minute.:
drive.google.com/file/d/1J3oADltpJxynjknQzvdq-Udmxm0PG5Kw/view?usp=sharing

E rev. 1.0

6 x SATA 6Gb/s conectori
4 conectori M.2 connector, cu suport ptr. Socket 3

Tip Chipset: AMD X570
Audio: Realtek ALC1220-VB
LAN: Intel 2.5GbE LAN
Wi-Fi: Intel Wi-Fi 6 AX200

Ptr Ryzen ce suporta PCIe 4.0 vitezele PCIe:
1 x PCI Express x16 slot viteza (PCIEX16)
1 x PCI Express x16 slot viteza (PCIEX8)
1 x PCI Express x16 slot viteza (PCIEX4)

1 x 24-pini ATX conector sursa de alimentare
1 x 8-pini ATX 12V conector sursa de alimentare
1 x 4-pini ATX 12V conector sursa de alimentare

Power Design: 14-phase VRM (12+2 configuration)
Vcore: 14-phase
SOC: 2-phase

Doublers: Parallel / Teamed
CPU PWM: Renesas RAA 229004
Power Stages: Vcore: Vishay SIC649A (60 A)
SOC: Vishay SIC649A (60 A)

maximum output:
840 A (720 A - dedicated to Vcore)
