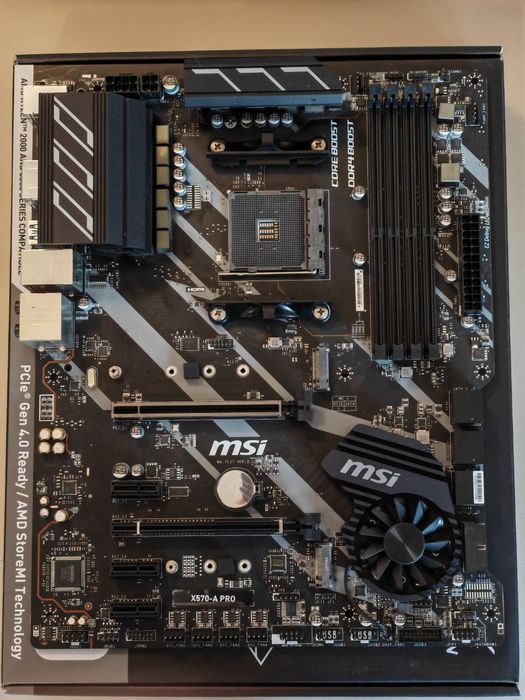

Placa de baza MSI X570-A PRO motherboard Socket AM4 ATX

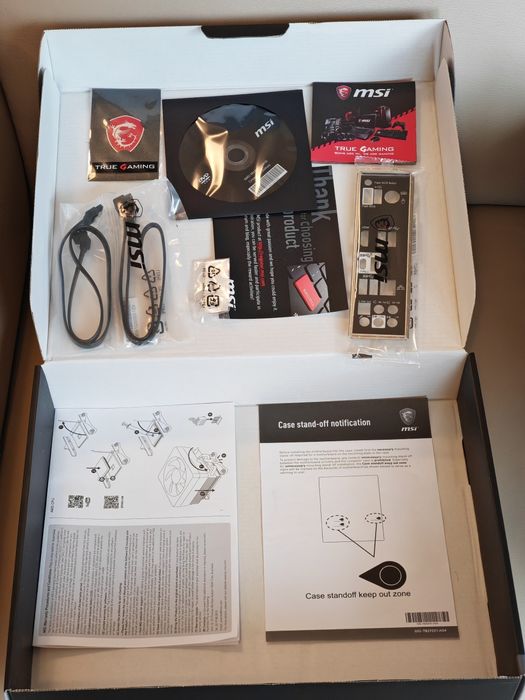

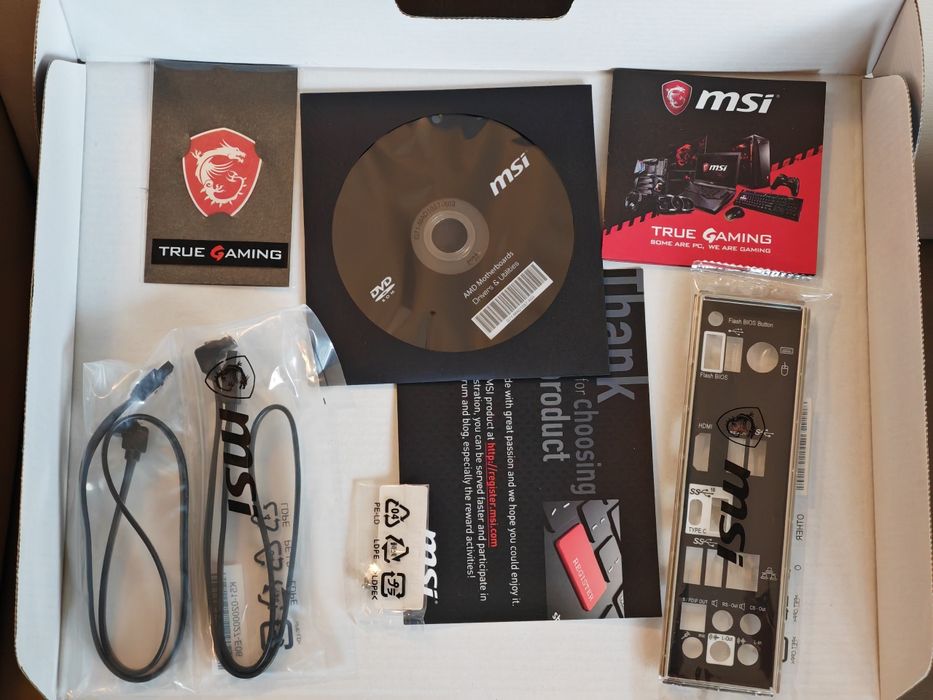

Pachet complet.
Type:Mainboards Motherboard format:ATX Motherboard chipset:AMD® X570 Socket processor:AM4 Processor series:AMD Ryzen 9 Support for multiple graphics cards:AMD CrossFire RAM technology:DDR4 DIMM RAM clocking:1866 MHz, 2133 MHz, 2400 MHz, 2667 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3066 MHz, 3200 MHz, 3466 MHz, 3600 MHz, 3733 MHz, 3866 MHz, 4000 MHz, 4133 MHz, 4266 MHz, 4400 MHz RAM - number of slots:4 Maximum amount of RAM:128 GB Support dual channel memory:Yes Sound card model:Realtek® ALC1220 Interfaces:PS/2, USB 2.0, USB 3.0, USB 3.1 PCI-Express x1 - number of slots:3 x PCI-Express x4 - number of slots:1 PCI-Express x16 - number of slots:1 Number of USB 2.0 ports:2 x Number of USB 3.0 ports:2 x Number of USB ports 3.1:3 x Number of USB ports Type C:1 x Number of SATA 3 connectors:6 Sound outputs/inputs:Digital optical connector (S/PDIF), Earphones - stereo 3,5 mm, Line In, Line Out, Microphone Image input/output:HDMI Number of HDMI ports:1 Other connectors:2 x M.2 RAID SATA controller:Yes Communication:LAN (RJ-45) Communication standard:LAN 10/100/1000 Mbps Number of RJ-45 ports:1 x RJ-45 Model of network card:Realtek® RTL8111H Power sockets:1 x 24 pin ATX, 1 x 4 pin ATX, 1 x 8-pin ATX Set contents:2 x SATA cable, I/O Shield, Motherboard, User manual

Specificatii tehnice

General
CPU SocketAM4
ProcesorAMD
Procesoare suportateAMD AM4 Socket Ryzen 2000/3000/5000 Series
ChipsetX570
Numar SATA-III 6
M.2 (NGFF) 2
FormatATX
Audio, Video & Networking
Video integratNecesita procesor cu tehnologia AMD Radeon Graphics
Slot videoPCI Express x16 4.0
Placa audio integrataDa
Placa retea integrata10/100/1000 Mbps
Chipset audioRealtek ALC1200
Chipset reteaRealtek RTL8111H
Memorie
Numar sloturi 4
Memorie maxima 128 GB
Tip memorie DDR4
TehnologieDual channel
Frecvente suportate4400(OC)/ 4266(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/3000/2933/2667/2400/2133 MHz
Sloturi si Conectori
PCI2 (x16 / x4) x PCI Express 4.0 x16

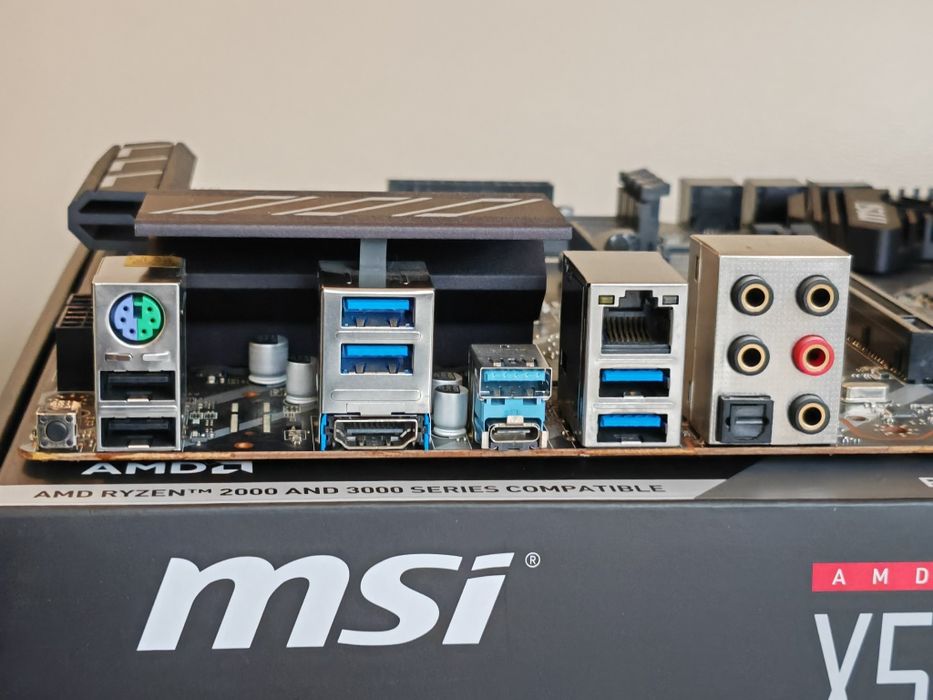

Conectori Back Panel
USB 2.02
USB 3.04
USB 3.1 tip A1
USB 3.1 tip C1
RJ-45 LAN1
Suport audio7.1
BluetoothNu
WirelessNu
HDMI1
DVINu
Display PortNu
VGANu
Alti conectori1 x Optical S/PDIF out, 1 x Flash BIOS Button
