PLACA ESTE NOUA IN AMBALAJUL ORIGINAL

ESTE CU MULT SUB PRETUL PIEȚEI

MAI MULTE DETALII LA TELEFON

IB917

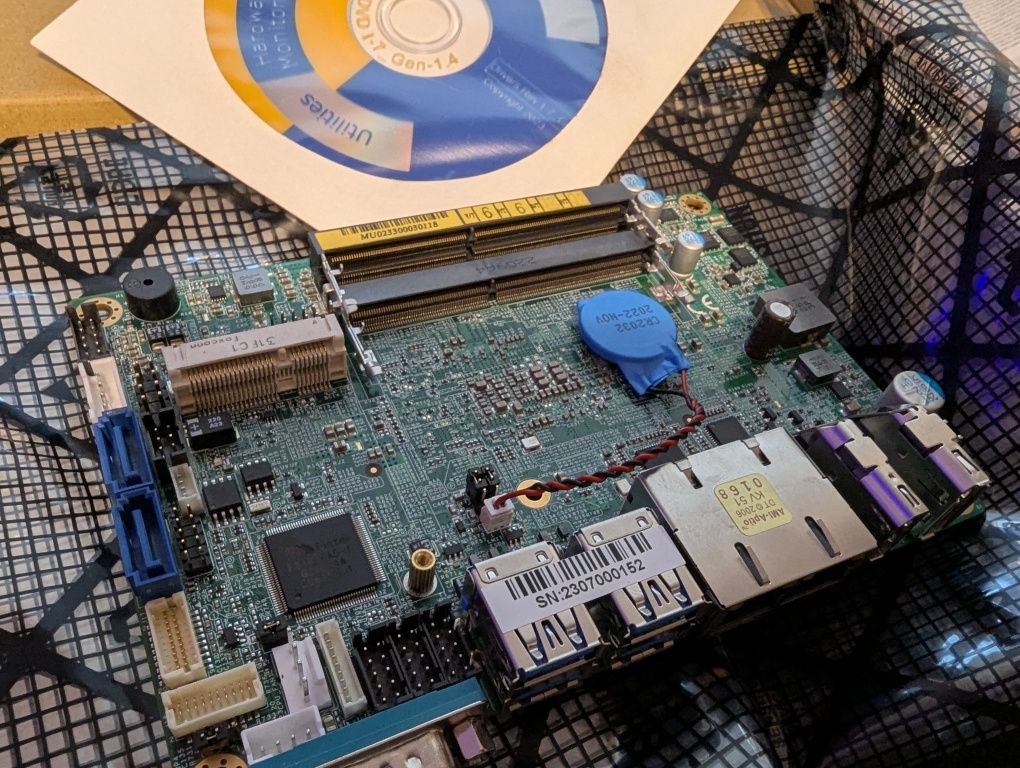

7th Gen Intel Core™ U-Series 3.5-inch Single Board Computer

Onboard 7th Gen Intel Core U-series processor
2x DDR4-2133 SO-DIMM, Max 32GB, Non-ECC
Supports DisplayPort, HDMI and 24-bit dual channel LVDS
2x Intel PCI-E GbE LAN
Watchdog timer, Digital I/O, mSATA, iSMART, TPM(2.0)
2x USB 2.0, 4x USB 3.0, 4x COM, 2x SATA III
1x Mini PCI-E slot
iSMART
Wide-range power input
Specification
CPU BGA1356 for 7th Gen Intel Core U-Series i7/i5/i3/ Celeron DC processors, up to 3.4GHz
PCH Integrated in 7th Gen Intel Core U-Series processor
Memory 2x DDR4-2133 SO-DIMM, Max 32GB (Non-ECC)
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface 1x mSATA
Mini Type Slots 1x Mini PCI-E (full-size)
Graphics Controller 7th Gen Intel Core U-Series processor integrated graphics
Video Output Supports DisplayPort, HDMI and 24-bit dual-channel LVDS
Ethernet IB917AF series: Intel I219LM LAN PHY
IB917F series: Intel I219V LAN PHY
Intel I211AT or I210AT Gigabit LAN (as 2nd LAN)
I/O Chipset Fintek F81846AD-I
Serial Port 1x RS-232/422/485 (jumper-less selection), 3x RS232
USB 2.0 2x USB 2.0 via pin header
USB 3.X 4x USB 3.0 on board
Serial ATA 2x SATA III
Audio 7th Gen Intel Core™ U-Series processor built-in HD audio controller + Realtek ALC888S codec
TPM TPM (2.0)
Others Digital I/O, +9V~ +24V DC-in, iSMART
Dimensions (L x W) 102mm x 147mm (4" x 5.8")
Power Consumption Intel i7-7600U, 2.8GHz w/ 8GB DDR4-2133+12V: 3.46A
Intel i3-7100U, 2.4GHz w/ 8GB DDR4-2133+12V: 2.68A
Operating Temperature 0°C~60°C ( 32°F~140°F)
Storage Temperature -20°C~80°C ( -4°F~176°F)
Relative Humidity 90% (non-condensing 60°C)
