Perfect functional.
Arata bine, fara urme vizibile de uzura, va rog sa verificati pozele.
Capacul in stare perfecta fara nicio spartura sau crapatura.
Nu a suferit nicio reparative, totul este original.
Pot sa ofer proba la fata locului sau video.
Pentru mai multe detalii sau informatii ma puteti contacta prin mesaje sau la numarul de telefon 07******77.

General

Manufacturer: Dual
Model: CS 701
Type: Record player
Years of manufacture: 1973 - 1976
Made in: Germany
Color: walnut, sanding varnish white
Power consumption: 2,5 Watt
Dimensions: 420 x 147 x 365 mm (WxHxD)
Weight: 10.9 kg
Original price approx.: 900 DM

Connections

Outputs: 1 (5-pin DIN plug)

Technical data

Drive: Direct (EDS-1000)
Speed: 33 1/3 and 45 rpm
Synchronous speed fluctuations: ± 0.03 %
Rumple-noise-interval: > 50 dB
Rumple-to-noise ratio: > 70 dB
Turntable:
Diameter: 305 mm
Weight: 2,9 kg
Moment of inertia: 460 kp / cm2
Operating mode: Fully automatic
Pitch: ± 8
Tonearm : torsionally stiff, extra-long tubular aluminium tonearm in super-flat cardanic four-point pivot mounting
Tonearm balance weight with double effective vibration damping (2 x anti-resonator)
Effective tonearm length: 222 mm
Offset angle: 25° 20'
Tangential tracking error angle : 0.16°/cm
Tonearm bearing friction (relative to the scanning tip)
Vertical: 0.007 p
Horizontal: 0.015 p

Tracking force continuously adjustable from 0 to 3 p with 1/10 p calibration in the range of 0-1.5 p operationally reliable from 0.25 p tracking force
Pick-up head (system carrier) removable, suitable for all pick-up systems with 1/2" mounting and a weight of 2 to 10g (incl. mounting material)
Adjustable overhang : 5 mm pick-up system

Special Features

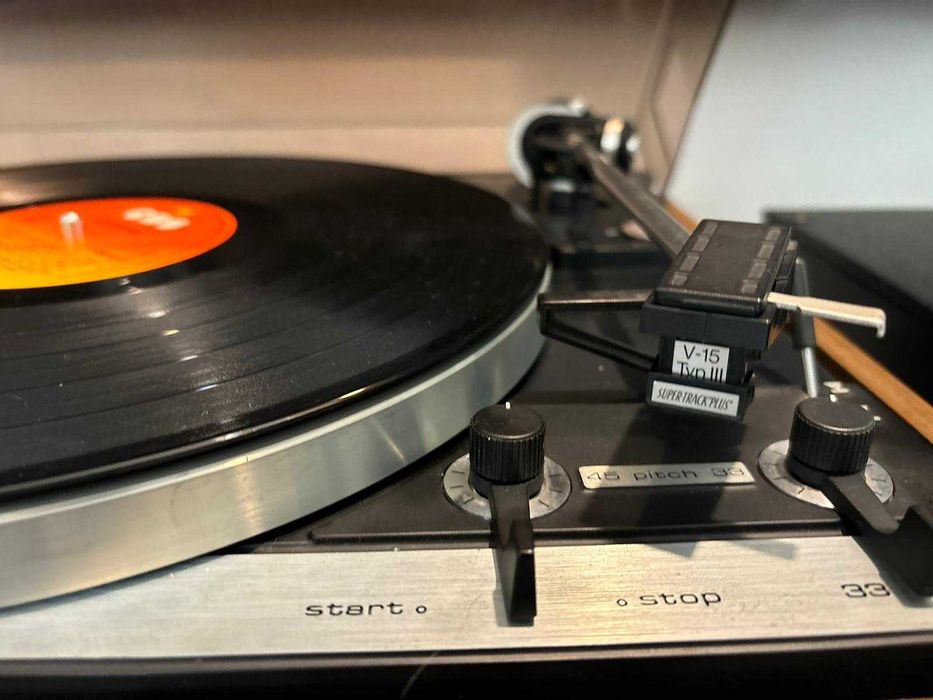

Pickup system: Shure V15 Type III (compared to CS 70 Ortofon M20E)
Hood can be moved to any position (CS 70 only "close", "open" or completely "take off"). Otherwise there are no differences
