Aparat de masura, de panou, AC - Voltmetru/Ampermetru/Wattmetru

Aparatul masoara si afiseaza 6 parametri: Putere (W), energie (KWh), voltaj (V), amperaj (A), factor de putere (PF) si frecventa (Hz)

VARIANT I. AC 110-250V, 0-100A
Features:

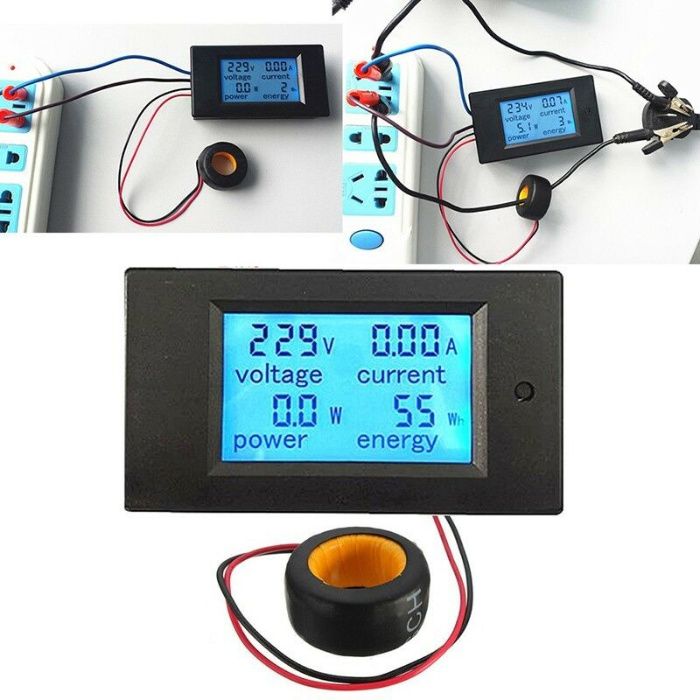

The large-screen can display power/ current/ voltage/ frequency/power factor/power consumption at the same time
Can measure voltage range of AC 110V-250V and maximal current of 20/100A

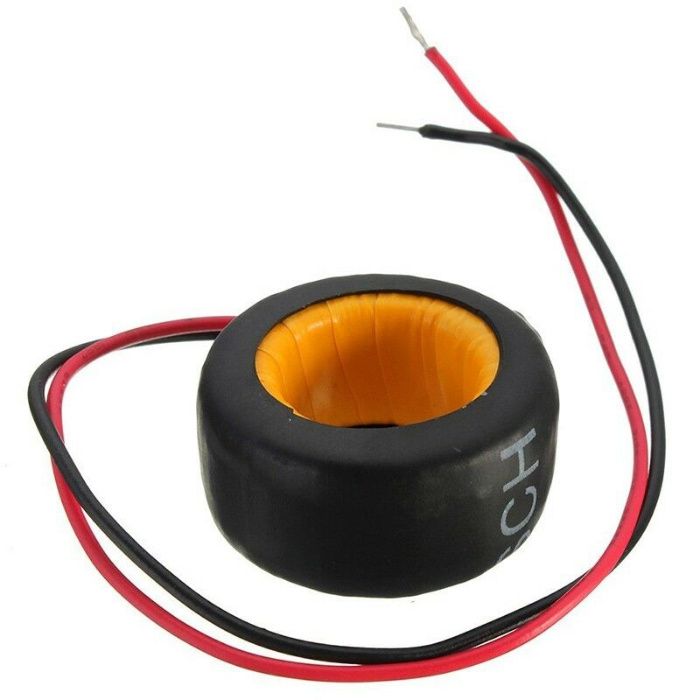

Equipped with AC current transformer, donnot need to buy it separately
With overload alarm function, reset energy function, power alarm threshold preset function, etc.
The blue backlight can be turned on/off manually
Store energy data when power off (can be reset to 0)

Note:
1. This module is suitable for indoor, please do not use outdoor.
2. Applied load should not exceed the rated voltage, current.

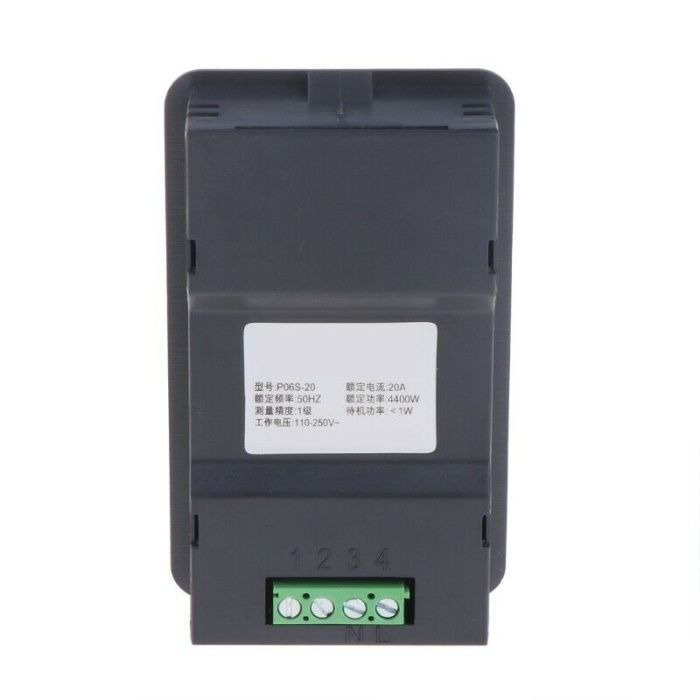

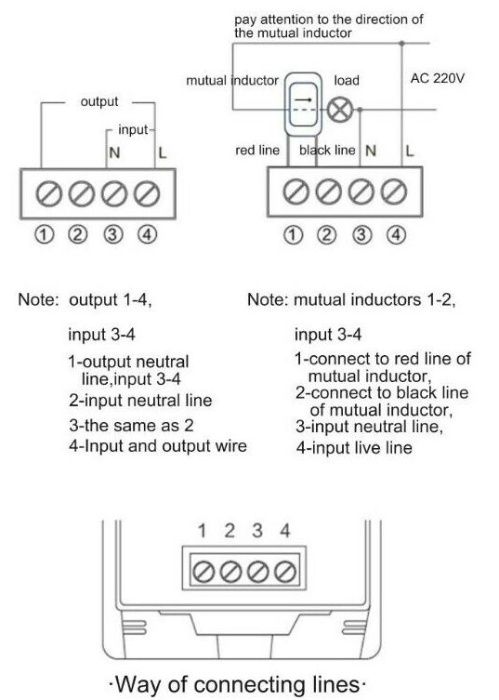

3. Wiring order cannot be wrong.
Specifications:

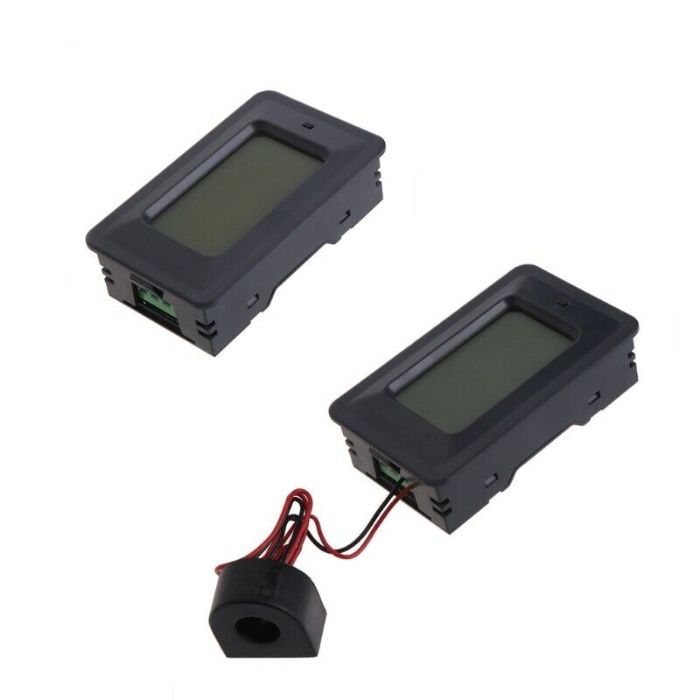

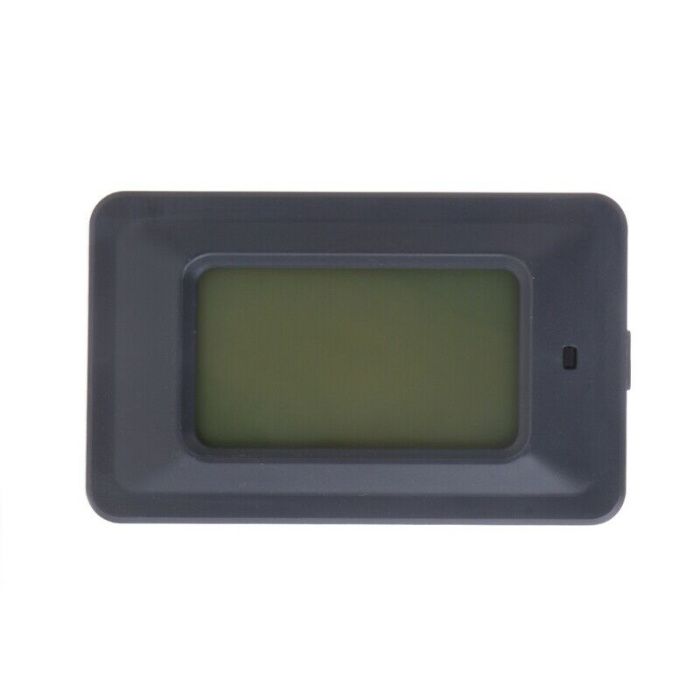

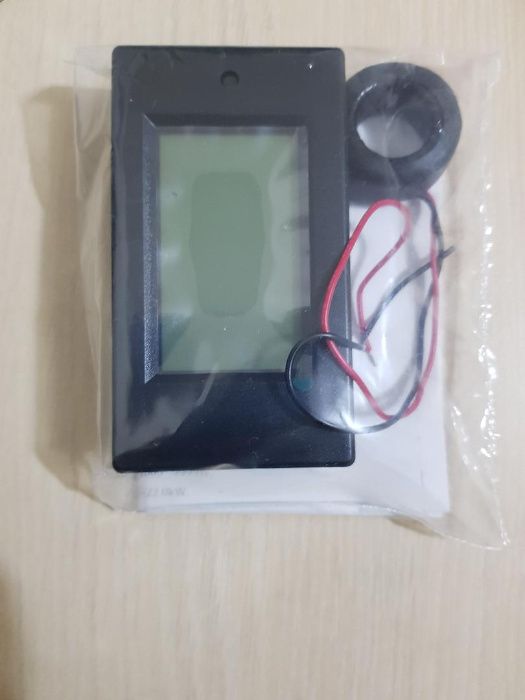

Type: LCD Panel AC Power Meter with AC current transformer
Maximum power: 22000W
Maximum current: 100A
Operating voltage: AC 110-250V
Voltage accuracy: ±1%
Power accuracy: ±2%
Execution standard: JB/T9282-1999
Function: measure power/ current/ voltage/ frequency/power factor/power consumption
Application range: all home electric appliances with voltage of 110V-250V
Size: 90x54.5x28mm

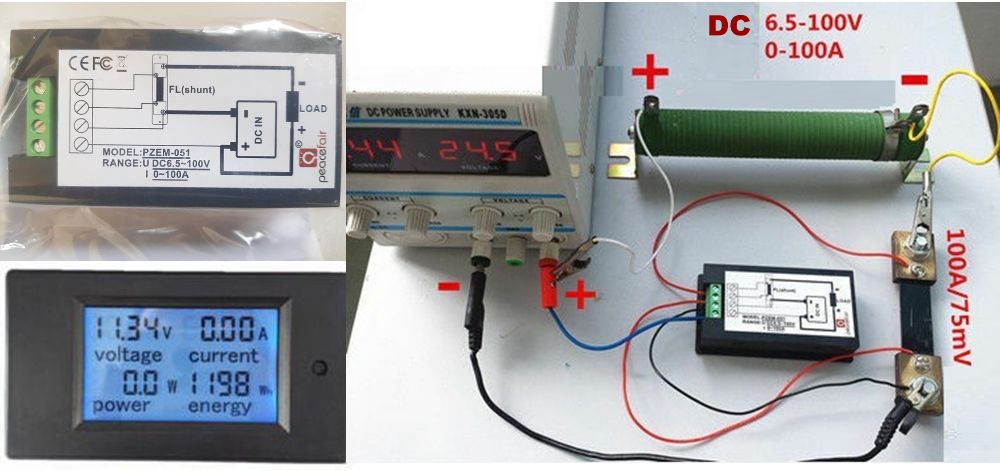

VARIANT II DC 6.5-100V, 0-100A
Display format:
1. Power: test range: 0-10KW
Within 1kw, the display format is 0.0-999.9W;
1kw and about, the display format is 1000-9999W.
2. Energy: test range: 0-9999kwh
Within 10kwh, the display format is 0-9999Wh;
10kw and about, the display format is 10-9999kwh.
3. Voltage: test range: 6.5-100V
Display format: 6.50-99.9V
4. Current: test range: 0-100A
Display format: 0.00-99.99
Precautions:
1. This module is suitable for indoor, please do not use outdoor.
2. Applied load should not exceed the rated voltage, current.
3. Wiring order can't be wrong.

Specifications:
Type: PAEM-051
Working voltage: 6.5-100VDC
Test voltage:6.5-100VDC
Rated power: 100A/10000W
Meaurement accuracy: 1.0 grade
Size: 89.6*49.6*24.4mm(Length*Wide*High）
LCD screen: 51*30mm(Length*Wide)
Color: Black
Nu are SUNT trebuie luat separat

VARIANT III DC DC 20A 100V
Nu are SUNT dar la 20A nu trebuie

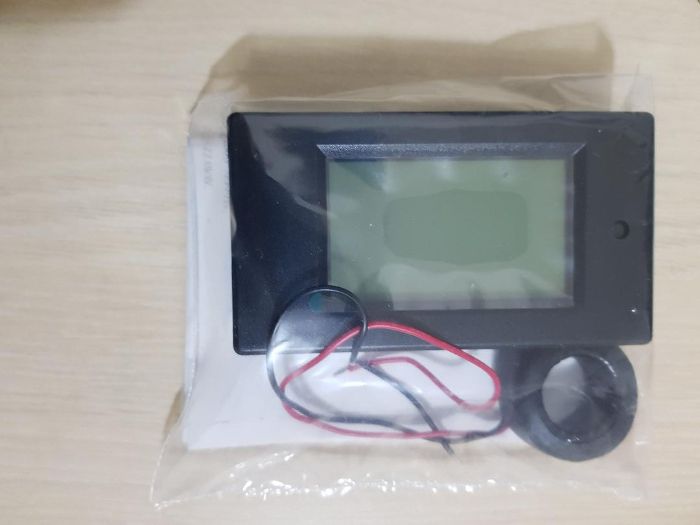

Nou ambalat! Lasati un nr de tel daca va intereseaza!
