Specificatii de pe pagina producatorului Schneider Elecric:

Main:

Main Input Voltage 230 V

Product or component type Bypass kit

Main Output Voltage 230 V

Number of rack unit 4U

Number of cables 1

Provided equipment Installation guide

Rack mounting brackets

User manual

Range of product Maintenance Bypass Panels

Physical:

Colour Black

Height 178 mm

Width 432 mm

Depth 673 mm

Net weight 20.91 kg

Mounting location Front

Mounting preference Lower

Mounting mode Rack-mounted

Input:

Network frequency 50/60 Hz

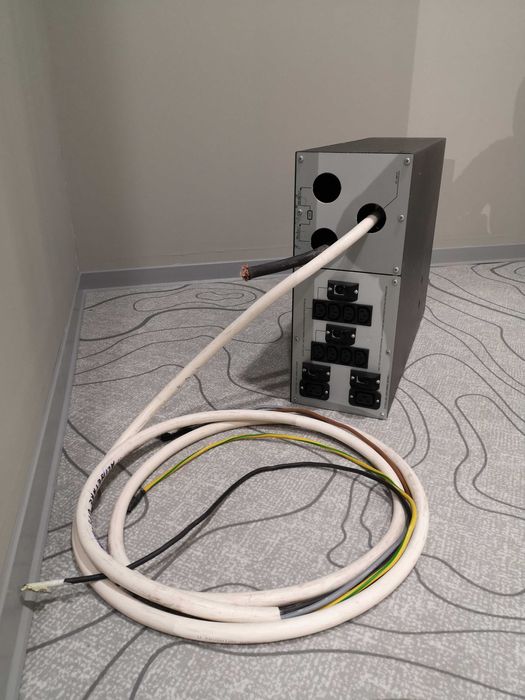

Number of input connectors 1 hard wire 3-wire (1P + N + E)
1 hard wire 4-wire (3P + N)

Max line current 100 A

Input current limits 100 A

Load capacity 20000 VA

Power factor 0…1

Output:

Max current draw 100 A

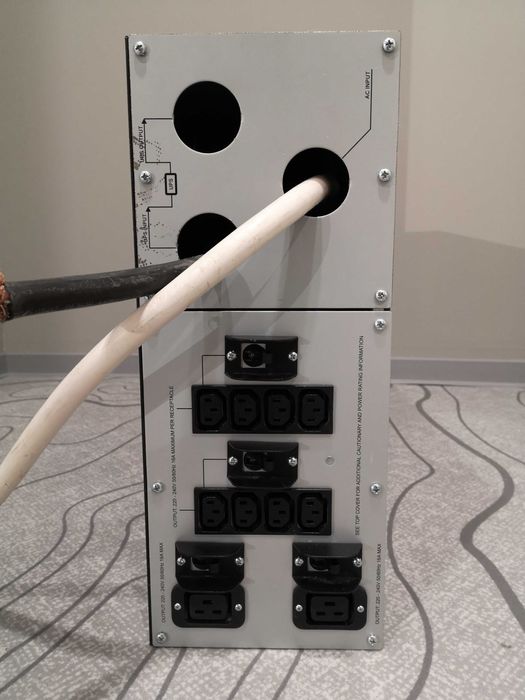

Number of power socket outlets 8 IEC 60320 C13
2 IEC 60320 C19

Protection type Circuit breaker

Efficiency 99 %

Conformance:

Product certifications CSA

GOST

Standards EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Environmental:

Ambient air temperature for operation -20…50 °C

Relative humidity 0…95 %

Operating altitude 0...15000 ft

Ambient air temperature for storage -40…65 °C

Storage Relative Humidity 0…95 %

Storage altitude 0…15240 m
