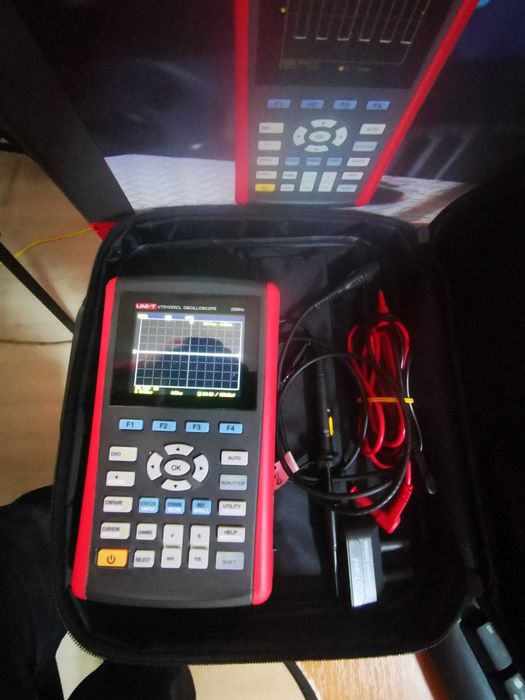

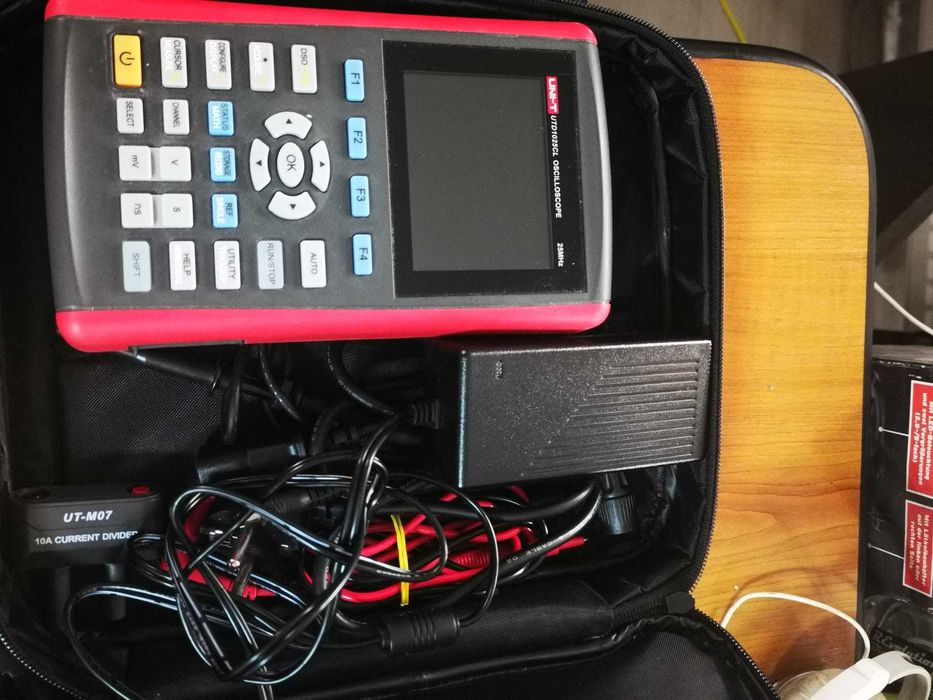

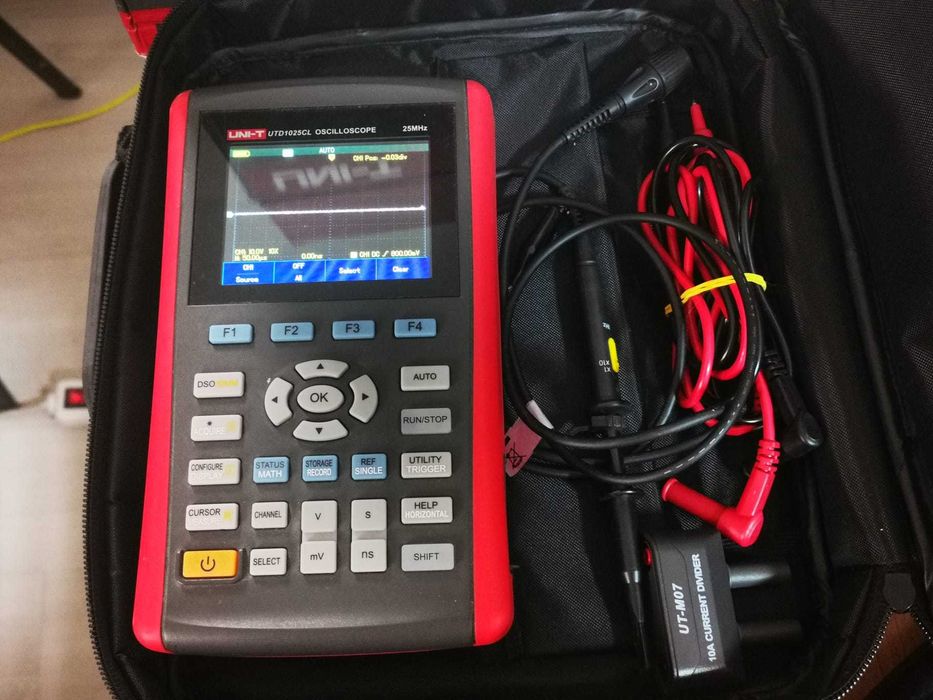

Vand osciloscop UNI-T UTD1000L
Descriere
- 1 canal
- Banda de frecventa: 25 MHz
- Rata de eşantionare: 200 MSa / s
- Timp de crestere: = 14 ns
- Memorare: 12 kpts
- Sensibilitate pe verticala: 5 mV / div ~ 20V / div
- Baza de timp: 10ns / div ~ 50s / div
- Moduri sincronizare: Edge, puls, video, Slope
- Interfata: miniUSB

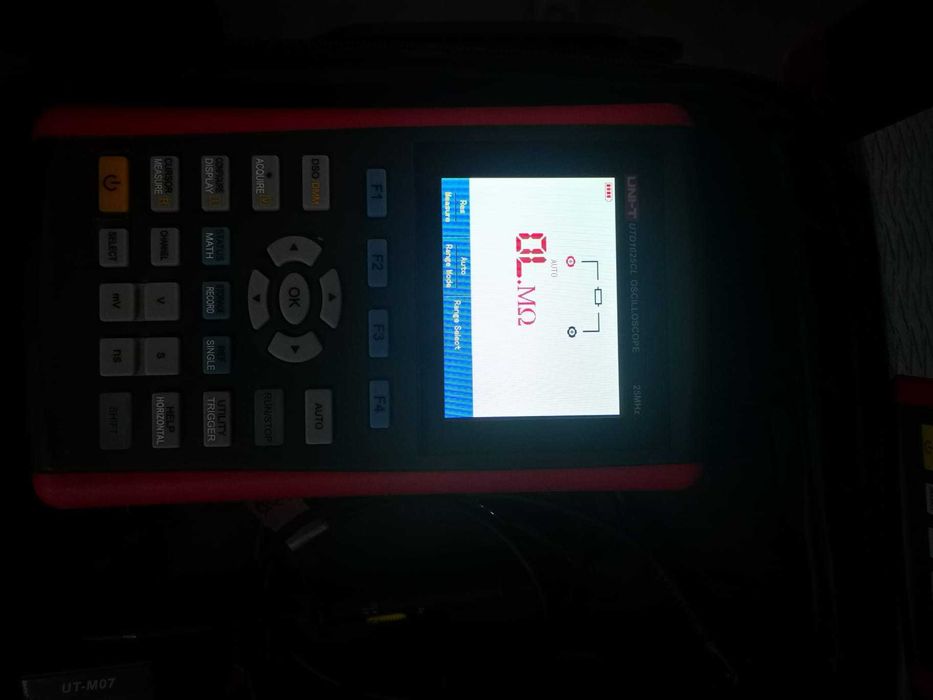

Specificatii multimetru:

- Tensiune DC: 400.0mV / 4.000V / 40.00V / 400.0V; ± (1% + 5)
- Tensiune AC: 400.0mV / 4.000V / 40.00V / 400.0V; ± (1,2% + 5)
- Curent DC: 400.0μA / 4000μA; ± (1,2% + 5)
- Curent AC : 400.0μA / 4000μA; ± (2% + 5)
- Rezistenţa:400 ohm /4 kohm /40 kohm /400 kohm /4 Mohm; ± (1,2% + 5) / 40 Mohm; ± (1,5% + 5)
- Capacitate: 51.2 nF / 512 nF / 5.12 μF / 51.20 μF / 100μF; ± (3% + 5)
- Alimentare: baterie litiu 7.4V 3600mAh sau prin adaptor AC 100 ~ 240V 50 / 60Hz, ieşire 9V/4A

Ecran LCD color 3.5 inch, 320 x 240
Greutate: 0.9 kg

Dimensiuni: 199 x 118 x 49 mm
