Osciloscop Hantek 1008c 8 canale !
Aparatul este dedicat pentru utilizare in domeniul auto
osciloscop cu 8 canale, 2.4MSa/s real time.
*12 biti rezolutie verticala, functie analiza spectrum
Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
Senzori : debitmetru , axa cu came, arbore cotit, distribuitor , senzor lambda , clapeta acceleratie
Mai mult de 20 de tipuri de testare automata , are interfata similara cu osciloscopul benchtop, usor de folosit
Model: Hantek1008C
Vertical
Analog Channel: 8
Input Impedance: Resistance: 1M
Input Sensitivity: 10mV/div to 5V/div
Input Coupling: DC
Resolution: 12 bits
Horizontal
Memory Depth: 4K
Max. Input: 400V (DC+AC Peak)
Real-Time Sampling Rate: 2.4MSa/s
Time Base Range: 1ns/div to 20000s/div(1-2-5 sequences)
Time Base Precision: ¡ 50ppm
Trigger

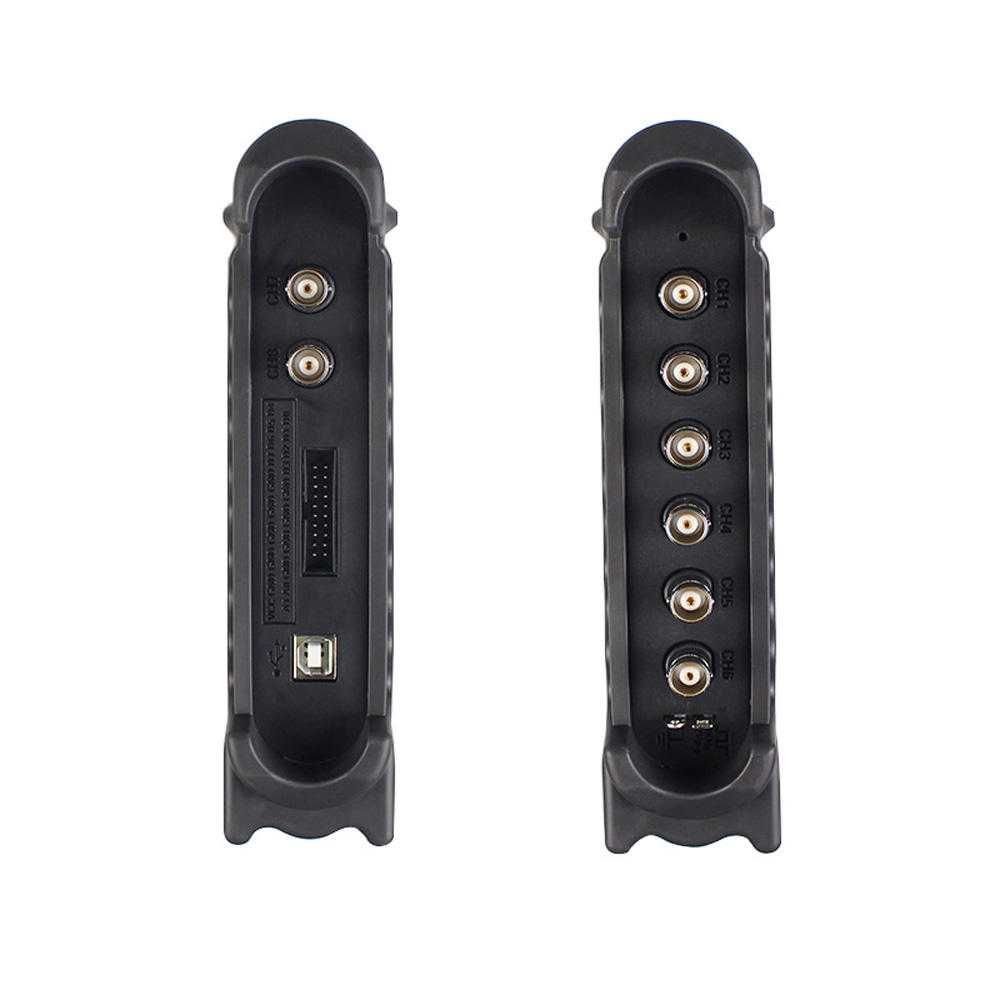

Source: CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8
Mode: Edge
X-Y Mode
X-Axis Input: CH1
Y-Axis Input: CH2
Cursors and Measurement
Voltage Measurement: Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot
Time Measurement: Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement: Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process: +,- , x,¡, FFT, Invert
Voltage Range:
10mV to 5V/div at x 1 probe
100mV to 50V/div at x 10 probe
10V to 5000V/div at x 1000 probe
100V to 50000V/div at x 10000 probe
200mV to 100V/div at 20:1
Current Range :
100mA to 50.0A/div at CC65(20A)
1000mA to 500.0A/div at CC65(65A)
1A to 100.0A/div at CC650(60A)
10A to 1000.0A/div at CC650(650A)
1A to 200.0A/div at CC1100(100A)
10A to 2000.0A/div at CC1100(1100A)
Cursor: Time/frequency difference, voltage difference
FFT: Rectangular, Hanning, Hamming, Blackman Window
Math: Addition, subtraction, multiplication, division
Note:
Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7

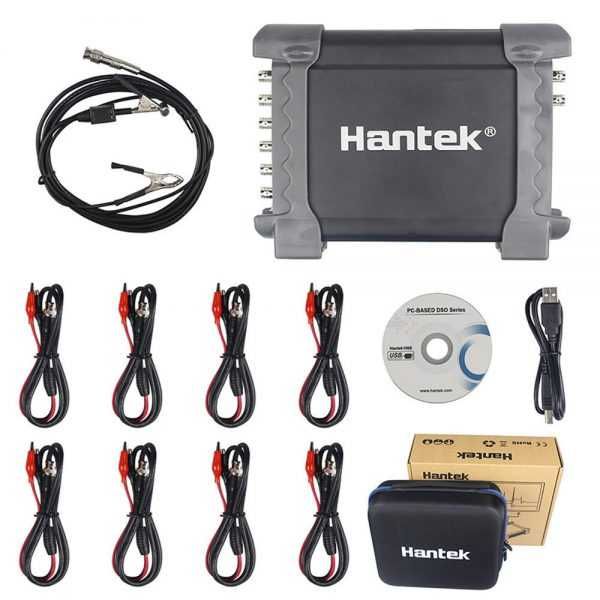

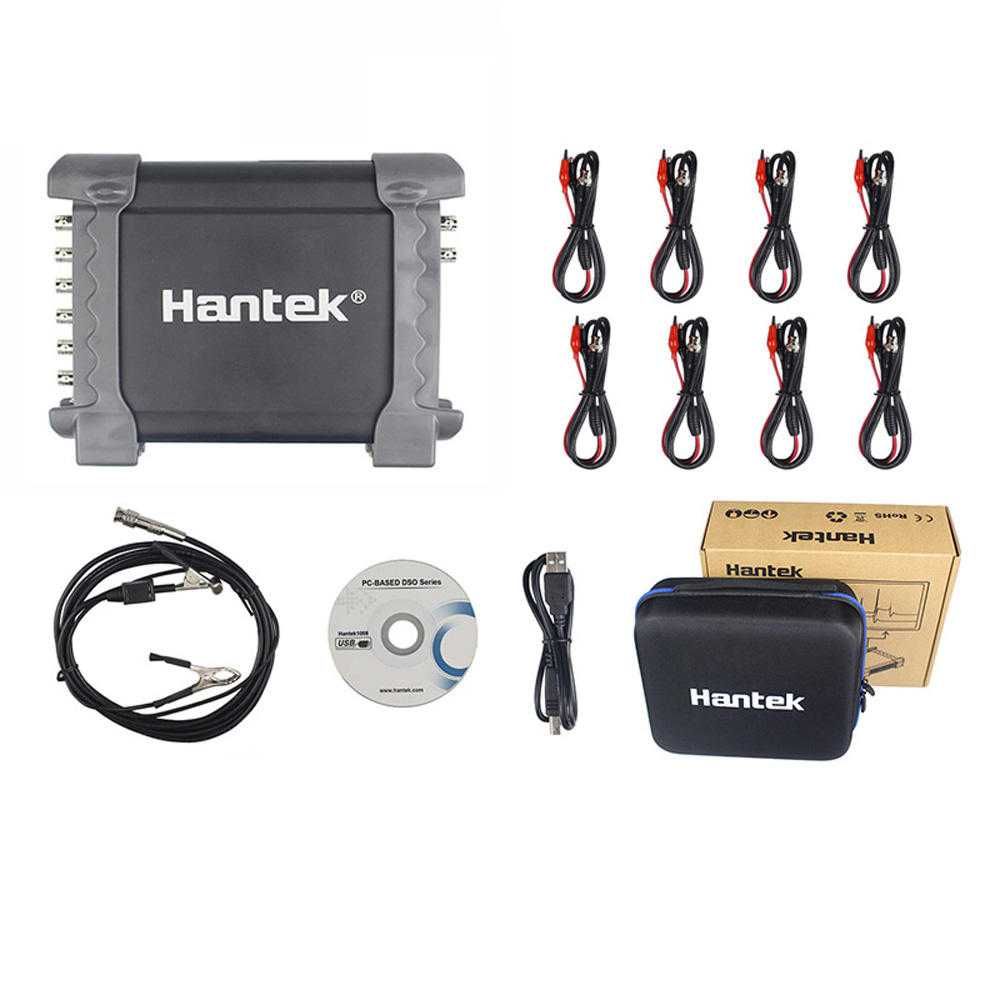

Pachetul contine:
1 x 1008C DAQ oscilloscope

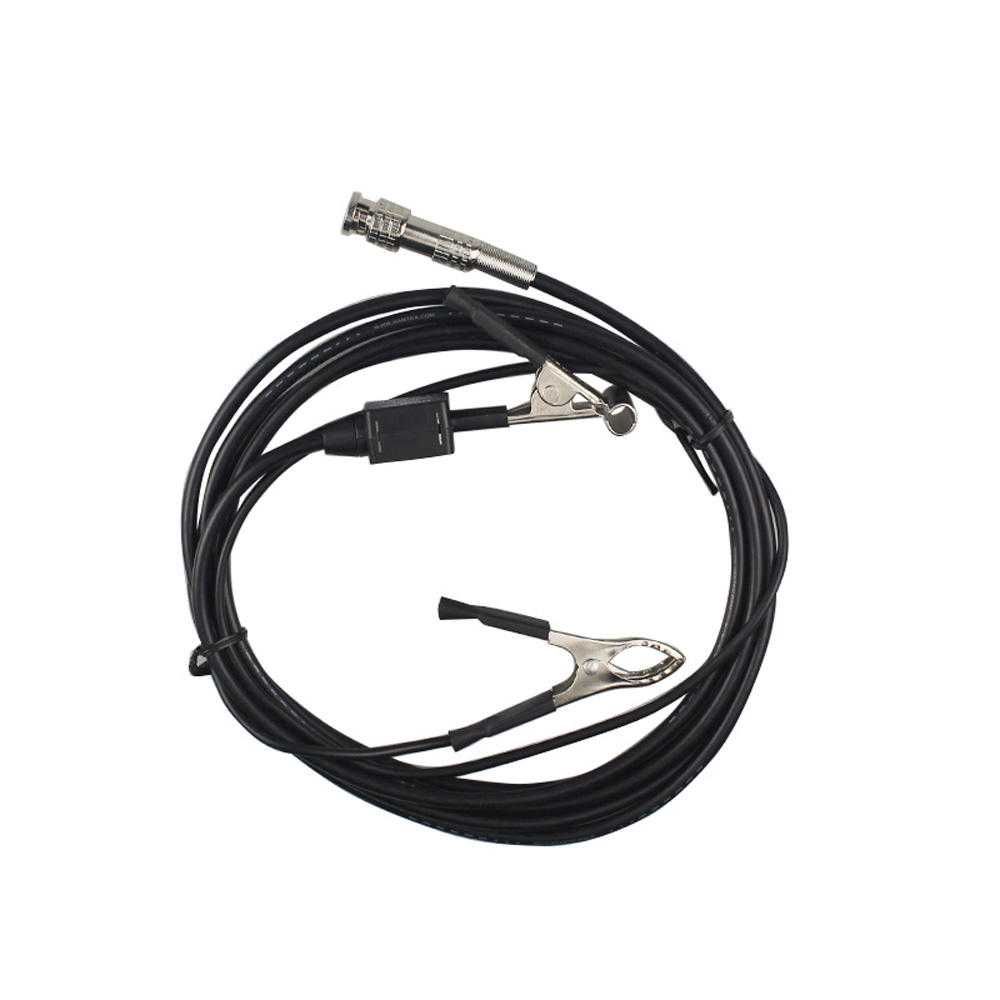

1 x Auto-probe
4 x Crocodile proba/cablu
4 x conector BNC
1 x cablu USB
1 x CD (driver etc.) 1 x Auto-probe instruction
* Daca achizitionati acest produs , puteti opta si pt A.Data 2014 – 3.40 – 55 lei ; A.Data 2014 – 3.45 – 89 lei ; Tecdoc 2015 - 99 lei
