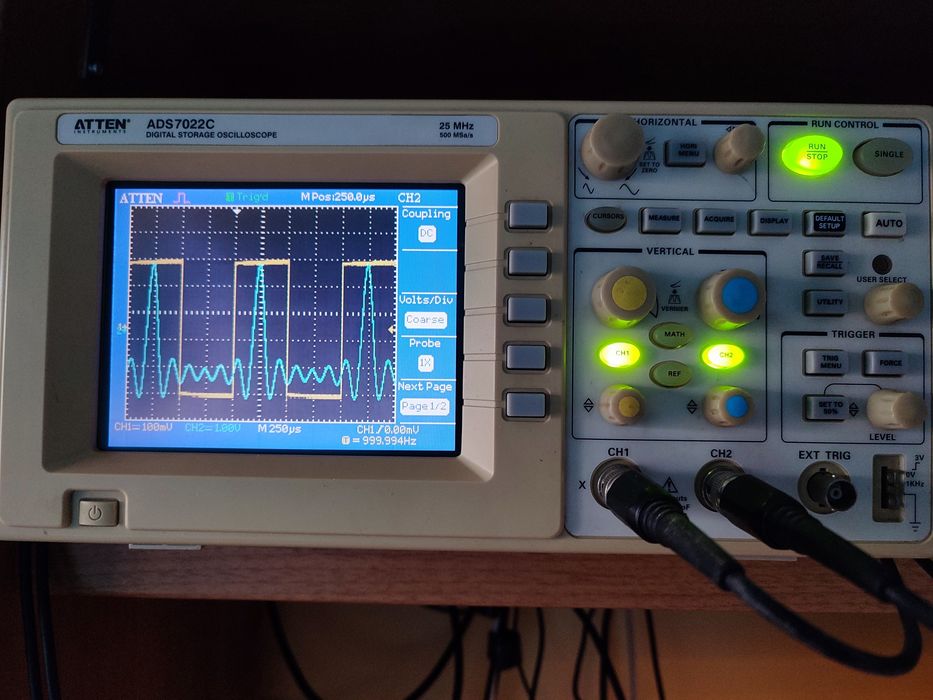

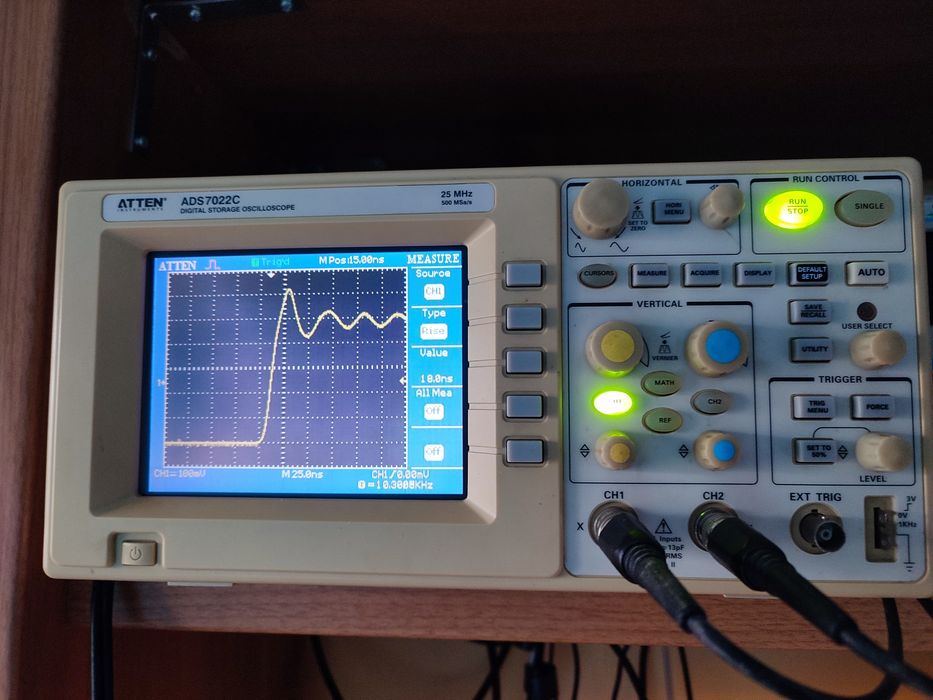

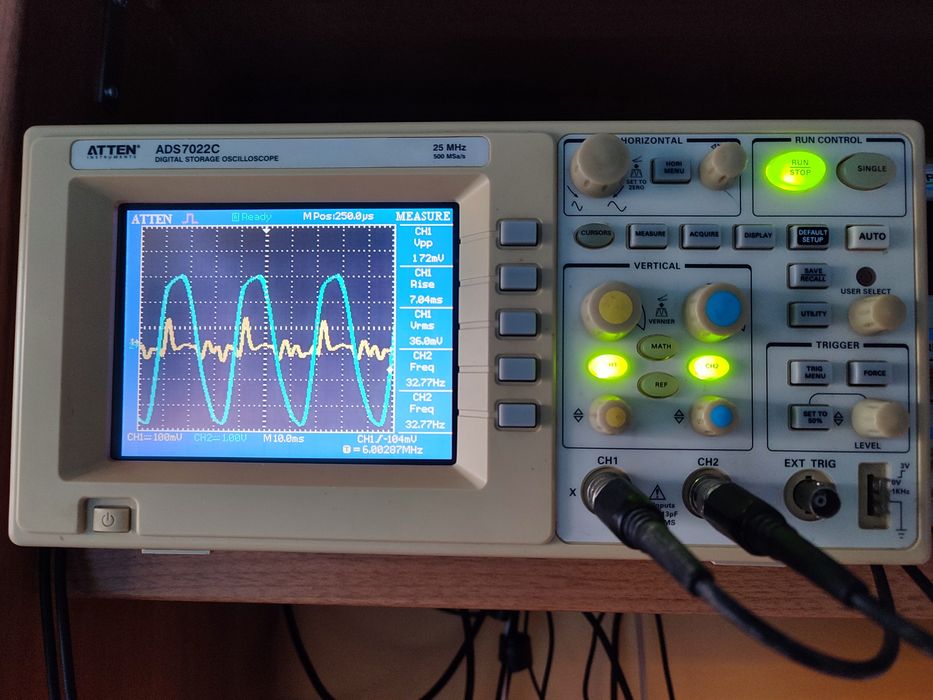

Osciloscop ATTEN ADS7022C;
Pret negociabil;
Trimit in tara;
Vine cu sonde, manual , etc;
Daca nu raspund pe OLX va rog sa ma contactati

Manufacturer :ATTEN

Type of oscilloscope : digital

Number of channels : 2

Band : 5Hz...25MHz

Sampling : 50 Gsps (in equivalent time), 500 Msps (in real time)

Memory record length : 4kpts/ch

Kind of display used : colour, LCD 5,7"

Trigger modes : automatic, normal, single

Trigger : falling-edge, impulse width, rising-edge, video signal

Trigger source : CH1, CH2, external signal, supply voltage source

Time base : 25n...50s/div

Vertical resolution : 8bit

Input coupling : AC, DC, GND

Trigger coupling : AC, DC, highpass, lowpass

Horizontal accuracy : ±0.01%

Vertical accuracy : ±3%

Interface : USB

Rise time : 14ns

Input impedance : 1MΩ/13pF

Input sensitivity : 2mV/div

Dimensions : 150x300x290mm

Display resolution : 320x240

Measuring instrument features
2 waveforms recording
automatic calibration
automatic measurement of many parameters
contrast adjustment
coursor measurement: coursor value, difference between coursors
digital phosphorescence with adjustable time
displaying methods: point and vector types
Holdoff function: 100ns...1,5s
integrated FFT with algorithm selection: Hamming, Hanning, Blackman, Rectangular
mathematical functions: addition, subtraction, multiplification, division and signal phase reversing
memory for 10 setting configurations
value averaging function with maximal 256 runs
X-Y operation mode
Standard equipment
USB cable
voltage probes with 1:1/10:1 divider x2
