Postat 27 ianuarie 2026
OrangePi 4A + carcasa 4gb wifi BT 5.0 M2 NVMe (nu RaspberryPi)
340 lei
Persoana fizica
Stare: Nou
Livrare cu verificare
Descriere

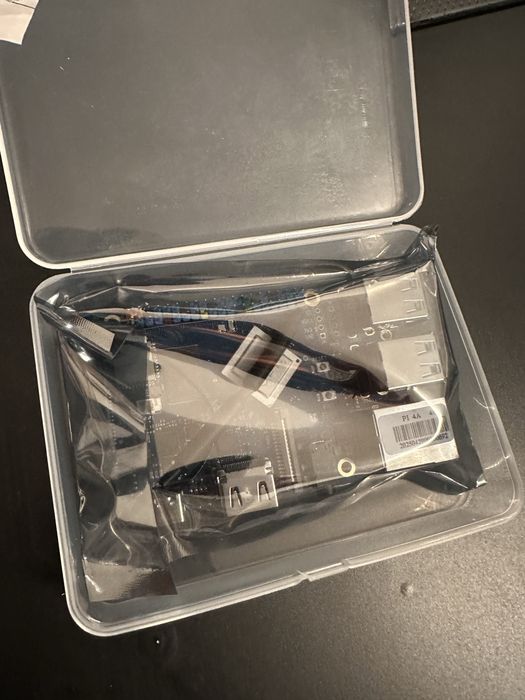

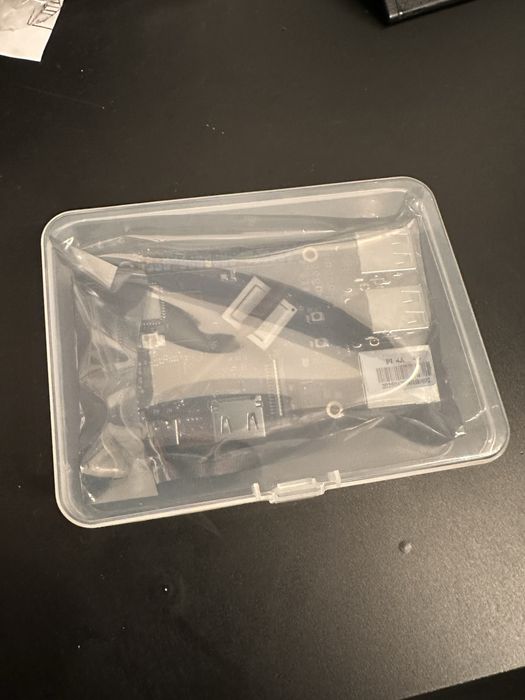

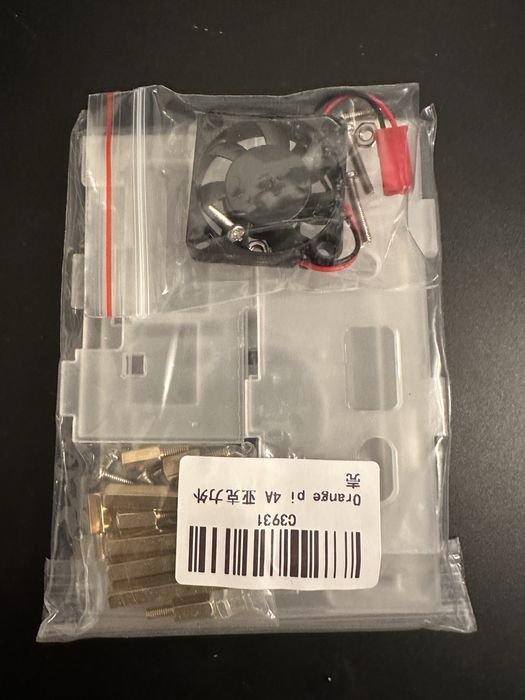

OrangePi 4GB + case transparent
Este nou, punga antistatica eate sigilata!
Nu sunt interesat de schimburi
Processor T527, 8-core ARM CortexTM-A55 1.8GHz
HIFI4 Audio DSP 600MHz
RISC-V 200MHz
GPU:G57 MC1
VPU:H.265 4K-60fps decoding, H.264 4K-60fps decoding, H.264 4K-25fps encoding
NPU:2TOPS
Memory LPDDR4/4X: 2GB/4GB (optional)
Storage eMMC module (optional):16GB/32GB/64GB/128GB (optional)
SPI flash:128Mb(default)、256Mb (optional)
M.2 M-KEY socket:PCIe2.0 NVMe SSD
uSD card slot:supports up to 128GB uSD card
Wi-Fi + Bluetooth Wi-Fi + Bluetooth 2-in-1 module
Wi-Fi 5.0+BT 5.0, BLE
Ethernet 10/100/1000Mbps Ethernet
Display 1* HDMI TX 2.0 interface up to 4K 60fps
1* 4-lane MIPI-DSI
1* eDP1.3
Camera 1* 2-lane MIPI-CSI camera interface
1* 4-lane MIPI-CSI camera interface
USB 1*USB Type-A 2.0
3*USB Type-A 2.0 HOST
1*USB 2.0 HOST, reserved for customer expansion
ADC Reserved 4Pin connector, can access 2-lane ADC, maximum input 1.8V
Audio 3.5mm headphone jack audio input/output
Buttons 1* BOOT,1*RESET,1 *PWR ON
RTC 2Pin spare battery connector (Pitch=1.27mm)
40Pin 40Pin function expansion interface, supports the following interface types:
GPIO、UART、I2C、SPI、PWM
Debug 3Pin debug serial port
Power supply Type-C 5V 5A DCIN
Supported OS Ubuntu、Debian、Android13
PCB 89mm*56mm*1.6mm
Weight 52g
Este nou, punga antistatica eate sigilata!
Nu sunt interesat de schimburi
Processor T527, 8-core ARM CortexTM-A55 1.8GHz
HIFI4 Audio DSP 600MHz
RISC-V 200MHz
GPU:G57 MC1
VPU:H.265 4K-60fps decoding, H.264 4K-60fps decoding, H.264 4K-25fps encoding
NPU:2TOPS
Memory LPDDR4/4X: 2GB/4GB (optional)
Storage eMMC module (optional):16GB/32GB/64GB/128GB (optional)
SPI flash:128Mb(default)、256Mb (optional)
M.2 M-KEY socket:PCIe2.0 NVMe SSD
uSD card slot:supports up to 128GB uSD card
Wi-Fi + Bluetooth Wi-Fi + Bluetooth 2-in-1 module
Wi-Fi 5.0+BT 5.0, BLE
Ethernet 10/100/1000Mbps Ethernet
Display 1* HDMI TX 2.0 interface up to 4K 60fps
1* 4-lane MIPI-DSI
1* eDP1.3
Camera 1* 2-lane MIPI-CSI camera interface
1* 4-lane MIPI-CSI camera interface
USB 1*USB Type-A 2.0
3*USB Type-A 2.0 HOST
1*USB 2.0 HOST, reserved for customer expansion
ADC Reserved 4Pin connector, can access 2-lane ADC, maximum input 1.8V
Audio 3.5mm headphone jack audio input/output
Buttons 1* BOOT,1*RESET,1 *PWR ON
RTC 2Pin spare battery connector (Pitch=1.27mm)
40Pin 40Pin function expansion interface, supports the following interface types:
GPIO、UART、I2C、SPI、PWM
Debug 3Pin debug serial port
Power supply Type-C 5V 5A DCIN
Supported OS Ubuntu、Debian、Android13
PCB 89mm*56mm*1.6mm
Weight 52g
