NVR 16 canale, 12MP, Hikvision DS-7716NI-I4/16P(B), 16 Tb. stocare.

Descriere produs
DS-7716NI-I4/16P(B) beneficiaza de 16 canale si poate inregistra simultan cu redarea live, la o rezolutie de pana la 12MP.

Poate reda live in urmatorul mod:

2 canale la 12MP cu 20fps
4 canale la 8MP cu 25fps
8 canale la 4MP cu 30fps
16 canale la 1080p cu 30fps

NVR-ul suporta alimentarea celor 16 camere de supraveghere prin PoE, astfel curentul si datele se vor transmite printr-un singur cablu, reducand timpul instalarii.

Puterea maxima a switch-ului PoE integrat in NVR este de 200W.

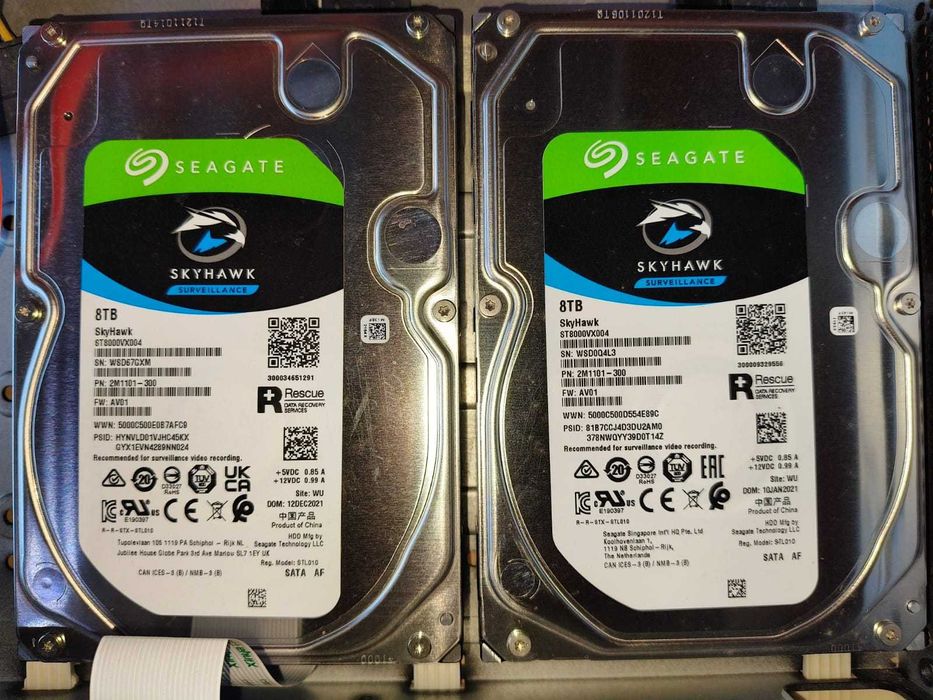

De asemenea, stocarea imaginilor se realizeaza pe Hard Disk, deoarece NVR-ul dispune de 4 sloturi pentru acesta. Capacitatea maxima acceptat este de pana la 10TB/slot.

Video and Audio
IP Video Input
16-ch
Outgoing Bandwidth
256 Mbps
VGA Output
HDMI,VGA
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI 1 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode
HDMI1/VGA simultaneous output, HDMI2/VGA independent output
Incoming Bandwidth
160 Mbps
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Dual-Stream Recording
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726
Decoding Format
H.265+/H.265/H.264+/H.264/MPEG4
Decoding Capability
2-ch 12 MP (20 fps)/4-ch 8 MP (25 fps)/8-ch 4 MP (30 fps)/16-ch 1080p (30 fps)
Synchronous Playback
16-ch
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
Network
Camera Access Protocol
ONVIF(Version 2.5), RTSP
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Remote Connection
128
Network Interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface
16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
Power
≤ 200 W
Standard
IEEE 802.3 af/at
Auxiliary Interface
eSATA
1 eSATA interface (optional)
SATA
4 SATA interfaces for 4HDDs
Capacity
Up to 16 TB capacity for each disk
Serial Interface
1 RS-485 (half-duplex), 1 RS-232
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out
16/4 (16/8 optional)
General
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 20 W (without HDD and PoE off)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Chassis
19-inch rack-mounted 1.5U chassis
Dimension (W × D × H)
440 × 387 × 75 mm ( 17.3"× 15.2" × 3.0")
≤ 5 kg (11 lb) (without HDD)
Certification
FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
